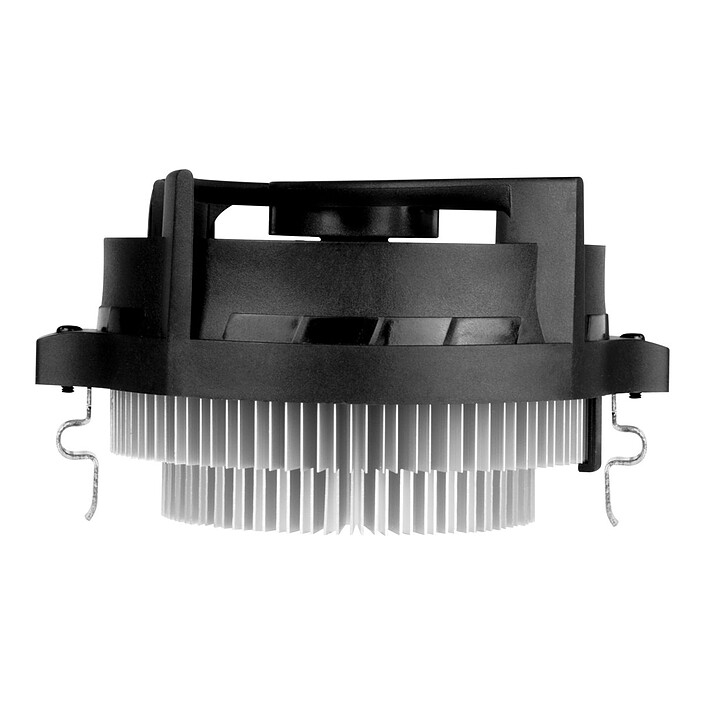

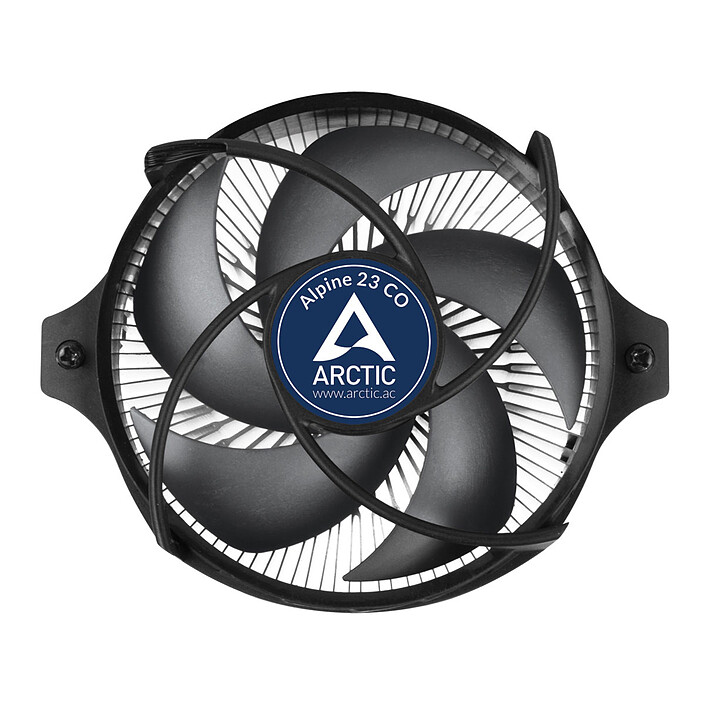

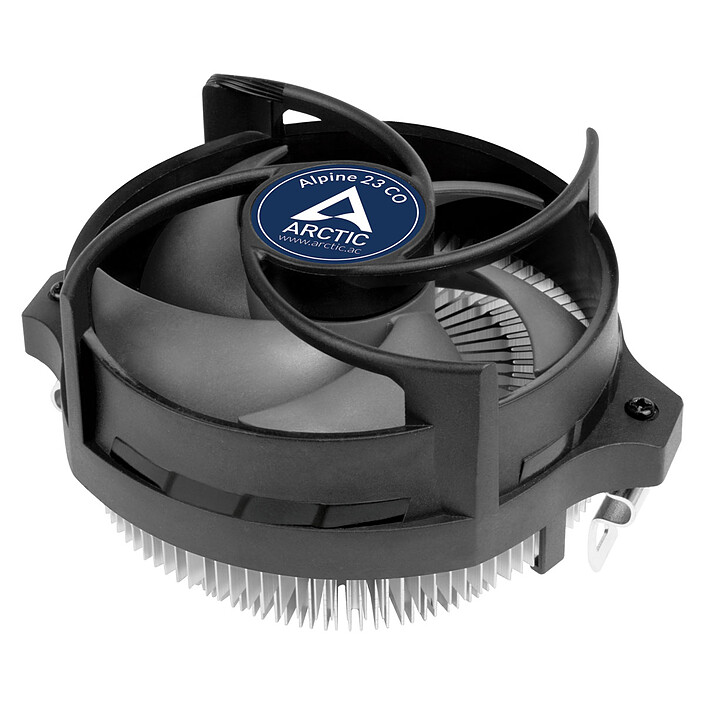

Arctic Alpine 23 CO

Compact AMD CPU-Cooler for continuous operation

Pictures may differ from actual products

The Arctic Alpine 23 CO is a compact 90 mm continuous top flow fan for AMD processors. With a good performance/price ratio, it is ideal for CPU cooling of multimedia and office configurations.

Compact AMD CPU-Cooler for continuous operation

Overview

Compact Continuous Flow Fan for AMD Processors

TheArctic Alpine 23 CO is a compact 90 mm continuous top flow fan for AMD processors. With a good performance/price ratio, it is ideal for cooling the processor in multimedia and office configurations. It is very easy to install and thermal paste (Arctic MX-2) is pre-applied to the contact surface of the finned aluminium heatsink.

"CO" stands for Continuous Operation and makes this heatsink suitable for computers that run continuously 24/7.The Japanese double ball bearing used in this "CO" type fan reduces friction during rotation considerably, is significantly less sensitive to dust and high temperatures, making it much more durable than other bearings.

Simple design, high efficiency

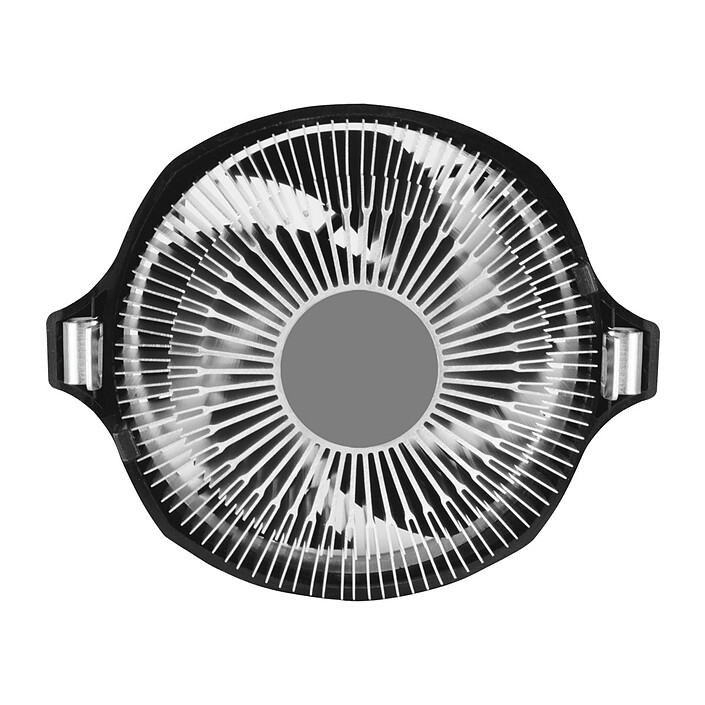

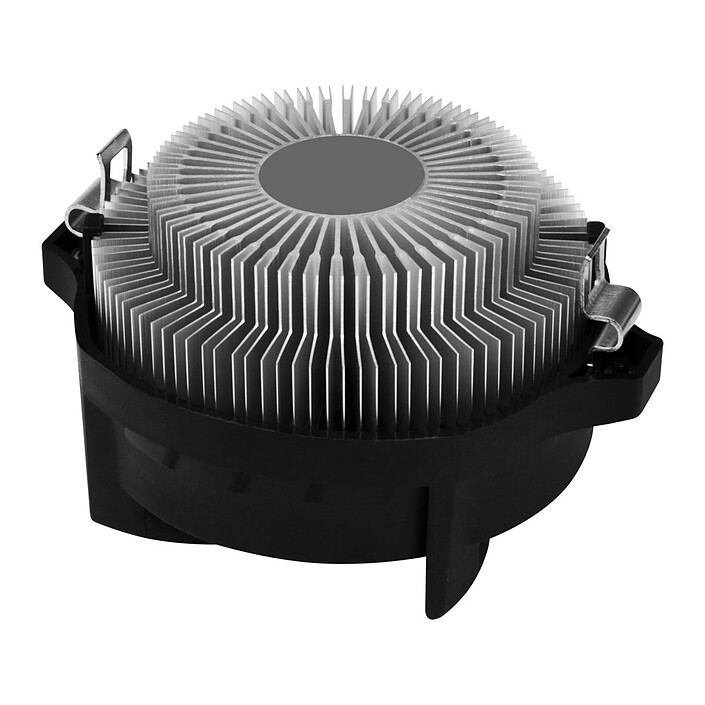

Simple but effective design for improved performance. The self-lubricating bearing system allows the fan to run quietly. The fine finned aluminium heatsink provides a large heat dissipation area to perfectly dissipate the heat emitted by the processor. The PWM fan has a wide operating range from 200 to 2700 rpm depending on the system requirements.

Specifications
Select your criteria

General information

Product name

Arctic Alpine 23 CO

Brand

Arctic

Model

ACALP00036A

Technical specifications

Use

Processor

Processor support

AMD AM4
AMD AM5

Color

Silver
Gray
Black

Luminous

No

Connector(s)

4-pin Female

Ball bearing

Yes

PWM

Yes

Heat Pipe

No

Adjustable speed

No

Cooling type

Ventirad (active)

Top Flow

Yes

Dual tower

No

Max CPU TDP

95 W

Fan diameter

90 mm

Max sound level

23 dB

Minimum rotation speed

200 RPM

Maximum rotation speed

2700 RPM

Material(s)

ABS (Plastic)
Aluminum

Use

Office
Multimedia
Server

AIO radiator compatibility

N/A

Dimensions

Low profile

Yes

Height (fan included)

65 mm

Width (fan included)

121 mm

Depth (fan included)

98.6 mm

Weight

275.5 g

Warranties

Commercial warranty

Seller 3 years

Legal warranty

See terms & conditions

Product referenced on 23 Aug 2021

Customer review
Global rating
8/10
based on 1 review Editorial and moderation guide
  • 0%
  • 100%
    1 review
  • 0%
  • 0%
  • 0%
  • by chinois02
    Posted on 22 Jul 2023
    Bought on 4 Jun 2023 from LDLC
    Number of reviews: 27 Average rating: 9

    compatible rtzen 7 5700x

    good compatibility with my processor and my motherboard. easy installation, thermal paste already in place. only complaint a little noisy when it goes up in the towers.

    Review automatically translated
