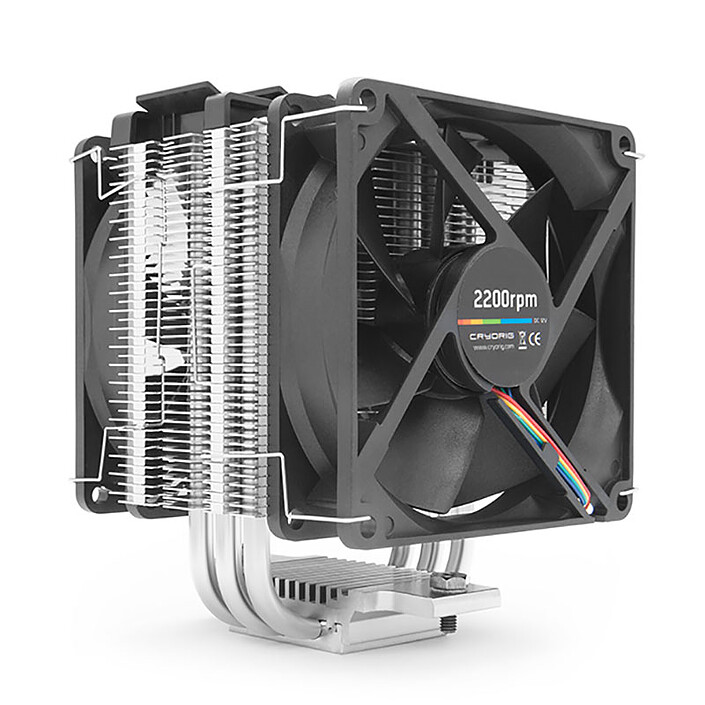

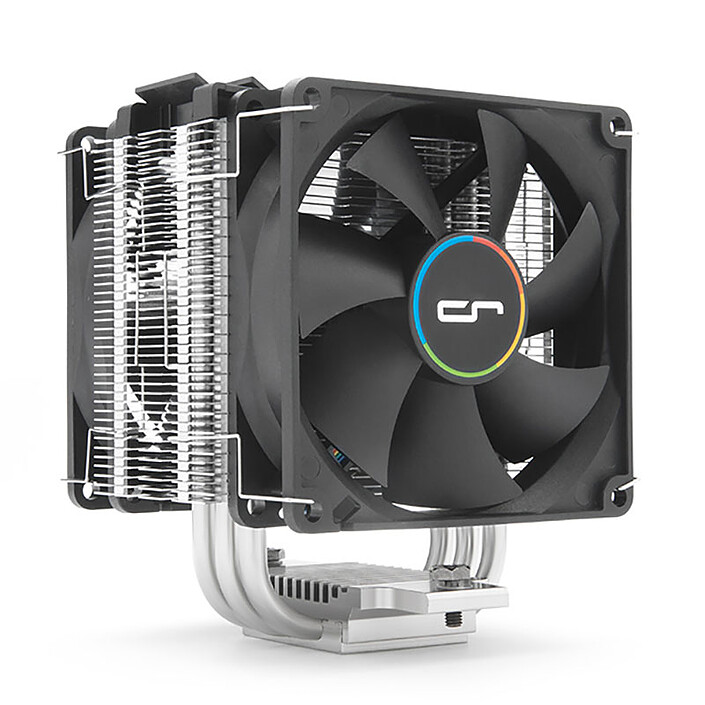

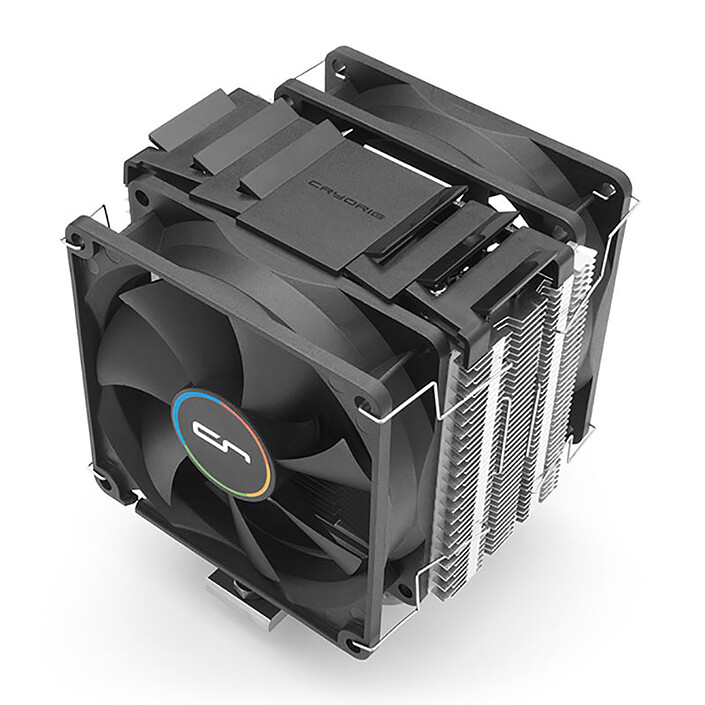

CRYORIG M9 Plus
Processor fan for Intel and AMD sockets
Last price 34€94
CRYORIG M9 Plus: the compact, lightweight and affordable dual tower fan
With an overall height of 124.6mm, the M9 Plus is CRYORIG's most compact dual tower cooler. Designed with the same materials and cooling technology as all CRYORIG tower coolers, it's a no-compromise, high-quality model that gives you real performance. It is the ideal entry-level product for building a good gaming setup with the option of overclocking in mind.
High-performance entry-level ventirad
With an additional fan compared to the M9, the M9 Plus is more efficient. Its two fans align with your system fan to concentrate and remove heat. This fan therefore increases the overall efficiency of airflow throughout your system.
CRYORIG's M9 Plus, while an entry-level product, comes with a copper base plate that effectively diffuses heat across all of its heatpipes to significantly increase cooling efficiency.
The M9 Plus features CRYORIG's proprietary Jet Fin Acceleration System. By using a wider air inlet and a narrower air exhaust section on the fins, the hot air is compressed to move faster while exiting the radiator. The Jet Fin Acceleration System technology exhausts hot air from the system faster and more efficiently.
The CRYORIG M9 Plus has a specially designed width and length to comply with the "CPU Keep Out Zone" a design guideline set by both Intel and AMD. This zone placed around the CPU allows for a perfect fit without the risk of interference from RAM or a PCI-E card.
Key Features :
- AMD Socket: AM2/AM2+/AM3/AM3+/AM4/FM1/FM2/FM2+
- INTEL Socket: LGA 1150/1151/1155/1156
- TDP 130 W
- C1100 copper base (pure nickel-plated copper)
- 3 x 6 mm heat pipes
- 92 mm fan: 600~2200 ± 10% RPM, 26.4 dBA, air pressure 3.1 mmH20
- Maximum height of RAM: unlimited
- Dimensions: L. 98.4 x W. 102 x H. 124.6 mm
- Weight: 505 g (345 g without fan)
Select your criteria
General information |
Product name |
CRYORIG M9 Plus |
Brand |
CRYORIG | |
Model |
CR-M9PA | |
Technical specifications |
Use |
Processor |
Processor support |
AMD AM2 | |
| AMD AM2+ | ||
| AMD AM3 | ||
| AMD AM3+ | ||
| AMD AM4 | ||
| AMD FM1 | ||
| AMD FM2 | ||
| AMD FM2+ | ||
| Intel 1150 | ||
| Intel 1151 | ||
| Intel 1155 | ||
| Intel 1156 | ||
| Intel 1200 | ||
Color |
Black | |
Luminous |
No | |
Connector(s) |
4-pin Female | |
Ball bearing |
No | |
PWM |
No | |
Heat Pipe |
Yes | |
Adjustable speed |
No | |
Cooling type |
Ventirad (active) | |
Top Flow |
No | |
Dual tower |
Yes | |
Max CPU TDP |
120 W | |
Fan diameter |
92 mm | |
Max sound level |
26.4 dB | |
Minimum rotation speed |
600 RPM | |
Maximum rotation speed |
2200 RPM | |
Max airflow |
48.4 CFM | |
Material(s) |
Copper | |
| ABS (Plastic) | ||
| Aluminum | ||
Use |
Gamer | |
| Multimedia | ||
AIO radiator compatibility |
N/A | |
Dimensions |
Height (fan included) |
124.6 mm |
Width (fan included) |
98.4 mm | |
Depth (fan included) |
102 mm | |
Height |
124.6 mm | |
Weight |
505 g | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
Product referenced on 15 Nov 2019
For the moment, there are no customer reviews.Write a review
