CRYORIG H5 Ultimate
Processor fan for Intel and AMD sockets
Last price 69€95
Holy Moly!
Equivalent products suggestions:
Overview
CRYORIG

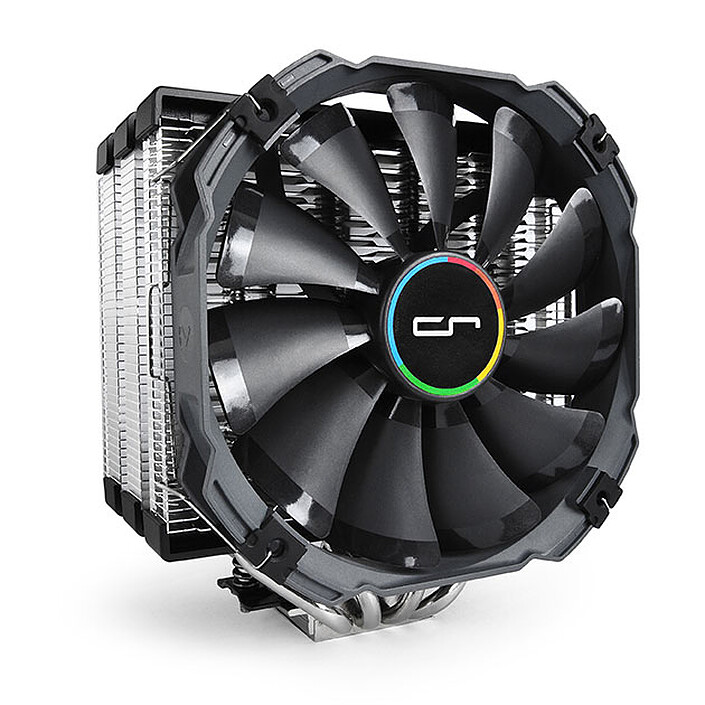

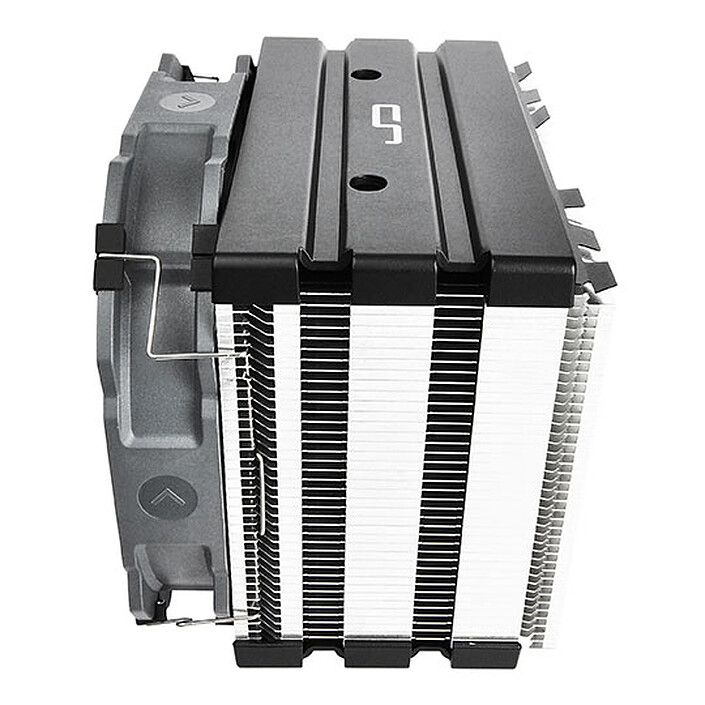

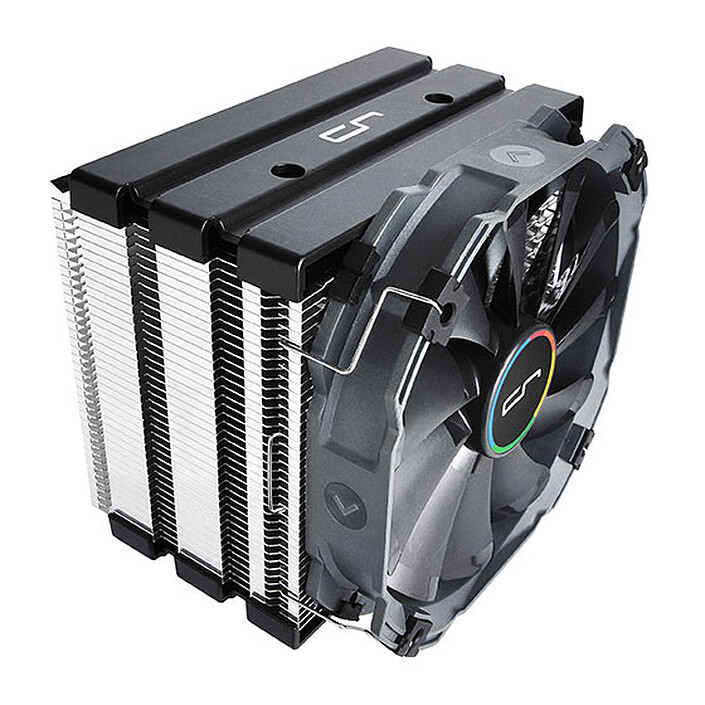

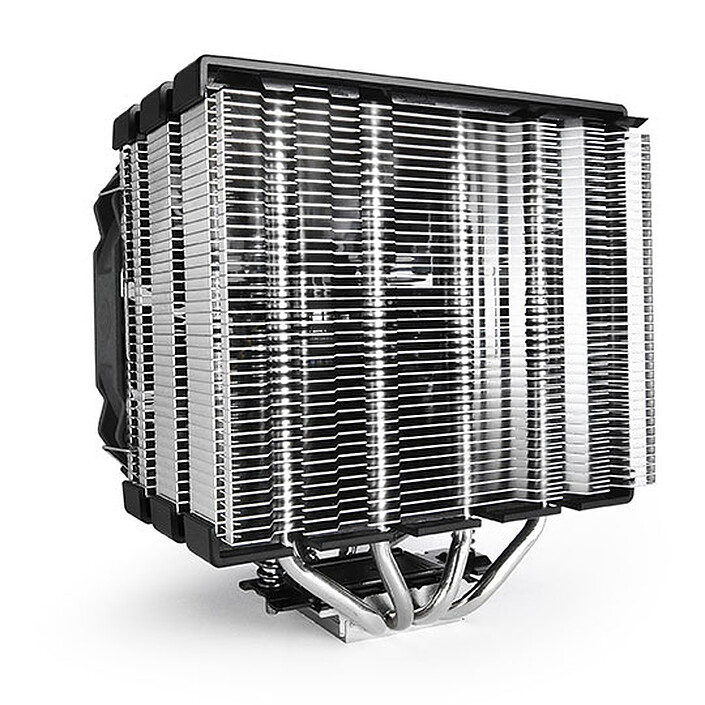

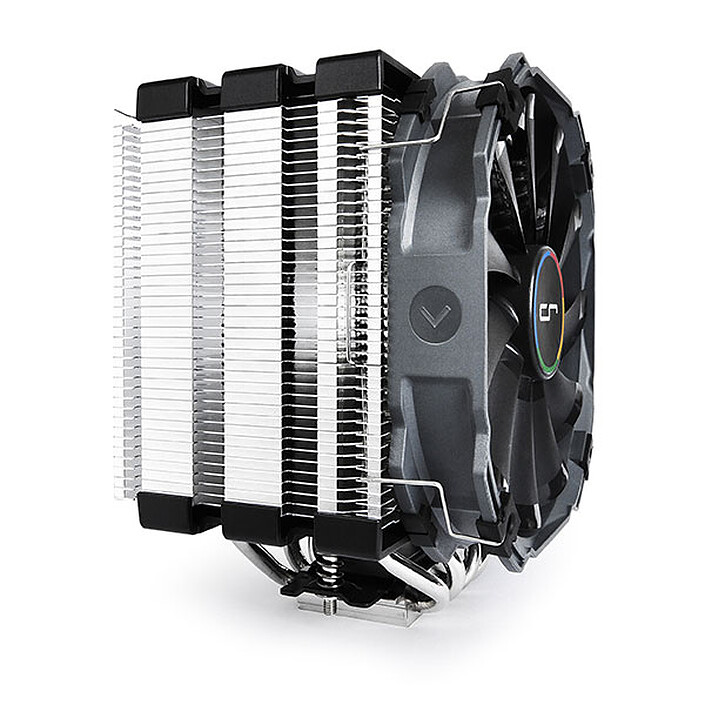

CRYORIG H5 Ultimate: Efficient and controlled dissipation
The CRYORIG H5 Ultimate cooler ensures optimal cooling of your CPU while remaining silent with only 23 dbA at full load. It can rely on four 6mm heatpipes that dissipate heat efficiently and quickly towards the fins. Equipped with a 140mm PWM XF140 fan, the H5 Ultimate will replace the fan provided with your processor or cool your overclocked gaming processor up to 160W TDP.
Powerful and silent fan
Featuring a 140mm diameter XF140 PWM fan with a high airflow of 76 CFM, the CRYORIG H5 Ultimate also has acoustics tuned to performance. That's why the XF140 140mm fan incorporates a low noise, high precision high precision low noise bearing (HPLN) and removable acoustic vibration absorbers that give the fan a perfect fit while suppressing vibration and noise.
By using a wider air inlet and a narrower air exhaust section on the fins, the hot air is compressed to move faster as it exits the radiator. The Jet Fin Acceleration System technology exhausts hot air from the system faster and more efficiently.
Key Features :
- Intel Socket: 1150 / 1151 / 1155 / 1156 / 2011 / 2011-3 / 2066
- AMD Socket: AM2 / AM2+ / AM3 / AM3+ / AM4 / FM1 / FM2 / FM2+
- TDP 160 W
- Multiseg quick release system
- C1100 copper base (pure nickel-plated copper)
- 4 x 6 mm heat pipes
- XF140 fan: 700~1300 RPM, 19~23 dBA, station pressure 1.44 mmH20
- Maximum RAM height: 35 mm
- Weight: 920 g (764 g without fan)
Specifications
Select your criteria
General information |
Product name |
CRYORIG H5 Ultimate |
Brand |
CRYORIG | |
Model |
CR-H5B | |
Technical specifications |
Use |
Processor |
Processor support |
AMD AM2 | |
| AMD AM2+ | ||
| AMD AM3 | ||
| AMD AM3+ | ||
| AMD AM4 | ||
| AMD FM1 | ||
| AMD FM2 | ||
| AMD FM2+ | ||
| Intel 1150 | ||
| Intel 1151 | ||
| Intel 1155 | ||
| Intel 1156 | ||
| Intel 2011 | ||
| Intel 2011-v3 | ||
| Intel 2066 | ||
| Intel 1200 | ||
Color |
Black | |
Luminous |
No | |
Connector(s) |
4-pin Female | |
Ball bearing |
Yes | |
PWM |
Yes | |
Heat Pipe |
Yes | |
Adjustable speed |
No | |
Cooling type |
Ventirad (active) | |
Top Flow |
No | |
Dual tower |
No | |
Max CPU TDP |
160 W | |
Fan diameter |
140 mm | |
Min sound level |
19 dB | |
Max sound level |
23 dB | |
Minimum rotation speed |
700 RPM | |
Maximum rotation speed |
1300 RPM | |
Max airflow |
76 CFM | |
Material(s) |
ABS (Plastic) | |
| Copper | ||
| Aluminum | ||
Use |
Gamer | |
| Multimedia | ||
AIO radiator compatibility |
N/A | |
Dimensions |
Height (fan included) |
160 mm |
Width (fan included) |
143 mm | |
Depth (fan included) |
110.9 mm | |
Weight |
920 g | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
