Effective
Small, quiet and efficient fan. Unfortunately, there's no information about the connection, which is 3-pin, much to my regret. As a result, there's no Pw for speed variation.
Review automatically translated

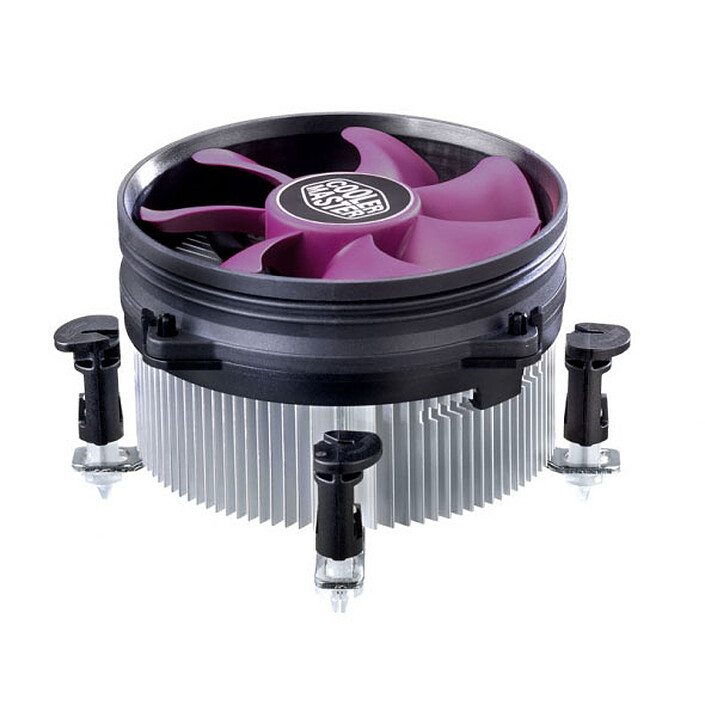

Cooler Master X Dream i117
Low Profile CPU air cooler for Intel socket
Pictures may differ from actual products

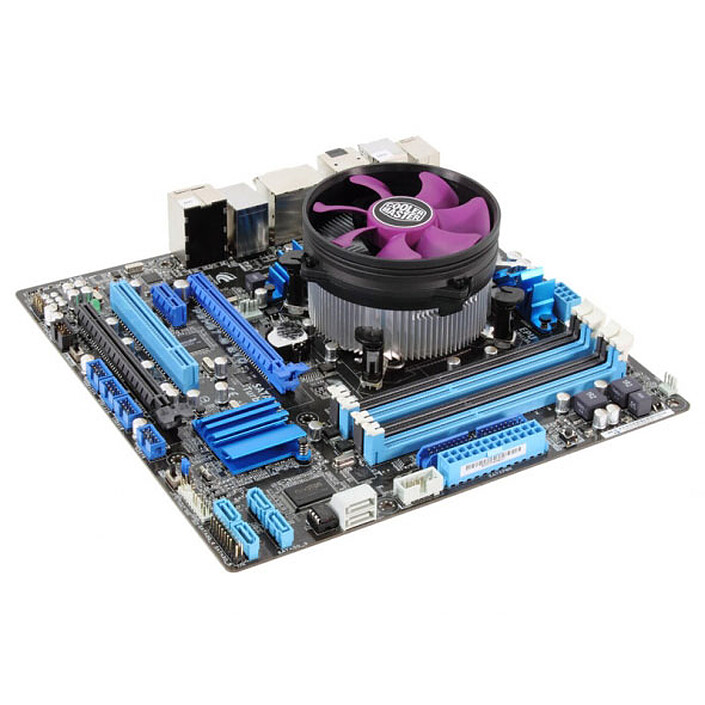

At only 60mm high, the Cooler Master X Dream i117 low profile fan is ideal for compact cases. The cross-shaped grille design centralises the airflow for better heat dissipation.
Low Profile CPU air cooler for Intel socket
Overview
At only 60mm high, the Cooler Master X Dream i117 low profile fan is ideal for a compact case. The cross-shaped grille design allows the airflow to be centralised for better heat dissipation.
Main features:
Main features:
- Compact "Low Profile" format with 60 mm height
- Made of aluminium for good thermal conductivity

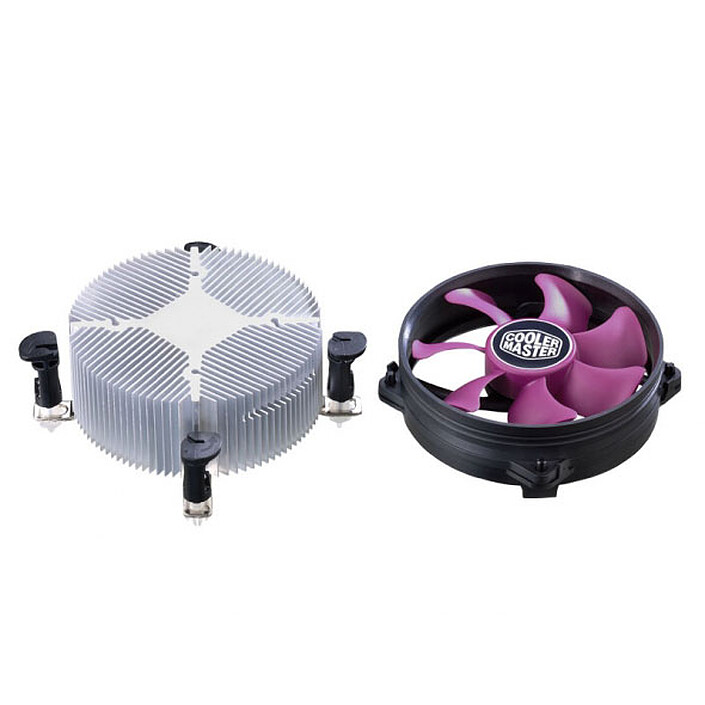

- Cross-shaped design centralises airflow for better heat dissipation

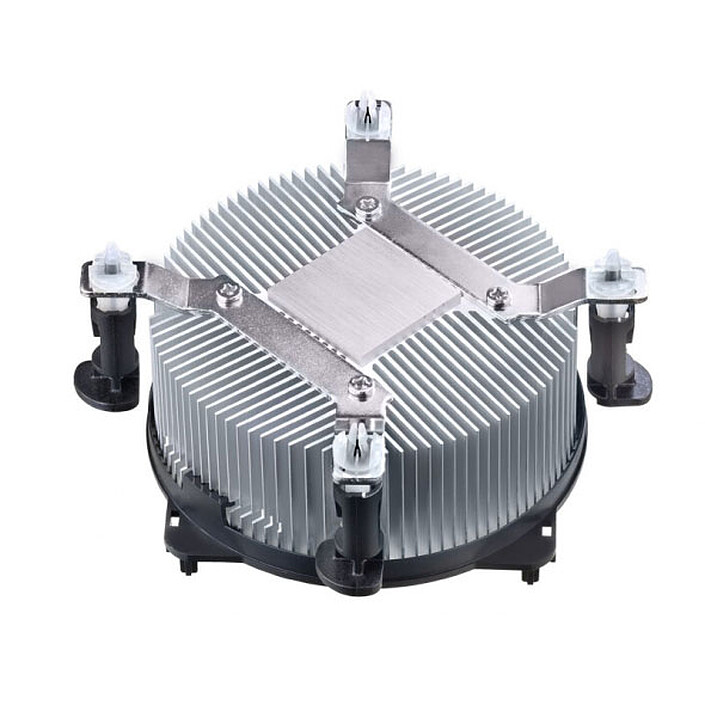

- Quick installation with push-in fasteners
- Quiet operation: Only 19 dBA at 1800 RPM (revolutions per minute)
Specifications
Select your criteria
General information |
Product name |
Cooler Master X Dream i117 |
Brand |
Cooler Master Ltd | |
Model |
RR-X117-18FP-R1 | |
Technical specifications |
Use |
Processor |
Processor support |
Intel 1155 | |
| Intel 1156 | ||
| Intel 775 | ||
| Intel 1150 | ||
| Intel 1151 | ||
| Intel 1200 | ||
Color |
Silver | |
| Mauve | ||
| Black | ||
Luminous |
No | |
Connector(s) |
3-pin Female | |
Ball bearing |
Yes | |
PWM |
No | |
Heat Pipe |
No | |
Adjustable speed |
No | |
Cooling type |
Ventirad (active) | |
Top Flow |
Yes | |
Dual tower |
No | |
Max CPU TDP |
70 W | |
Fan diameter |
95 mm | |
Max sound level |
19 dB | |
Maximum rotation speed |
1800 RPM | |
Max airflow |
36.5 CFM | |
Material(s) |
Aluminum | |
AIO radiator compatibility |
N/A | |
Dimensions |
Low profile |
Yes |
Height (fan included) |
64 mm | |
Width (fan included) |
112.2 mm | |
Depth (fan included) |
112.2 mm | |
Weight |
370 g | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
Product referenced on 12 Oct 2011
Customer reviews
-
55%12 reviews
-
18%4 reviews
-
5%1 review
-
0%
-
23%5 reviews
-
Number of reviews: 3 Average rating: 10
-
Number of reviews: 1 Average rating: 10
fan
very easy to install in place of my original fan and much quieter, thank you
Review automatically translated -
Number of reviews: 1 Average rating: 2
Does not mount on the motherboard

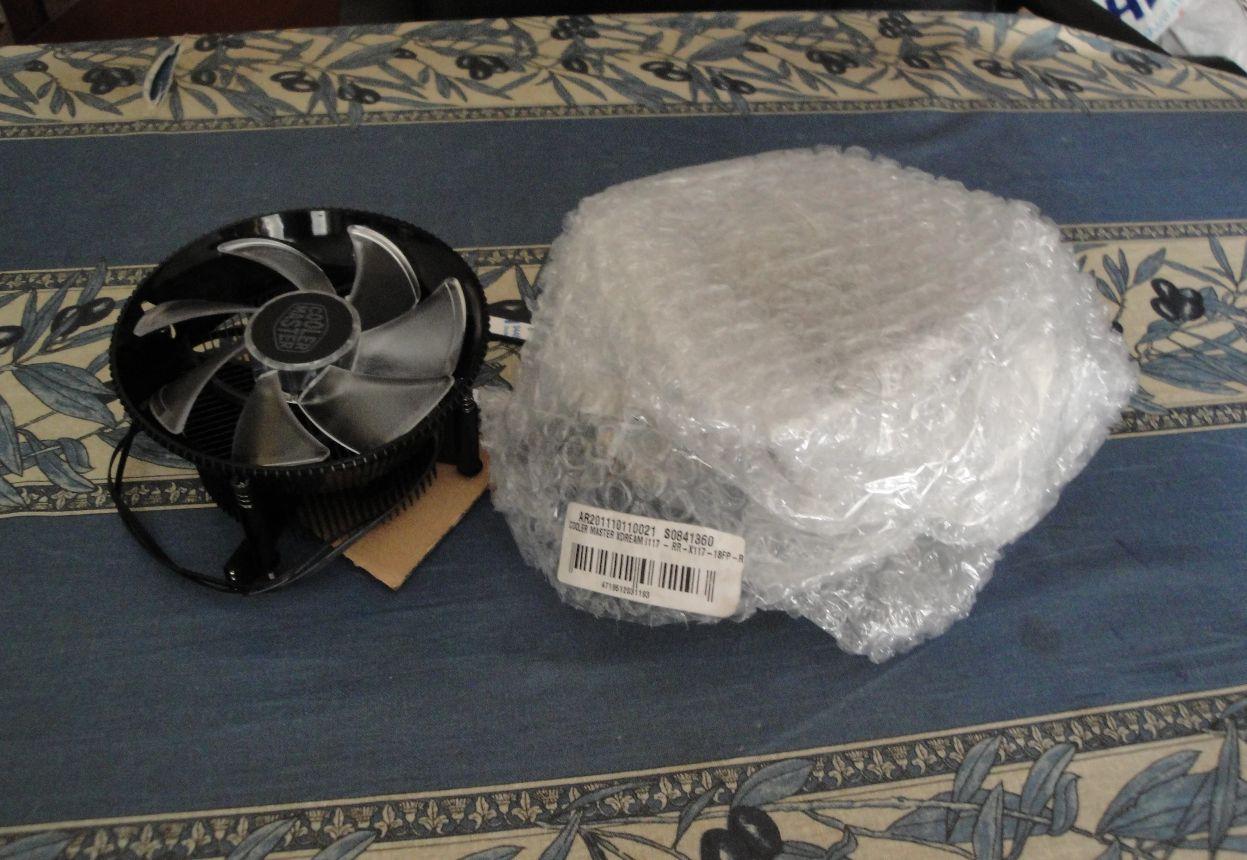

I have a CPU core2 Q8300 which is listed on the Intel site as having a LGA577 socket. The motherboard has 4 threads for 3mm screws. The fan lugs are 4mm when tightened to the maximum: it doesn't fit. I didn't try to hammer these tabs in. Should I have? If you have a motherboard like mine (see photo), try another fan.
Review automatically translated -
-
Number of reviews: 11 Average rating: 9
Good fridge
The Ventirad is better than the original Intel one, no problem to install on socket 1151 motherboard.
Review automatically translated -
Number of reviews: 1 Average rating: 10
Nominal
However, I regret that LDLC charges shipping costs for a delivery in one of their own shops
Review automatically translated
