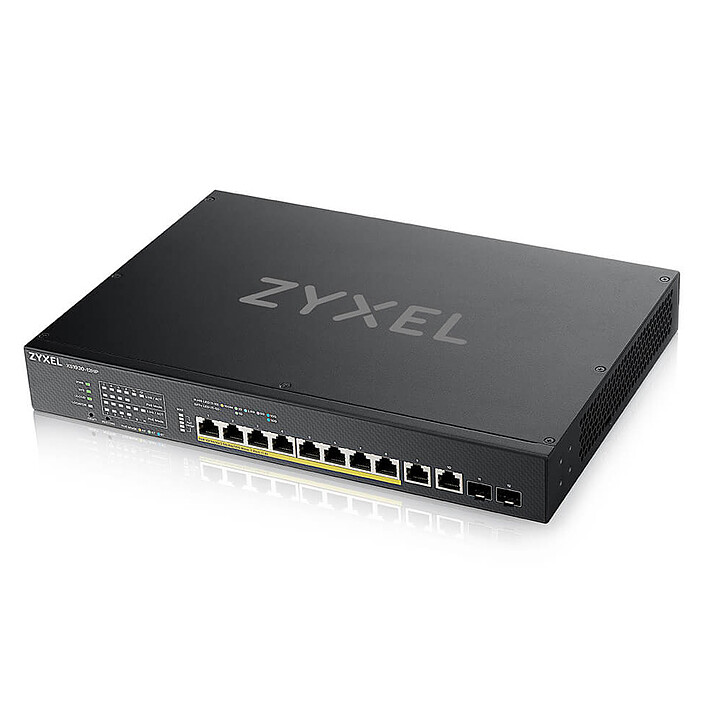

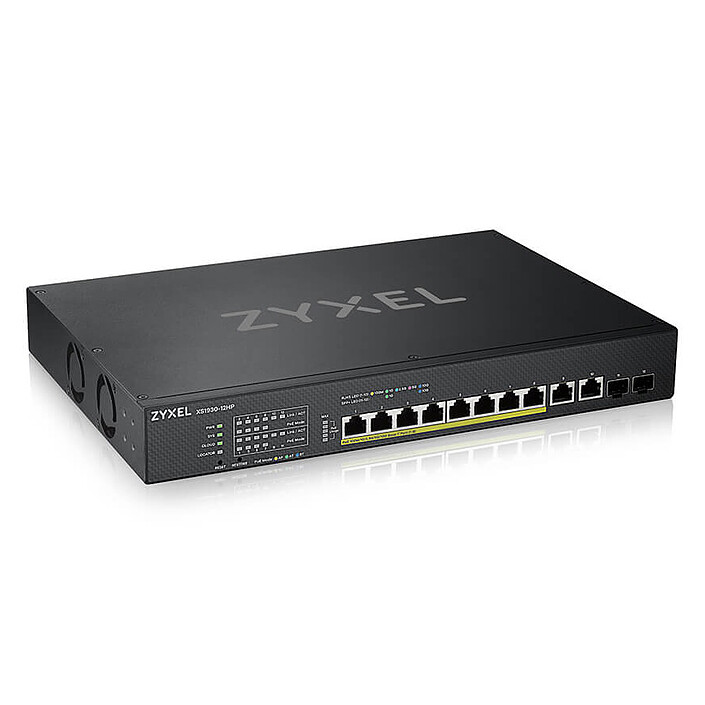

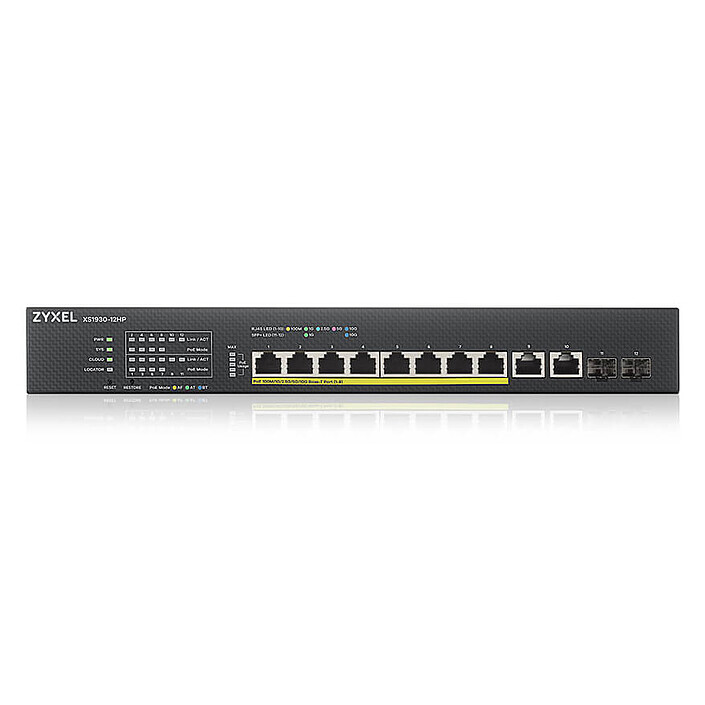

ZyXEL XS1930-12HP
Smart manageable switch 8 ports 10 Gbps PoE 2 ports 10 GbE 2 ports SFP
Pictures may differ from actual products
The Zyxel XS1930-12HP switch has 8 10 Gigabit PoE ports (60W) with a total budget of 375W and 4 10 Gbps uplinks with 2 SPF ports and 2 10 GbE ports to provide uplinks to the core network.
Smart manageable switch 8 ports 10 Gbps PoE 2 ports 10 GbE 2 ports SFP
Smart managed PoE++ 10 GbE switch and 4 x 10 Gbps uplinks
The Zyxel XS1930-12HP is equipped with 8 x 10 Gigabit PoE++ (60W) ports with a total budget of 375W and 4 x 10 Gbps uplinks with 2 x SPF+ ports and 2 x 10 GbE ports to provide uplinks to the core network. It also enables cloud management with Zyxel NebulaFlex technology while being autonomously manageable and its 10 Gbps connectivity allows it to fully exploit devices requiring higher connectivity than traditional Gigabit.
10 Gigabit Connectivity
Each of the XS1930's Multi-Gigabit ports supports 100M/1G/2.5G/5G/10G speeds to suit any network device. This means that 2.5G/5G compatible devices such as WiFi 6 (11ax) access points, servers and workstations can now operate at full speed, without being throttled to 1 Gigabit.
Measure performance
The XS1930 switch series is IEEE 802.3bz compliant for multi-gigabit transmission over existing infrastructure and offers up to 10 times the bandwidth without costly or disruptive upgrades. The switches are also equipped with a unique 5-colour LED feature that instantly indicates the operating port speed.
Choose the Management Mode
The XS1930 series partners with Zyxel NebulaFlex to allow you to switch from standalone mode to Cloud Nebula mode, Zyxel's license-free management platform, with a few clicks.
Key features:
- 8-port 10 GbE PoE++ switch + 4 10 Gbps uplinks (2 SFP+ and 2 10 GbE)
- PoE budget: 375 Watts
- Switching capacity: 240 Gbps
- IEEE 802.1D, IEEE 802.1w, IEEE 802.1s (Spanning Tree)
- MAC address table: 16 K
- IGMP snooping (v1, v2, v3)
- SNMP v1, v2c, v3
- RMON (1, 2, 3, 9)
- IPv6 compatible
- Compatible with SFP modules: SFP-1000T, SFP-BX1310-10-D, SFP-BX1490-10-D, SFP-LHX1310-40-D, SFP-LX-10-D, SFP-SX-D, SFP-ZX-80-D
- Compatible with SFP+ modules: SFP10G-SR, SFP10G-LR
- Compatible with Direct Attach cables: DAC10G-1M, DAC10G-3M
Select your criteria
General information |
Product name |
ZyXEL XS1930-12HP |
Brand |
Zyxel | |
Model |
XS1930-12HP-ZZ0101F | |
Technical specifications |
Number of ports |
8 |
Network standard(s) |
10 Gbps Gigabit Ethernet (10 GbE) | |
Number of GBIC ports |
2 | |
Number of SFP combo (RJ45/Fiber) ports |
2 | |
Rackable |
Yes | |
Manageable |
Yes | |
Administration level |
Level 2 | |
SNMP |
Yes | |
PoE (Power over Ethernet) |
Yes | |
PoE standard |
Ultra PoE / PoE++ (60W) | |
Number of PoE ports |
8 | |
Max. PoE budget |
375 W | |
IPv6 compatible |
Yes | |
Width |
330 mm | |
Depth |
230 mm | |
Height |
44 mm | |
Weight |
2.8 kg | |
Consumption |
493 W | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Zyxel products
Product referenced on 18 Nov 2020
