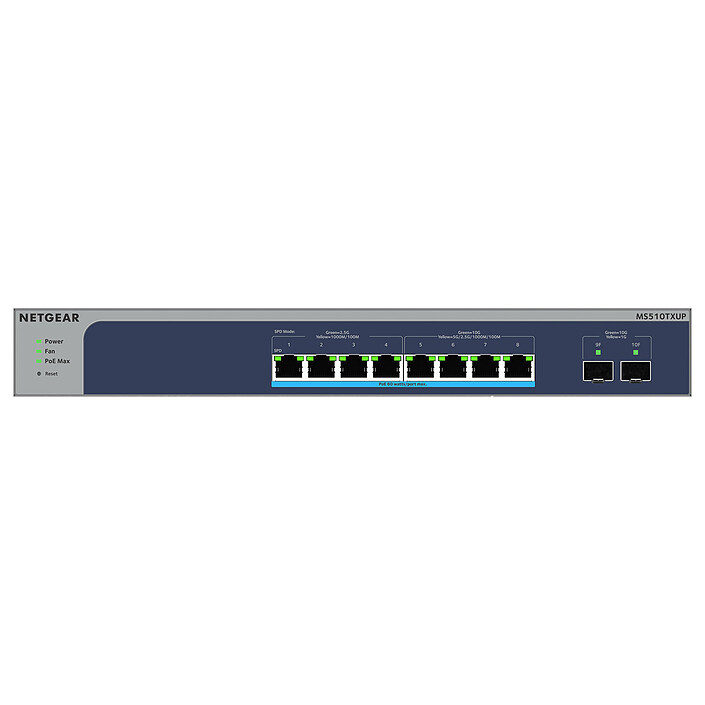

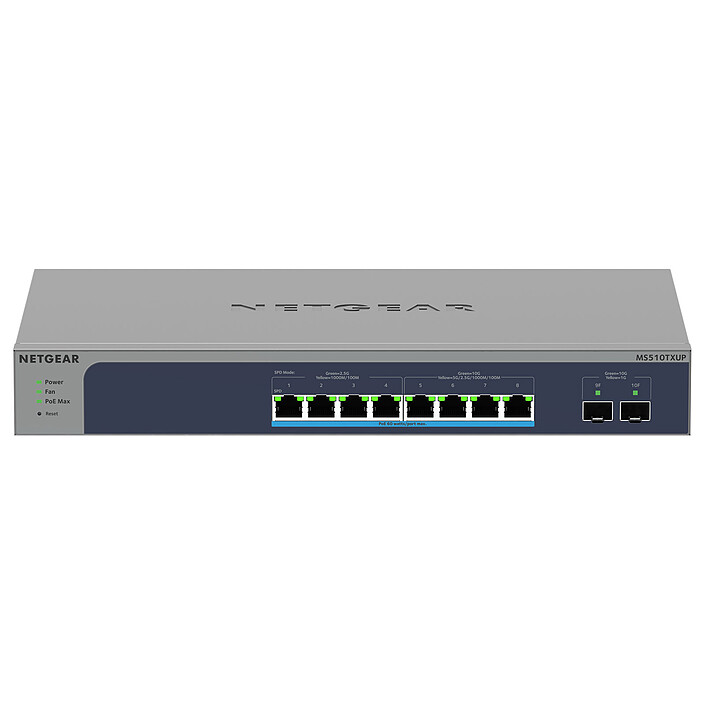

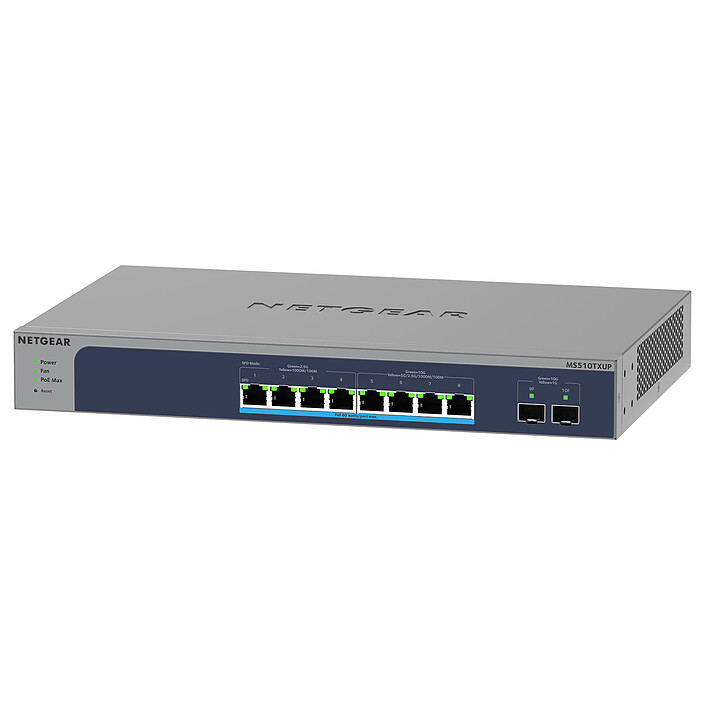

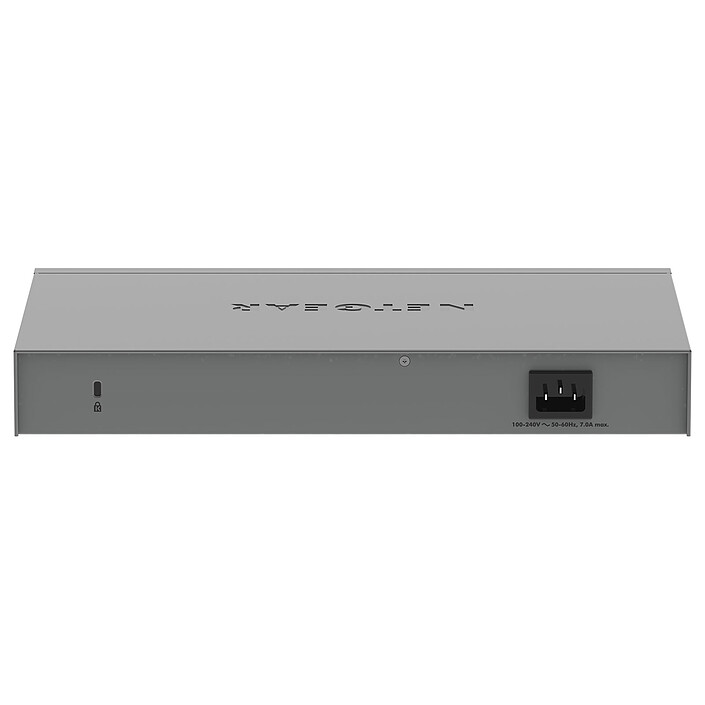

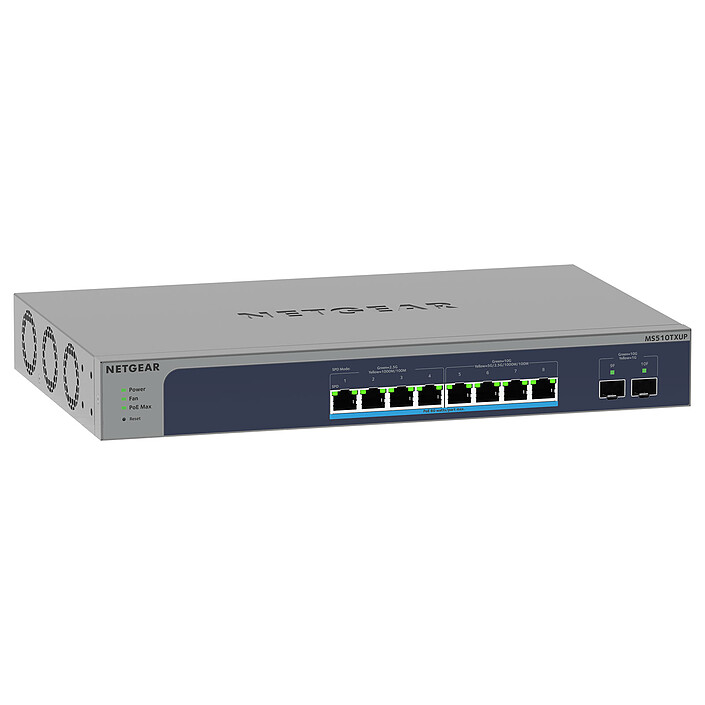

Netgear Smart Switch MS510TXUP
Cloud manageable switch 4 ports 1G/2.5G 4 ports 1G/2.5G/5G/10G - 8 PoE ports 2 SFP 10 Gbps slots
Pictures may differ from actual products
The Netgear MS510TXUP Smart Switch prepares you for future network evolutions with PoE (60W) and multigigabit support. With multigigabit support you add 2.5 Gigabit and 5 Gigabit compatibility in addition to 1 and 10 Gigabit.
Cloud manageable switch 4 ports 1G/2.5G 4 ports 1G/2.5G/5G/10G - 8 PoE ports 2 SFP 10 Gbps slots
Upgrade your infrastructure to multi-gigabit and PoE++
The Netgear MS510TXUP Smart Switch prepares you for future networking developments with PoE++ and multi-gigabit support. With multigigabit support you add 2.5 Gigabit and 5 Gigabit compatibility in addition to 1 and 10 Gigabit. PoE++ delivers up to 60 W per port. The 10 Gigabit copper and fibre ports are ready for local servers and storage systems, or high-speed aggregation to your core network to minimise latency. Now you can connect your PCs, printers and routers/firewalls in Gigabit and aggregate new multi-Gigabit Ethernet devices on the same switch.
Smart Switch MS510TXUP
- 4 x 1G/2.5G ports, 4 x Multi-Gigabit (1G / 2.5G / 5G) / 10 Gigabit ports and 2 x dedicated 10 Gigabit fibre ports
- Designed to connect application servers, storage servers, WiFi 6 access points, IP surveillance cameras and workstations with multi-gigabit connections.
- Versatile PoE support with PoE+ and PoE++ Ultra60 (up to 60W/port) for current devices and future PoE needs Total PoE budget available to power your devices: 295W
- User-friendly, graphical web browser-based management interface with L2/L2+ management including VLANs and QoS
- 10 Gigabit ports and uplinks to the core network
- Includes 1-year subscription to Insight Premium or Pro, for remote network management in the cloud, from a mobile app or web interface, anywhere, anytime
- Limited lifetime warranty
NETGEAR Cloud Manageable Switch
The MS510TXUP PoE++ Smart Switch can be remotely managed in the cloud via Netgear Insight. A one-year subscription to Insight Premium or Pro is included. The MS510TXUP has 8 Multi-Gigabit PoE++ Ultra60 ports delivering a total PoE budget of 295W. It has 4 1G/2.5G ports, 4 Multi-Gigabit/10G ports and 2 dedicated 10 Gigabit fibre ports to connect and power a variety of devices such as servers, WiFi 6 access points and surveillance cameras. Its PoE ports automatically adjust to the budget required by your devices, with the ability to scale up to 60W/port (within the total available PoE budget), to power the most demanding devices.
Extended functionality
- Multi-Gigabit Ethernet ports for flexible, self-adapting wired connectivity
- 2 x 10G SFP+ fibre uplinks (1G/10GBASE-X)
- Scalable 295W PoE budget available on 8 PoE++ Ultra60 ports (802.3bt 60W/port)
- Static Layer 3 routing with 32 routes (IPv4 and IPv6)
- Easy-to-use web browser-based management interface
- Netgear Insight Cloud Management(1 year Insight subscription included)
- IEEE 802.3az (Energy Efficient Ethernet) to maximise energy savings
Select your criteria
General information |
Product name |
Netgear Smart Switch MS510TXUP |
Brand |
Netgear | |
Model |
MS510TXUP-100EUS | |
Technical specifications |
Number of ports |
8 |
Network standard(s) |
4 X 10 Gbps Gigabit Ethernet (10 GbE) | |
| 4 X 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
Number of GBIC ports |
2 | |
Rackable |
Yes | |
Manageable |
Yes | |
Administration level |
Level 2 | |
SNMP |
Yes | |
PoE (Power over Ethernet) |
Yes | |
PoE standard |
Ultra PoE / PoE++ (60W) | |
Number of PoE ports |
8 | |
Max. PoE budget |
295 W | |
IPv6 compatible |
Yes | |
Width |
330 mm | |
Depth |
206 mm | |
Height |
43 mm | |
Weight |
2.51 kg | |
Consumption |
380 W | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
