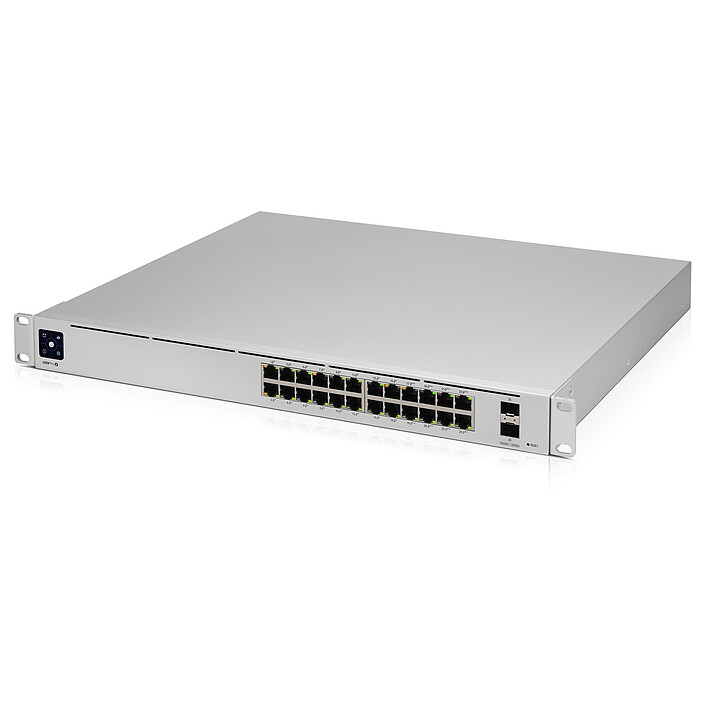

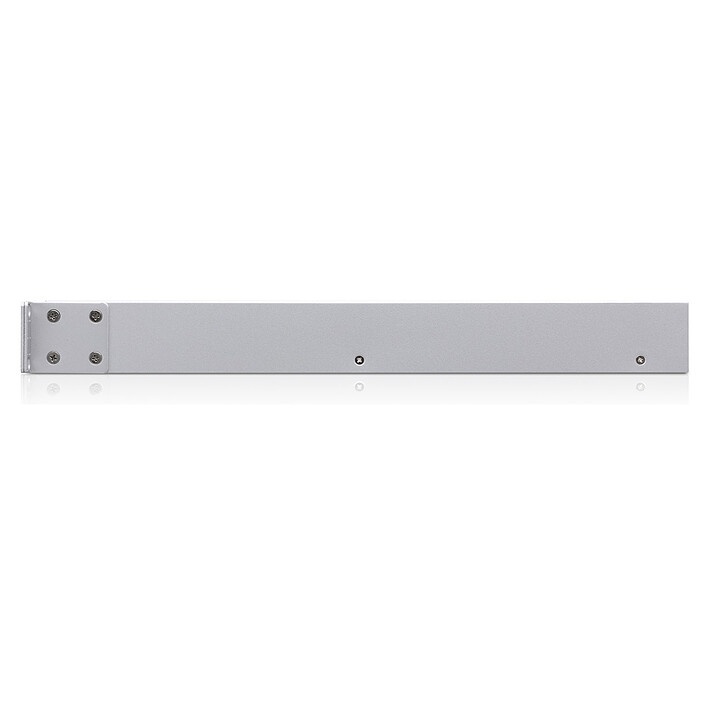

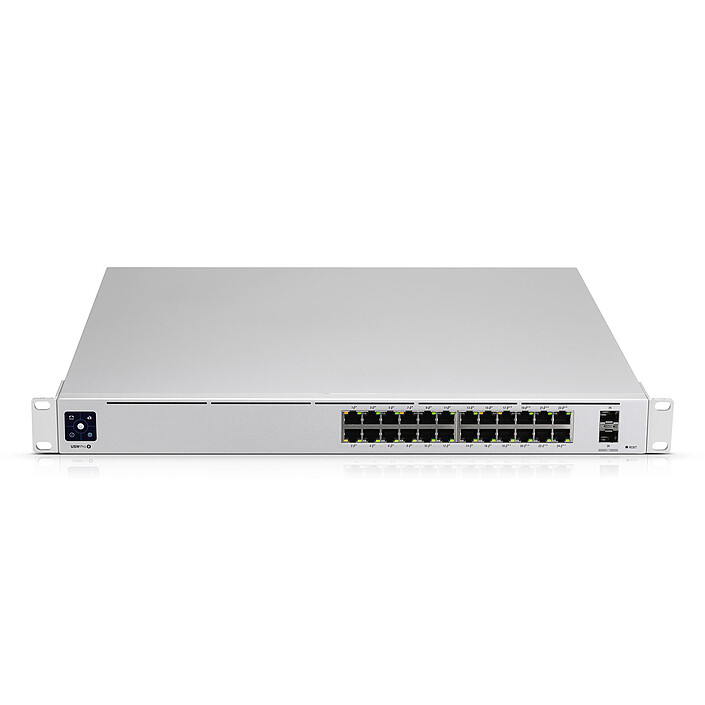

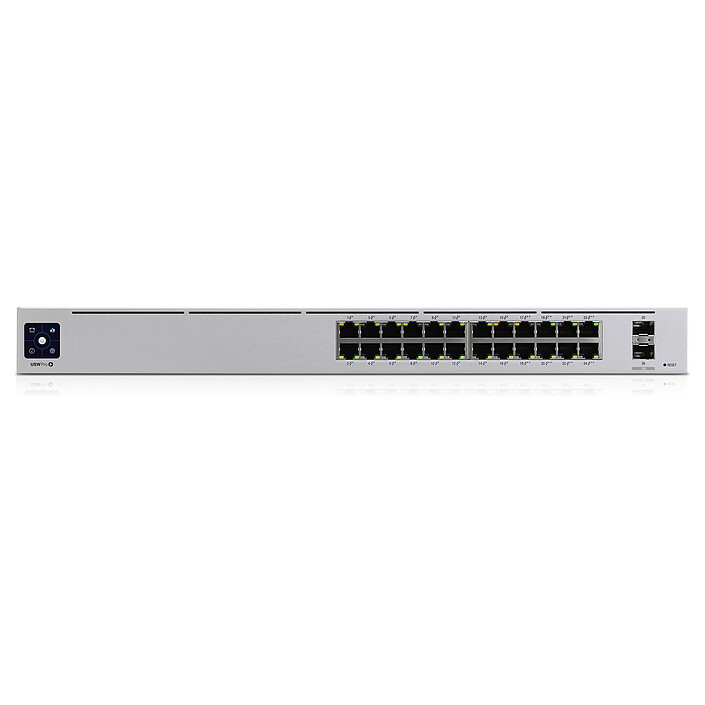

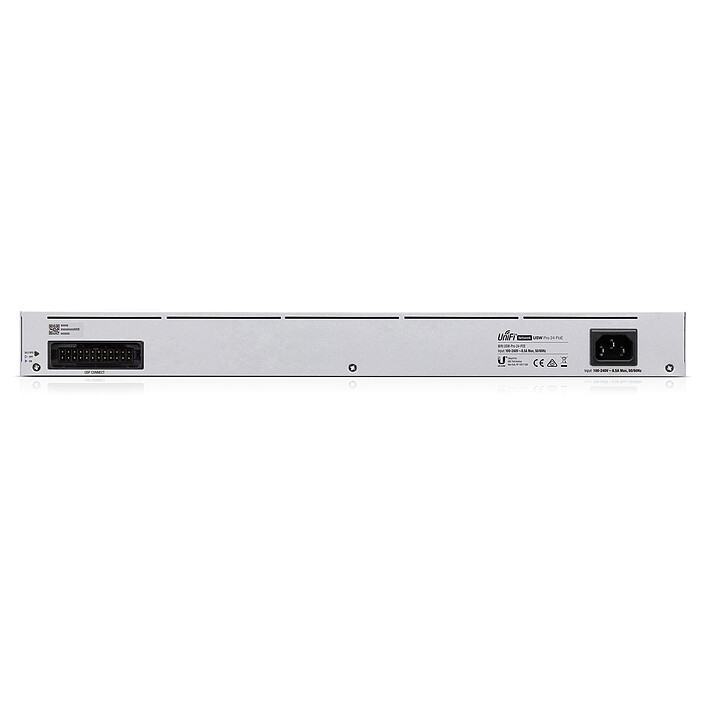

Ubiquiti UniFi USW-PRO-24-POE
24 port 10/100/1000 Mbps PoE switch (16 PoE+/8 PoE++) + 2 dedicated SFP+ ports
The UniFi USW-PRO-24-POE switch from Ubiquiti offers 24 Gigabit Ethernet ports and 2 SFP+ uplinks. This switch has 16 PoE+ and 8 PoE++ ports with a total budget of 400 Watts. Its 1.3" touch screen gives you quick access to vital network information.
24 port 10/100/1000 Mbps PoE switch (16 PoE+/8 PoE++) + 2 dedicated SFP+ ports
Ubiquiti UniFi USW-PRO-24-POE : 24 Port Switch (8 PoE++) and 1.3" Touch Screen
The UniFi USW-PRO-24-POE switch from Ubiquiti offers 24 Gigabit Ethernet ports and 2 SFP+ uplinks. This switch has 16 PoE+ and 8 PoE++ ports with a total budget of 400 Watts. Its 1.3" touchscreen allows you to quickly access monitoring data to resolve any issues in record time. With Layer 2 and some Layer 3 management features, the USW-PRO-24-POE is easy to use with its clear and intuitive UniFi interface.

high availability fibre connectivity
SFP+ ports enable uplinks of up to 10 Gbps so you can directly connect a high-performance storage server, connect to a core network infrastructure, or deploy a long distance link to another switch.
Powerful User Interface
The UniFi Network Controller can map networks and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful interface.
UniFi Network Controller provides configurable reports and analysis to manage large user populations and speed troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Main features :
- 24-Port 10/100/1000 Mbps Gigabit Ethernet Switch + 2 x 10Gbps SFP+ 16 PoE+ ports and
- 16 PoE+ ports and 8 PoE++ ports (60 Watts)
- PoE budget: 400 Watts
- Switching capacity: 88 Gbps
- Management level 2 and 3 partial (inter-VLANS routing, static routing and DHCP)
- 802.1X (RADIUS)
- Spanning Tree
- 1.3" touch screen for easy monitoring

General information |
Product name |
Ubiquiti UniFi USW-PRO-24-POE |
Brand |
Ubiquiti | |
Model |
USW-PRO-24-POE | |
Technical specifications |
Number of ports |
24 |
Network standard(s) |
10 Gbps Gigabit Ethernet (10 GbE) | |
10/100/1000 Mbps | ||
Number of 10/100/1000 Mbps ports |
24 | |
Number of GBIC ports |
2 | |
Rackable |
Yes | |
Manageable |
Yes | |
Administration level |
Level 2 | |
PoE (Power over Ethernet) |
Yes | |
PoE standard |
Ultra PoE / PoE++ (60W) | |
Number of PoE ports |
24 | |
Max. PoE budget |
400 W | |
Width |
442.4 mm | |
Depth |
285.4 mm | |
Height |
43.7 mm | |
Weight |
4.39 kg | |
Consumption |
450 W | |
Warranties |
Commercial warranty |
Seller 3 years
|
Legal warranty |
See terms & conditions
|
