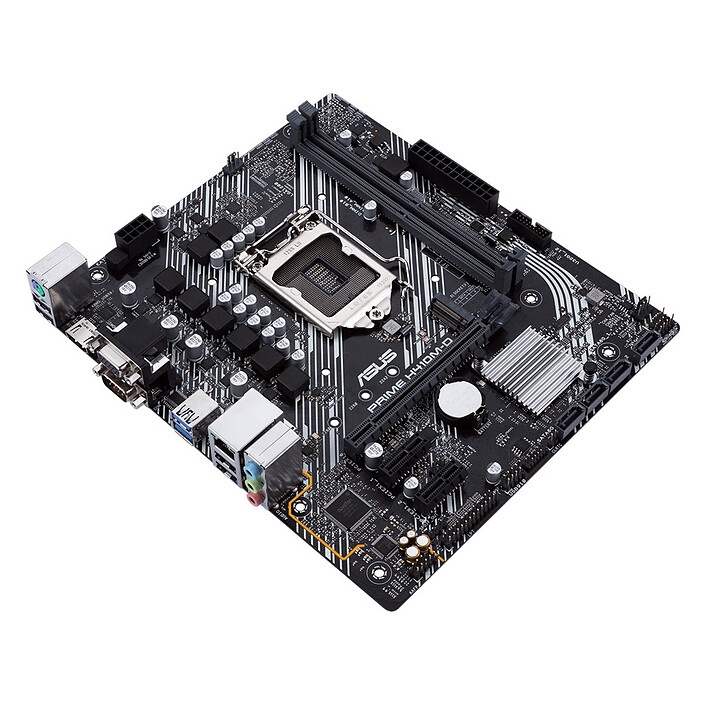

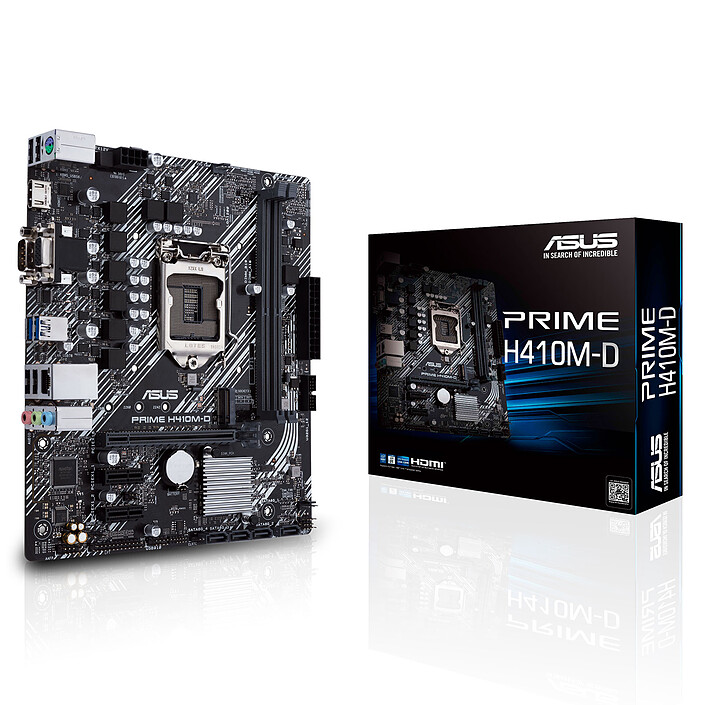

ASUS PRIME H410M-D
Micro ATX Socket 1200 Intel H410 Express motherboard - 2x DDR4 - SATA 6Gb/s M.2 PCIe NVMe - USB 3.0 - PCI-Express 3.0 16x
Last price 89€95
Affordable Motherboard for 10th Generation Intel Core Processor
The ASUS Prime series is designed to unlock the potential of 10th Generation Intel Core processors. Featuring a robust design and comprehensive cooling solutions, the Prime H410 series motherboards offer users a wide range of hardware performance optimization options through included software.
The ASUS PRIME H410M-D motherboard is designed to support Intel's 10th generation Comet Lake-S processors on socket LGA 1200. It will allow the assembly of a gaming configuration at a controlled cost. Office, multimedia, multitasking, light multimedia creation, it is the ideal solution to design a versatile family PC. It also supports DDR4 RAM, PCI-Express 3.0 16x graphics cards, SATA 6 Gb/s drives and USB 3.0 peripherals.
ASUS PRIME H410M-D
- Support for 10th generation Intel Core processors on socket LGA 1200
- DDR4 memory support, up to 2933 MHz
- 4 x SATA 6 Gbps + 1 x M.2 PCIe 3.0 x2 NVMe
- 5X Protection III: Multiple hardware safeguards for complete protection
- ASUS OptiMem: High RAM compatibility and stability
- Realtek RTL8111H Gigabit LAN
10th Generation Intel Core Processor
High performance in games, virtual reality without slowing down, intensive multitasking, the 10th generation Intel Core processors are ultra versatile and at ease in all situations. Intel Comet Lake-S processors deliver dazzling performance with high base frequencies, even more cores and threads, and a high-level cache. Their moderate TDPs allow them to offer high operating frequencies while keeping power consumption under control.
Select your criteria
General information |
Product name |
ASUS PRIME H410M-D |
Brand |
ASUS | |
Model |
90MB13U0-M0EAY0 | |
Processor |
Processor support |
Intel 1200 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel H410 Express |
Memory |
Memory format |
2 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2133 MHz | |
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 2933 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 3.0 x16 |
Number and Type of slots |
2 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC887 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Realtek RTL8111H |
Network standard(s) |
10/100/1000 Mbps | |
Storage |
RAID supported |
No |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 3.0 x2 + SATA 6 Gb/s | ||
Connectivity |

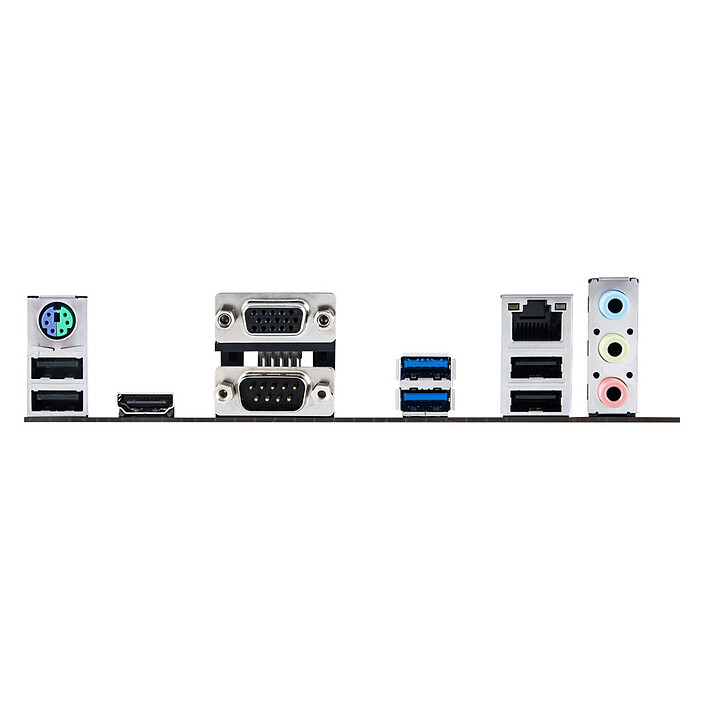

Rear panel connectors |
1 X VGA (D-sub 15 Female) |
| 1 X HDMI Female | ||
| 2 X USB 3.0 | ||
| 4 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| 1 X Serial (RS-232) | ||
| 3 X 3.5mm Jack Female Stereo | ||
Additional connectors |
Internal S/PDIF | |
| Front panel audio | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| Parallel port | ||
| 2 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
226 mm | |
Width |
201 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Office | |
| Multimedia | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
