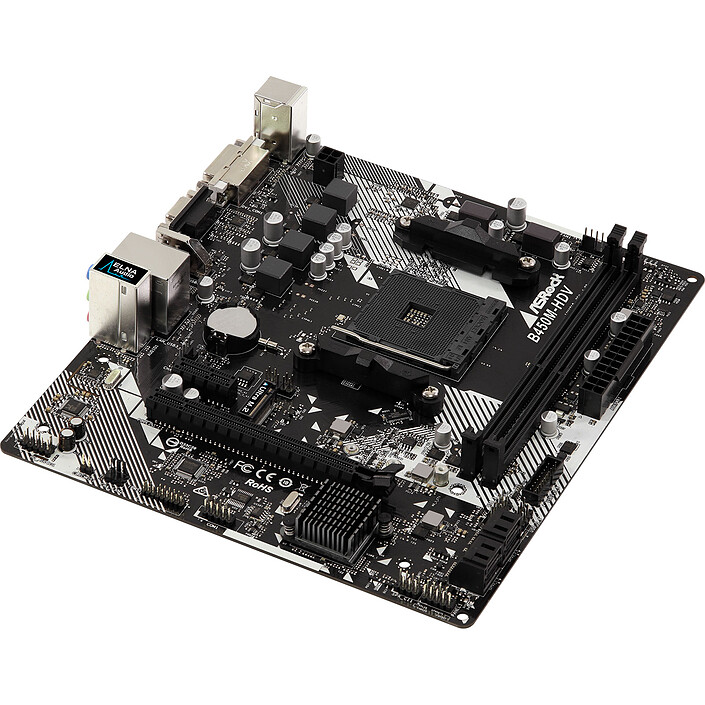

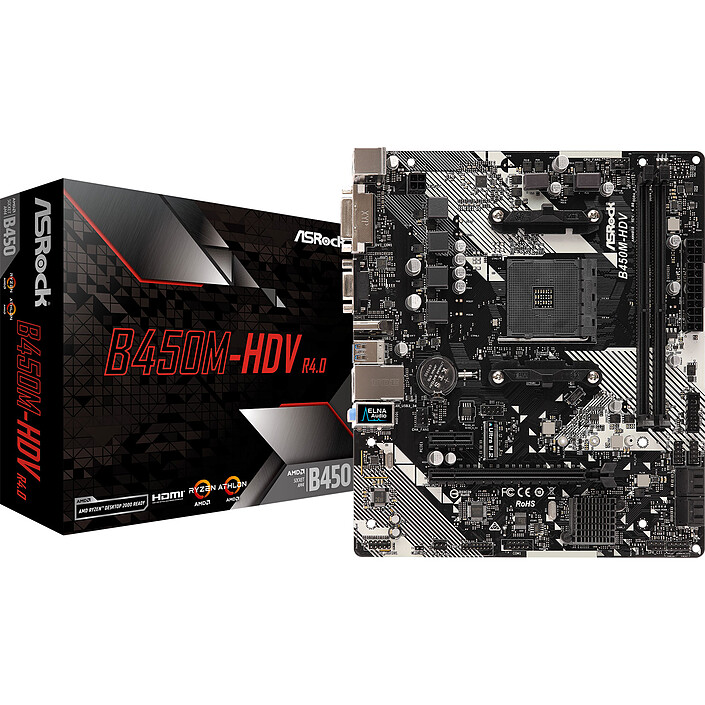

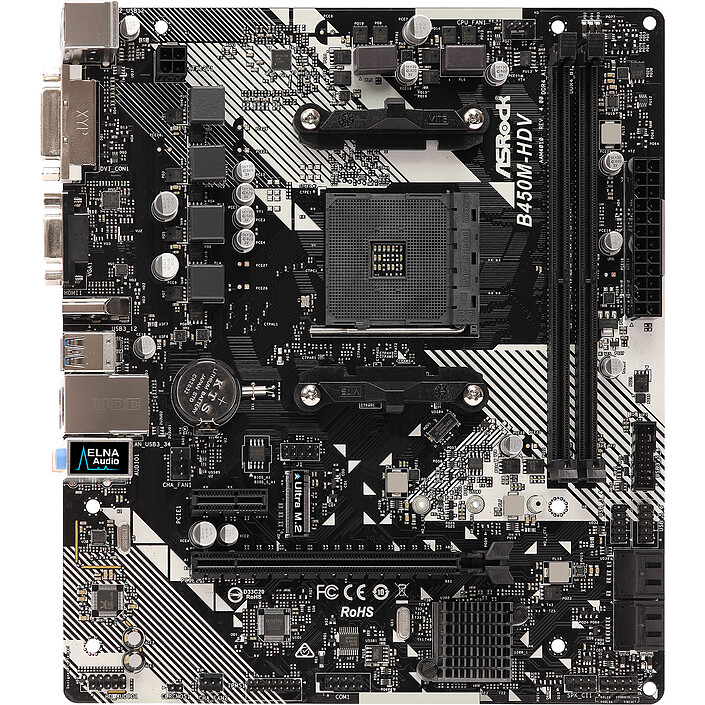

ASRock B450M-HDV R4.0 motherboard advantages:
|
 |
 |
Spectacular data ratesA PCIe Gen3 x4 Ultra M.2 interface with data transfer rates up to 32Gbit/s, compatible with the ASRock U.2 Kit (not included) for installation of U.2 PCIe Gen3 x4 SSDs. M.2 SATA 6 Gbps is also supported for full compatibility. The most common M.2 formats are supported as the B450M-HDV motherboard can accommodate 2242/2260/2280 types.
|
Triple Monitor TechnologyThe Asrock B450M-HDV R4.0 motherboard iscompatible with Triple Monitor technology to further expand your desktop by allowing you to connect up to 3 monitors simultaneously without adding an additional graphics card. This solution is only compatible with processors that have an integrated graphics controller, as the motherboard does not have a graphics chip. The HDMI output supports 4096 x 2160 @ 24 Hz and 3840 x 2160 @ 30 Hz, DVI-D up to 1920 x 1200 and VGA 2048 x 1536.
|
 |
Select your criteria
General information |
Product name |
ASRock B450M-HDV R4.0 |
Brand |
ASRock | |
Model |
B450M-HDV R4.0 | |
Processor |
Processor support |
AMD AM4 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD B450 |
Memory |
Memory format |
2 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2133 MHz | |
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 3200 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
16 GB | |
Maximum RAM capacity |
32 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 3.0 x16 |
Number and Type of slots |
1 X PCI Express 2.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC887 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Realtek RTL8111H |
Network standard(s) |
10/100/1000 Mbps | |
Wi-Fi |
No | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | |
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Number of M.2 slot(s) |
1 | |
Supported RAID Modes |
0 | |
| 1 | ||
| 10 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

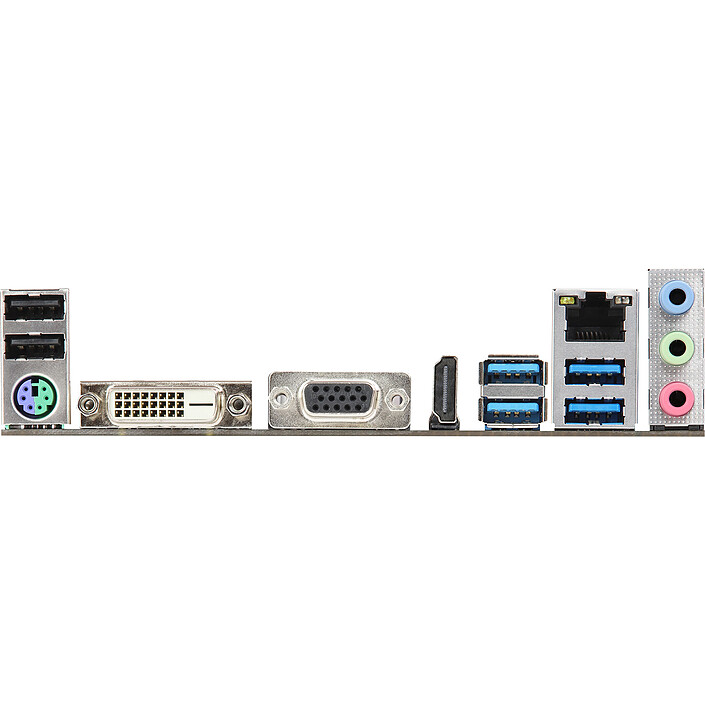

Rear panel connectors |
1 X VGA (D-sub 15 Female) | |
| 1 X HDMI Female | ||
| 1 X DVI Female | ||
| 4 X USB 3.0 | ||
| 2 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| 3 X 3.5mm Jack Female Stereo | ||
Additional connectors |
1 X TPM | |
| Front panel audio | ||
| 1 X +12V (Power supply P4) | ||
| 1 X ATX 24 Pin | ||
| 1 X Serial (RS-232) | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
230 mm | |
Width |
201 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Multimedia | |
| Office | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 3 years
|
Legal warranty |
See terms & conditions
|
See all ASRock products
Product referenced on 21 Mar 2019
I bought this pack to upgrade a PC used for light office applications and photo scanning. The aim was to get to grips with a Windows 11 migration at a lower cost. I am completely satisfied as my PC has been migrated and is very responsive for the use I make of it.
If you encounter the error code
THREAD_STUCK_IN_DEVICE_DRIVER
with a Ryzen 3 3200G (this is my case, but the problem exists with the Ryzen 5 3400G), you need to downgrade the BIOS to version P3.20.
You need a minimum BIOS version for this generation of Ryzen, but not the most recent versions!
Cheap motherboard, not much more expensive than an A320 from Asus.
A bit thin, but well made, well studied (nothing to do with the ugly Gigabyte).
A very well done and studied bios that makes the Asus bios look like a beginner's bios.
the negative: no heatsink on the VRMs, but OC is still possible but watch the temperature
A limited set of documentation and tools, but the essentials are there.
Asrock has become a must-have like MSI, ahead of bigger companies and we understand that with their products.
It's an entry level product but not a cheap one, far from it, I'm satisfied
*I'm not sure if it's a good idea to buy a new one, but I'm sure it's a good idea to buy a new one, and I'm sure it's a good idea to buy a new one, and I'm sure it's a good idea to buy a new one, and I'm sure it's a good idea to buy a new one.
I have no complaints about the card, it is as described.
I added a PCI card with an IDE adapter on top to allow for DVD drives and old hard drives which are recognised.
I used a 3200G processor which was recognised without the need to upgrade the firmware on the card.
Cheap motherboard, not much more expensive than an A320 from Asus.
A bit thin, but well made, well studied (nothing to do with the ugly Gigabyte).
A very well done and studied bios that makes the Asus bios look like a beginner's bios.
the negative: no heatsink on the VRMs, but OC is still possible but watch the temperature
A limited set of documentation and tools, but the essentials are there.
Asrock has become a must-have like MSI, ahead of bigger companies and we understand that with their products.
It's an entry level product but not a cheap one, far from it, I'm satisfied
Installed in a low-cost virtualisation machine. The installation in the box was simple, the doc was clear. I'm not sure how to set up a raid, but the doc says it's pretty hard to find info on how to do it - so I don't know what to say about it, but I've stopped looking because I don't have the time. The minus point is for that. I'm not sure if it's a good idea to use the Gskill memory, but it's a good idea to use the Gskill memory for normal use.
Good motherboard for this price, installation not very difficult. To connect the cables it was not easy though. But it's largely doable with patience!
The BIOS is not at all basic (contrary to what I expected) and even allows easy setup!
