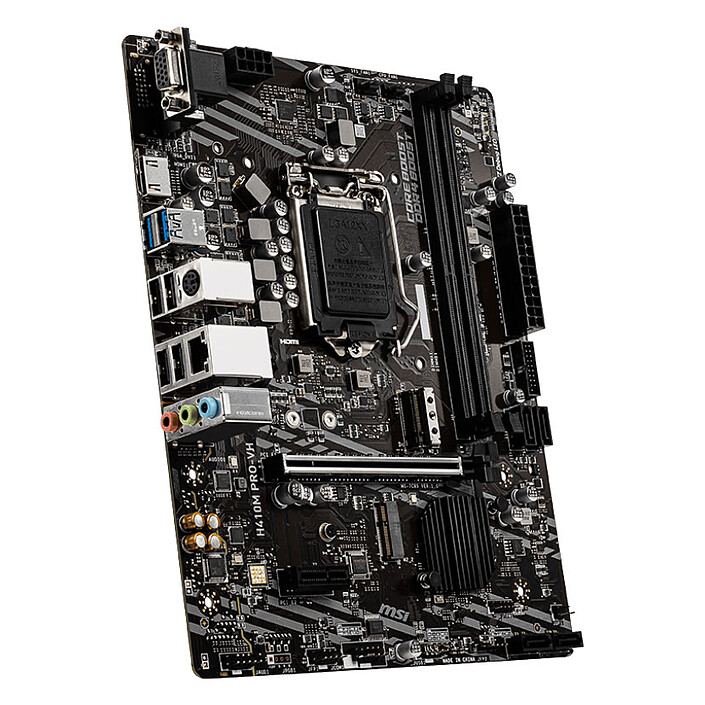

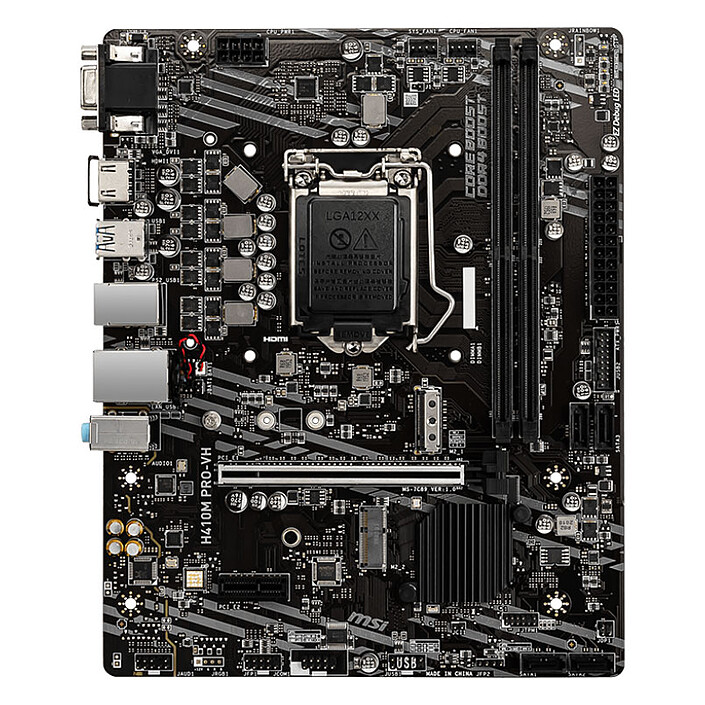

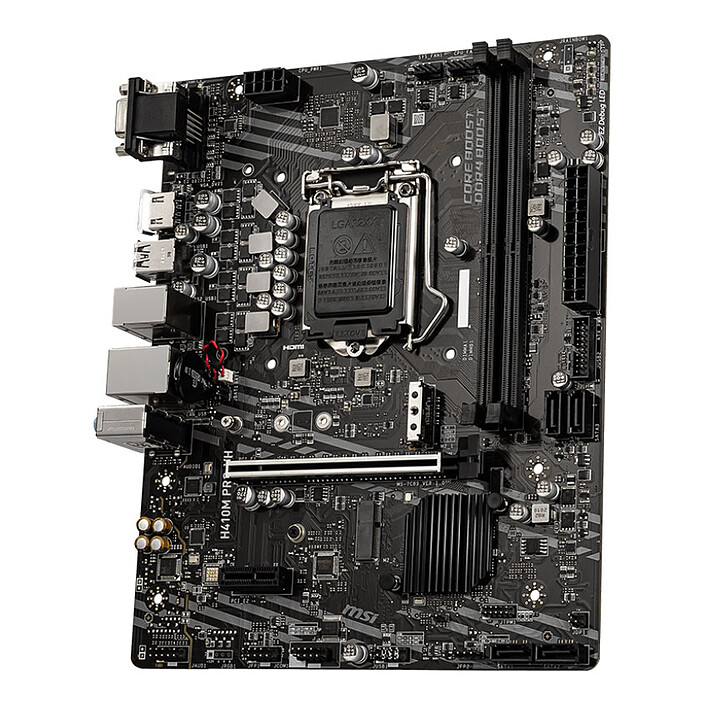

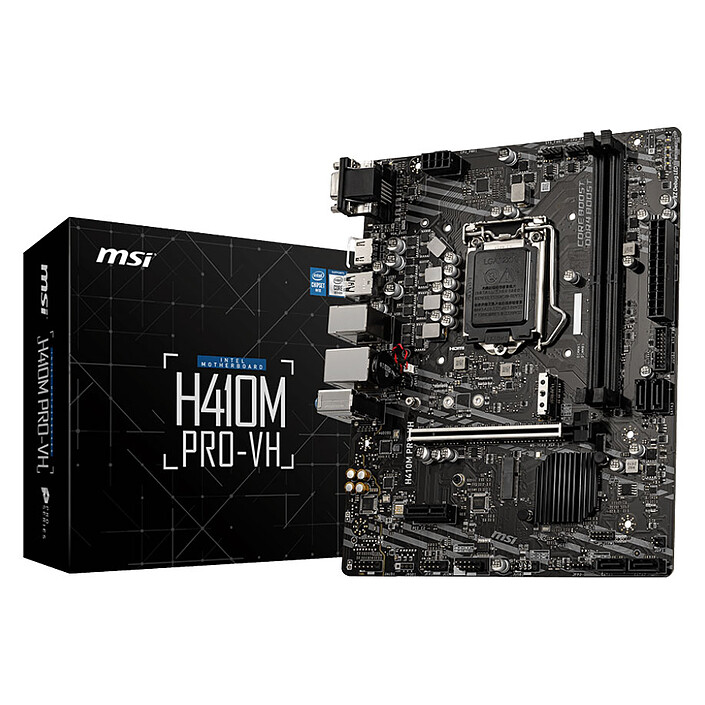

MSI H410M PRO-VH
Micro ATX Socket 1200 Intel H410 Express motherboard - 2x DDR4 - SATA 6Gb/s M.2 PCIe NVMe - USB 3.0 - 1x PCI-Express 3.0 16x
Last price 88€94Affordable performance
The MSI H410M PRO-VH motherboard is designed to host Intel's 10th generation Comet Lake-S processors on socket LGA 1200. It will allow the assembly of a versatile and efficient configuration capable of performing all tasks. It supports DDR4 RAM, PCI-Express 3.0 16x graphics cards, SATA 6 Gb/s and M.2 PCIe NVMe drives and USB 3.0 peripherals. More affordable than the Intel H470 and B460 Express chipsets, the Intel H410 Express chipset offers a very good price/performance ratio for basic computing (office, Internet, multimedia and entry-level gaming PCs).
MSI H410M-A PRO-VH
- Support for 10th generation Intel Core processors on socket LGA 1200
- DDR4 memory support, up to 2933 MHz
- M.2 PCIe 3.0 x4 / SATA 6 Gbit/s
- 1 PCIe 3.0 x16 with Steel Armor
- Audio 7.1 (Realtek ALC892 Audio Codec)
- 4 SATA 6 Gb/s ports
- Compact Micro ATX form factor
10th Generation Intel Core Processor
With top-notch gaming performance, smooth virtual reality, and intensive multitasking, 10th-generation Intel Core processors are ultra versatile and at home in any situation. Intel Comet Lake-S processors deliver dazzling performance with high base frequencies, even more cores and threads, and a high-level cache. Their moderate TDPs allow them to offer high operating frequencies while keeping power consumption under control.
General information |
Product name |
MSI H410M PRO-VH |
Brand |
MSI | |
Model |
H410M-PRO-VH | |
Processor |
Processor support |
Intel 1200 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel H410 Express |
Memory |
Memory format |
2 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2133 MHz | |
DDR4 2400 MHz | ||
DDR4 2666 MHz | ||
DDR4 2800 MHz | ||
DDR4 2933 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 3.0 x16 |
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC892 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Intel I219-V |
Network standard(s) |
10/100/1000 Mbps | |
Storage |
RAID supported |
No |
Hard drives connectors |
1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | |
4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Connectivity |

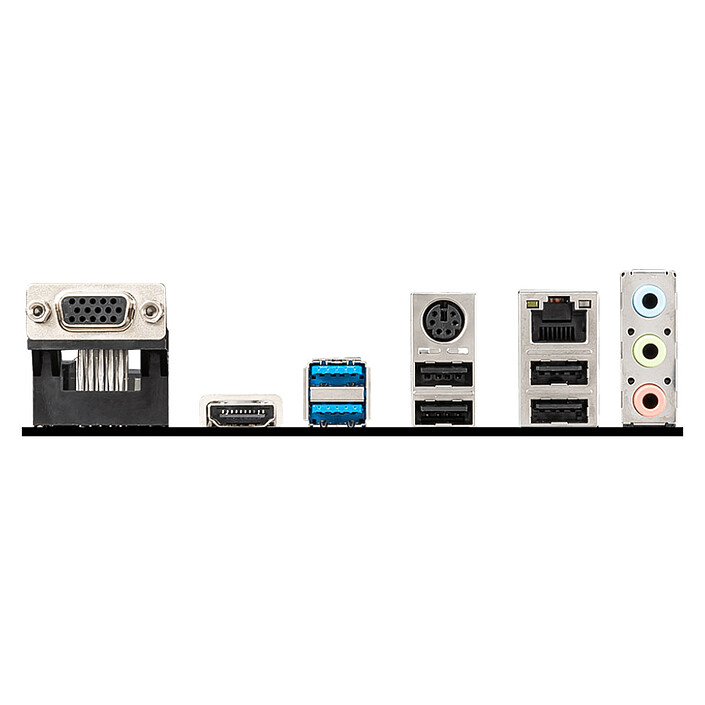

Rear panel connectors |
1 X MiniDin 6 Female (PS/2) |
1 X RJ45 Female | ||
4 X USB 2.0 | ||
2 X USB 3.0 | ||
1 X HDMI Female | ||
3 X 3.5mm Jack Female Stereo | ||
1 X VGA (D-sub 15 Female) | ||
Additional connectors |
TPM | |
Front panel audio | ||
Chassis intrusion | ||
1 X +12V (Power supply P8) | ||
1 X ATX 24 Pin | ||
1 X Serial (RS-232) | ||
2 X Internal USB 2.0 | ||
2 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
236 mm | |
Width |
190 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Office | |
Multimedia | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all MSI products
Product referenced on 28 Dec 2020
