Pictures may differ from actual products

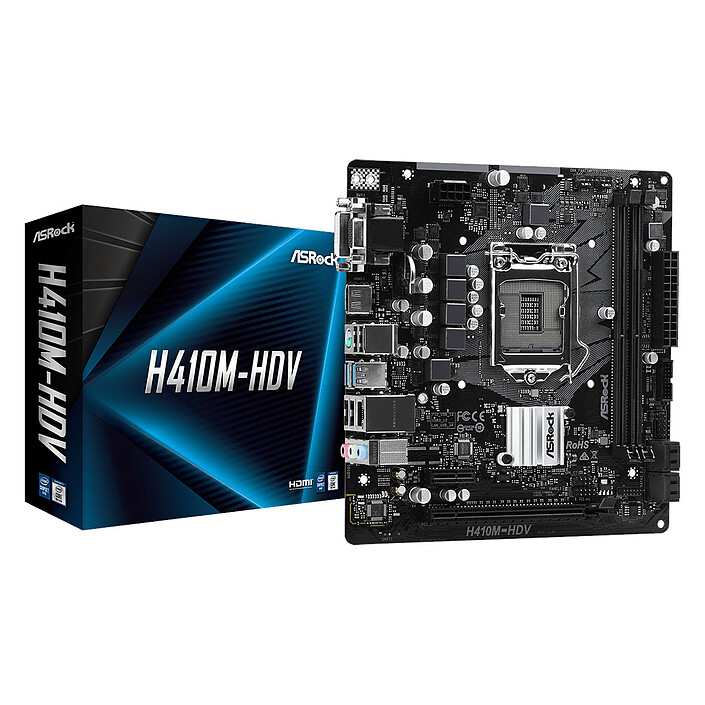

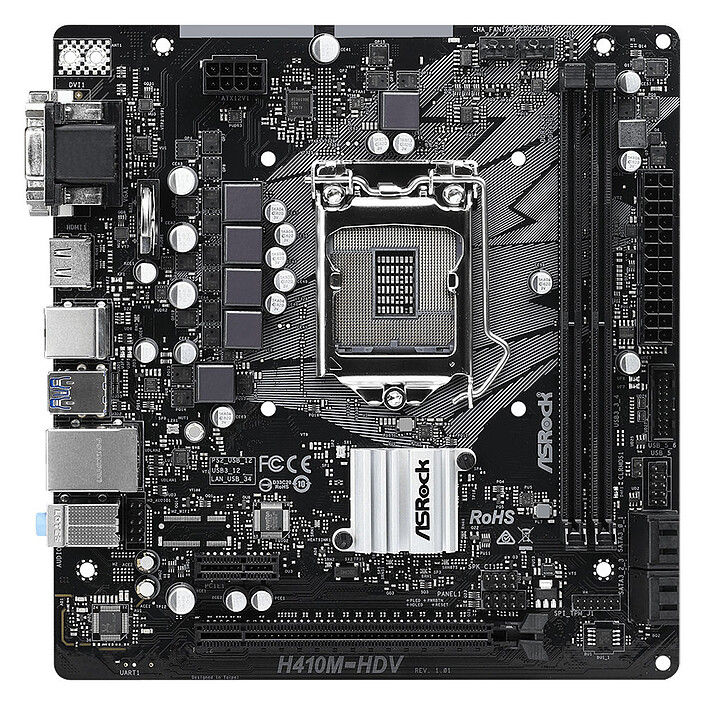

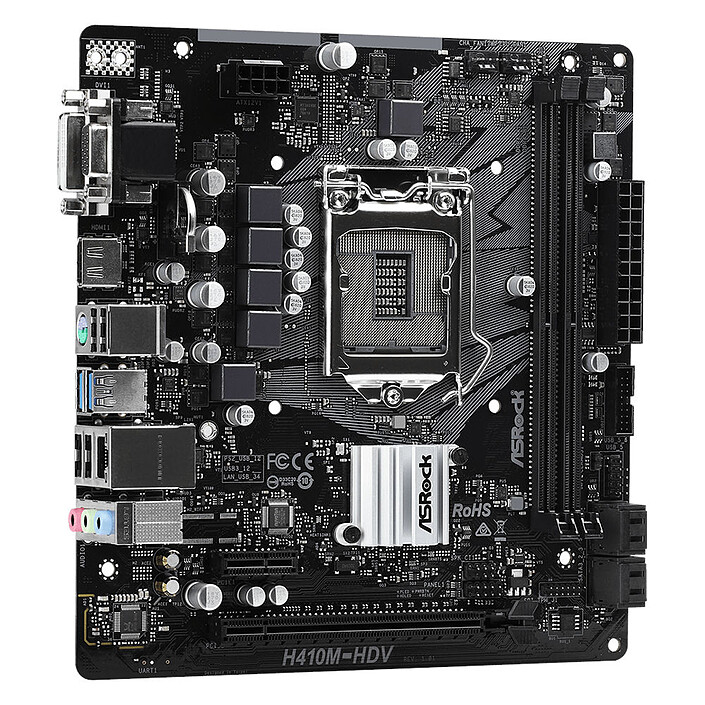

The ASRock H410M-HDV motherboard is designed to host Intel's 10th generation Comet Lake-S processors on LGA 1200 socket. It will allow the assembly of a versatile and efficient configuration capable of performing all tasks. It supports DDR4 RAM, PCI-Express 3.0 16x graphics cards, SATA 6 Gb/s drives and USB 3.0 peripherals. More affordable than the Intel H470 and B460 Express chipsets, the Intel H410 Express chipset offers a very good price/performance ratio for basic computing (office, Internet, multimedia and entry-level gaming PCs).
With top-notch gaming performance, smooth virtual reality, and intensive multitasking, 10th-generation Intel Core processors are ultra versatile and at home in any situation. Intel Comet Lake-S processors deliver dazzling performance with high base frequencies, even more cores and threads, and a high-level cache. Their moderate TDPs allow them to offer high operating frequencies while keeping power consumption under control.
Select your criteria
General information |
Product name |
ASRock H410M-HDV |
Brand |
ASRock | |
Model |
H410M-HDV | |
Processor |
Processor support |
Intel 1200 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel H410 Express |
Memory |
Memory format |
2 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2133 MHz | |
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 2933 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 3.0 x16 |
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC887 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Realtek RTL8111H |
Network standard(s) |
10/100/1000 Mbps | |
Storage |
RAID supported |
No |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
Connectivity |

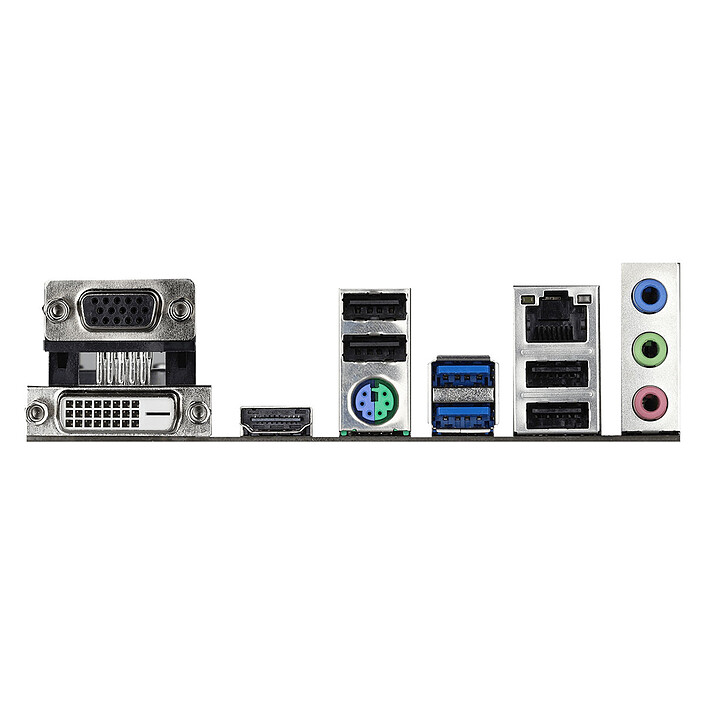

Rear panel connectors |
1 X VGA (D-sub 15 Female) |
| 1 X HDMI Female | ||
| 1 X DVI Female | ||
| 2 X USB 3.0 | ||
| 4 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| 3 X 3.5mm Jack Female Stereo | ||
Additional connectors |
1 X TPM | |
| Front panel audio | ||
| Chassis intrusion | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 2 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
197 mm | |
Width |
188 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Office | |
| Multimedia | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all ASRock products
Product referenced on 27 May 2020
Small problem with this card that I had to return. If you set the BIOS to legacy mode (CSM, Compatibility Support Module) not UEFI to be able to boot on a USB key or other media, it prompts you to add a graphics card although one is already present. In short, if you are installing something other than Windows (e.g. Linux, FreeBSD, etc) you will need an additional graphics card.
Excellent quality/price for small to medium configurations. I wanted to test Asrock and I don't regret it.
