Shuttle SH370R6V2 PLUS
Mini-Barebone (Intel H370 Express) (without processor/memory/hard drive)
Last price 429€95
Holy Moly!
Equivalent products suggestions:
Overview

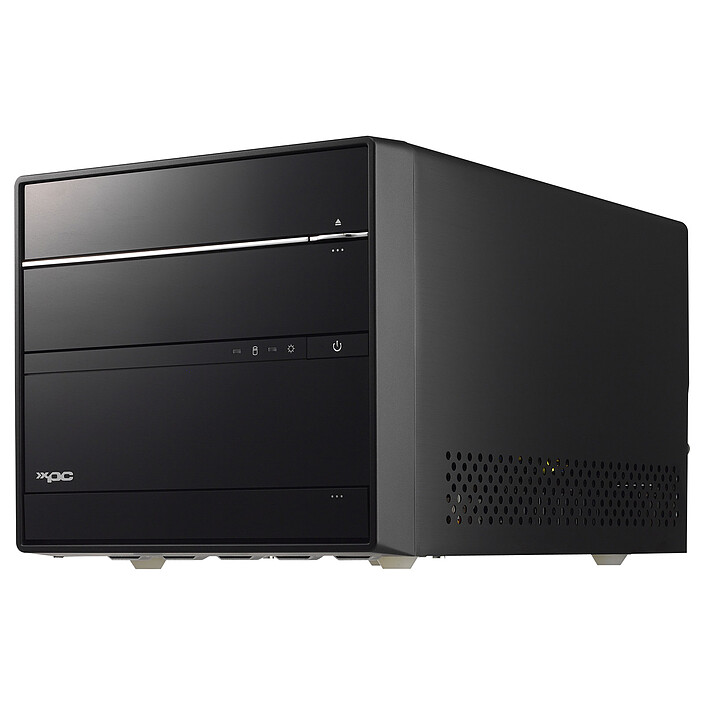

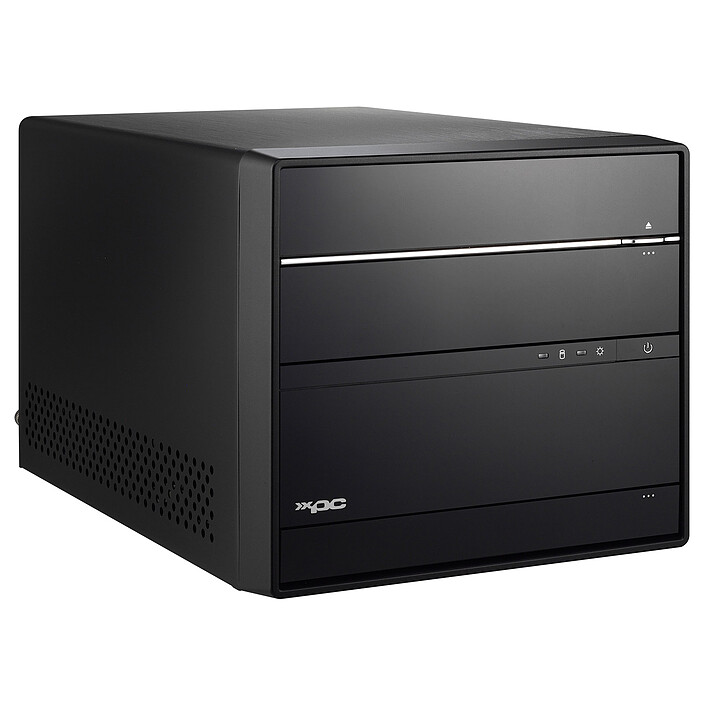

Shuttle XPC cube: Compact and elegant
The Shuttle XPC cube SH370R6V2 Plus has the sleek aluminium design that has made these Mini-PCs so successful for many years. The SH370R6V2 Plus is designed to accommodate 8th and 9th generation Intel processors for socket LGA 1151. Its 13.6 litre interior volume allows for a wide range of configurations, from HTPCs to desktop PCs to gaming PCs, for easy transport during LANs.
The Shuttle SH370R6V2 Plus , thanks to its LGA1151 motherboard, can be fitted with an 8th generation Coffee Lake or 9th generation Coffee Lake Refresh Intel processor. It also has 4 DDR4 RAM slots, 1 M.2 SATA/PCIe NVMe slot, 2 3.5" and 1 5.25" bay.
Compact dimensions
The compact dimensions of the Shuttle XPC cube make it easy to fit on your desk, in the living room, etc. and its modern design makes it easy to integrate. Thanks to its Smart Fan ventilation system, the air flow cools a large number of components at the same time to prevent the accumulation of hot air. The air flow and the speed of the fans is regulated progressively and automatically.

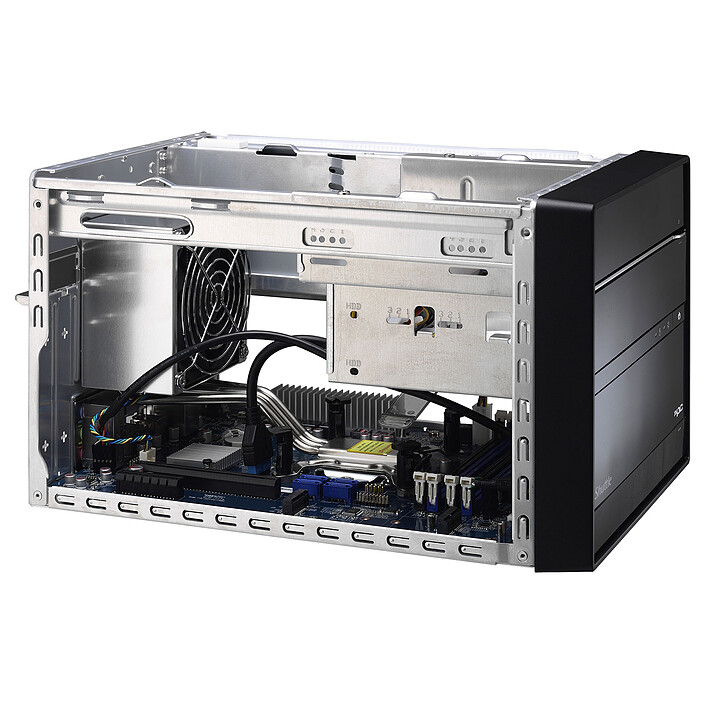

Great possibilities
The XPC cube SH370R6V2 Plus will easily accommodate a dedicated graphics card for gaming or professional 3D applications. Without a dedicated graphics card, it is also possible to use the three video outputs simultaneously.
On the storage side, this model can carry two internal 3.5" hard drives and one M.2 SSD. This gives you plenty of scope to combine new SSDs and mechanical hard drives or to easily increase internal storage capacities.
Main features :
- Intel LGA 1151 socket for 8th generation Intel Coffee Lake and 9th generation Intel Coffee Lake Refresh processor (Celeron, Pentium, Core i3 / i5 / i7 / i9)
- 4 DDR4 2400/2666 MHz RAM slots (64 GB / 128 GB max. depending on processor used)
- M.2 slot 2242/2260/2280 with PCIe NVMe 3.0 4x / SATA 6 Gbps interface - Supports Intel Optane technology
- M.2 2230 slot for wireless network card(Shuttle WLN-M kit not included)
- 1 x 5.25" slot + 2 x 3.5"(one visible), can be converted to 2.5" with PHD3 accessory(not included)
- PCIe 3.0 16x slot for the installation of a dedicated graphics card(maximum dimensions: 273 x 98 x 38 mm, PCIe 6-pin + PCie 6+2-pin connector)
- Wake On LAN (WOL) and Preboot eXeceution Environment (PXE) support
- 2 Gigabit Intel i211 LANs
- 500W 80+ Silver power supply
- 3 simultaneous usable graphics outputs (4K @ 60 Hz): 1 x HDMI 2.0a + 2 x DisplayPort 1.2(not operational if F-Series processor is used)
- Compatible operating systems: Windows 10 64-bit & Linux 64-bit
Information provided by our tech department
Installation of a 9th generation Intel processor (Coffee Lake Refresh) is possible after an update of the BIOS. The TDP of the processor must not exceed 95 Watts.
Specifications
Select your criteria
General information |
Product name |
Shuttle SH370R6V2 PLUS |
Brand |
Shuttle | |
Model |
SH370R6V2 PLUS | |
Processor and chipset |
Integrated processor |
No |
Processor |
Without processor | |
Processor support |
Intel 1151 | |
Number of CPUs supported |
1 | |
Chipset |
Intel H370 Express | |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2400 MHz | |
| DDR4 2666 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 3.0 x16 |
Graphic card max. length |
273 mm | |
Number and Type of slots |
1 X PCI Express 3.0 x4 | |
Storage |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) |
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
Optical drive type |
None | |
Audio |
Audio Chipset |
Realtek ALC662 |
Number of audio channels |
6 | |
Network |
Number of ports/Ethernet controler |
2 X Intel i211 |
Network standard(s) |
10/100/1000 Mbps | |
Connectivity |

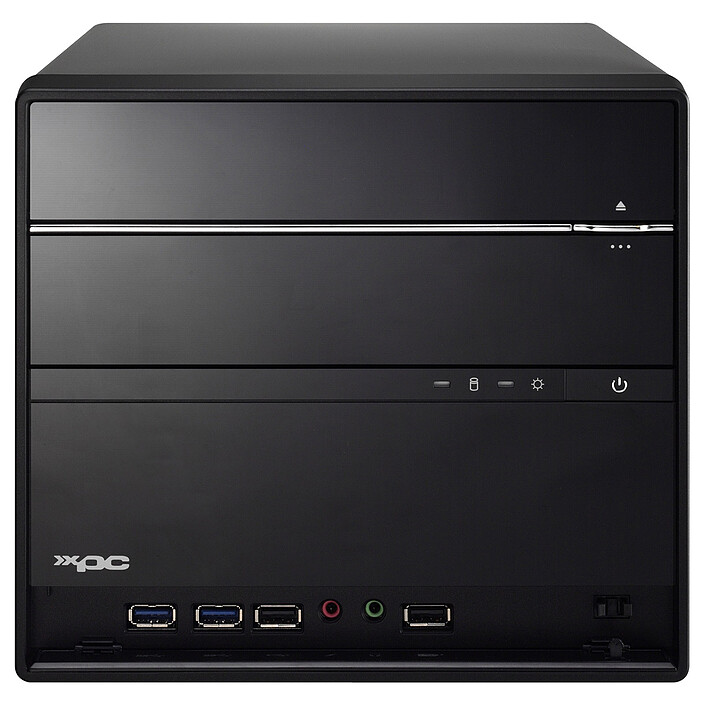

Front panel connectors |
1 X 3.5mm Jack Female Stereo |
| 1 X Microphone (3.5mm Jack Female) | ||
| 2 X USB 2.0 | ||
| 2 X USB 3.0 | ||

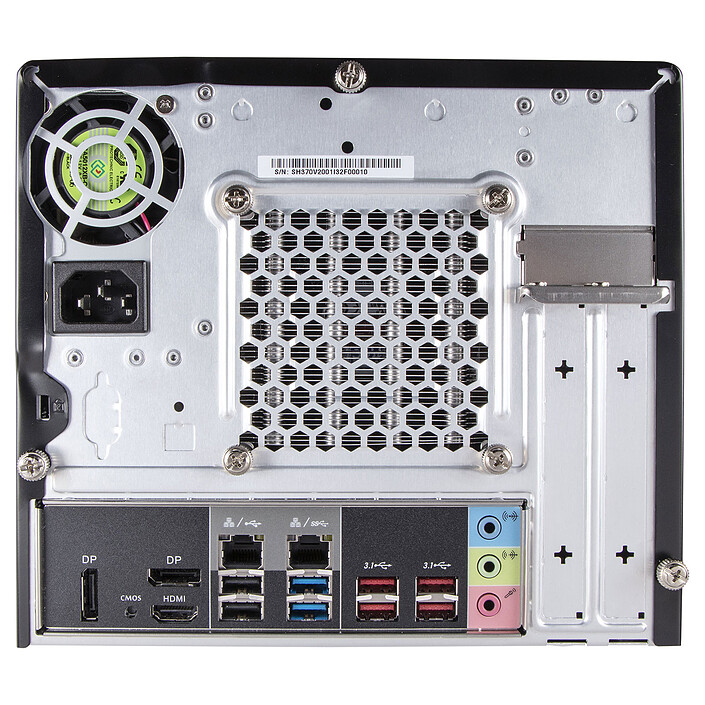

Rear panel connectors |
3 X 3.5mm Jack Female Stereo | |
| 2 X Gigabit Ethernet - RJ45 Female | ||
| 2 X USB 2.0 | ||
| 2 X USB 3.0 | ||
| 4 X USB 3.1 | ||
| 2 X DisplayPort Female | ||
| 1 X HDMI 2.0 Female | ||
Case |
Number of invisible 3.5" slots |
1 |
Number of visible 3.5" slots |
1 | |
Number of visible 5.25" slots |
1 | |
Power |
500 W | |
Compatibility |
Supported OS |
Microsoft Windows 10 |
| Linux | ||
Max CPU TDP |
95 W | |
Physical characteristics |
Barebone format |
Mini PC |
Width |
332 mm | |
Height |
190 mm | |
Depth |
215 mm | |
Weight |
3.5 kg | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
