Shuttle XPC slim XH310RV
Mini-Barebone (Intel H310 Express) (without processor/memory/hard drive)
Last price 294€95

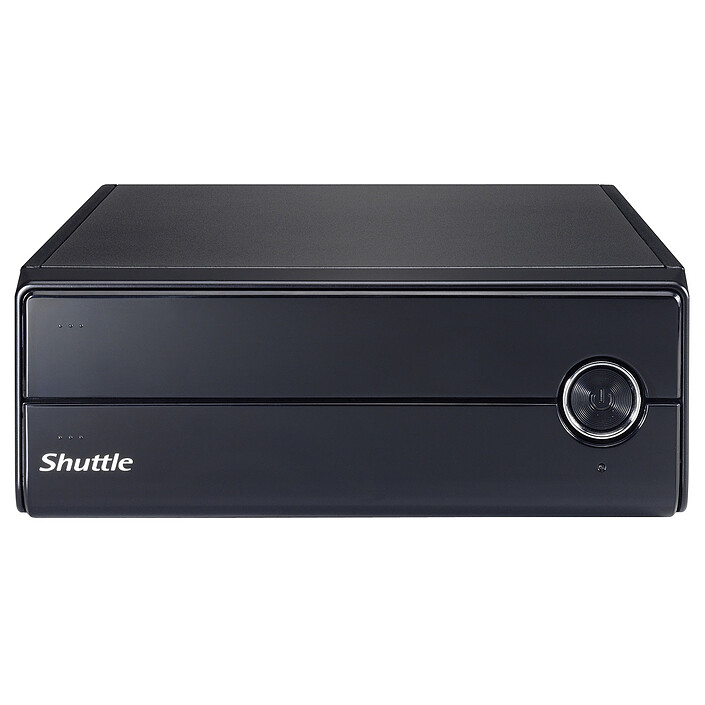

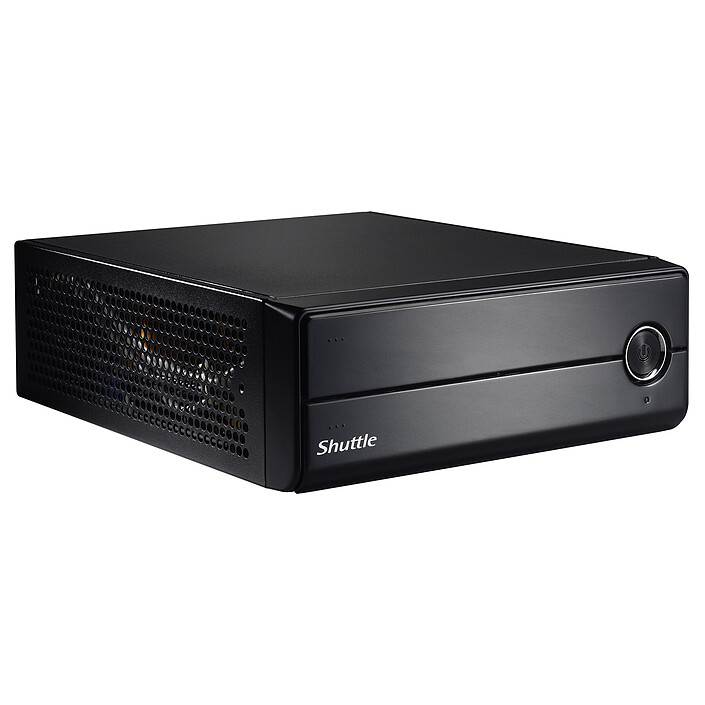

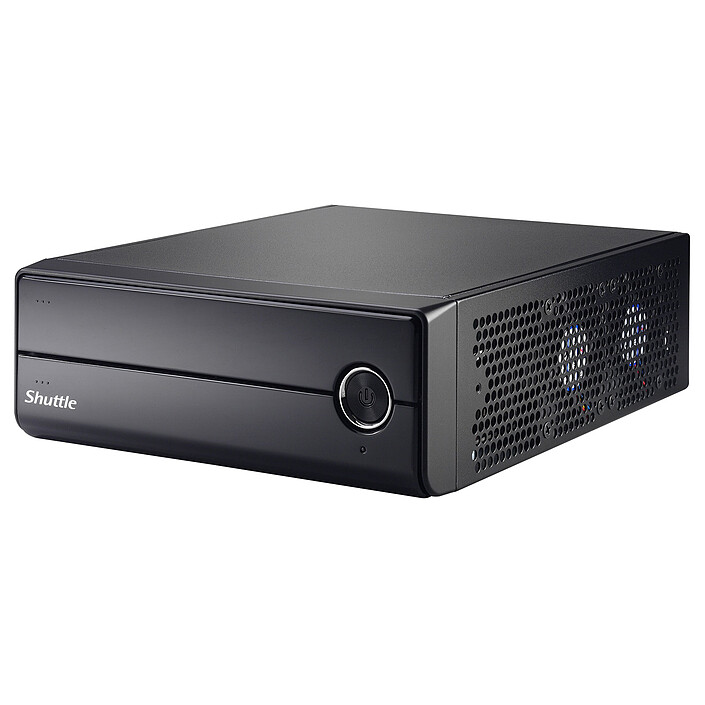

Shuttle XPC slim: Compact and elegant
The Shuttle XPC slim XH310RV has the elegant and compact design that has made these Mini-PCs so successful for many years. The XPC slim XH310RV is designed to accommodate 8th and 9th generation Intel processors for socket LGA 1151. Its interior volume of 3.5L allows you to set up many configurations. Its wide connectivity will allow you to use this machine according to all your needs: professional, office or multimedia.
The Shuttle XH310RV , thanks to its LGA1151 motherboard, can be fitted with an 8th generation Coffee Lake or 9th generation Coffee Lake Refresh Intel processor. The upgrade options include 2 SO-DIMM DDR4 RAM slots, 1 M.2 SATA/PCIe NVMe slot, 2 2.5" bays and a 5.25" slim slot.
Compact dimensions
The compact dimensions of the Shuttle XP Slim make it easy to fit on your desk, in the living room, etc. and its modern design makes it easy to integrate. Its format is particularly appreciated in professional environments, especially as POS hardware.
Great possibilities
The XPC slim XH310RV can carry a 2.5" HDD or SSD and an M.2 SSD. This gives you many possibilities to combine new SSDs and mechanical hard drives or to easily increase internal storage capacities.
Main features :
- Intel LGA 1151 socket for 8th generation Intel Coffee Lake and 9th generation Intel Coffee Lake Refresh processor (Celeron, Pentium, Core i3 / i5 / i7 / i9)
- 2 DDR4 2400/2666 MHz RAM slots (32 GB / 64 GB max. depending on processor used)
- M.2 slot 2242/2260/2280 with PCIe NVMe 2.0 4x / SATA 6 Gbps interface
- M.2 slot 2230 for wireless network card(Shuttle WLN-M kit not included)
- 2 x 2.5" SATA 6 Gbps slots (1 x 12.5 mm high, 1 x 9.5 mm high)
- Wake On LAN (WOL) and Preboot eXeceution Environment (PXE) support
- 2 graphics outputs can be used simultaneously: HDMI 2.0a / DisplayPort 1.2 / VGA
- Compatible operating systems: Windows 10 64-bit & Linux 64-bit
Select your criteria
General information |
Product name |
Shuttle XPC slim XH310RV |
Brand |
Shuttle | |
Model |
XH310RV | |
Processor and chipset |
Integrated processor |
No |
Processor |
Without processor | |
Processor support |
Intel 1151 | |
Number of CPUs supported |
1 | |
Chipset |
Intel H310 Express | |
Memory |
Memory format |
2 X SO-DIMM 260-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2400 MHz | |
| DDR4 2666 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
No |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
2 X Serial ATA 6Gb/s (SATA Revision 3) |
| 1 X M.2 - PCI-E 2.0 x4 + SATA 6 Gb/s | ||
M.2 support |
M.2 2280 | |
| M.2 2260 | ||
| M.2 2242 | ||
Optical drive type |
None | |
Audio |
Audio Chipset |
Realtek ALC662 |
Number of audio channels |
6 | |
Network |
Number of ports/Ethernet controler |
2 X Intel i211 |
Network standard(s) |
10/100/1000 Mbps | |
Connectivity |

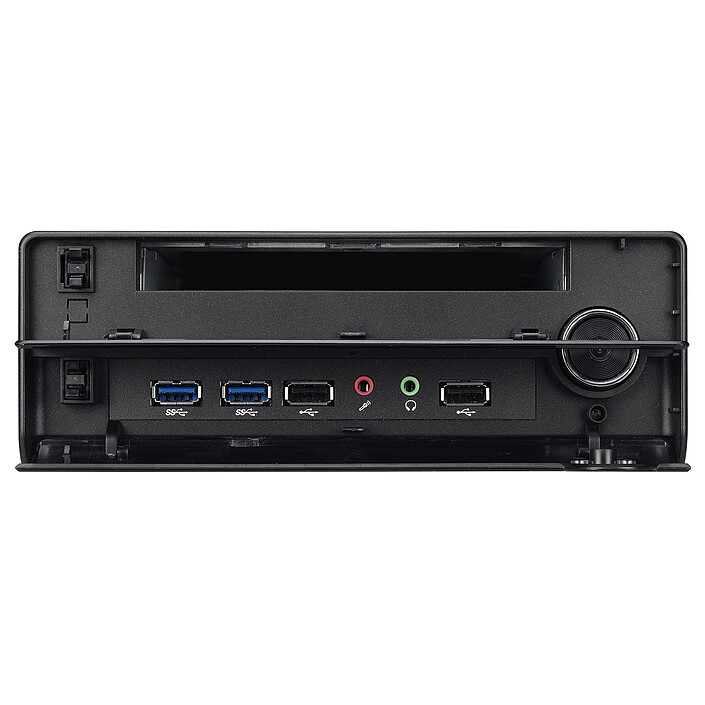

Front panel connectors |
1 X Headphone (3.5mm Jack Female) |
| 1 X Microphone (3.5mm Jack Female) | ||
| 2 X USB 2.0 | ||
| 2 X USB 3.0 | ||

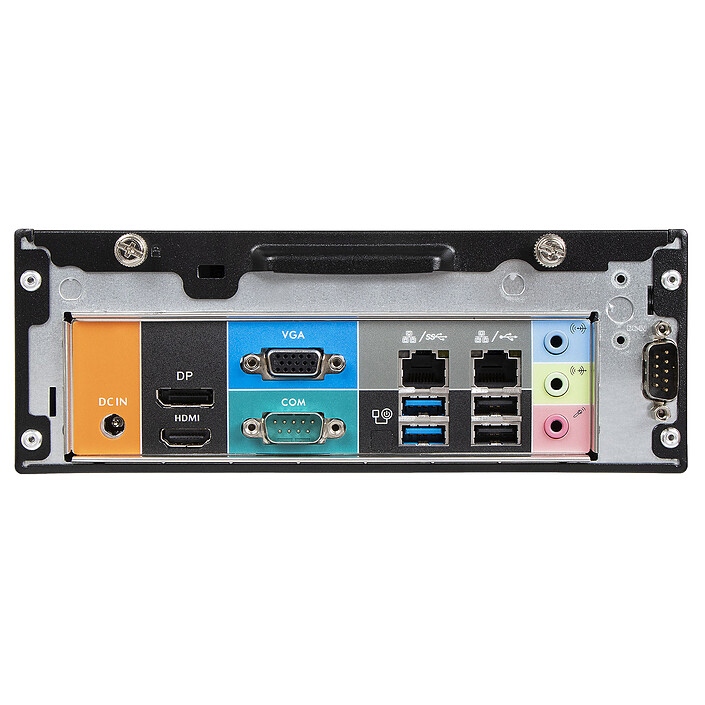

Rear panel connectors |
1 X VGA (D-sub 15 Female) | |
| 1 X HDMI Female | ||
| 1 X DisplayPort Female | ||
| 2 X USB 3.0 | ||
| 2 X USB 2.0 | ||
| 2 X Gigabit Ethernet - RJ45 Female | ||
| 2 X Serial (RS-232) | ||
| 3 X 3.5mm Jack Female Stereo | ||
Case |
Number of 2.5" slots |
2 |
Number of Slim 5.25'' slots |
1 | |
Power |
90 W | |
Compatibility |
Supported OS |
Windows 10 Pro 64-bit |
| Windows 10 Home 64-bit | ||
| Linux | ||
Max CPU TDP |
65 W | |
Physical characteristics |
Barebone format |
Mini PC |
Width |
242 mm | |
Height |
72.5 mm | |
Depth |
200 mm | |
Weight |
2.2 kg | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
