ASUS NUC 13 Pro NUC13ANKi500002I.
Intel Core i5-1340P Intel Iris Xe Graphics Wi-Fi 6E / Bluetooth 5.3 + LAN 2.5 GbE + M.2 slots (without display/memory/storage/system) .
Pictures may differ from actual products
The ASUS NUC 13 Pro NUC13ANKi5 is a barebone PC featuring a powerful 13th-generation Intel Core i5 processor. It supports up to 64 GB DDR4 RAM and M.2 PCIe NVMe SSDs. Ultra-compact and easy to integrate, it will easily find its place in the office or at home.
Intel Core i5-1340P Intel Iris Xe Graphics Wi-Fi 6E / Bluetooth 5.3 + LAN 2.5 GbE + M.2 slots (without display/memory/storage/system) .
All the power of a standard PC in the palm of your hand
TheASUS NUC 13 Pro NUC13ANKi5 is a barebone PC featuring a powerful 13th-generation Intel Core i5 processor and support for up to 64 GB DDR4 RAM and M.2 PCIe NVMe SSDs. Ultra-compact and easy to integrate, it will easily find its place in the office or at home. Supplied without RAM or hard disk, it will enable you to design a customised high-performance Mini PC with ease.
Intel Core performance
Thanks to its 13th-generation Intel Core processor, the ASUS NUC offers both remarkable performance and controlled energy consumption. The 13th generation Intel Core processors are packed with advanced features designed to improve productivity and entertainment quality. With an M.2 PCIe SSD slot (2282), an M.2 SATA/PCI-E 3.0 1x slot (2242) and two RAM slots (max. 64 GB), this NUC PC will deliver smooth, fast operation.
Uncompromisingly compact
The NUC Arena Canyon from ASUS has a compact format that means it can be installed in a wide range of environments. Its reduced size doesn't prevent it from performing well for office and multimedia use, thanks to its Intel Core i5 processor and its numerous connectivity options. When it comes to connectivity, it has nothing to envy from larger PCs. It has 2 Thunderbolt 4 ports, 3 USB 3.2 ports and 2 HDMI 2.1 ports.
Available disk slots :
- 1x PCI-E 4.0 4x M.2 disk slot (M.2 2280 compatible)
- 1x M.2 PCI-E 3.0 1x/SATA 6 Gbps drive slot (M.2 2242 compatible)
Select your criteria
General information |
Product name |
ASUS NUC 13 Pro NUC13ANKi500002I. |
Brand |
ASUS | |
Model |
90AR0031-M00090 | |
Processor and chipset |
Integrated processor |
Yes |
Processor |
Intel Core i5 | |
CPU frequency |
4.6 GHz | |
Processor support |
N/A | |
Number of CPUs supported |
1 | |
Memory |
Memory format |
2 X SO-DIMM 260-pin (DDR4) |
Memory Frequency(ies) |
DDR4 3200 MHz | |
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
Yes |
Graphics chipset |
Intel UHD Graphics | |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
1 X M.2 PCI-E x1 + SATA 6Gb/s |
| 1 X M.2 - PCI-E 4.0 x4 | ||
M.2 support |
1 X M.2 2242 | |
| 1 X M.2 2280 | ||
Optical drive type |
None | |
Audio |
Audio Chipset |
Realtek ALC269 |
Network |
Number of ports/Ethernet controler |
1 X Intel i226-V |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
Wireless network standard(s) |
Bluetooth 5.3 | |
| Wi-Fi 6E | ||
Connectivity |
Front panel connectors |
1 X 3.5mm Jack Female Stereo |
| 2 X USB 3.1 | ||

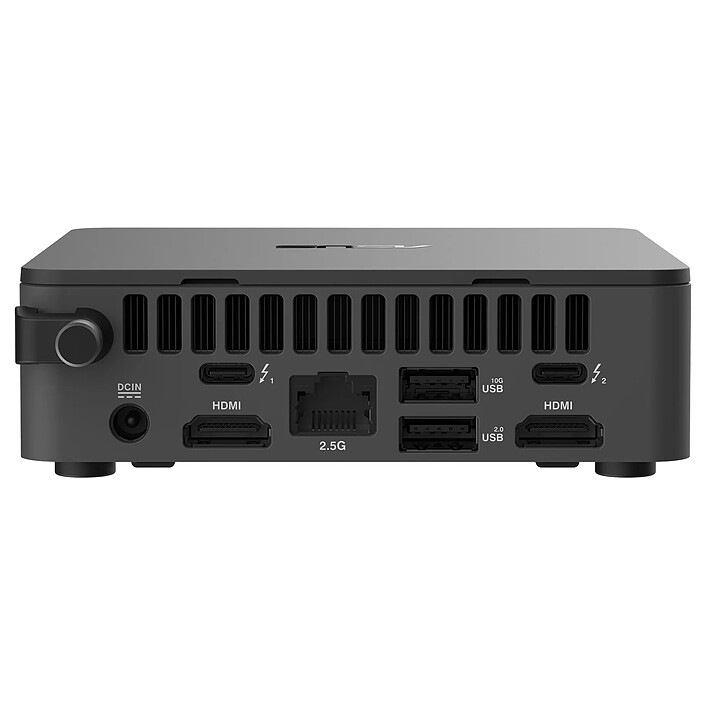

Rear panel connectors |
1 X RJ45 Female | |
| 1 X USB 2.0 | ||
| 1 X USB 3.1 | ||
| 2 X HDMI Female | ||
| 2 X Thunderbolt 4/USB-C | ||
Compatibility |
Supported OS |
Ubuntu Linux |
| Red Hat Linux | ||
| Microsoft Windows 11 | ||
| Microsoft Windows 10 | ||
Physical characteristics |
Barebone format |
Mini PC |
Width |
117 mm | |
Height |
37 mm | |
Depth |
112 mm | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
