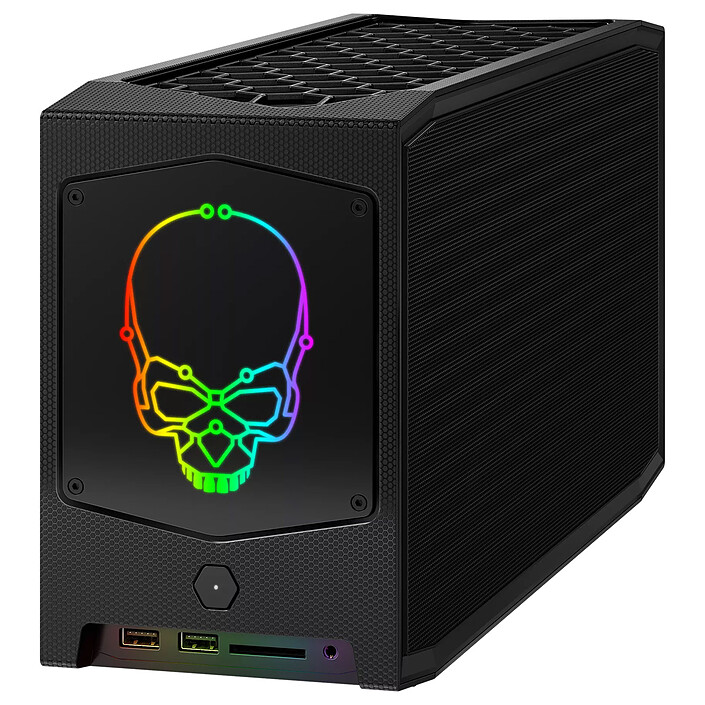

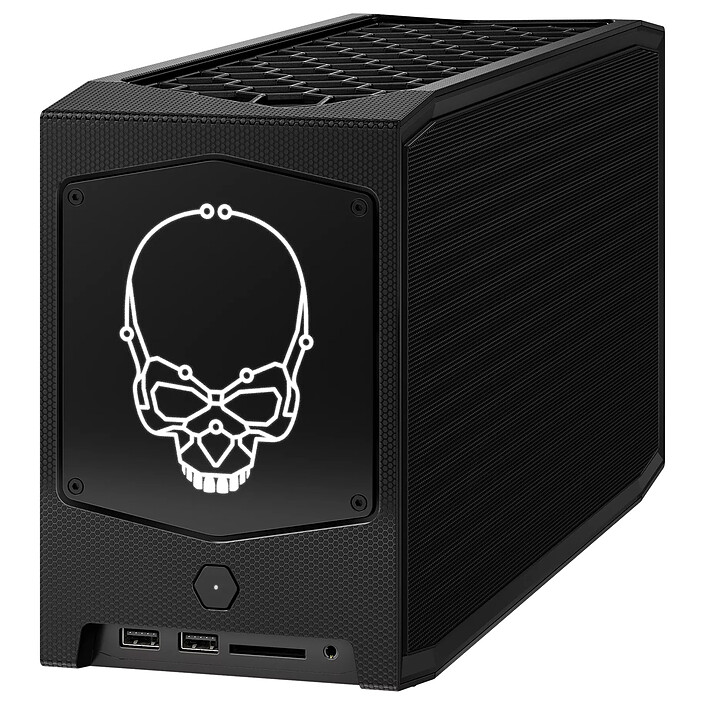

ASUS NUC 11 Extreme NUC11BTMi90002
Intel Core i9-11900KB Wi-Fi 6E/Bluetooth - LAN 2.5 GbE + M.2 PCIe / PCIe 4.0 16x / PCIe 4.0 4x slots (without display/memory/storage/system)
Pictures may differ from actual products
The ASUS NUC 11 Extreme NUC11BTMi9 is a barebone, equipped with powerful components, ideal for designing a compact, ultra-high-performance Gaming PC. It features an Intel Core i9 processor and is compatible with standard PCI-Express 16x graphics cards (Dual Slot and up to 300 mm long).
Intel Core i9-11900KB Wi-Fi 6E/Bluetooth - LAN 2.5 GbE + M.2 PCIe / PCIe 4.0 16x / PCIe 4.0 4x slots (without display/memory/storage/system)
Design an ultra-powerful Mini Gaming PC
TheASUS NUC 11 Extreme NUC11BTMi9 is a barebone, equipped with powerful components, ideal for designing a compact, ultra-high-performance Gaming PC. It features an 11th-generation Intel Core i9 processor and can support up to 64GB of DDR4 RAM, M.2 PCI-E 4.0 NVMe SSDs and a Dual Slot PCI-Express 4.0 16x graphics card (up to 300mm long).
Incredible performance
Thanks to its 11th generation Intel Core processor, the ASUS NUC offers both remarkable performance and controlled energy consumption. 11th generation Intel Core processors are packed with advanced features designed to improve entertainment quality and gaming performance.
The NUC 11 Extreme also boasts Wi-Fi 6E, 2.5 GbE networking and 2 Thunderbolt 4/USB-C ports.
Compatible with standard graphics cards
TheASUS NUC 11 Extreme is capable of accommodating a standard PCI-Express 16x graphics card (Dual Slot and maximum length 300 mm). This will enable you to design a compact Gaming PC capable of incredible gaming performance. The ITX 650W 80+ Gold power supply also has 2 PCI-Express 8-pin connectors.
Select your criteria
General information |
Product name |
ASUS NUC 11 Extreme NUC11BTMi90002 |
Brand |
ASUS | |
Model |
NUC11BTMI90002 | |
Processor and chipset |
Integrated processor |
Yes |
Processor |
Intel Core i9 | |
CPU frequency |
3.3 GHz | |
Processor support |
N/A | |
Number of CPUs supported |
1 | |
Memory |
Memory format |
2 X SO-DIMM 260-pin (DDR4) |
Memory Frequency(ies) |
DDR4 3200 MHz | |
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
64 GB | |
Graphic |
Integrated graphics controller |
Yes |
Graphics chipset |
Intel UHD Graphics | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
Graphic card max. length |
300 mm | |
Number and Type of slots |
1 X PCI Express 4.0 x4 | |
Storage |
Hard drives connectors |
2 X M.2 - PCI-E 4.0 x4 |
| 2 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
Supported RAID Modes |
0 | |
| 1 | ||
Optical drive type |
None | |
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Intel i225-LM |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
Wireless network standard(s) |
Bluetooth 5.2 | |
| Wi-Fi 6E | ||
Connectivity |

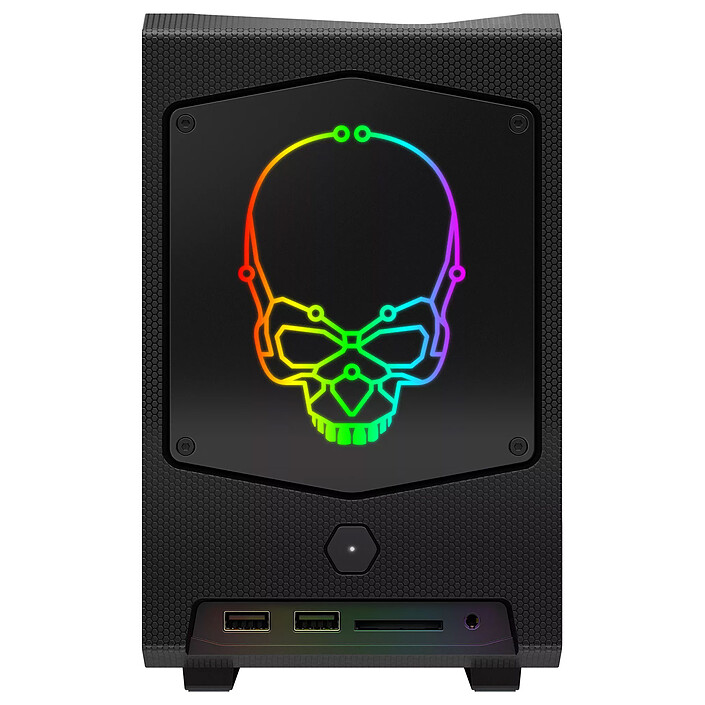

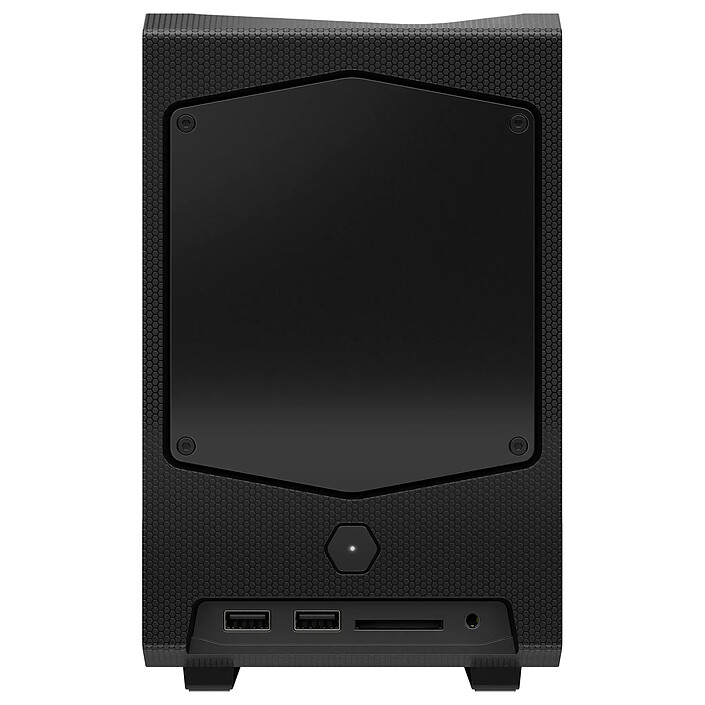

Front panel connectors |
SDXC |
| SDHC | ||
| SD (Secure Digital) | ||
| 2 X USB 3.1 | ||
| 1 X 3.5mm Jack Female Stereo | ||

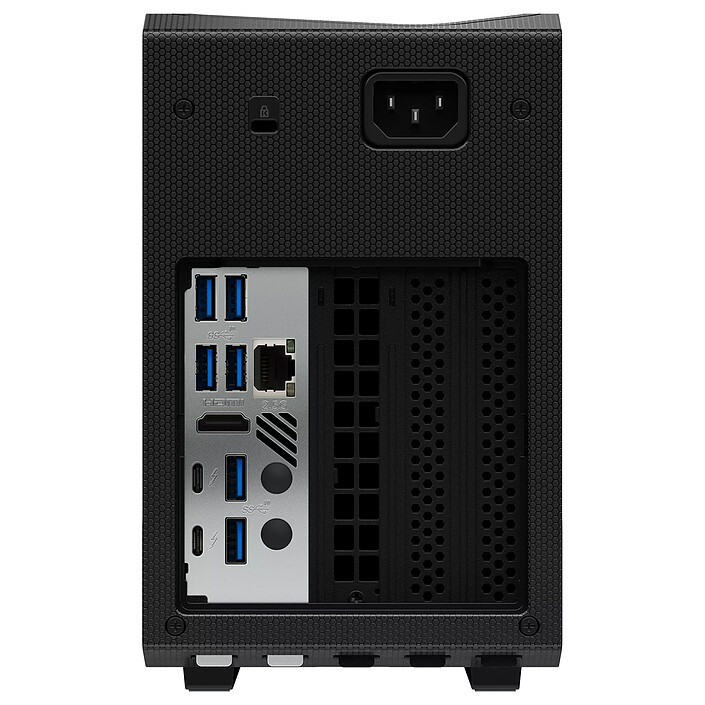

Rear panel connectors |
6 X USB 3.1 | |
| 2 X Thunderbolt 4/USB-C | ||
| 1 X HDMI Female | ||
| 1 X RJ45 Female | ||
Case |
Number of 2.5" slots |
0 |
Number of invisible 3.5" slots |
0 | |
Number of visible 3.5" slots |
0 | |
Number of visible 5.25" slots |
0 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Power |
650 W | |
Compatibility |
Supported OS |
Microsoft Windows 11 |
| Microsoft Windows 10 | ||
Physical characteristics |
Barebone format |
Mini PC |
Width |
120 mm | |
Height |
189 mm | |
Depth |
357 mm | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
