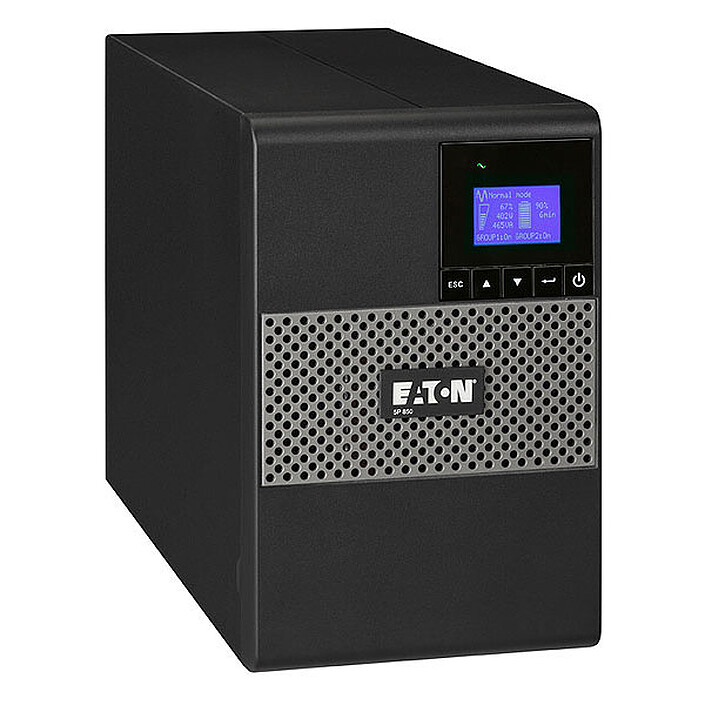

Eaton 5P 850i
Line interactive USB/Srie UPS 850VA 600W (Tower)
Last price 329€95
The Eaton 5P 850i Line Interactive UPS is a high efficiency model. It features power metering and a convenient graphic LCD display. An ideal purchase to protect servers, switches, routers or storage equipment.
Performance and efficiency
When running on batteries, the Eaton 5P UPS provides a high quality sinusoidal signal, ideal for powering sensitive equipment such as servers with active PFC (power factor correction). You can extend the battery life by extending the input voltage tolerance (via the display or software) to adapt the UPS to a specific environment (e.g. generator).
User-friendly interface

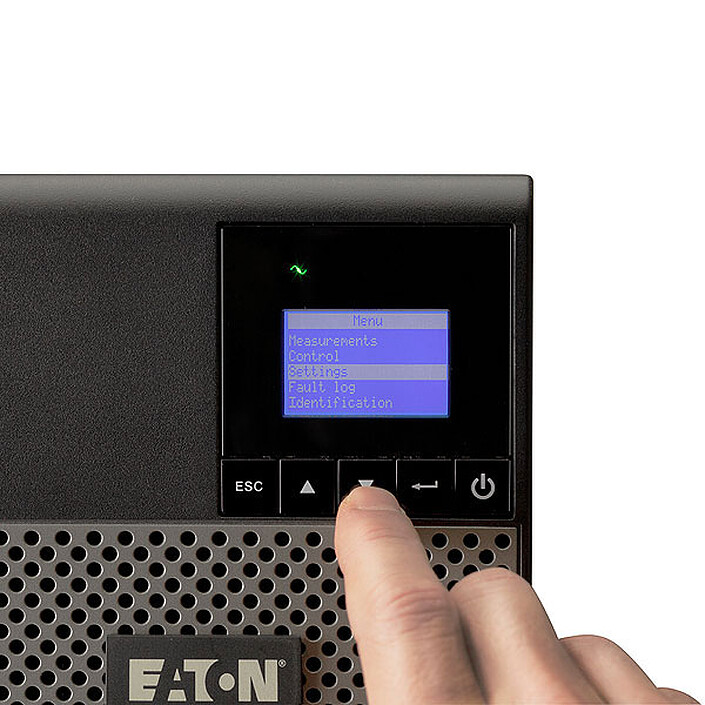

The LCD display provides clear information on the status and measurements of the inverter (in 7 languages). Advanced parameterisation functions are available via the navigation keys. The 5P measures the energy consumption of the connected equipment in total. These values (in kWh) can be managed via the LCD display or Eaton's Intelligent Power Software suite. The load segmentation feature allows, during a prolonged power outage, the least necessary equipment to be switched off to reserve battery life for essential equipment. This feature is also used for remote reboot and sequential server startup. The 5P has serial (RS232) and USB communications ports, as well as a free slot for an optional card (SNMP/Web network card or dry contact card). Eaton's Intelligent Power software suite is compatible with all major operating systems, including virtualised environments such as VMware and Hyper-V.
long-life batteries with easy maintenance

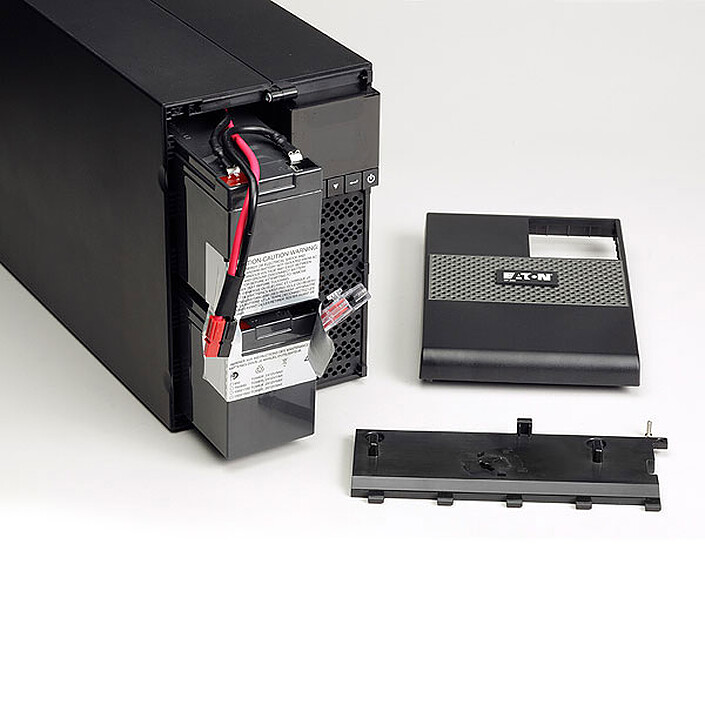

The battery is managed by Eaton's ABM technology, which recharges the battery only when needed, preventing corrosion and significantly extending battery life. The batteries are hot-swappable without having to switch off the connected equipment. With an optional maintenance bypass module, you can even replace the entire UPS!
Main features :
- Easy to use with a modern multi-lingual LCD display
- High efficiency inverter: up to 98
- Typical autonomy (at 50% / 70% load): 12 / 7 minutes
- Measurement of the energy consumption of the connected equipment at the global level
- Intelligent battery management using ABM technology, which extends battery life
- Group of programmable output sockets (remote stop/start)
- Sinusoidal output signal
- 1 USB connector + 1 RS232 connector (cannot be used simultaneously)
- 1 slot for Network-MS, Modbus-MS or Relay-MS option card
- Supplied with Eaton's Intelligent Power software suite, compatible with all major OS, including virtualisation software
- 3 year manufacturer's warranty (including batteries)
Select your criteria
General information |
Product name |
Eaton 5P 850i |
Brand |
Eaton | |
Model |
5P850I | |
Main characteristics |
Technology |
Line Interactive |
Type of product to protect |
Server | |
| Workstation | ||
Inverter power (VA) |
850 VA | |
Inverter power (W) |
600 W | |
Scalable |
No | |
Manageable |
Yes | |
Connectivity |
Number of sockets |
6 |
Connector(s) |
1 X Serial (RS-232) | |
| 1 X USB | ||
Physical characteristics |
Power inverter format |
Tower |
Width |
150 mm | |
Length |
230 mm | |
Thickness |
315 mm | |
Weight |
10.4 kg | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Eaton products
Product referenced on 6 Jun 2013
