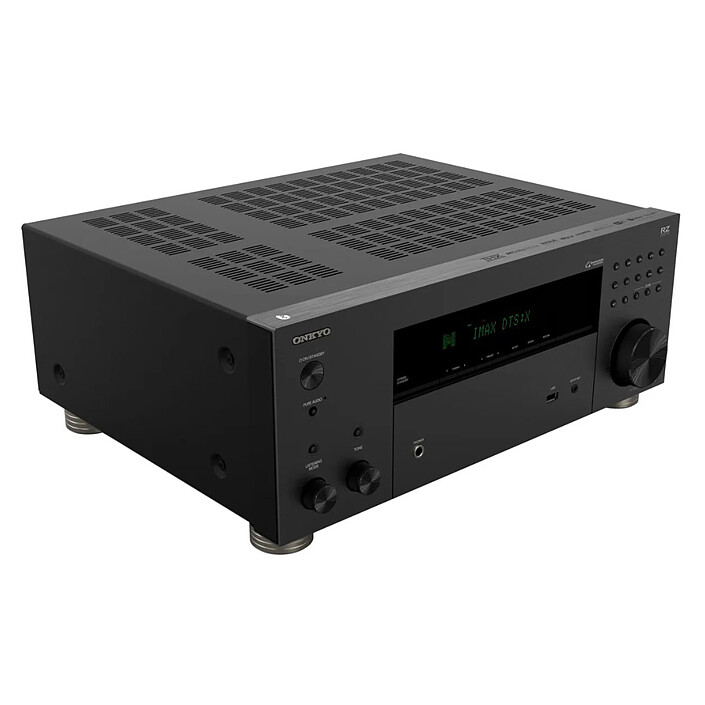

Onkyo TX-RZ30.

9.2 Home Cinema Receiver - 100 Watts - Dolby Atmos/DTS:X - IMAX Enhanced - HDMI 8K - HDR - Wi-Fi/Bluetooth - AirPlay 2 - Multiroom.

Pictures may differ from actual products

You've never experienced this before - rediscover your movies for unforgettable entertainment in the heart of your living room with Onkyo's TX-RZ30. At the heart of your entertainment, it transmits HDR 8K video to your TV via HDMI.

9.2 Home Cinema Receiver - 100 Watts - Dolby Atmos/DTS:X - IMAX Enhanced - HDMI 8K - HDR - Wi-Fi/Bluetooth - AirPlay 2 - Multiroom.

Overview

Onkyo's Exceptional Amplifier for the Home Theater of Your Dreams

You've never experienced it before - rediscover your movies for unforgettable entertainment in the heart of your living room withOnkyo's TX-RZ30. At the heart of your entertainment, it transmits HDR 8K video to your TV via HDMI. It's optimized for zero-latency gaming - and delivers Dolby Atmos or DTS:X sound to your 5.2.4-channel speaker system.For nearly 80 years, Onkyo has been providing audiophiles with sound that no other company can match. Thanks to a unique analog circuit and high-end amplification technology, the 9.2-channelOnkyo TX-RZ30 delivers your favorite content with a sound that's out of this world, with punchy highs and deeper lows.The amp integrates with your system and streams music to headphones via two-way Bluetooth wireless technology. Thanks to Onkyo's hi-fi expertise, the design of this THX Select and IMAX Enhanced-certified Onkyo RZ Series amp is of exceptional quality. These RZ Series amplifiers transform your music, and your film and video game soundtracks vibrate with emotion, with sound perfected by Dirac Live room correction. This TX-RZ30 amp has features that others don't, such as front-to-back stereo switching for background listening, voice/dialogue enhancement with Dirac Live room correction, and a built-in speaker system.DSP voice/dialogue enhancement, My Volume presets and an OSD function that compares source data with output settings to optimise playback before entertainment begins.

Immersive audio experience

Immerse yourself in the heart of your entertainment with Dolby Atmos and DTS:X surround sound magic. Experience 3D sound for a simply stunning show! You can also enjoy overmixing with the integration of Dolby Surround and DTS Neural:X. What's more, Dolby Atmos Height Virtualizer and DTS Virtual:X technologies offer an immersive listening experience via conventional speakers without the need for additional surround speakers.

TheOnkyo TX-RZ30 is IMAX Enhanced certified. IMAX Enhanced processing gives you an even brighter Ultra HD HDR picture with optimal contrast, as well as even more immersive spatialized sound.

Don't settle for inferior content

Dirac and Onkyo team up for epic experiences. TheOnkyo TX-RZ30 is an amplifier that's sure to find a place in your living room. It features a Dirac Liveautocalibration system. The Dirac Live system automatically calibrates the sound using your smartphone or the included wired microphone. As a result, the TX-RZ30 is capable of adapting the sound to the size of your room and the speakers you've connected to it. The TX-RZ30 lets you deploy the full potential of your home cinema system, whatever your entertainment space.

TheOnkyo TX-RZ30 includes all your favourite streaming apps - Spotify, Amazon Music HD, Tidal, Deezer and TuneIn - for smooth playback of digital content across 9.2 channels. Plus, with the addition of a Sonos port, high-quality sound can be distributed via your Sonos wireless network.

Klipsch and Onkyo have teamed up to implement precise crossover values for specific Reference Premiere speakers, allowing you to easily integrate their legendary products with your TX-RZ30.

At the heart of your entertainment

TheOnkyo TX-RZ30 receiver puts you at the heart of your entertainment, making it unforgettable with 6 HDMI 2.1 inputs that support UHD 4K 120 fps and 8K 60 fps, HDR (HDR10, HLG, Dolby Vision), BT.2020 and HDCP 2.2.

Powered Zone 2 and Zone 3 outputs let you connect passive speakers in two other rooms to a 5.2-channel speaker system in your main listening area. With MAIN, the Zone 2 and Zone 3 digital converters support D/A audio playback (including HDMI, SPDIF and NET) in three rooms. You can sync the same track or play different songs in each room using the Onkyo controller to manage your entertainment.

Key features:

  • 9.2" A/V receiver
  • Power: up to 100 W per channel (8 ohms, 20Hz-20kHz, THD 0.08%, 2 channels)
  • Supports Dolby Atmos and DTS:X formats
  • Dolby Atmos Height Virtualizer and DTS Virtual:X technologies: immersive experience without surround speakers
  • THX Select certified
  • IMAX Enhanced certified
  • Gaming functions ALLM, VRR and QFT
  • HDR, HDR10+, Dolby Vision and HLG compatible
  • 32-bit/384 kHz D/A converter
  • 6x HDMI 2.1 inputs compatible with UHD 4K 120 fps and 8K 60 fps
  • 2x HDMI 2.1 outputs (eARC)
  • Bluetooth wireless technology with SBC / AAC support
  • Dirac Live room-dependent acoustic calibration
  • Zone B pre-amplified line output
  • Ethernet and WiFi network controllers (2.4 GHz and 5 GHz)
  • Spotify, Amazon Music HD, Tidal, Deezer and TuneIn compatible
  • Apple AirPlay 2, Chromecast
Specifications
Select your criteria

General information

Product name

Onkyo TX-RZ30.

Brand

Onkyo

Model

TXRZ30MBMMP

Amplification

Amplifier type

9.2

Number of amplification channels

9

4K UHD resolution(s)

Yes

Power per channel

100 W

Signal-to-noise ratio

106 dB

Bandwidth (Min frequency)

5 Hz

Bandwidth (Max frequency)

100 kHz

Audio processing

Supported audio format(s)

DSD
Dolby Atmos
Dolby Atmos Height Virtualizer
Dolby Audio
Dolby Digital Plus
Dolby Surround
Dolby TrueHD
DTS
DTS 96/24
DTS Express
DTS Neural:X
DTS Virtual:X
DTS:X
DTS-HD High Resolution Audio
DTS-HD Master Audio
PCM (CD-Audio)

D/A converter

32 bits / 384 kHz

Automatic calibration

Dirac Live

THX certified

No

IMAX Enhanced

Yes

Tuner

Tuner type

FM
DAB+

Number of storable stations

40 X Total

Connectivity

Multiroom

Yes

Bluetooth

Yes

Wi-Fi

Yes

Connectivity

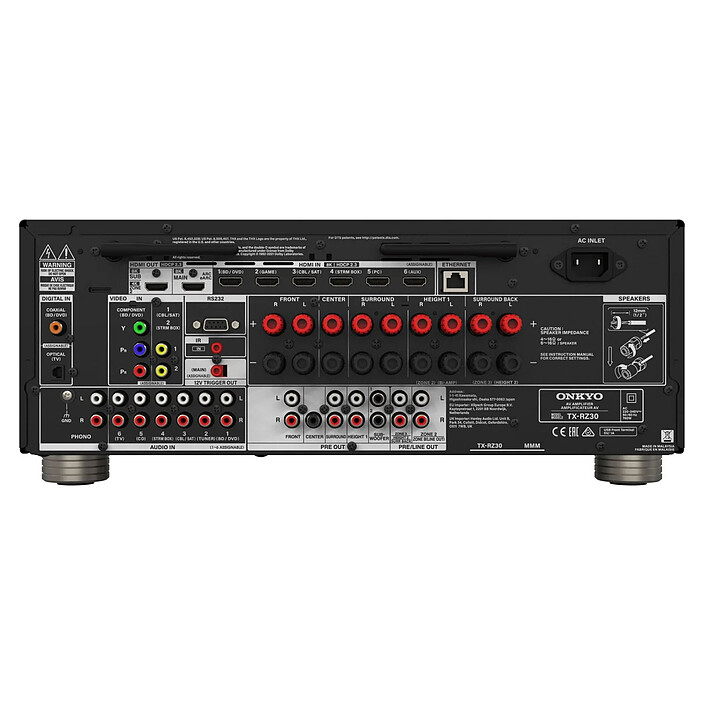

Front A/V connectors

No

Front panel connectors

Headphone (6.35mm Jack)

Audio input

3 X Audio stereo (2x RCA Female)
1 X Coaxial S/PDIF digital audio
1 X Digital audio S/PDIF Optical
1 X Microphone (3.5mm Jack Female)

Audio outputs

1 X Headphone (6.35mm Jack)
1 X Zone 2 (2x RCA Female)
1 X Zone 3 (2x RCA Female)

Video inputs

6 X HDMI 2.1 Female

Video outputs

2 X HDMI 2.1 Female

Additional connectors

2 X USB

Equipment

Remote control

Yes

DLNA certification

No

Physical characteristics

Color

Black

Width

435 mm

Height

177.5 mm

Depth

382.5 mm

Weight

11.5 kg

Power supply

Consumption

760 W

Standby consumption

50 W

Warranties

Commercial warranty

Seller 3 years

Legal warranty

See terms & conditions

Product referenced on 14 Nov 2024
