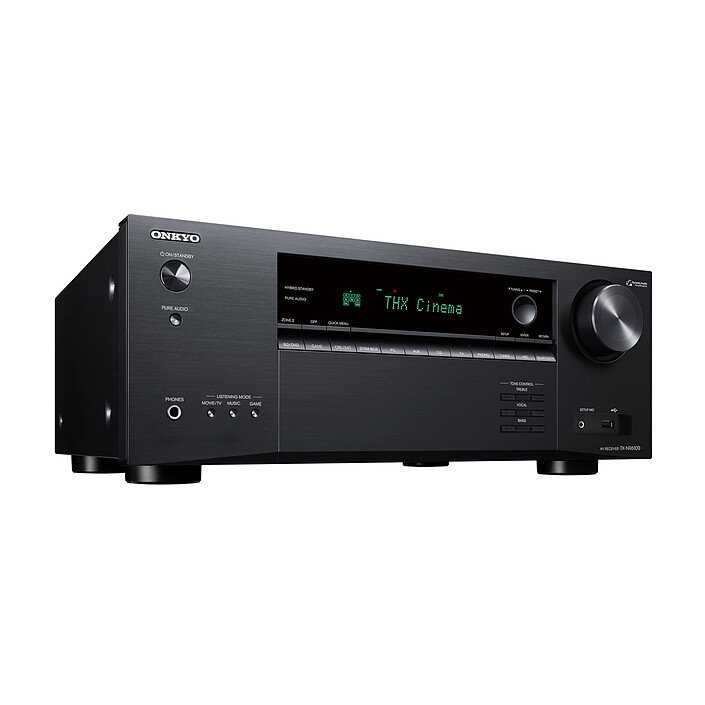

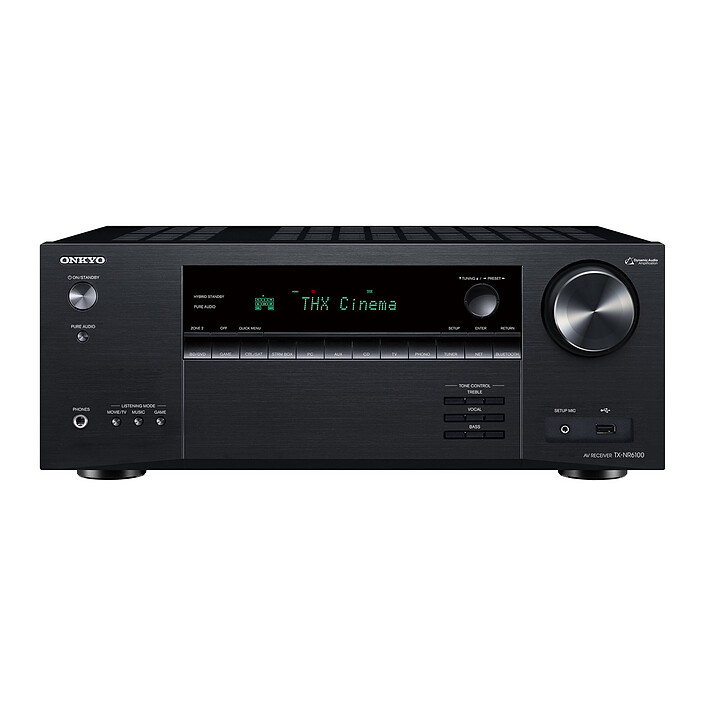

Onkyo TX-NR6100B Black
7.2 Home Cinema Receiver - 165 Watts - Dolby Atmos/DTS:X - HDMI 8K - HDR - Wi-Fi/Bluetooth - AirPlay 2 - Multiroom
Pictures may differ from actual products
By incorporating key noise reduction enhancements with THX Certified Select amplification, the Onkyo TX-NR6100 raises the bar for reference-quality sound while streaming 8K/60p and HDR10+ video to your compatible TV via HDMI.
7.2 Home Cinema Receiver - 165 Watts - Dolby Atmos/DTS:X - HDMI 8K - HDR - Wi-Fi/Bluetooth - AirPlay 2 - Multiroom
Welcome to the 8K Ultra HD Experience from Onkyo
By incorporating key noise reduction enhancements with THX Certified Select amplification, the Onkyo TX-NR6100 raises the bar for reference sound while delivering 8K/60p and HDR10+ video to your compatible TV via HDMI.Onkyo 's TX-NR6100 raises the bar on reference sound while streaming 8K/60p and HDR10+ video to your compatible TV via HDMI. Enjoy Dolby Atmos and DTS:X soundtracks through your compatible surround hardware, or use DTS and Dolby mixing solutions to create a 3D soundfield. Launch and control music throughout your home with Ok Google or Alexa voice assistants, and connect a second TV via the HDMI Sub/Zone 2 output. Chromecast built-in, AirPlay 2, DTS Play-Fi and Works with Sonos all cover multi-room systems, and if you connect passive speakers, you can switch between a 7.2/5.2.2-ch and 5.2-ch + Zone 2 layout at the touch of a button via the Zone 2 speaker terminals. Features such as a quality MM phono equaliser and two-way Bluetooth wireless technology make this TX-NR6100 amp even more compelling.
Immersive audio experience
Immerse yourself in your entertainment with Dolby Atmos and DTS:X surround sound magic. Experience 3D sound for a simply amazing show! You can also enjoy overmixing with Dolby Surround and DTS Neural:X integration.
In addition, Dolby Atmos Height Virtualizer and DTS Virtual:X technologies provide an immersive listening experience through conventional speakers without the need for additional surround speakers.
The Onkyo TX-NR6100 is THX Certified Select. This ensures the same reference volume and sound quality as a traditional cinema in rooms where the distance between the screen and the seat is approximately 3.5 metres.
Calibration to your room
AccuEQ equalises the surround sound to match the room acoustics and produce crisp, clear sound, whileAccuReflex aligns the phase of the 'overhead' speakers with the sound coming directly from the other speakers, eliminating any delay for perfectly synchronised sound. This ensures consistent reproduction of object-based tracks.
At the heart of your entertainment

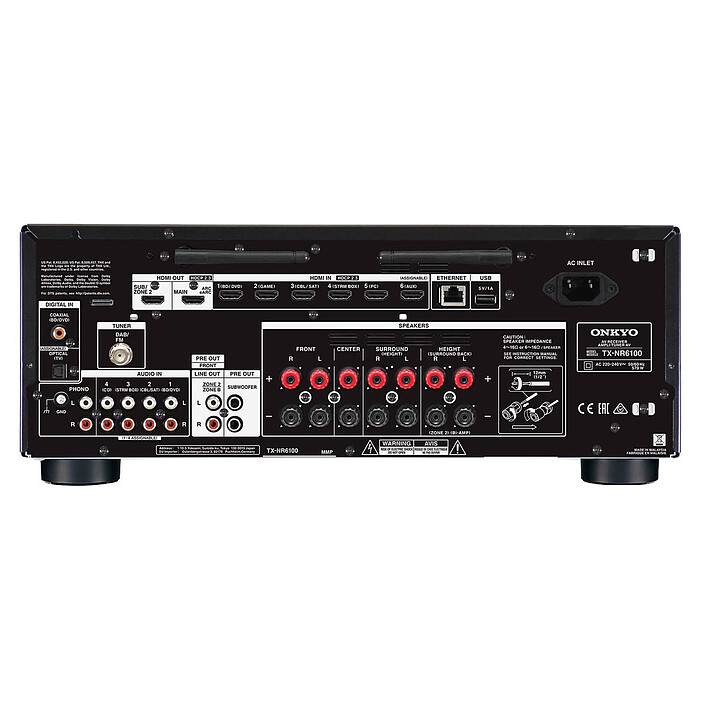

The Onkyo TX-NR6100 is a perfect fit for your living room and can drive your entire home theatre system with its extensive video and audio inputs and outputs. It has 6 HDMI inputs and 2 HDMI outputs, one of which is eARC compatible.
On the audio side, the TX-NR6100 offers 5 analogue RCA inputs, including a phono input so you can enjoy your turntable. Optical and coaxial inputs give you even more connectivity options.
TheOnkyo TX-NR6100 also features a Zone 2 output and dual subwoofer outputs, allowing you to connect up to two subwoofers. Want to listen to your music through headphones? The headphone output on the front panel is at your disposal. Your headphones are a Bluetooth model. Well, thanks to theOnkyo TX-NR6100 's bi-directional Bluetooth compatibility, you can use them and listen to your music in the best possible way.
Main features:
- 7.2" A/V receiver
- Power: Power at 6 ohms, 1kHz and 1% THD: 165W
- Dolby Atmos and DTS:X support
- Dolby Atmos Height Virtualizer and DTS Virtual:X Technologies: Immersive Experience Without Surround Speakers
- THX Select Certified
- 3x HDMI 2.1 inputs for 4K 120 fps UHD and 8K 60 fps
- 3x HDMI 2.0 inputs for 4K UHD
- 2x HDMI 2.1 outputs
- Bluetooth 5.0 wireless technology with SBC / AAC support
- AccuEQ room-dependent acoustic calibration
- Pre-amplified line output zone 2 output
- Ethernet and Wi-Fi network controllers (2.4 GHz and 5 GHz)
- Amazon Music, Deezer, Spotify and Tidal compatible
- Apple AirPlay 2, Chromecast
Select your criteria
General information |
Product name |
Onkyo TX-NR6100B Black |
Brand |
Onkyo | |
Model |
TXNR6100BMMP | |
Amplification |
Amplifier type |
7.2 |
Number of amplification channels |
7 | |
4K UHD resolution(s) |
Yes | |
Power per channel |
165 W | |
Signal-to-noise ratio |
106 dB | |
Bandwidth (Min frequency) |
10 Hz | |
Bandwidth (Max frequency) |
100 kHz | |
Audio processing |
Supported audio format(s) |
DSD |
| Dolby Atmos | ||
| Dolby Atmos Height Virtualizer | ||
| Dolby Audio | ||
| Dolby Digital Plus | ||
| Dolby Surround | ||
| Dolby TrueHD | ||
| DTS | ||
| DTS 96/24 | ||
| DTS Express | ||
| DTS Neural:X | ||
| DTS Virtual:X | ||
| DTS:X | ||
| DTS-HD High Resolution Audio | ||
| DTS-HD Master Audio | ||
| PCM (CD-Audio) | ||
D/A converter |
32 bits / 384 kHz | |
Automatic calibration |
AccuEQ | |
THX certified |
No | |
THX certification |
Select | |
IMAX Enhanced |
No | |
Tuner |
Tuner type |
DAB+ |
| FM | ||
Number of storable stations |
40 X Total | |
Connectivity |
Multiroom |
No |
Bluetooth |
Yes | |
Wi-Fi |
Yes | |
Connectivity |
Front A/V connectors |
No |
Front panel connectors |
Headphone (6.35mm Jack) | |
Audio input |
4 X Audio stereo (2x RCA Female) | |
| 1 X Coaxial S/PDIF digital audio | ||
| 1 X Digital audio S/PDIF Optical | ||
| 1 X Microphone (3.5mm Jack Female) | ||
Audio outputs |
1 X Zone 2 (2x RCA Female) | |
| 1 X Headphone (6.35mm Jack) | ||
Video inputs |
3 X HDMI 2.0 Female | |
| 3 X HDMI 2.1 Female | ||
Video outputs |
2 X HDMI 2.1 Female | |
Additional connectors |
2 X USB | |
| 1 X Ethernet - RJ45 Female | ||
Equipment |
Remote control |
Yes |
DLNA certification |
No | |
Physical characteristics |
Color |
Black |
Width |
435 mm | |
Height |
173 mm | |
Depth |
379 mm | |
Weight |
9.8 kg | |
Power supply |
Consumption |
570 W |
Standby consumption |
0.15 W | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Onkyo products
Product referenced on 29 Mar 2023
