Onkyo TX-NR5100B Black
7.2 Home Cinema Receiver - 165 Watts - Dolby Atmos/DTS:X - HDMI 8K - HDR - Wi-Fi/Bluetooth - AirPlay 2 - Multiroom
Pictures may differ from actual products
By incorporating key noise reduction enhancements with THX Certified Select amplification, Onkyo's TX-NR5100 raises the bar for reference-quality sound while delivering 8K/60p and HDR10+ video to your compatible TV via HDMI.
7.2 Home Cinema Receiver - 165 Watts - Dolby Atmos/DTS:X - HDMI 8K - HDR - Wi-Fi/Bluetooth - AirPlay 2 - Multiroom
Available from 494€95 on the outlet deals
Welcome to the 8K Ultra HD Experience from Onkyo
By incorporating key noise reduction enhancements with THX Certified Select amplification, the Onkyo TX-NR5100 raises the bar for reference-quality sound, while streaming 8K/60p and HDR10+ video to your compatible TV via HDMI.Onkyo 's TX-NR5100 raises the bar for reference-quality sound while streaming 8K/60p and HDR10+ video to your compatible TV via HDMI. Enjoy Dolby Atmos and DTS:X soundtracks through your compatible surround hardware, or use DTS and Dolby mixing solutions to create a 3D soundfield. Start and control music throughout your home with Ok Google or Alexa voice assistants, and connect a second TV via the HDMI Sub/Zone 2 output. Chromecast built-in, AirPlay 2, DTS Play-Fi and Works with Sonos all cover multi-room systems, and if you connect passive speakers, you can switch between a 7.2/5.2-ch and 5.2-ch + Zone 2 layout at the touch of a button via the Zone 2 speaker terminals. Features such as a quality MM phono equaliser and two-way Bluetooth wireless technology make this TX-NR5100 amplifier even more compelling.
.jpg)
Immersive audio experience
Plunge into the heart of your entertainment with Dolby Atmos and DTS:X surround sound magic. Experience 3D sound for a simply stunning show! You can also enjoy overmixing with the integration of Dolby Surround and DTS Neural:X.
What's more, Dolby Atmos Height Virtualizer and DTS Virtual:X technologies offer an immersive listening experience via conventional speakers without the need for additional surround speakers.
The Onkyo TX-NR5100 is THX Certified Select. This guarantees the same reference volume and sound quality as a traditional cinema in rooms where the screen-to-seat distance is around 3.5 m.
AccuEQ and Klipsch Optimize calibration
AccuEQ equalises the surround sound to match the room acoustics and produce crisp, accurate sound, whileAccuReflex aligns the phase of the 'overhead' speakers with the sound coming directly from the other speakers, eliminating any delay for perfectly synchronised sound. This ensures consistent reproduction of object-based tracks.
Klipsch Optimize mode allows you to easily integrate your Klipsch Reference and Klipsch Reference Premiere speakers with your Onkyo AV receiver. Klipsch and Onkyo have teamed up to implement precise crossover values for the new Reference Premiere speakers specifically. Now you can simply select the speaker model you'll be using for each individual channel, and the optimised crossover setting will be applied automatically.
At the heart of your entertainment

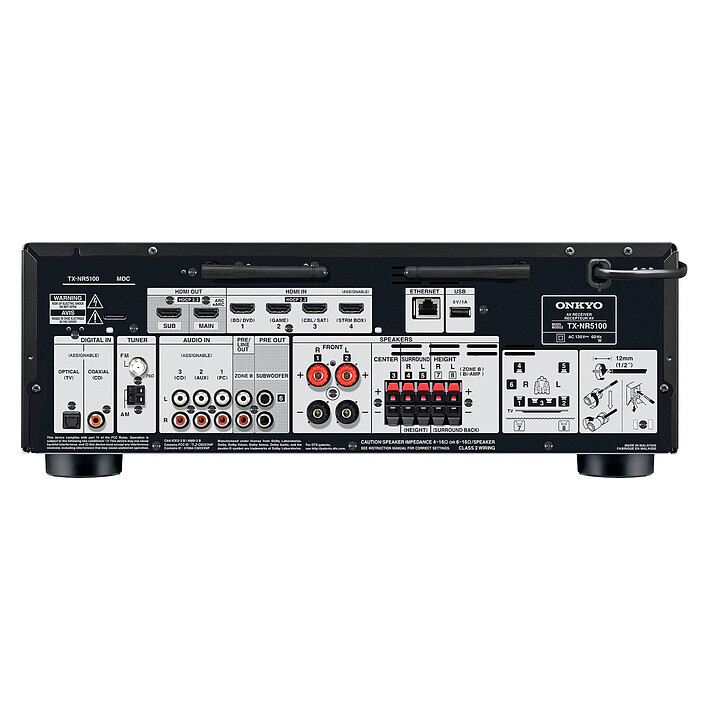

The Onkyo TX-NR5100 will fit perfectly into your living room and drive your entire home cinema setup, thanks to its wide range of video and audio inputs and outputs. It has 4 HDMI inputs and 2 HDMI outputs, one of which is eARC compatible.
As for audio, the TX-NR5100 has 3 analogue RCA inputs, including a phono input so you can enjoy your vinyl turntable. Optical and coaxial inputs give you even more connectivity options.
TheOnkyo TX-NR5100 also features a zone 2 output and a dual subwoofer output, so you can connect up to two subwoofers. Want to listen to your music through headphones? There's a headphone output on the front panel. Your headphones are Bluetooth? Well, thanks to theOnkyo TX-NR5100 's compatibility with bi-directional Bluetooth, you can use them and listen to your music in the best possible conditions.
Key features:
- 7.2" A/V receiver
- Power: Power at 6 ohms, 1kHz and 1% THD: 165 W
- Dolby Atmos and DTS:X support
- Dolby Atmos Height Virtualizer and DTS Virtual:X technologies: immersive experience without surround speakers
- THX Select certified
- 4x HDMI 2.1 inputs compatible with UHD 4K 120 fps and 8K 60 fps
- 2x HDMI 2.1 outputs
- Bluetooth 5.0 wireless technology with SBC / AAC support
- AccuEQ room-dependent acoustic calibration
- Pre-amplified line output, zone 2 output
- Ethernet and Wi-Fi network controllers (2.4 GHz and 5 GHz)
- Compatible with Amazon Music, Deezer, Spotify and Tidal
- Apple AirPlay 2, Chromecast
Select your criteria
General information |
Product name |
Onkyo TX-NR5100B Black |
Brand |
Onkyo | |
Model |
TXNR5100BMMP | |
Amplification |
Amplifier type |
7.2 |
Number of amplification channels |
7 | |
4K UHD resolution(s) |
Yes | |
Power per channel |
165 W | |
Signal-to-noise ratio |
106 dB | |
Bandwidth (Min frequency) |
10 Hz | |
Bandwidth (Max frequency) |
100 kHz | |
Audio processing |
Supported audio format(s) |
DSD |
| Dolby Atmos | ||
| Dolby Atmos Height Virtualizer | ||
| Dolby Audio | ||
| Dolby Digital Plus | ||
| Dolby Surround | ||
| Dolby TrueHD | ||
| DTS | ||
| DTS 96/24 | ||
| DTS Express | ||
| DTS Neural:X | ||
| DTS Virtual:X | ||
| DTS:X | ||
| DTS-HD High Resolution Audio | ||
| DTS-HD Master Audio | ||
| PCM (CD-Audio) | ||
D/A converter |
32 bits / 384 kHz | |
Automatic calibration |
AccuEQ | |
THX certified |
No | |
THX certification |
Select | |
IMAX Enhanced |
No | |
Tuner |
Tuner type |
FM |
| DAB+ | ||
Number of storable stations |
40 X Total | |
Connectivity |
Multiroom |
No |
Bluetooth |
Yes | |
Wi-Fi |
Yes | |
Connectivity |
Front A/V connectors |
No |
Front panel connectors |
Headphone (6.35mm Jack) | |
Audio input |
4 X Audio stereo (2x RCA Female) | |
| 1 X Coaxial S/PDIF digital audio | ||
| 1 X Digital audio S/PDIF Optical | ||
| 1 X Microphone (3.5mm Jack Female) | ||
Audio outputs |
1 X Zone 2 (2x RCA Female) | |
| 1 X Headphone (6.35mm Jack) | ||
Video inputs |
4 X HDMI 2.1 Female | |
Video outputs |
2 X HDMI 2.1 Female | |
Additional connectors |
2 X USB | |
| 1 X Ethernet - RJ45 Female | ||
Equipment |
Remote control |
Yes |
DLNA certification |
No | |
Physical characteristics |
Color |
Black |
Width |
435 mm | |
Height |
160 mm | |
Depth |
328 mm | |
Weight |
8.4 kg | |
Power supply |
Consumption |
490 W |
Standby consumption |
0.15 W | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Onkyo products
Product referenced on 2 Feb 2024
For the moment, there are no customer reviews.Write a review
