ASRock Z690 Taichi Razer Edition
ATX Socket 1700 Intel Z690 Express Motherboard - 4x DDR5 - M.2 PCIe 4.0 - Thunderbolt 4 - PCI-Express 5.0 16x - LAN 2.5 GbE - Wi-Fi 6E
Pictures may differ from actual products

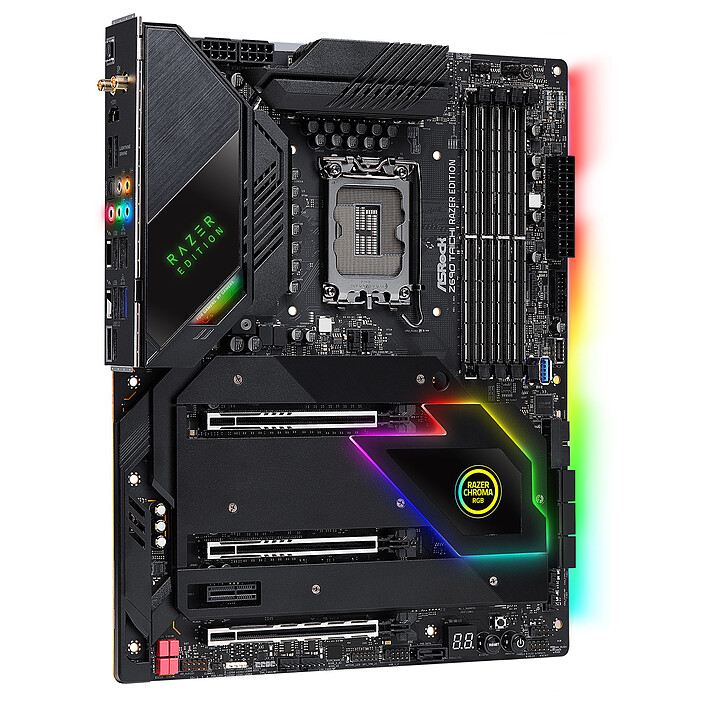

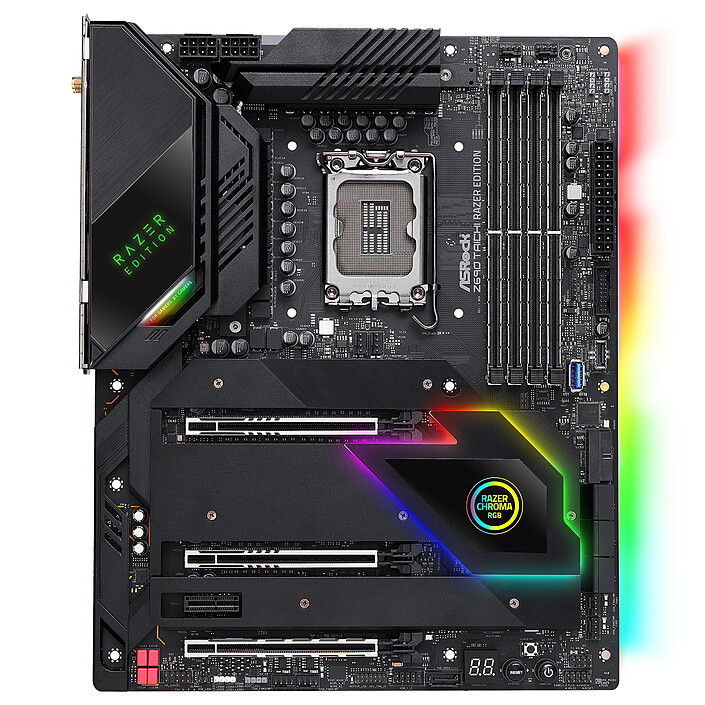

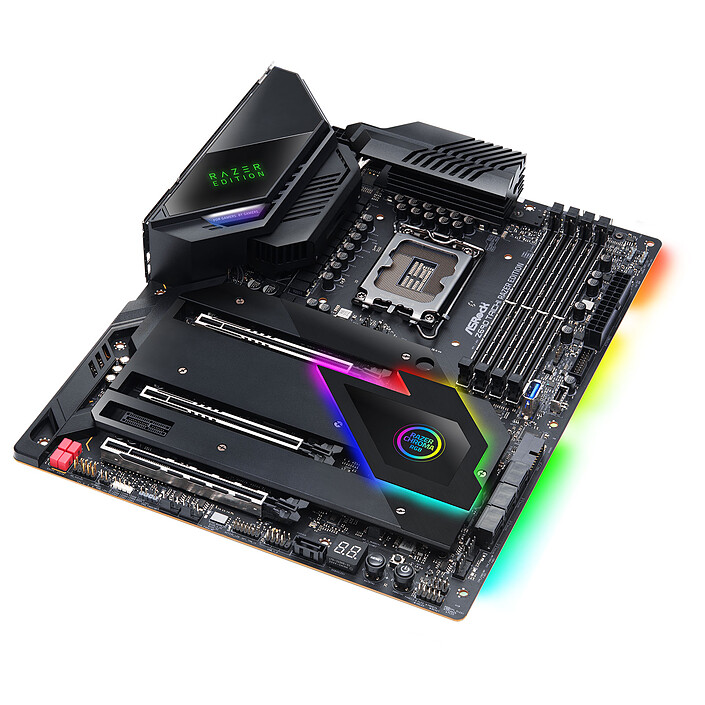

The ASRock Z690 Taichi Razer Edition motherboard is designed to accommodate 12th generation Intel processors on socket LGA 1700. It will allow the assembly of a powerful and versatile configuration capable of performing all tasks.
ATX Socket 1700 Intel Z690 Express Motherboard - 4x DDR5 - M.2 PCIe 4.0 - Thunderbolt 4 - PCI-Express 5.0 16x - LAN 2.5 GbE - Wi-Fi 6E
Infinite potential for ultimate performance
ASRock Taichi motherboards are high-end gaming solutions. They integrate all the necessary features to allow you to play in the best conditions. High performance and reliable, they aim for excellence in all areas.
The ASRock Z690 Taichi Razer Edition motherboard is designed to host 12th generation Intel processors on LGA 1700 socket. It will allow the assembly of a powerful and versatile configuration capable of performing all tasks. Gaming, streaming, intensive multitasking, multimedia creation, it is the ideal solution to design ahigh-end PC with high performance. It also supports DDR4 RAM, PCI-Express 5.0 16x graphics cards, PCI-E 4.0 M.2 SSDs andUSB 3.2 and Thunderbolt 4 devices .
ASRock Z690 Taichi Razer Edition
- Compatible with 12th generation Intel Core processors on socket LGA1700
- 20 Phases SPS DR.MOS Power Design
- DDR5 6400MHz (OC) compatible
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) ESS Sabre 9218 DAC
- Thunderbolt 4
- 2.5 GbE LAN + 6E Wi-Fi
Spectacular performance
The 12th generation Intel Core processors are a small revolution in the world of x86 architectures, as they are the first to integrate a hybrid architecture. This process consists of combining two different types of cores on the same chip. The first 1, called Percormance-Cores, are dedicated to performance in games and mono-threaded applications requiring resources. The second type, called Efficient-Cores, are particularly efficient for multitasking and side task processing. Together, the two provide spectacular performance and incredible responsiveness for your system.
Select your criteria
General information |
Product name |
ASRock Z690 Taichi Razer Edition |
Brand |
ASRock | |
Model |
Z690 TAICHI RAZER EDITION | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z690 Express |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 5200 MHz | |
| DDR5 5600 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 4400 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
192 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 (x4) |
| 1 X PCI Express 5.0 x16 | ||
| 1 X PCI Express 5.0 x16 (x8) | ||
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
Multi-GPU type |
3-way CrossFireX | |
| CrossFireX | ||
Audio |
Audio Chipset |
Realtek ALC1220 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Killer E3100G |
Number of ports/Ethernet controler N°2 |
1 X Intel I219-V | |
Network standard(s) |
Bluetooth | |
| 10/100/1000 Mbps | ||
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| Wi-Fi 6E | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 3.0 x2 + SATA 6 Gb/s | |
| 2 X M.2 - PCI-E 4.0 x4 | ||
| 6 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Number of M.2 slot(s) |
3 | |
Supported RAID Modes |
10 | |
| 5 | ||
| 1 | ||
| 0 | ||
Connectivity |

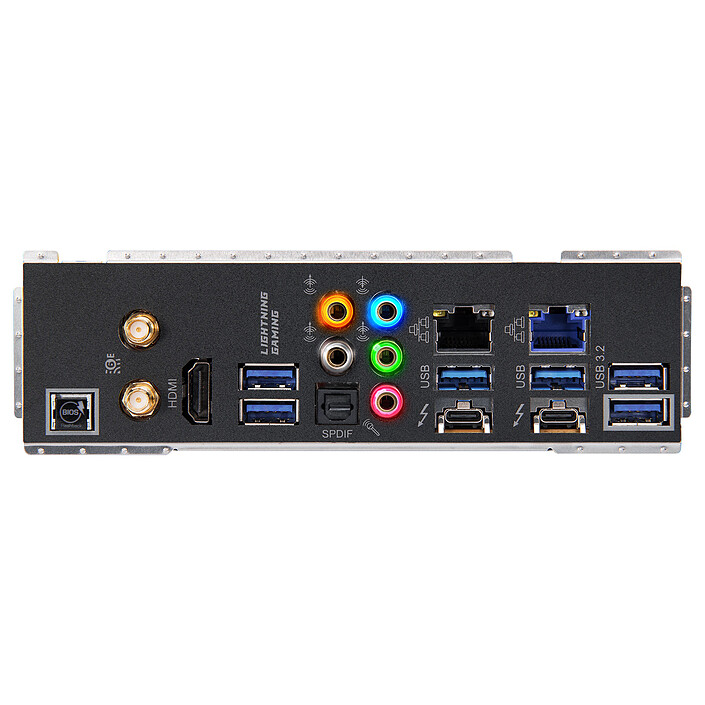

Rear panel connectors |
5 X 3.5mm Jack Female Stereo |
| 1 X Digital audio S/PDIF Optical | ||
| BIOS Flash Update | ||
| 2 X RJ45 Female | ||
| 4 X USB 3.0 | ||
| 2 X USB 3.1 | ||
| 2 X Thunderbolt 4/USB-C | ||
| 1 X HDMI Female | ||
| 2 X SMA | ||
Additional connectors |
1 X Thunderbolt 4 | |
| 1 X Internal USB 3.2 Type C | ||
| 4 X Internal USB 3.0 | ||
| 3 X Internal USB 2.0 | ||
| 1 X ATX 24 Pin | ||
| 2 X +12V (Power supply P8) | ||
| Front panel audio | ||
| 3 X Addressable LED RGB connector(s) | ||
| 1 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all ASRock products
Product referenced on 27 Oct 2021
