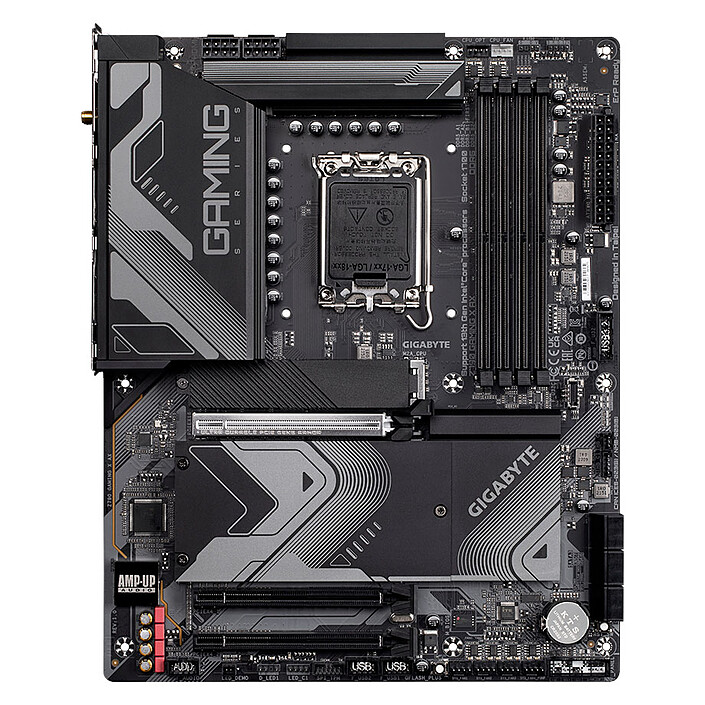

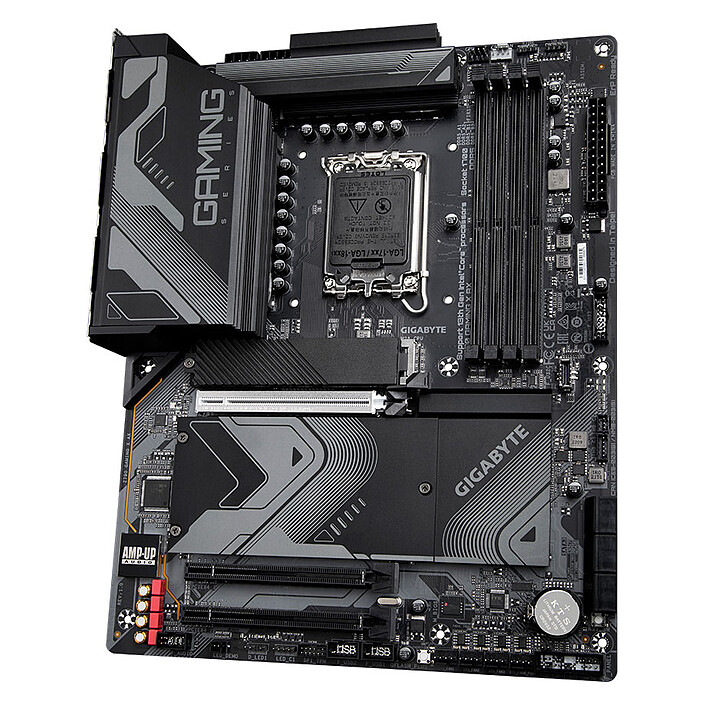

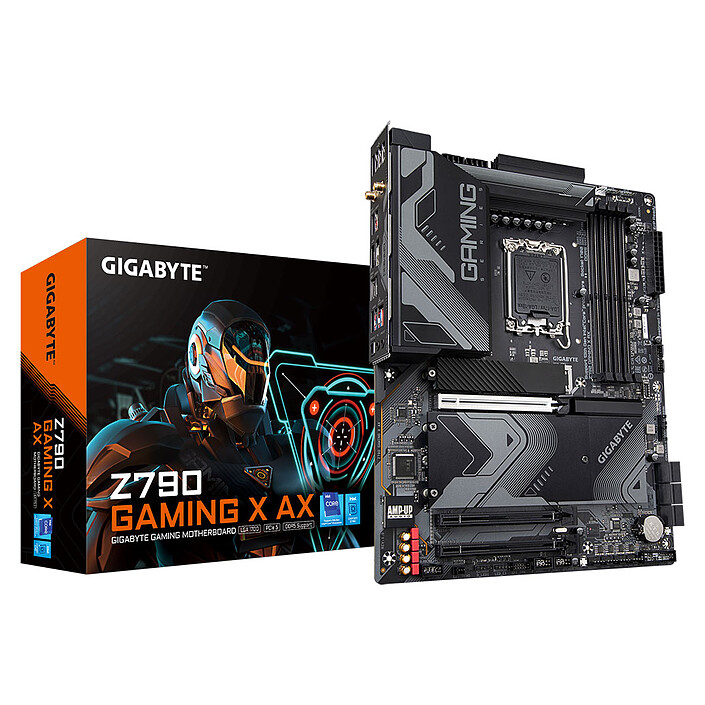

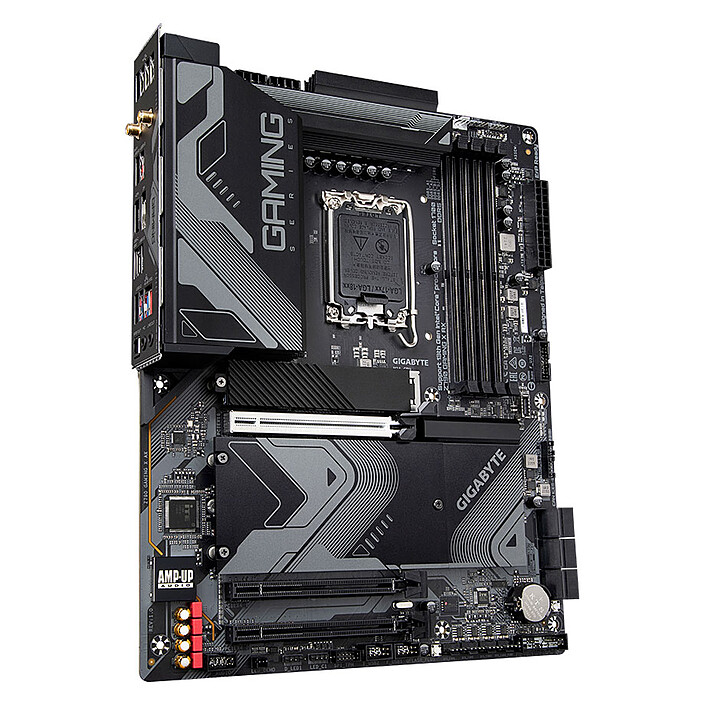

Gigabyte Z790 GAMING X AX
ATX Socket 1700 Intel Z790 Express Motherboard - 4x DDR5 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 5.0 16x - LAN 2.5 GbE - Wi-Fi 6E
Pictures may differ from actual products
Based on the Intel Z790 Express chipset, the Gigabyte Z790 GAMING X AX motherboard will serve as the foundation for your high-performance gaming PC with Gigabyte's exclusive features. It supports 12th and 13th generation Intel Core processors.
ATX Socket 1700 Intel Z790 Express Motherboard - 4x DDR5 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 5.0 16x - LAN 2.5 GbE - Wi-Fi 6E
Available from 216€71 on the outlet deals
Overview
Gigabyte Gaming Motherboard for Intel Raptor Lake
Based on the Intel Z790 Express chipset, the Gigabyte Z790 GAMING X AX motherboard will serve as the foundation for your gaming PC with a high-performance processor and exclusive Gigabyte features like Smart Fan 6. It supports 12th and 13th generation Intel Core processors, PCI-Express 5.0 16x graphics cards, M.2 PCIe 4.0 SSDs, DDR5 RAM as well as USB 3.1 and 3.2 devices.
Gigabyte Z790 GAMING X AX
- Support for 12th and 13th generation Intel Core processors on socket LGA 1700
- Support for DDR5 7600 MHz memory (OC)
- VRM 16+1+2 phases (8+8 parallel)
- PCI-Express 5.0 16x
- Smart Fan 6
- EZ-Latch PLus : Quick lock/unlock of M.2 (no screws required)
- Wi-Fi 6E and Bluetooth 5.3 + 2.5 GbE LAN
- Q-Flash Plus: Upgrade BIOS without installing CPU, Memory or Graphics Card
Always higher
The 13th generation Intel Core processors for desktop PCs offer the most complete platform for using the gaming technologies you want. Support for DDR4 and DDR5 gives you the choice of memory configuration. Thunderbolt 4 support offers a quick and easy way to connect peripherals. Push your machine further than the max: Enhanced overclocking on both sets of cores for performance at your level. You can play and stream at the same time, as much as you want.
Specifications
Select your criteria
General information |
Product name |
Gigabyte Z790 GAMING X AX |
Brand |
Gigabyte | |
Model |
Z790 GAMING X AX | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z790 Express |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 7600 MHz | |
| DDR5 7400 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 4000 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5200 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
192 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
| 1 X PCI Express 4.0 x16 (x4) | ||
Number and Type of slots |
1 X PCI Express 4.0 x16 (x4) | |
Multi-GPU type |
CrossFireX | |
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Integrated Realtek 2.5 GbE |
Network standard(s) |
Wi-Fi 6E | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| Bluetooth 5.3 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
6 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
| 3 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
4 | |
Supported RAID Modes |
10 | |
| 5 | ||
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

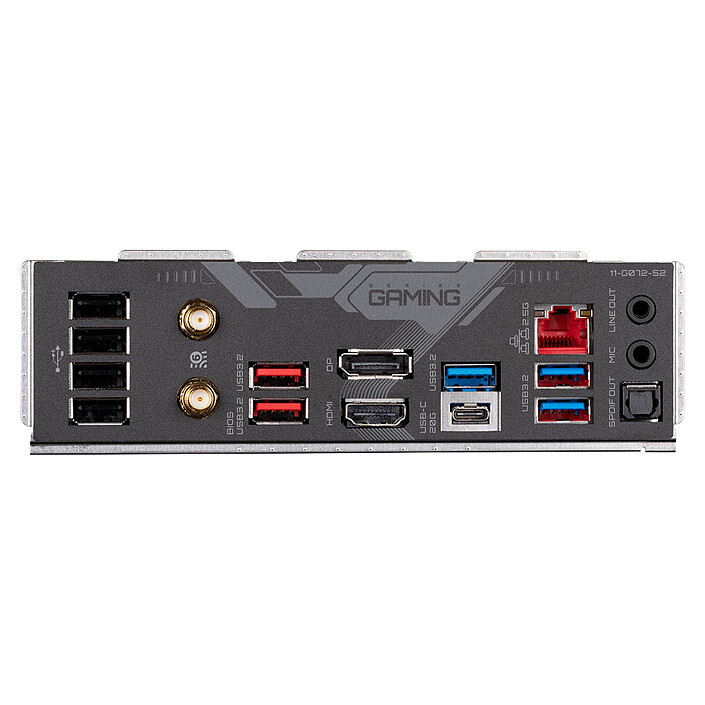

Rear panel connectors |
1 X DisplayPort Female | |
| 1 X HDMI Female | ||
| 1 X USB 3.2 Type C | ||
| 2 X USB 3.1 | ||
| 3 X USB 3.0 | ||
| 4 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X Digital audio S/PDIF Optical | ||
| 2 X 3.5mm Jack Male Stereo | ||
| 2 X SMA | ||
Additional connectors |
2 X LED RGB connector(s) | |
| 2 X Addressable LED RGB connector(s) | ||
| Front panel audio | ||
| BIOS Flash Update | ||
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 2 X Thunderbolt | ||
| 1 X Internal USB 3.2 Type C | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Gigabyte products
Product referenced on 20 Oct 2022
