Pictures may differ from actual products

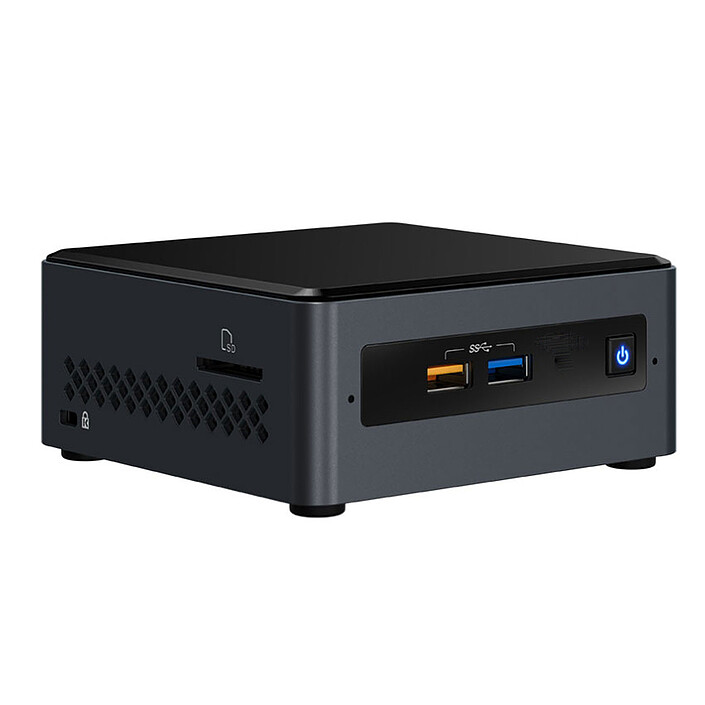

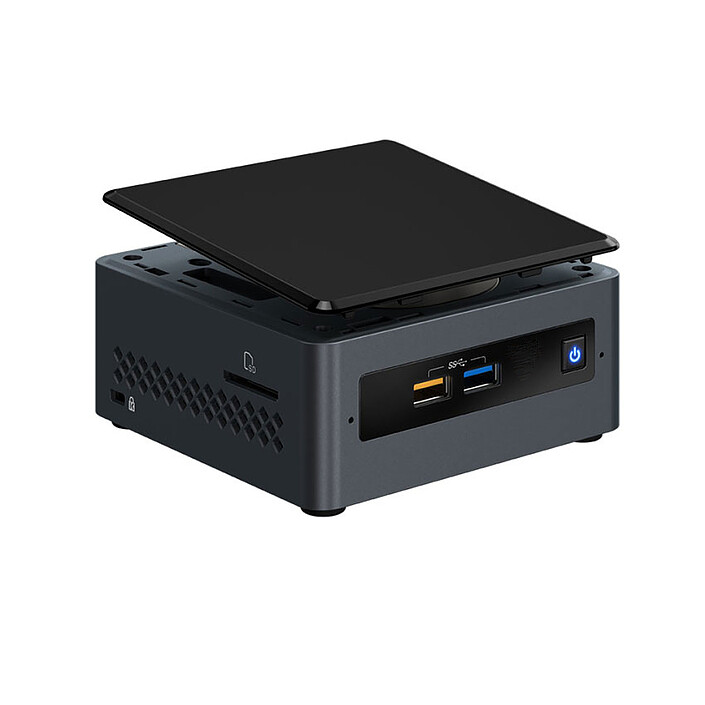

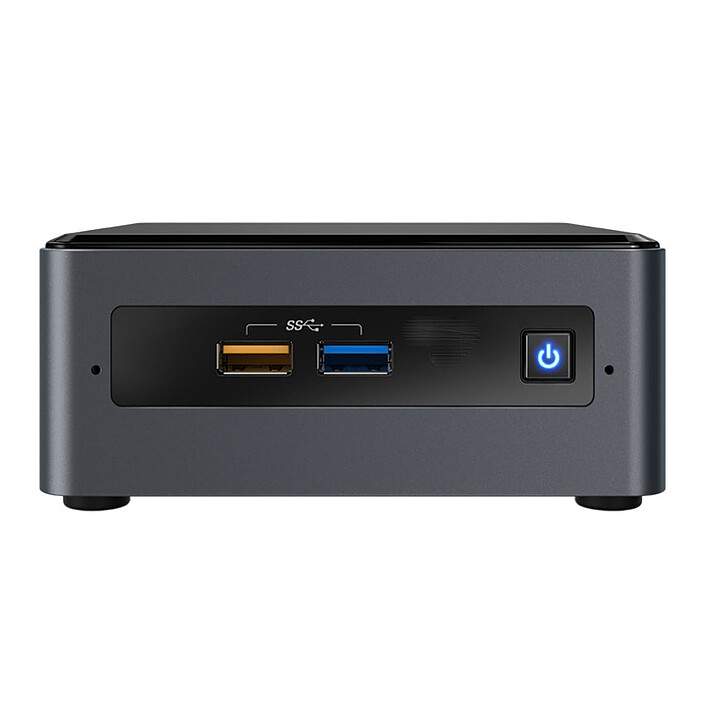

Intel NUC NUC7CJYHN
Intel Celeron J4005 Intel UHD Graphics 600 Wi-Fi AC / Bluetooth 5.0 + 2.5" SATA slot (without display/memory/hard drive/system)
Last price 129€95
NUC7CJYH: small but powerful!
Discover a PC without compromise with theIntel NUC NUC7CJYHN. This small case contains a motherboard and an Intel Celeron J4005 processor, all you have to do is add DDR4 RAM (SO-DIMM format), as well as a 2.5" SATA hard drive, or an external hard drive on one of the USB ports, to enjoy a complete PC.
Forget the compromise between performance, compactness and low price, with theIntel NUC you have everything at once!
Ultra compact. Ultra efficient
The new Intel Celeron NUC J4005 is a revolution in the world of mini-PCs, packing even more features into an even slimmer package. This ultra-compact and scalable Intel processor solution provides a customizable engine for small spaces and all the uses you can imagine - home theater, media centre and intelligent systems.
The Intel NUC includes USB 3.0 ports, headphone/microphone jack, HDMI 2.0 video interfaces for a variety of personal and professional uses. Discover a world of possibilities with this powerful and compact machine. Even more amazing than our technology is how you use it.
A format for the future
With this kind of capacity and size, this future-proof form factor, you'll expand the realm of the possible. What's even more amazing than this technology is how you'll use it. What's even more amazing is that a device so small can offer so much power and yet be flexible and customisable.
Enjoy smooth movies, photos and games. Opt for performance that you can see and feel, and with HDMI video outputs, you have a true media centre that's as powerful as it is convenient to use.
Main features :
- Intel Celeron J4005 processor(Dual-Core 2.0 GHz/ Turbo 2.7 GHz - 2 threads - 4 MB cache)
- Support forDDR4 1.2V 2400 MHzSO-DIMM memory , 8 GB Max
- Intel HD Graphics 600
- Compact size for a very small footprint
- Low power consumption
- 2 HDMI 2.0a video outputs
- 2.5" HDD slot
- 4USB 3.0 ports + SDXC slot with UHS-1 support
- Dimensions: 115 x 111 x 51 mm
Select your criteria
General information |
Product name |
Intel NUC NUC7CJYHN |
Brand |
Intel | |
Model |
BOXNUC7CJYHN | |
Processor and chipset |
Integrated processor |
Yes |
Processor |
Intel Celeron J | |
CPU frequency |
2 GHz | |
Processor support |
N/A | |
Number of CPUs supported |
1 | |
Memory |
Memory format |
2 X SO-DIMM 260-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2400 MHz | |
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Dual Channel |
Yes | |
Maximum RAM capacity per slot |
4 GB | |
Maximum RAM capacity |
8 GB | |
Graphic |
Integrated graphics controller |
Yes |
Graphics chipset |
Intel UHD Graphics 600 | |
Expansion slots |
Graphic connector(s) |
None |
Graphic card max. length |
0 mm | |
Number and Type of slots |
None | |
Storage |
Hard drives connectors |
1 X Serial ATA 6Gb/s (SATA Revision 3) |
Optical drive type |
None | |
Audio |
Audio Chipset |
None |
Network |
Number of ports/Ethernet controler |
1 X Integrated - 10/100/1000 Mbps |
Network standard(s) |
Bluetooth 5.0 | |
| 10/100/1000 Mbps | ||
| Wi-Fi AC | ||
Wireless network standard(s) |
Bluetooth 5.0 | |
| Wi-Fi AC 430 Mbps (IEEE 802.11ac) | ||
Connectivity |
Front panel connectors |
2 X USB 3.0 |
| 1 X Line IN/Microphone 3.5mm Jack Female | ||
Rear panel connectors |
SDXC | |
| SDHC | ||
| SD (Secure Digital) | ||
| 2 X HDMI 2.0 Female | ||
| 2 X USB 3.0 | ||
| 1 X Gigabit Ethernet - RJ45 Female | ||
Case |
Number of 2.5" slots |
1 |
Number of invisible 3.5" slots |
0 | |
Number of visible 3.5" slots |
0 | |
Number of visible 5.25" slots |
0 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Compatibility |
Supported OS |
Windows 10 Pro 64-bit |
| Windows 10 Home 64-bit | ||
Max CPU TDP |
10 W | |
Physical characteristics |
Barebone format |
ITX |
Width |
115 mm | |
Height |
51 mm | |
Depth |
111 mm | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Intel products
Product referenced on 30 Sep 2021
For the moment, there are no customer reviews.Write a review
