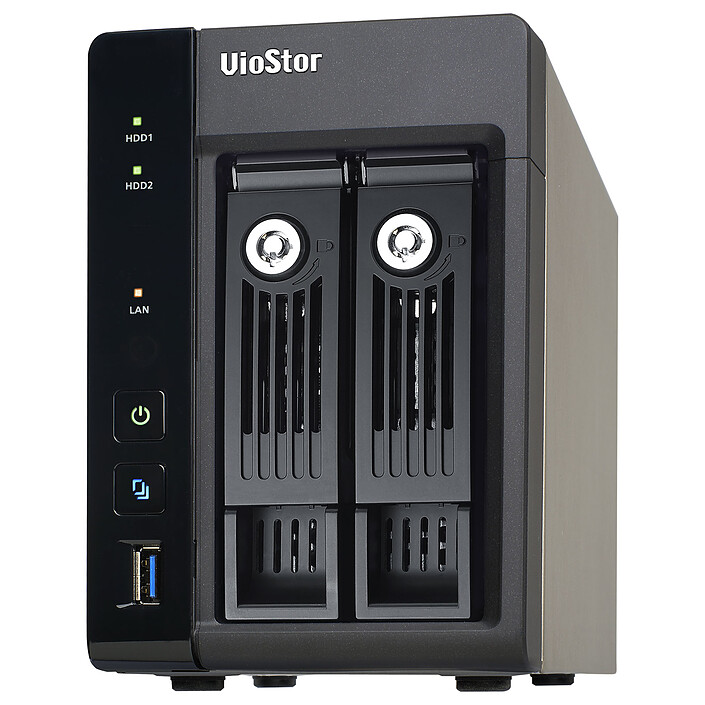

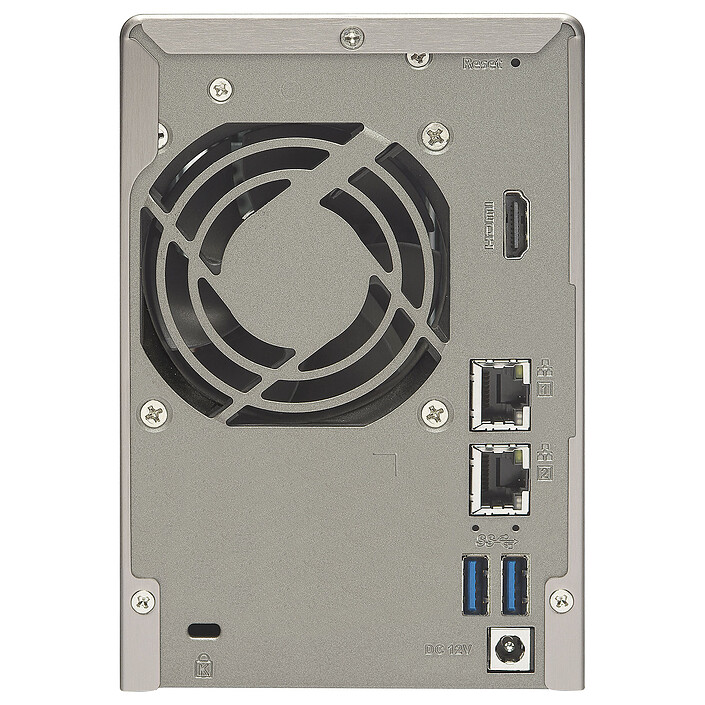

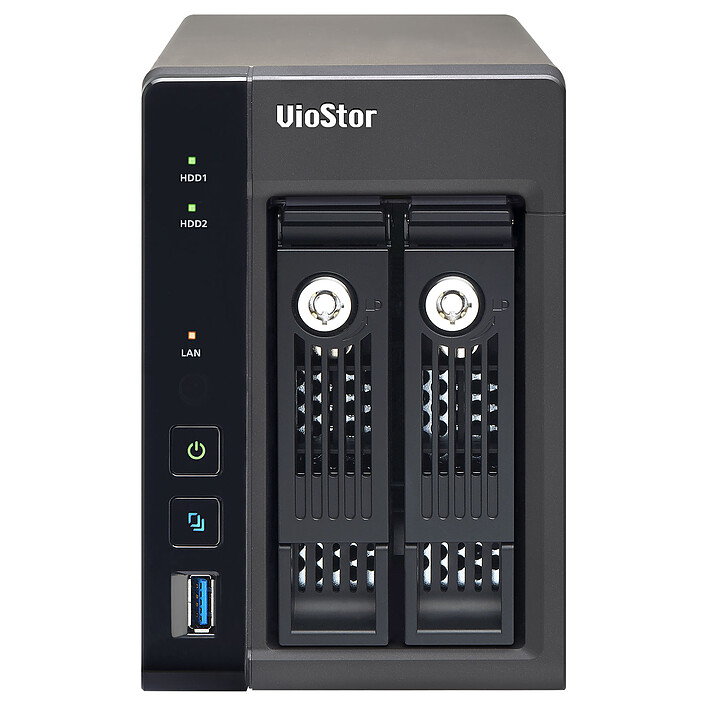

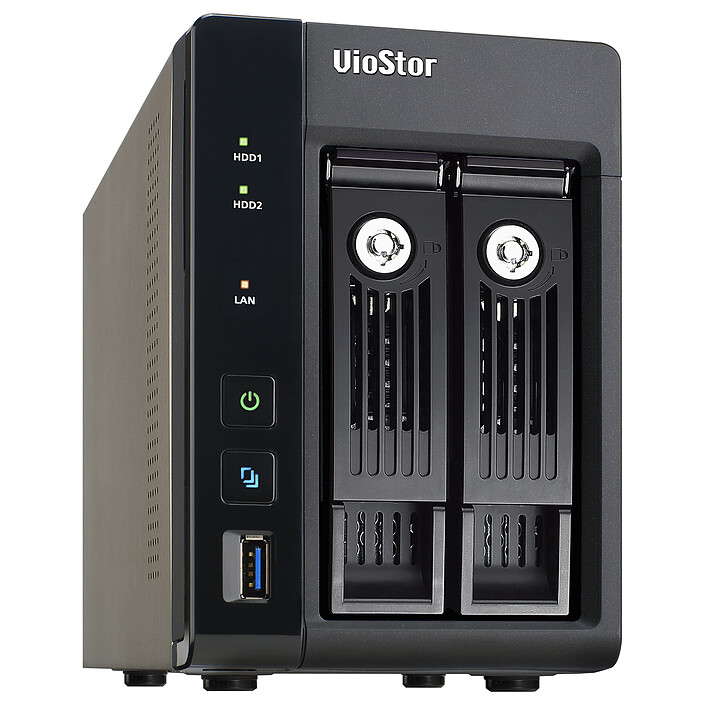

QNAP QVP-21A (VS-2304)
2-bay 12-channel NVR server (4 included) with 8 GB RAM with Quad-Core Intel Celeron J1900 processor (without hard drive)
Last price 659€95
QNAP QVP-21A: 2-Bay 12-Channel NVR NAS
As all applications need to share NAS system resources and storage space, surveillance performance could be affected. The QVP-21A QVR Pro Appliance overcomes this by providing dedicated storage space and reserving all system resources for monitoring. The QVP-21A also comes with built-in camera channel licenses and essential applications to enable local installation without the need for an Internet connection. Simply install the hard drives and power the QVP-21A to start the installation process.
Easy management and extended support
The QVP-21A supports thousands of IP camera models from over 150 brands with a variety of image formats (including cameras that use ONVIF and RTSP / HTTP streaming). Even USB webcams are supported, allowing home and budget-conscious users to quickly build surveillance solutions that fit their environment while providing convenient IP camera management.
QVR Pro Client Software
QVR Pro Client software can be installed on Windows and Mac devices, allowing you to monitor from different platforms and switch to live or playback mode to take full control of monitored areas.
QVR Pro mobile application
The QVR Pro mobile client application allows you to remotely monitor multiple channels simultaneously. If you have a slow network connection, you can select low bandwidth mode to display a bandwidth-optimised stream without affecting the quality of recordings. In addition, you can remotely set the camera's preset points or control PTZ cameras in the application.
KEY FEATURES :
- 2-bay NVR server
- Up to 12 Channels 1080p / H.264 / 30 FPS (4 included)
- Intel Celeron J1900 Processor (Quad-Core 2 GHz / 2.42 GHz Burst - 2 MB Cache)
- 8 GB DDR3L SO-DIMM (2 x 4 GB - 2 Slots - 8 GB max.)
- File system: Internal: ext4
- Network protocol: HTTP, HTTPS, TCP/IP, UDP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, SMTP
- HDMI 1.4 output
- List of supported cameras
- Compatibility list
Select your criteria
General information |
Product name |
QNAP QVP-21A (VS-2304) |
Brand |
QNAP | |
Model |
QVP-21A (VS-2304) | |
Processor |
CPU frequency |
2 GHz |
Memory size |
8 GB | |
Memory type |
DDR3L (1.35V) | |
Network |
Network standard(s) |
10/100/1000 Mbps |
Network connector(s) |
2 X Gigabit Ethernet - RJ45 Female | |
Wake On LAN |
Yes | |
DLNA certification |
No | |
Storage |
Capacity |
0 GB |
Internal interface |
2 X Serial ATA 6Gb/s (SATA Revision 3) | |
Hard drive format |
2" 1/2 | |
| 3" 1/2 | ||
Hard drive |
Without hard drive | |
Number of discs |
0 | |
Max number of discs |
2 | |
RAID supported |
Yes | |
Supported RAID Modes |
1 | |
| Single Disk | ||
File system |
Ext4 | |
Connector(s) |
3 X USB 3.0 | |
| 1 X HDMI Female | ||
Compatibility |
Server functions |
Video surveillance |
Windows ADS |
No | |
iSCSI (SCSI encapsulation) |
No | |
Scalable |
No | |
Supported OS |
Mac OS X 10.11 or higher | |
| Linux | ||
| Microsoft Windows 10 | ||
| Microsoft Windows 7 | ||
| Microsoft Windows 8.1 | ||
Physical characteristics |
Rackable |
No |
Sound level |
19.4 dB | |
Consumption |
16.34 W | |
Width |
102 mm | |
Height |
150 mm | |
Depth |
216 mm | |
Weight |
1.47 kg | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
