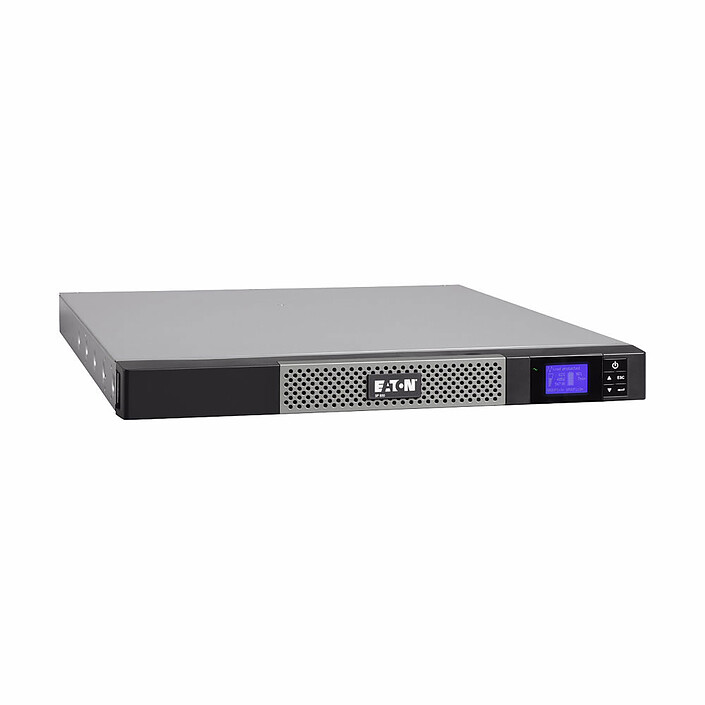

Eaton 5P 650IR.
Line interactive USB/Serial UPS 650VA 420W (1U Rack).
Last price 409€95
Holy Moly!
Equivalent products suggestions:
Overview
Eaton 5P : High efficiency line interactive UPS
The Eaton 5P UPS is at the cutting edge of line interactive technology. With a power rating of 650 VA, it is equipped with a latest-generation LCD screen and an energy measurement function. 5P is the ideal UPS for protecting your network & IT equipment, servers, switches, routers and other storage equipment.
High performance and efficiency
Thanks to its flawless design, theEaton 5P UPS allows you to achieve up to 98% efficiency, as heat dissipation is reduced, you save energy instantly!When running on batteries, the 5P provides a high-quality sinusoidal signal, ideal for powering sensitive equipment, such as servers with active PFC(corrected power factor).
Adjustable tolerance :Users can extend the service life of the battery by widening the input voltage tolerance (via the display or keypad).(via the display or software) to adapt the UPS to a specific environment(e.g. a generator).
Ease of use

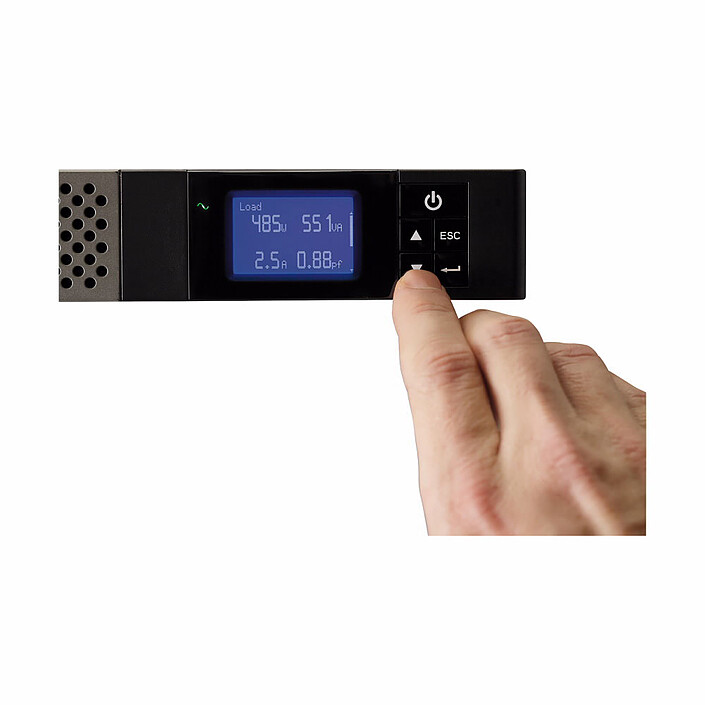

The new graphical LCD display provides clear information on the status and measurements of the UPS. 5P measures the energy consumption of connected equipment globally.These values(kWh) can be managed via the LCD screen or Eaton's Intelligent Power Software suite.
In the event of a prolonged power cut, load segmentation allows the least necessary equipment to be switched off, reserving battery autonomy for essential equipment. This function is also used for remote reboot and sequential start-up of servers.
The 5P has serial (RS232) and USB communications ports, as well as a free slot for an optional card(SNMP/Web network card or dry contacts card). Eaton's Intelligent Power software suite is compatible with all major operating systems, including virtualised environments such as VMware and Hyper-V.
Flexibility and versatility;
The 5P is available in tower or rack format, for an unrivalled power density of 1.1 kW per 1U.
Extended battery life: the battery is managed by Eaton's ABM technology which recharges the battery only when necessary, preventing corrosion and significantly extending battery life.

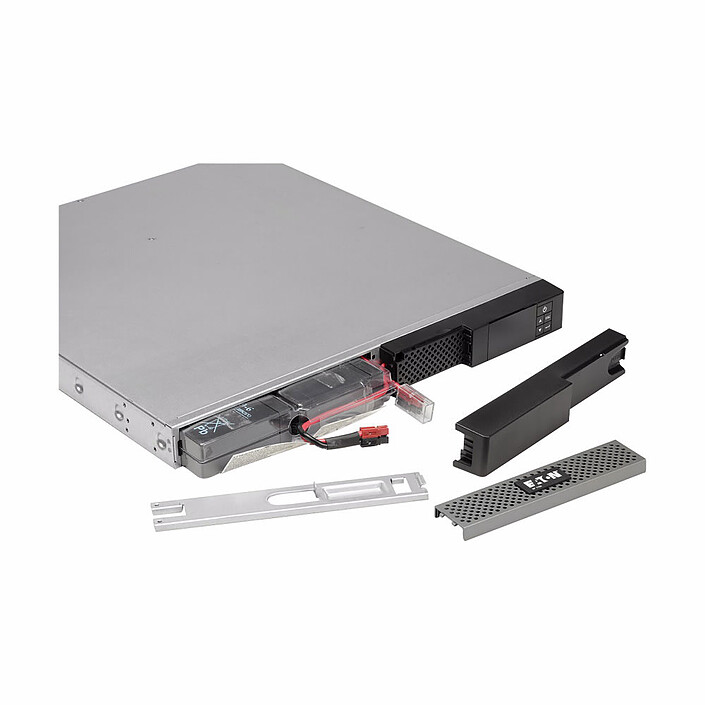

The batteries can be hot-swapped without having to switch off the connected equipment. Thanks to an optional maintenance bypass module, you can even replace the complete UPS.
Key features :
- UPS and surge protector 4 sockets with USB port
- 1U rackable model
- Power: 650 VA / 420 W
- Technology : Line-Interactive High Frequency(Pure sine wave, Booster + Fader)
- Output voltage and frequency 230 V(+6/-10 %)(adjustable to 200V / 208V / 220V / 230V / 240V), 50/60 Hz +/- 0.1 % (auto-detection)
- Typical autonomy at 50 and 70% load: 9/6 min
- USB port + RS232 serial port and contacts(USB and RS232 ports cannot be used simultaneously) + 1 mini connector for remote start/stop
- Standard 3-year warranty from Eaton (2 years for the battery )
- Dimensions : 438 x 43.2 x 364 mm for 8.6 kg
Logistics information :
This product is available in the following locations: France, Belgium, Luxembourg, Switzerland, Monaco.
Specifications
Select your criteria
General information |
Product name |
Eaton 5P 650IR. |
Brand |
Eaton | |
Model |
5P650IR | |
Main characteristics |
Technology |
Line Interactive |
Type of product to protect |
Server | |
Inverter power (VA) |
650 VA | |
Inverter power (W) |
420 W | |
Scalable |
No | |
Manageable |
Yes | |
Connectivity |
Number of sockets |
4 |
Connector(s) |
4 X IEC C13 | |
Physical characteristics |
Power inverter format |
Rack |
Width |
364 mm | |
Length |
438 mm | |
Thickness |
43.2 mm | |
Weight |
8.6 kg | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Eaton products
Product referenced on 17 Jun 2013
Customer reviews
Global rating
10/10
based on 3 reviews
Editorial and moderation guide
-
100%3 reviews
-
0%
-
0%
-
0%
-
0%
-
Number of reviews: 1 Average rating: 10
-
Number of reviews: 2 Average rating: 9
The inverter does the job perfectly.
The inverter does the job perfectly.
I only regret that the depth of the inverter is a problem to integrate it in a 19" rack.
I had to order angled IEC connectors to be able to use it once it was in the rackReview automatically translated -
Number of reviews: 1 Average rating: 10
perfect
For a computer rack, this UPS is ideal.
Eaton's quality combined with LDLC's time frame is perfectReview automatically translated
