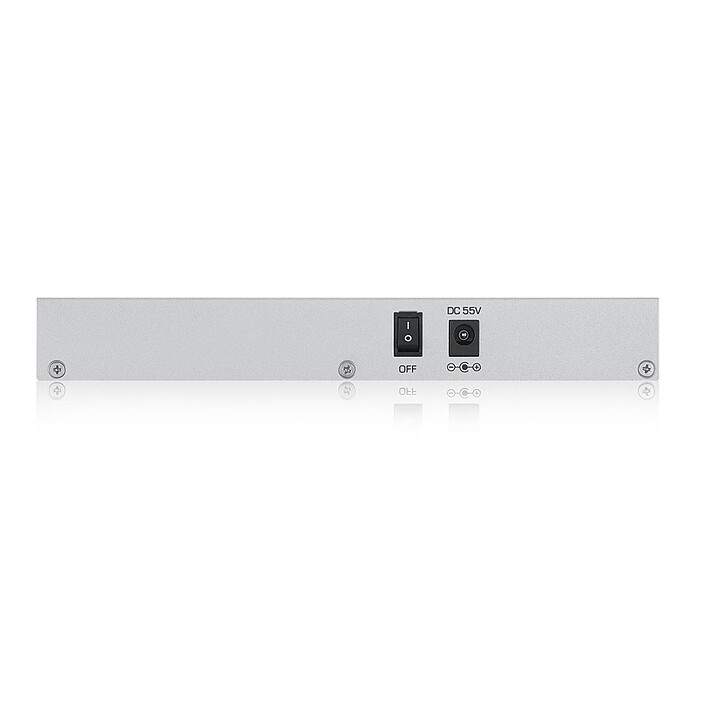

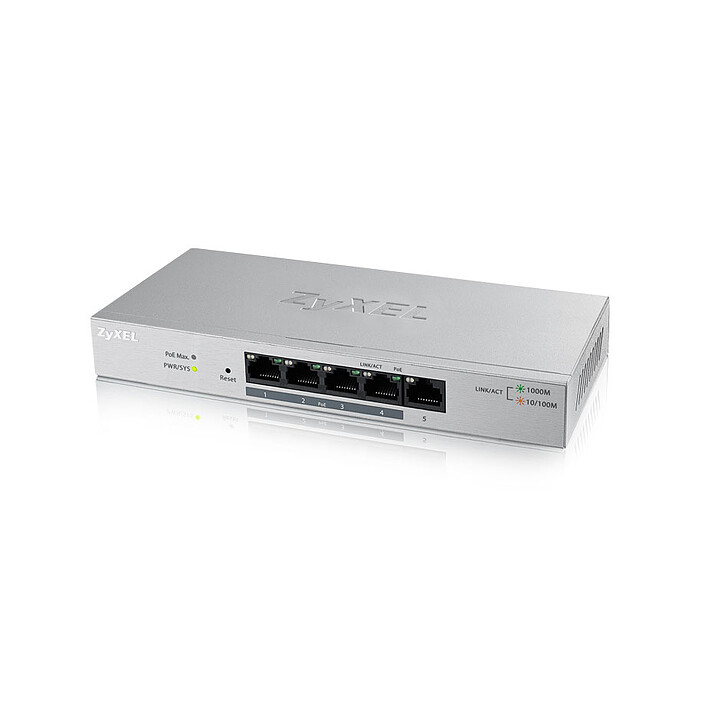

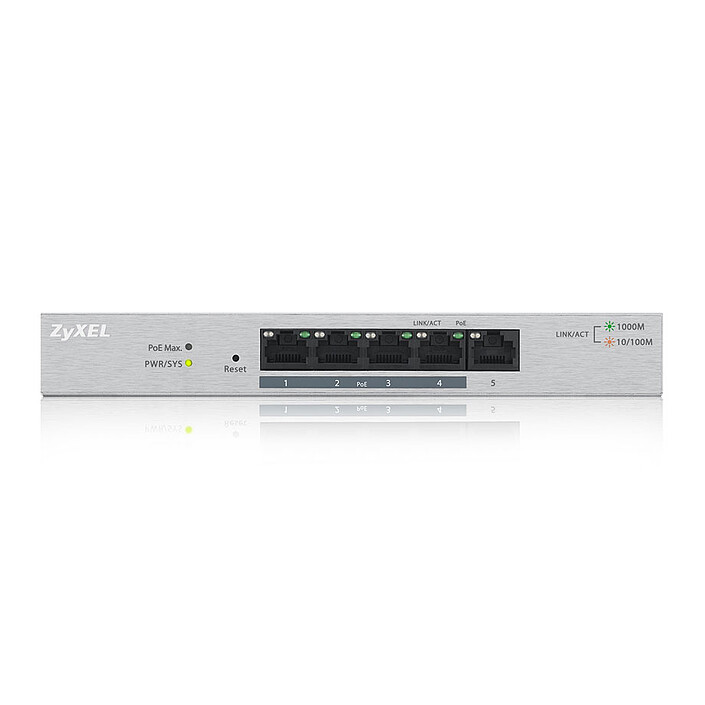

ZyXEL GS1200-5HP.

5-port 10/100/1000 Mbps PoE managed web switch.

Pictures may differ from actual products

The ZyXEL GS1200-5HP Managed Web Switch has 5 Gigabit ports, including 4 PoE ports. Silent because it is fanless, it is ideal for integration into noise-sensitive professional environments.

5-port 10/100/1000 Mbps PoE managed web switch.

Overview

Managed 5-port Gbps PoE web switch


The ZyXEL GS1200-5HP Managed Web Switch has 5 Gigabit ports, including 4 PoE ports. Silent because it doesn't use a fan, it's perfect for use in noise-sensitive professional environments.

Its compatibility with the IEEE-802.3at standard means it can power devices on the network up to a limit of 30 watts per port. This feature makes it possible to extend existing networks and power high-consumption devices such as WiFi access points, IP cameras and IP telephones. With a PoE budget of up to 60 watts and a choice of classification or power consumption mode, the GS1200-5HP 5-port switch is ideal for businesses requiring network flexibility.


Simple, intuitive installation

The web interface for ZyXEL GS1200 series switches not only makes it easy to set up and manage the switches, but also gives SME administrators control over and upstream planning of their network infrastructure. Intuitive and user-friendly, it enables equipment to be commissioned quickly, avoiding long and complicated configuration procedures.

Users are guided step-by-step through product start-up, QoS configuration and guest VLAN setup, in four main stages. Thanks to this wizard, the most frequently used functions are accessible to users with little experience, or who want to speed up the installation of their product


User-friendly management

To make the network more stable and secure, the ZyXEL GS1200 series is equipped with numerous management functions, such as Storm Control, Loop Protection (GS1200-8HP only), Dual Images, DoS (denial of service) and SSL( Secure Sockets Layer). The switches avoid a complex parameter-setting procedure by grouping all the parameters in a system based on On/Off switches in the web interface.
  • 30 watt PoE budget per port
  • Uplink supporting Gigabit speeds
  • 5 ports for Ethernet connections
  • Supports IEEE 802.at PoE (PoE+)


Main features:

  • The total PoE budget for all devices connected to the switch is 60 watts
  • The switch's Ethernet ports support a maximum data rate of 1000 Mbps (Gigabit)
  • Low-energy, fanless design for noise-sensitive environments
  • The switch can be managed via the web interface
Specifications
Select your criteria

General information

Product name

ZyXEL GS1200-5HP.

Brand

Zyxel

Model

GS1200-5HPV2-EU0101F

Technical specifications

Number of ports

5

Network standard(s)

10/100/1000 Mbps

Number of 10/100/1000 Mbps ports

5

Number of SFP combo (RJ45/Fiber) ports

4

Rackable

No

Manageable

Yes

Administration level

Level 2

PoE (Power over Ethernet)

Yes

PoE standard

PoE (15W)

Number of PoE ports

4

Max. PoE budget

60 W

IPv6 compatible

Yes

Width

193 mm

Depth

84 mm

Height

26 mm

Weight

0.4 kg

Consumption

72 W

Warranties

Commercial warranty

Seller 3 years

Legal warranty

See terms & conditions

Product referenced on 19 Jun 2017
