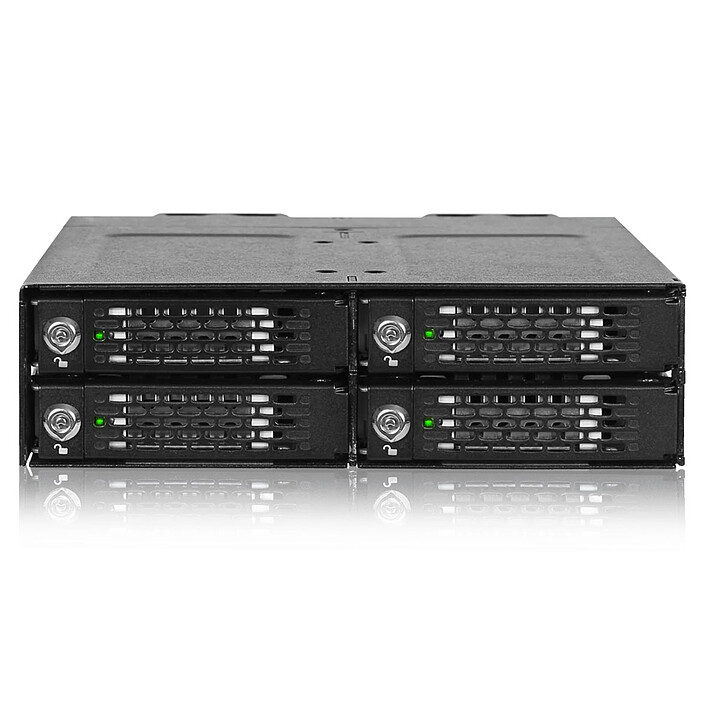

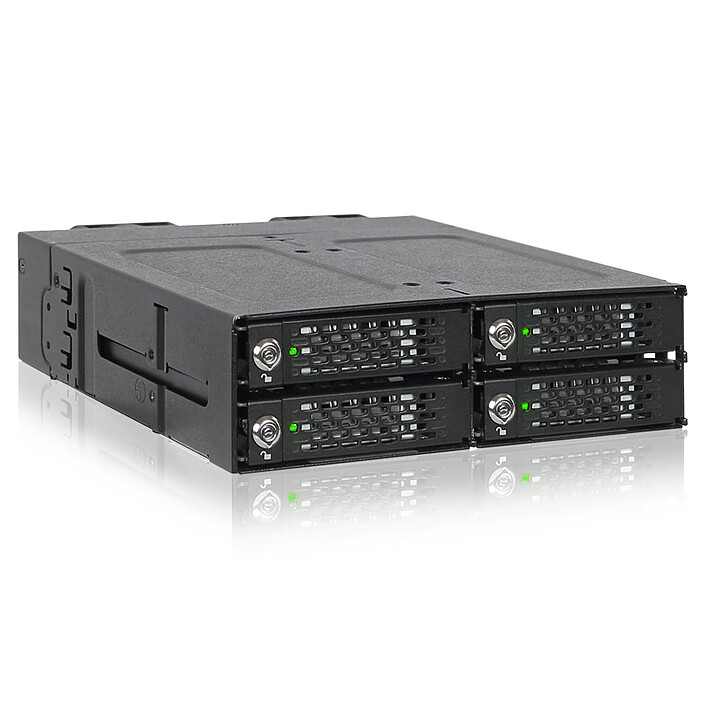

ICY DOCK ToughArmor MB720MK-B V3
Quad bay NVMe M.2 SSD rack for 5.25" external drive bay
Last price 399€95
Removable rack for 4 M.2 NVMe SSDs

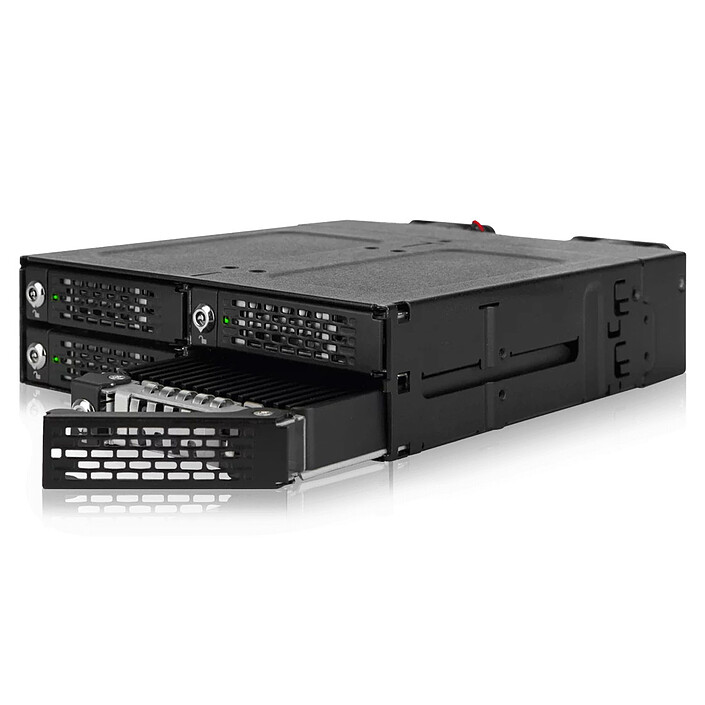

ICY DOCK's ToughArmor MB720MK-B V3 is a removable, rugged enclosure designed for a 5.25" array for 4 NVMe M.2 SSDs and supporting data transfer rates of up to 64 Gbit/s via the OCulink interface (SFF-8612). It simplifies the process of installing or removing an M.2 NVMe SSD by using removable drive trays with a tool-less adjustable M.2 drive bracket.

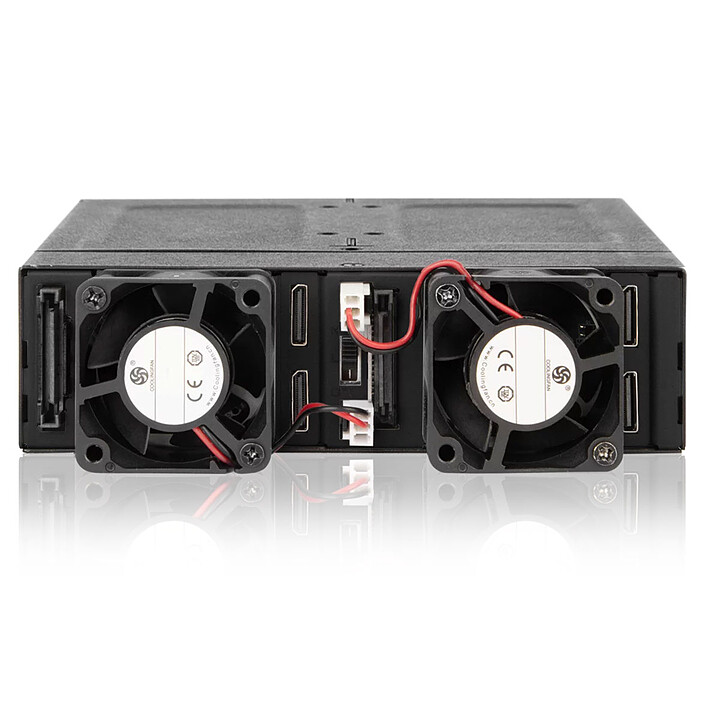

For optimum cooling, the MB720MK-B V3 is equipped with two fans at the rear to dissipate the heat generated by PCIe 40 SSDs. In addition to this, each drive tray comes with an extra-large heatsink cover and thermal pad to ensure your SSDs are at optimum temperatures. Part of ICY DOCK's most robust range, the MB720MK-B V2 is made entirely of metal with metal key locks for maximum protection.
Key features
- Suitable for 4 SSDM.2 NVMe 2230/2242/2260/2280/22110
- Fits into any standard 5.25" external optical drive bay
- Uses 4x OCulink (SFF-8612) to connect (NVMe host required)
- Supports PCIe 4.0 specification with transfer rates up to 64 Gbit/s per drive bay
- Adjustable screwless M.2 bracket for secure holding
- Robust all-metal enclosure meets flammability requirements
- Large integrated high-efficiency heatsink and large ventilation for excellent cooling performance
- 2-segment key lock for additional physical security
- Eagle-Hook" tray lock holds drive tray firmly inside case
- Supports 15-pin SATA and OCuLink cables with a locking clip designed for secure connection
- EMI grounding - protects SSDs from electrical damage
Select your criteria
General information |
Product name |
ICY DOCK ToughArmor MB720MK-B V3 |
Brand |
ICY DOCK | |
Model |
MB720MK-B V3 | |
Technical specifications |
Accessory type |
SSD M.2 rack (5"1/4 bay) |
Color |
Black | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all ICY DOCK products
Product referenced on 22 Feb 2024
