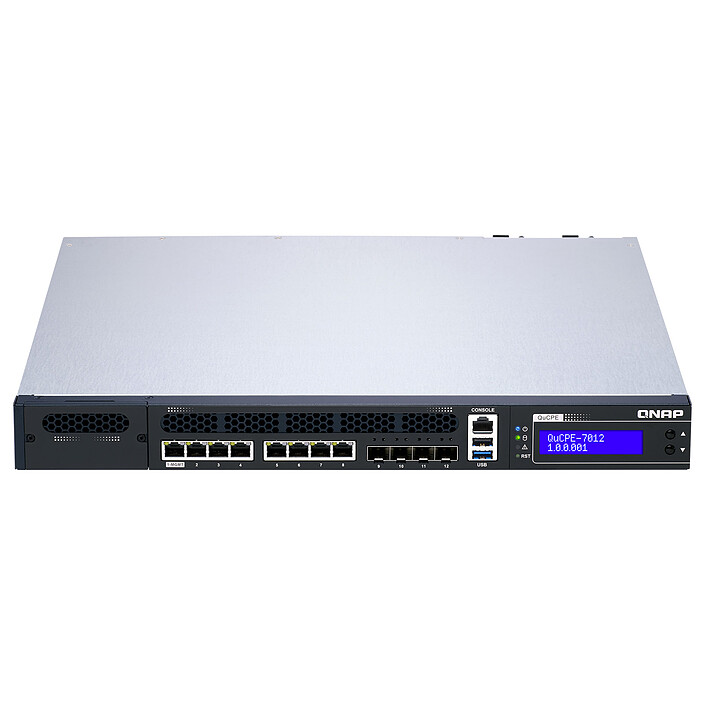

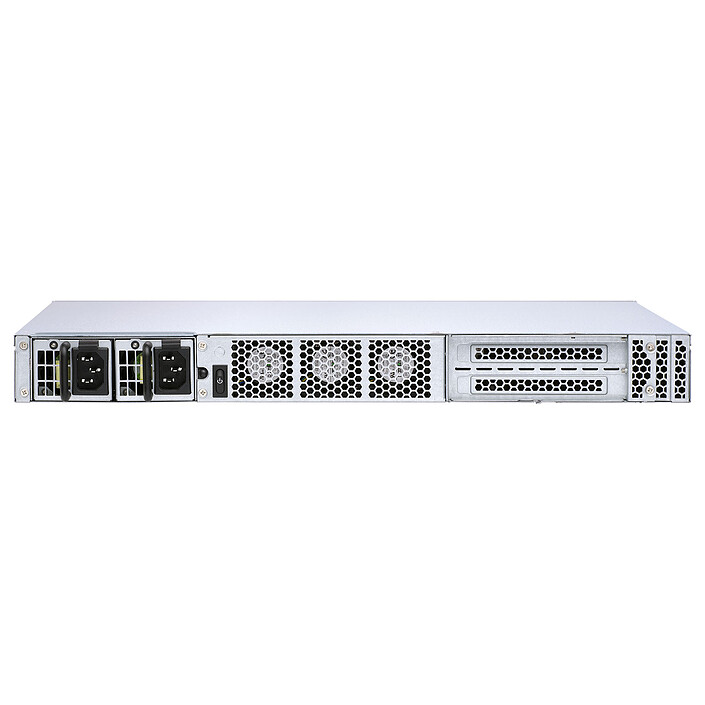

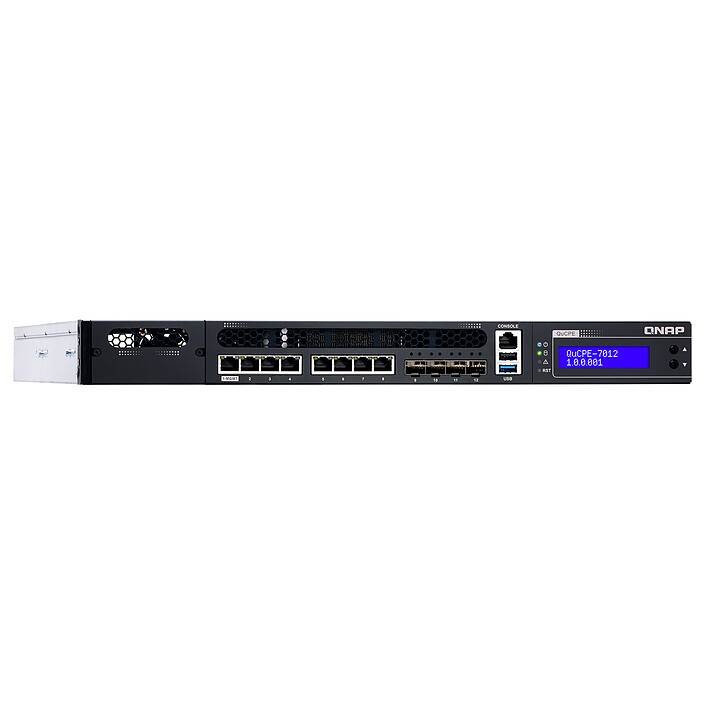

QNAP QuCPE-7012-D2123IT-8G
12-port Manageable Web Switch 8 x 2.5 GbE LAN ports + 4 x 10 Gbps SFP+ - 2-bay NAS server (without hard drive) Intel Xeon D-2123IT - 8GB DDR4 ECC
Last price 1 799€95
QNAP QuCPE-7012: Network Virtualization Device
The QNAP QuCPE-7012 is a network virtualization appliance specifically designed for small and medium-sized businesses. The QuCPE-7012 is based on Intel Xeon D processor which supports Intel QAT, Smart NIC SR-IOV and DPDK hardware acceleration technologies. In addition, 12 network ports (8x 2.5 GbE + 4 10 GbE), one network module slot and one PCIe slot for 25GbE/10GbE scalability.
With enhanced bandwidth and compute performance to run multiple VMs and VNFs, the QuCPE-7012 is suitable for multi-user, multi-tasking business applications. The QuCPE-7012 also includes theQNE (QNAP Network Equipment) OS to link VNF services and the AMIZ Cloud centralized deployment and management platform to achieve zero manual intervention administration.
2-in-1 Equipment for Virtual Networks
QNAP's QuCPE network virtualization appliance features hardware acceleration technologies, QNAP's proprietary QNE Network operating system, and the QNAP 2-in-1 Network Virtualization Appliance.QNAP's proprietary QNE Network operating system and AMIZ Cloud centralized management platform to help SMBs establish a highly optimized virtual network infrastructure.
QNAP's QNE Network operating system supports Network Service Composer and Software-Defined WAN (SD-WAN), enabling flexible network deployment and network infrastructure expansion across multiple locations. By supporting Virtual Network Functions (VNF), virtual machines, and containers, QNE Network integrates network, computing, and application services to achieve network and application virtualization and efficient management, greatly reducing management and maintenance complexity.
AMIZ Cloud
The AMIZ Cloud centralized management platform allows head office-based IT administrators to centrally monitor all edge devices, containers and virtual machines. Supporting high availability, troubleshooting, and remote management via the Account Center, the QuCPE-7012 helps organizations achieve Zero Management
Efficient Management via Service Composer
With the visualised topology of the Network Service Composer, you can easily configure VNFs or VMs, create virtual switches, and assign physical network resources to related services via drag-and-drop. If settings change, you can directly add/remove individual VNFs using the Service Composer, greatly simplifying the operational network mix.
Main features :
- Hybrid NAS Switch
- 12-port Swtich: 8 x 2.5 GbE ports + 4 x 10 Gbps SFP+ ports
- Layer 2 Management
- Switching capacity: 120 Gbps
- Web-based management interface
- Intel Xeon D-2123IT (Quad-Core 2.2 GHz / 3 GHz - 8 Threads - 8 MB Cache)
- 8 GB DDR4 ECC (1 x 8 GB - 8 Slots - 256 GB max.)
- 2 x 2.5" HDD/SSD slots
- 300W redundant power supply
- External drive file system: ext3, ext4, NTFS, FAT32, HFS+, exFAT(optional purchase)
- Compatibility list
Select your criteria
General information |
Product name |
QNAP QuCPE-7012-D2123IT-8G |
Brand |
QNAP | |
Model |
QUCPE-7012-D2123IT-8G | |
Processor |
CPU frequency |
2.2 GHz |
Memory size |
8 GB | |
Memory type |
DDR4 | |
Network |
Network standard(s) |
10/100/1000 Mbps |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
Network connector(s) |
8 X 2.5 Gigabit Ethernet - RJ45 Female | |
| 4 X SFP+ 10 Gbps | ||
DLNA certification |
No | |
Storage |
Capacity |
0 GB |
Internal interface |
2 X Serial ATA 6Gb/s (SATA Revision 3) | |
Hard drive format |
2" 1/2 | |
Hard drive |
Without hard drive | |
Number of discs |
0 | |
Max number of discs |
2 | |
RAID supported |
Yes | |
Supported RAID Modes |
0 | |
| 1 | ||
| JBOD | ||
| Single Disk | ||
File system |
Ext4 | |
Connector(s) |
1 X PCI Express 3.0 x4 | |
| 1 X USB 2.0 | ||
| 1 X USB 3.0 | ||
Compatibility |
Server functions |
Video surveillance |
| Virtualization | ||
Windows ADS |
No | |
iSCSI (SCSI encapsulation) |
No | |
Download without PC |
No | |
Scalable |
Yes | |
Physical characteristics |
Rackable |
Yes |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all QNAP products
Product referenced on 31 Jan 2022
