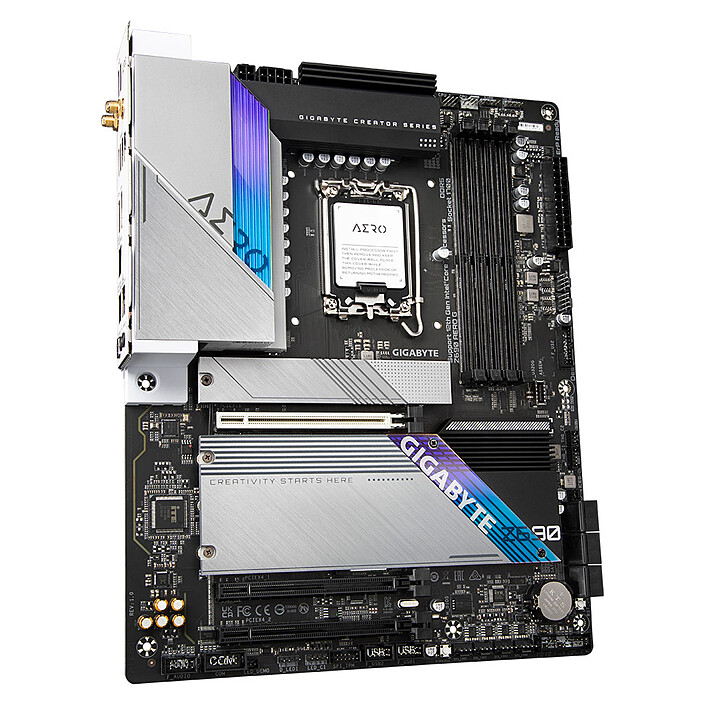

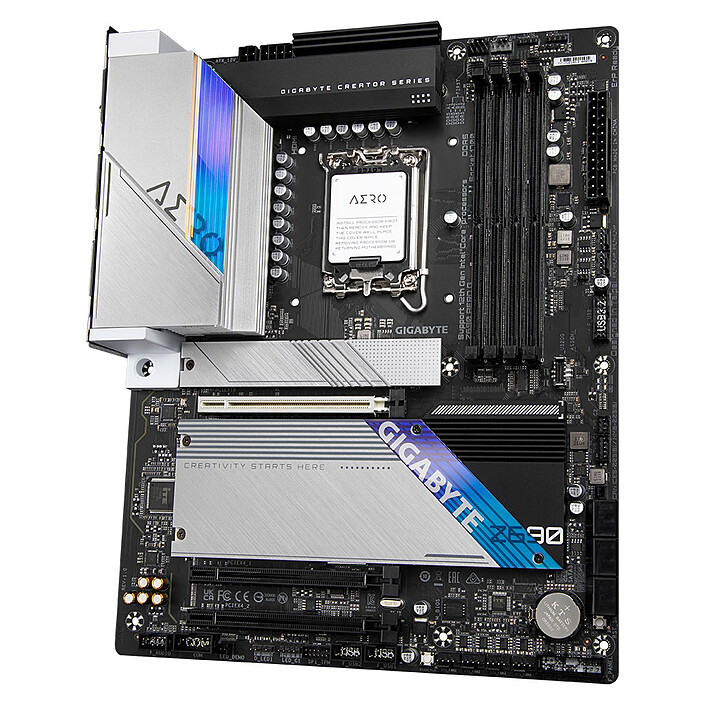

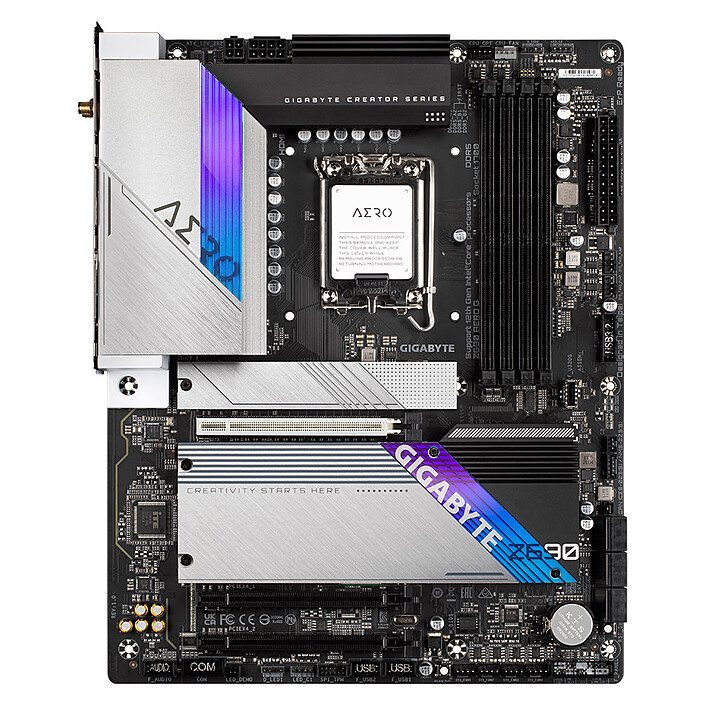

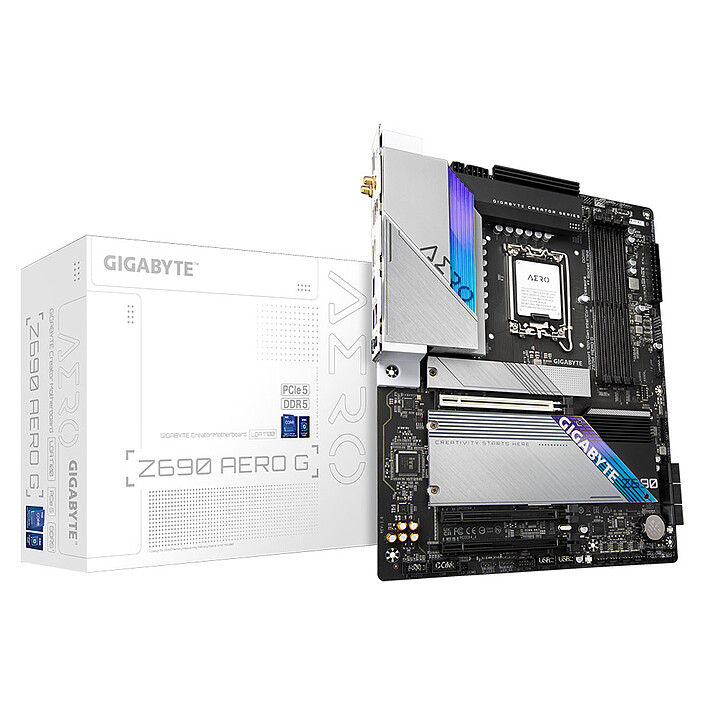

Based on the Intel Z690 Express chipset, the Gigabyte Z690 AERO G motherboard will serve as the foundation for your high-performance gaming PC with Gigabyte-exclusive features like Smart Fan 6. It supports 12th generation Intel Core processors, PCI-Express 5.0 16x graphics cards, SATA 6 Gbps and M.2 PCIe 4.0 drives, DDR5 RAM as well as USB 3.1 and 3.2 devices.
The 12th generation Intel Core processors are a small revolution in the world of x86 architectures, they are the first to integrate a hybrid architecture. This process consists of combining two different types of cores on the same chip. The first 1, called Percormance-Cores, are dedicated to performance in games and mono-threaded applications requiring resources. The second type, called Efficient-Cores, are particularly efficient for multitasking and side task processing. Together, the two provide spectacular performance and incredible responsiveness for your system.
Select your criteria
General information |
Product name |
Gigabyte Z690 AERO G |
Brand |
Gigabyte | |
Model |
Z690 AERO G | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z690 Express |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 5800 MHz | |
| DDR5 6000 MHz | ||
| DDR5 4000 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 5600 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
2 X PCI Express 3.0 16x (x4) |
| 1 X PCI Express 5.0 x16 | ||
Number and Type of slots |
None | |
Multi-GPU type |
CrossFireX | |
Audio |
Audio Chipset |
Realtek ALC4080 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Integrated Intel - 2.5 GbE |
Network standard(s) |
Wi-Fi 6 AX | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| Bluetooth 5.2 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
6 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 3 X M.2 - PCI-E 4.0 x4 | ||
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
Number of M.2 slot(s) |
4 | |
Supported RAID Modes |
10 | |
| 5 | ||
| 1 | ||
| 0 | ||
Connectivity |

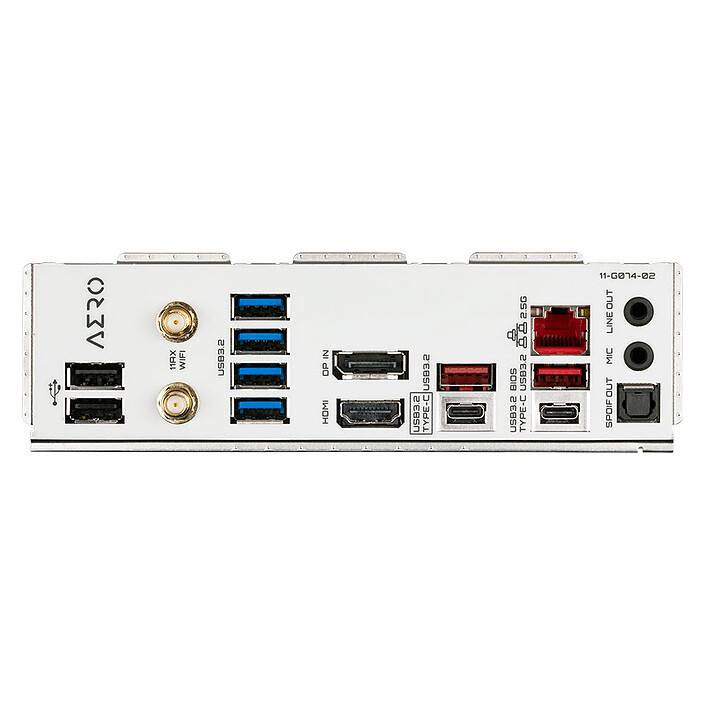

Rear panel connectors |
1 X HDMI Female |
| 1 X DisplayPort Female (Input) | ||
| 1 X USB 3.2 Type C | ||
| 2 X USB 3.1 | ||
| 1 X USB 3.0 Type C | ||
| 2 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| Digital audio S/PDIF Optical | ||
| Microphone (3.5mm Jack Female) | ||
| Line IN (3.5mm Jack Female) | ||
| 2 X SMA | ||
Additional connectors |
2 X LED RGB connector(s) | |
| 2 X Addressable LED RGB connector(s) | ||
| Front panel audio | ||
| BIOS Flash Update | ||
| 1 X +12V (Power supply P4) | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 1 X Serial (RS-232) | ||
| 2 X Internal USB 2.0 | ||
| 1 X Internal USB 3.0 | ||
| 1 X Internal USB 3.1 Type C | ||
| 2 X Thunderbolt | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
