Those were the good old days! This product is no longer on sale
Pictures may differ from actual products

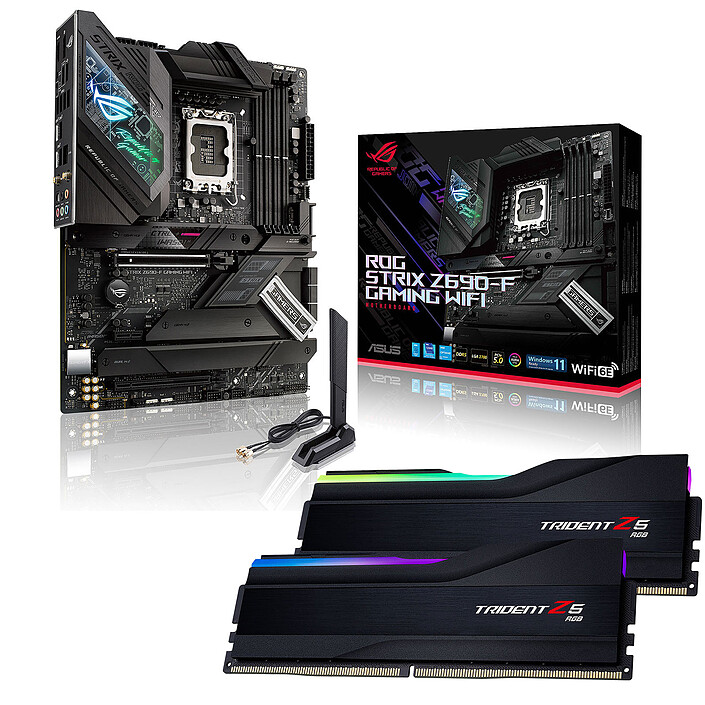

ASUS ROG STRIX Z690-F GAMING WIFI + G.Skill Trident Z5 RGB 32 GB (2 x 16 GB) DDR5 6000 MHz CL40
ATX Socket 1700 Intel Z690 Express Motherboard + G.Skill Trident Z5 RGB 32 GB (2 x 16 GB) DDR5 6000 MHz CL40 RAM
Last price 1 086€95
Holy Moly!
Equivalent products suggestions:
Overview
ASUS ROG STRIX : Gaming Performance
ASUS ROG Strix motherboardsare designed for the most demanding gamers looking for long term performance and reliability. They make the most of their components thanks to a unique design made of robust materials and exclusive utilities. They incorporate gaming features and combine the advantages of new Intel processors with ASUS' iconic design and features.
The ASUS ROG STRIX Z690-F GAMING WIFI motherboard is designed to accommodate 12th generation Intel processorson socket LGA 1700. It will allow the assembly of a powerful and versatile configuration capable of performing all tasks. Gaming, streaming, intensive multitasking, multimedia creation, it is the ideal solution to design a high-end PC with high performance. It also supports DDR5 RAM, PCI-Express 5.0 16x graphics cards, SATA 6 Gb/s and M.2 PCI-E 4.0 drives and USB 3.1 and USB 3.2 peripherals .
ASUS ROG STRIX Z690-F GAMING WIFI
- Support for 12th generation Intel Core processors on socket LGA 1700
- DDR5 memory support, up to 6400 MHz (OC)
- 5-Way Optimization with DIGI+ VRM, TPU, EPU
- Full cooling: large VRM heatsink, M.2 heatsink, hybrid fan connectors and Fan Xpert 4
- AI Overclocking and ASUS EZ DIY
- M.2 PCI-E NVMe and USB 3.2 ports
- 2.5 GbE LAN + Wi-Fi 6E + Bluetooth 5.2
- Aura Sync compatible and ARGB fans
PERFORMANCE AND HIGH COMPATIBILITY
Ushering in a new era of RAM performance, the DDR5 Trident Z5 delivers unmatched data transfer speeds over previous generation DDR4 memory. Engineered to the highest standards of performance and quality, each Trident Z5 RGB memory module is created from high-quality, hand-shielded DDR5 ICs to achieve extreme memory performance on DDR5 platforms.
Designed with a more streamlined light bar, the Trident Z5 RGB is more elegant than ever. Featuring customisable RGB lighting via G.SKILL lighting control software or supported third-party motherboard software, customising the Trident Z5 RGB's colours and lighting effects is a breeze.
Information provided by our tech department
ASUS Z690 motherboards are compatible with Socket Intel LGA 1200 cooling system mounts in addition to Socket Intel LGA 1700.
Specifications
Select your criteria
General information |
Product name |
ASUS ROG STRIX Z690-F GAMING WIFI + G.Skill Trident Z5 RGB 32 GB (2 x 16 GB) DDR5 6000 MHz CL40 |
Brand |
ASUS | |
Model |
BUN33747 | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z690 Express |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 6000 MHz | |
| DDR5 5800 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5000 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 4800 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 3.0 16x (x4) |
| 1 X PCI Express 5.0 x16 | ||
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
Audio |
Audio Chipset |
Realtek ALC4080 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Intel i225-V |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
| Bluetooth 5.2 | ||
| Wi-Fi 6E | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
6 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 3 X M.2 - PCI-E 4.0 x4 | ||
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
Number of M.2 slot(s) |
4 | |
Supported RAID Modes |
0 | |
| 1 | ||
| 5 | ||
| 10 | ||
Connectivity |
Rear panel connectors |
1 X Digital audio S/PDIF Optical |
| 1 X HDMI Female | ||
| 2 X USB 2.0 | ||
| 2 X SMA | ||
| 1 X RJ45 Female | ||
| 5 X 3.5mm Jack Female Stereo | ||
| 4 X USB 3.0 | ||
| 1 X DisplayPort Female | ||
| 2 X USB 3.1 | ||
| 1 X USB 3.1 Type C | ||
| 1 X BIOS Flash Update | ||
| 1 X USB 3.2 Type C | ||
Additional connectors |
1 X Thunderbolt 4 | |
| 1 X Internal USB 3.2 Type C | ||
| 3 X Addressable LED RGB connector(s) | ||
| 1 X LED RGB connector(s) | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 1 X TPM | ||
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| Chassis intrusion | ||
| Front panel audio | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
