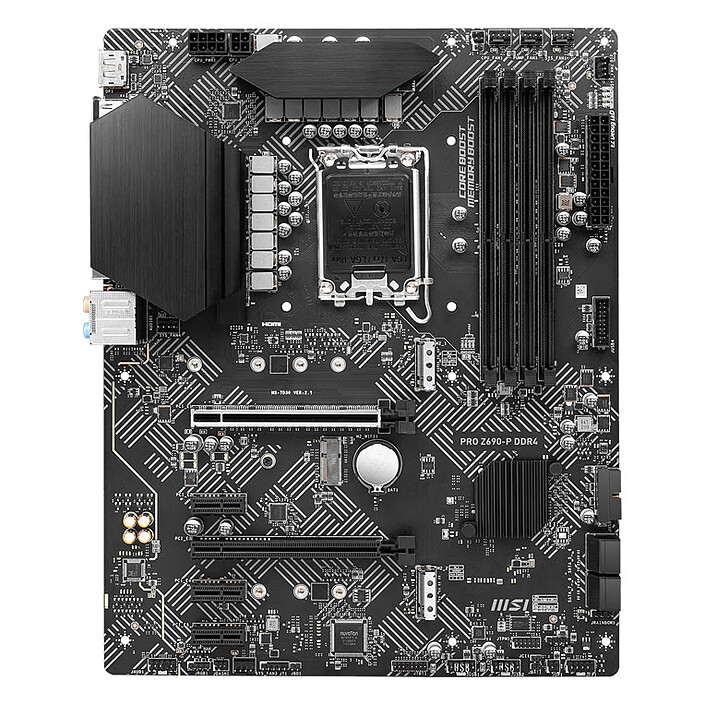

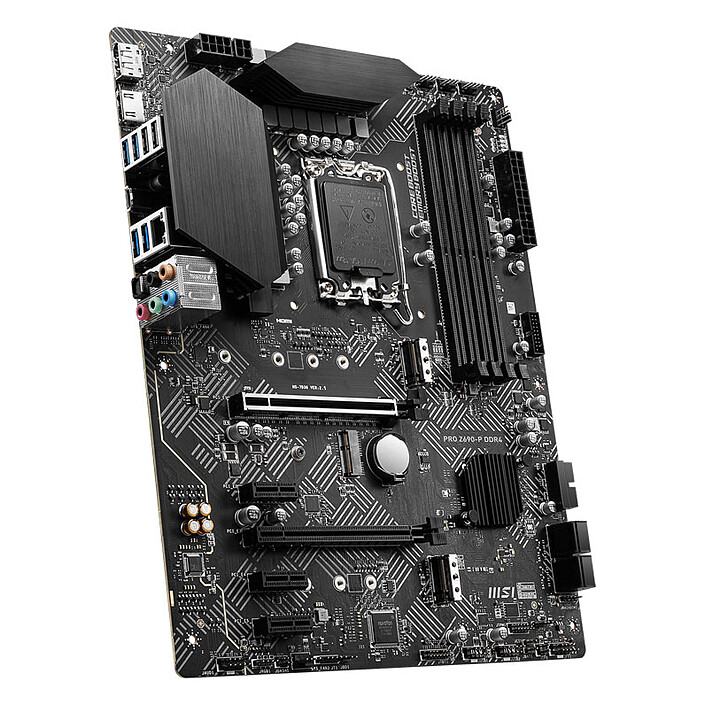

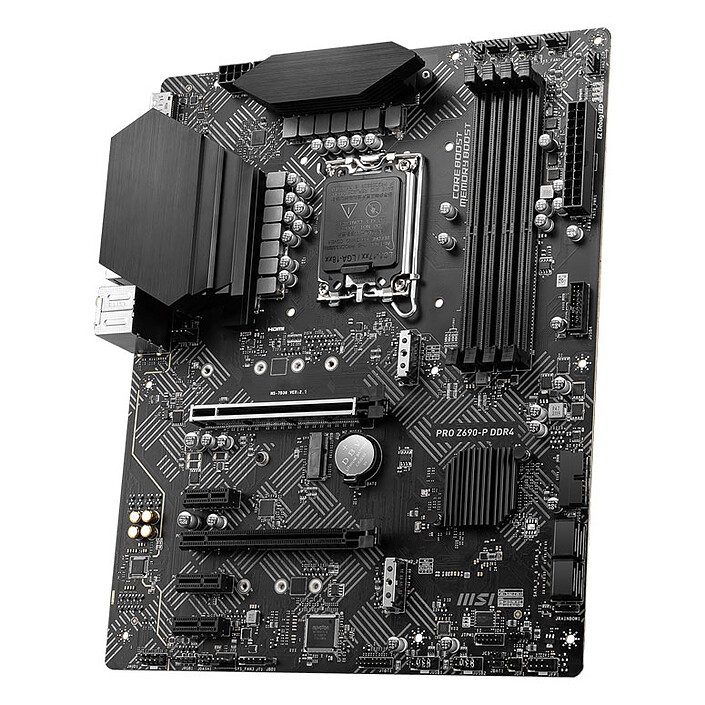

MSI PRO Z690-P DDR4
ATX Socket 1700 Intel Z690 Express Motherboard - 4x DDR4 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 5.0 16x - LAN 2.5 GbE
Pictures may differ from actual products
The MSI Z690-P PRO DDR4 motherboard is designed to accommodate 12th generation Intel processors on socket LGA 1700. It will allow the assembly of a powerful and versatile configuration capable of performing all tasks.
ATX Socket 1700 Intel Z690 Express Motherboard - 4x DDR4 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 5.0 16x - LAN 2.5 GbE
Overview
Unleash your processor's potential
The MSI PRO Z690-P DDR4 motherboard is designed to accommodate 12th generation Intel processors on socket LGA 1700. It will allow the assembly of a powerful and versatile configuration capable of performing all tasks. Gaming, streaming, intensive multitasking, multimedia creation, it is the ideal solution to design a high-end PC with high performance. It also supports DDR4 RAM, PCI-Express 5.0 16x graphics cards, SATA 6 Gb/s and M.2 PCIe 4. 0 drives, and USB 3.1 and USB 3.2 devices . With MSI's high quality manufacturing and many of the brand's own utilities, it represents a long-term investment.
MSI PRO Z690-A DDR4
- Support for 12th generation Intel Core processors on socket LGA 1700
- DDR4 memory support, up to 5000 MHz (OC)
- 2 M.2 PCIe 4.0 slots
- Audio Boost for superior sound quality
- USB 3.2
- 2.5 GbE LAN
Specifications
Select your criteria
General information |
Product name |
MSI PRO Z690-P DDR4 |
Brand |
MSI | |
Model |
911-7D36-002 | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel Z690 Express |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 5000 MHz | |
| DDR4 4800 MHz | ||
| DDR4 4600 MHz | ||
| DDR4 4400 MHz | ||
| DDR4 4266 MHz | ||
| DDR4 4200 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 3800 MHz | ||
| DDR4 3733 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3333 MHz | ||
| DDR4 3400 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Graphics chipset |
None | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 5.0 x16 |
| 1 X PCI Express 3.0 16x (x4) | ||
Number and Type of slots |
3 X PCI Express 3.0 x1 | |
Multi-GPU type |
CrossFireX | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Realtek RTL8125BG |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
Wi-Fi |
No | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
| 1 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
10 | |
| 5 | ||
| 1 | ||
| 0 | ||
Connectivity |

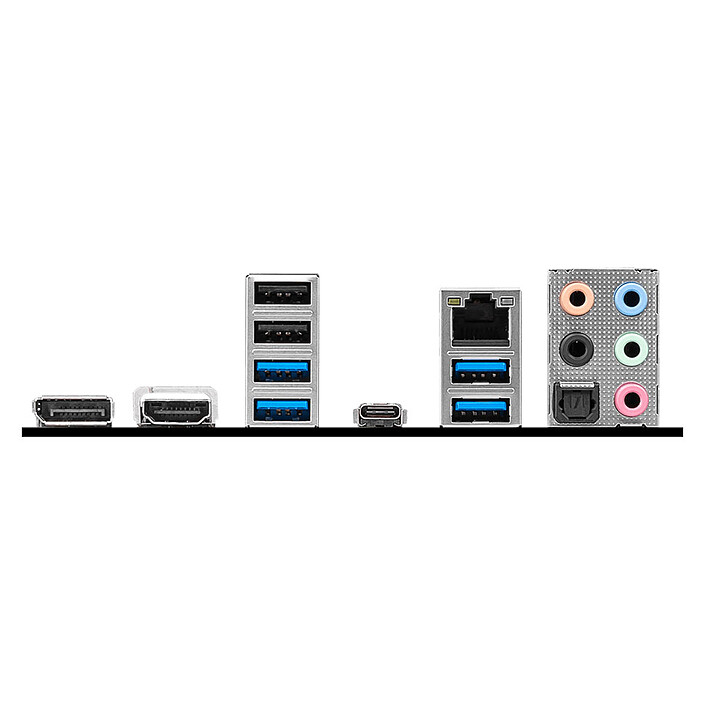

Rear panel connectors |
1 X HDMI Female |
| 1 X DisplayPort Female | ||
| 1 X USB 3.2 Type C | ||
| 4 X USB 3.0 | ||
| 2 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X Digital audio S/PDIF Optical | ||
| 5 X 3.5mm Jack Female Stereo | ||
Additional connectors |
1 X Thunderbolt 3 | |
| 4 X Internal USB 3.0 | ||
| 4 X Internal USB 2.0 | ||
| 1 X ATX 24 Pin | ||
| 1 X +12V (Power supply P8) | ||
| 1 X +12V (Power supply P4) | ||
| Chassis intrusion | ||
| Front panel audio | ||
| 1 X Addressable LED RGB connector(s) | ||
| 1 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
| Multimedia | ||
| Office | ||
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
