Those were the good old days! This product is no longer on sale
Gigabyte Z690M AORUS ELITE AX DDR4 Micro ATX Socket 1700 Intel Z690 Express Motherboard - 4x DDR4 - M.2 PCIe 4.0 - USB 3.2 - LAN 2.5 GbE - Wi-Fi 6 AX - PCI-Express 5.0 16x

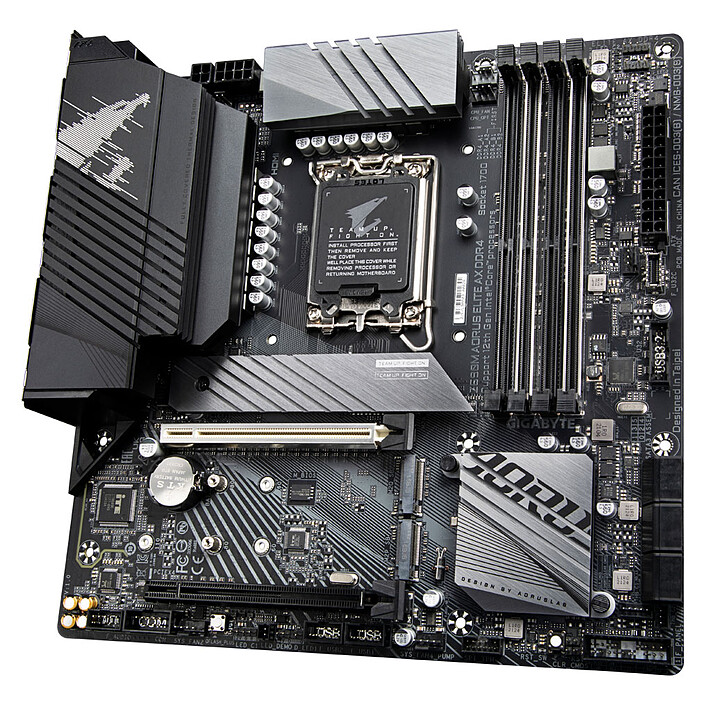

Motherboard

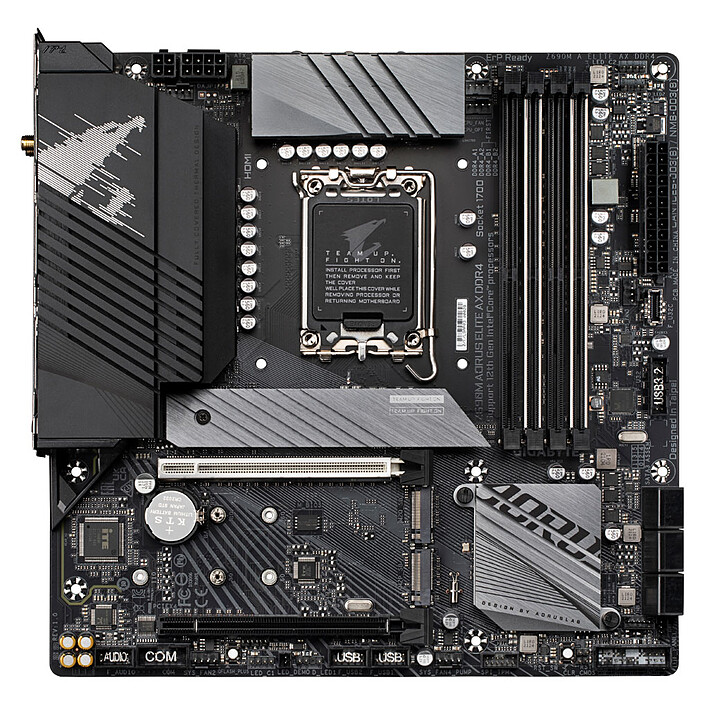

Review Gigabyte Z690M AORUS ELITE AX DDR4

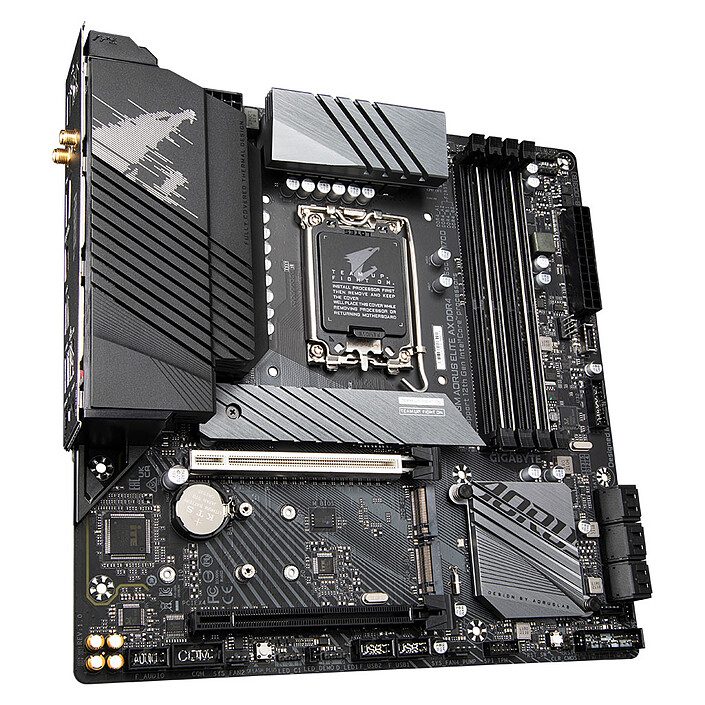

Buy Gigabyte Z690M AORUS ELITE AX DDR4
cheap Gigabyte Z690M AORUS ELITE AX DDR4

Pictures may differ from actual products

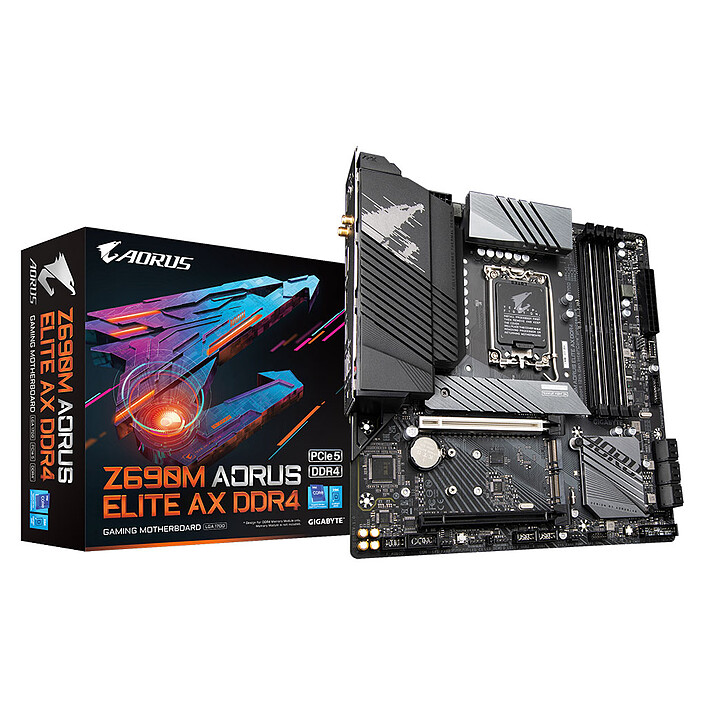

Gigabyte Z690M AORUS ELITE AX DDR4

Micro ATX Socket 1700 Intel Z690 Express Motherboard - 4x DDR4 - M.2 PCIe 4.0 - USB 3.2 - LAN 2.5 GbE - Wi-Fi 6 AX - PCI-Express 5.0 16x

Last price 269€95
Holy Moly!
Equivalent products suggestions:
Gigabyte Z790 AORUS ELITE AX-W
Gigabyte Z790 AORUS ELITE AX-W
274€95
Gigabyte Z790 AORUS ELITE AX
Gigabyte Z790 AORUS ELITE AX
259€95
Gigabyte Z890M GAMING X.
Gigabyte Z890M GAMING X.
235€95
Gigabyte Z890M AORUS ELITE WIFI7 ICE.
Gigabyte Z890M AORUS ELITE WIFI7 ICE.
289€95
Gigabyte Z790 UD AX
Gigabyte Z790 UD AX
249€95
Gigabyte B760 AORUS MASTER DDR4
Gigabyte B760 AORUS MASTER DDR4
249€95
Gigabyte Z790 AORUS ELITE AX DDR4
Gigabyte Z790 AORUS ELITE AX DDR4
245€95
Gigabyte Z790 AERO G
Gigabyte Z790 AERO G
289€95
Gigabyte Z790 D AX
Gigabyte Z790 D AX
213€95
Gigabyte Z790 EAGLE AX
Gigabyte Z790 EAGLE AX
205€95
Gigabyte B650M AORUS ELITE AX ICE
Gigabyte B650M AORUS ELITE AX ICE
219€95
Overview

Gigabyte AORUS Motherboard for 12th Generation Intel Core Processor

Based on the Intel Z690 Express Chipset, the Gigabyte Z690M AORUS ELITE AX DDR4Motherboard will serve as the foundation for your high-performance CPU-equipped Gaming PC with Gigabyte-exclusive features like Smart Fan 6. It supports 12th generation Intel Core processors, PCI-Express 5.0 16x graphics cards, SATA 6 Gbps and M.2 PCIe 4.0 drives, DDR4 RAM as well as USB 3.1 and 3.2 devices.

Gigabyte Z690M AORUS ELITE AX DDR4

  • Support for 12th generation Intel Core processors on socket LGA 1700
  • DDR5 memory support
  • VRM Twin Hybrid 12+1+2 phases with 60A DrMOS
  • PCI-Express 5.0 16x
  • RGB FUSION 2.0 compatible with addressable LEDs and RGB LED strips
  • 2.5 Gigabit network + 6 AX Wi-Fi
  • USB 3.2 20 Gbit/s

Spectacular performance

The 12th generation Intel Core processors are a small revolution in the world of x86 architectures, they are the first to integrate a hybrid architecture. This process consists of combining two different types of cores on the same chip. The first 1, called Percormance-Cores, are dedicated to performance in games and mono-threaded applications requiring resources. The second type, called Efficient-Cores, are particularly efficient for multitasking and side task processing. Together, the two provide spectacular performance and incredible responsiveness for your system.

Specifications
Select your criteria

General information

Product name

 Gigabyte Z690M AORUS ELITE AX DDR4

Brand

 Gigabyte

Model

 Z690M A ELITE AX DDR4

Processor

Processor support

 Intel 1700

Number of CPUs supported

 1

Chipset

Chipset

 Intel Z690 Express

Memory

Memory format

 4 X DIMM 288-pin (DDR4)

Memory Frequency(ies)

 DDR4 4300 MHz
DDR4 4266 MHz
DDR4 4133 MHz
DDR4 4000 MHz
DDR4 3866 MHz
DDR4 3800 MHz
DDR4 3733 MHz
DDR4 3666 MHz
DDR4 3600 MHz
DDR4 3466 MHz
DDR4 3400 MHz
DDR4 3333 MHz
DDR4 3300 MHz
DDR4 3200 MHz
DDR4 3000 MHz
DDR4 4400 MHz
DDR4 4500 MHz
DDR4 4600 MHz
DDR4 2933 MHz
DDR4 2800 MHz
DDR4 2666 MHz
DDR4 2400 MHz
DDR4 2133 MHz
DDR4 4700 MHz
DDR4 4800 MHz
DDR4 4933 MHz
DDR4 5000 MHz
DDR4 5133 MHz
DDR4 5333 MHz

Memory type

 DDR4

Memory technology

 Dual Channel

Maximum RAM capacity per slot

 32 GB

Maximum RAM capacity

 128 GB

Graphic

Integrated graphics controller

 No

Compatible graphics core integrated in the CPU

 Yes

Expansion slots

Graphic connector(s)

 1 X PCI Express 5.0 x16
1 X PCI Express 3.0 16x (x4)

Number and Type of slots

 None

Multi-GPU type

 CrossFireX

Audio

Audio Chipset

 Integrated

Number of audio channels

 8

Network

Number of ports/Ethernet controler

 1 X Integrated Realtek 2.5 GbE

Network standard(s)

 Bluetooth 5.2
2.5 Gbps Gigabit Ethernet (2.5 GbE)
Wi-Fi 6 AX

Wi-Fi

 Yes

Storage

RAID supported

 Yes

Hard drives connectors

 6 X Serial ATA 6Gb/s (SATA Revision 3)
3 X M.2 - PCI-E 4.0 x4

Number of M.2 slot(s)

 3

Supported RAID Modes

 10
5
1
0

Connectivity

Rear panel connectors

 1 X HDMI Female
1 X DisplayPort Female
1 X USB 3.2 Type C
1 X USB 3.1
4 X USB 3.0
4 X USB 2.0
1 X RJ45 Female
1 X MiniDin 6 Female (PS/2)
1 X Digital audio S/PDIF Optical
2 X 3.5mm Jack Male Stereo
2 X SMA

Additional connectors

 BIOS Flash Update
1 X +12V (Power supply P4)
1 X +12V (Power supply P8)
1 X ATX 24 Pin
2 X Internal USB 2.0
1 X Internal USB 3.0
2 X Thunderbolt
Front panel audio
2 X Addressable LED RGB connector(s)
2 X LED RGB connector(s)

Physical characteristics

Motherboard format

 Micro ATX

Length

 244 mm

Width

 244 mm

Equipment

Advanced overclocking features

 Yes

Use

 Gamer

LED

 Yes

Warranties

Commercial warranty

 Seller 2 years

Legal warranty

 See terms & conditions

See all Gigabyte products

See Gigabyte Motherboard section

Product referenced on 9 Nov 2021
