Those were the good old days! This product is no longer on sale
Gigabyte B660 AORUS MASTER DDR4 ATX Socket 1700 Intel B660 Express Motherboard - 4x DDR4 - M.2 PCIe 4.0 - USB 3.2 - LAN 2.5 GbE - PCI-Express 4.0 16x

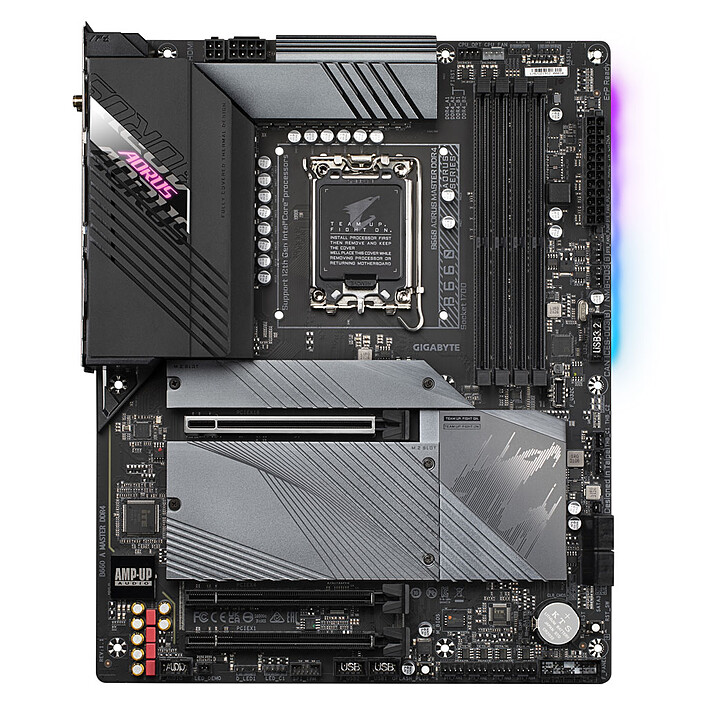

Motherboard

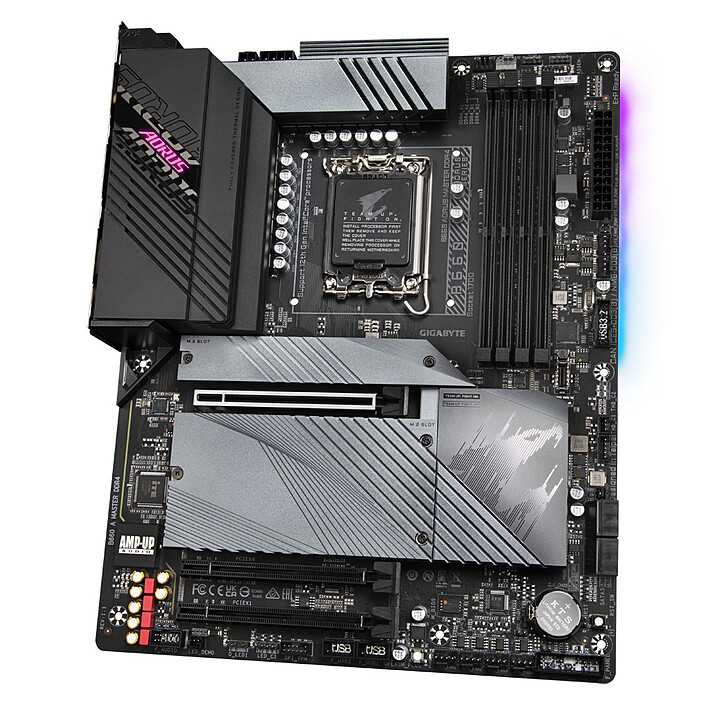

Review Gigabyte B660 AORUS MASTER DDR4
Buy Gigabyte B660 AORUS MASTER DDR4
cheap Gigabyte B660 AORUS MASTER DDR4

Pictures may differ from actual products

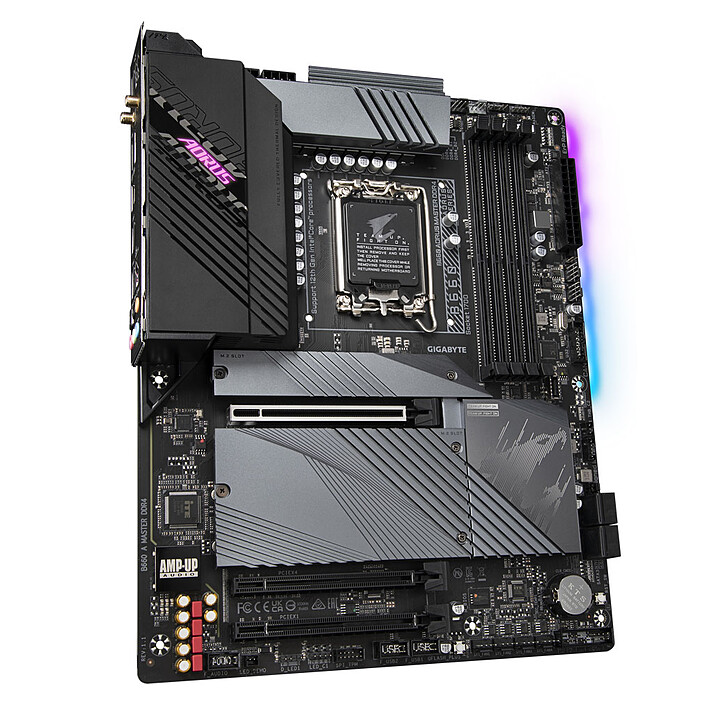

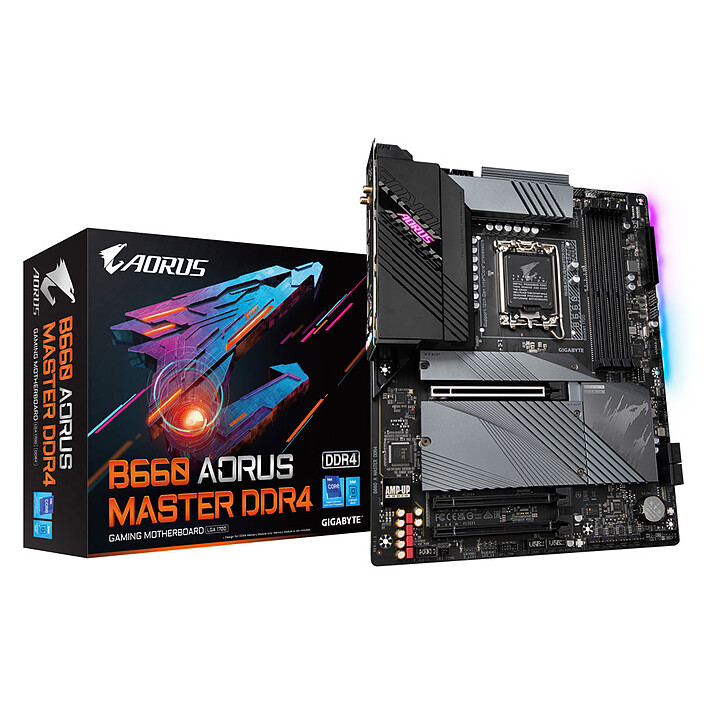

Gigabyte B660 AORUS MASTER DDR4

ATX Socket 1700 Intel B660 Express Motherboard - 4x DDR4 - M.2 PCIe 4.0 - USB 3.2 - LAN 2.5 GbE - PCI-Express 4.0 16x

Last price 259€94
Holy Moly!
Equivalent products suggestions:
Gigabyte Z790 UD AX
Gigabyte Z790 UD AX
249€95
Gigabyte B760 AORUS MASTER DDR4
Gigabyte B760 AORUS MASTER DDR4
249€95
Gigabyte Z790 AORUS ELITE AX
Gigabyte Z790 AORUS ELITE AX
259€95
Gigabyte Z790 AORUS ELITE AX-W
Gigabyte Z790 AORUS ELITE AX-W
274€95
Gigabyte Z790 AORUS ELITE AX DDR4
Gigabyte Z790 AORUS ELITE AX DDR4
245€95
Gigabyte Z790 AERO G
Gigabyte Z790 AERO G
289€95
Gigabyte Z790 D AX
Gigabyte Z790 D AX
213€95
Gigabyte Z790 EAGLE AX
Gigabyte Z790 EAGLE AX
205€95
Gigabyte Z790 AORUS ELITE X WIFI7
Gigabyte Z790 AORUS ELITE X WIFI7
315€95
Gigabyte Z790 AORUS ELITE DDR4
Gigabyte Z790 AORUS ELITE DDR4
199€95
Gigabyte B760 AORUS ELITE AX
Gigabyte B760 AORUS ELITE AX
209€95
Overview

Gigabyte Motherboard for 12th Generation Intel Core Processor

Based on the Intel B660 Express chipset, the Gigabyte B660 AORUS MASTER DDR4 motherboard will serve as the foundation for your gaming PC with a high-performance processor and exclusive Gigabyte features like Smart Fan 6. It supports 12th generation Intel Core processors, PCI-Express 4.0 16x graphics cards, SATA 6 Gbps and M.2 PCIe 4.0 drives, DDR4 RAM as well as USB 3.1 and 3.2 devices.

Gigabyte B660 AORUS MASTER DDR4

  • Support for 12th generation Intel Core processors on socket LGA 1700
  • DDR4 5333 MHz memory support
  • Digital VRM 16+1+1 Twin Hybrid 60A DrMOS
  • PCI-Express 4.0 16x
  • 2x M.2 PCIe 4.0 4x
  • RGB FUSION 2.0 compatible with addressable LEDs and RGB LED strips
  • 2.5 Gigabit network

Spectacular performance

The 12th generation Intel Core processors are a small revolution in the world of x86 architectures, they are the first to integrate a hybrid architecture. This process consists of combining two different types of cores on the same chip. The first 1, called Percormance-Cores, are dedicated to performance in games and mono-threaded applications requiring resources. The second type, called Efficient-Cores, are particularly efficient for multitasking and side task processing. Together, the two provide spectacular performance and incredible responsiveness for your system.

Specifications
Select your criteria

General information

Product name

 Gigabyte B660 AORUS MASTER DDR4

Brand

 Gigabyte

Model

 B660 A MASTER DDR4

Processor

Processor support

 Intel 1700

Number of CPUs supported

 1

Chipset

Chipset

 Intel B660 Express

Memory

Memory format

 4 X DIMM 288-pin (DDR4)

Memory Frequency(ies)

 DDR4 5333 MHz
DDR4 5133 MHz
DDR4 5000 MHz
DDR4 4933 MHz
DDR4 4800 MHz
DDR4 4700 MHz
DDR4 4600 MHz
DDR4 4500 MHz
DDR4 4400 MHz
DDR4 2133 MHz
DDR4 2400 MHz
DDR4 2666 MHz
DDR4 2933 MHz
DDR4 3000 MHz
DDR4 3200 MHz
DDR4 3300 MHz
DDR4 3333 MHz
DDR4 4300 MHz
DDR4 4266 MHz
DDR4 4133 MHz
DDR4 4000 MHz
DDR4 3400 MHz
DDR4 3466 MHz
DDR4 3600 MHz
DDR4 3666 MHz
DDR4 3733 MHz
DDR4 3800 MHz
DDR4 3866 MHz

Memory type

 DDR4

Memory technology

 Dual Channel

Maximum RAM capacity per slot

 32 GB

Maximum RAM capacity

 128 GB

Graphic

Integrated graphics controller

 No

Compatible graphics core integrated in the CPU

 Yes

Graphics chipset

 None

Expansion slots

Graphic connector(s)

 1 X PCI Express 4.0 x16
1 X PCI Express 3.0 16x (x4)

Number and Type of slots

 1 X PCI Express 3.0 x16 (x1)

Multi-GPU type

 CrossFireX

Audio

Audio Chipset

 Realtek ALC1220-VB

Number of audio channels

 8

Network

Number of ports/Ethernet controler

 1 X Integrated Intel - 2.5 GbE

Network standard(s)

 Wi-Fi 6 AX
Bluetooth 5.2
2.5 Gbps Gigabit Ethernet (2.5 GbE)

Wi-Fi

 Yes

Storage

RAID supported

 No

Hard drives connectors

 4 X Serial ATA 6Gb/s (SATA Revision 3)
2 X M.2 - PCI-E 4.0 x4
1 X M.2 - PCI-E 3.0 x4

Number of M.2 slot(s)

 3

Connectivity

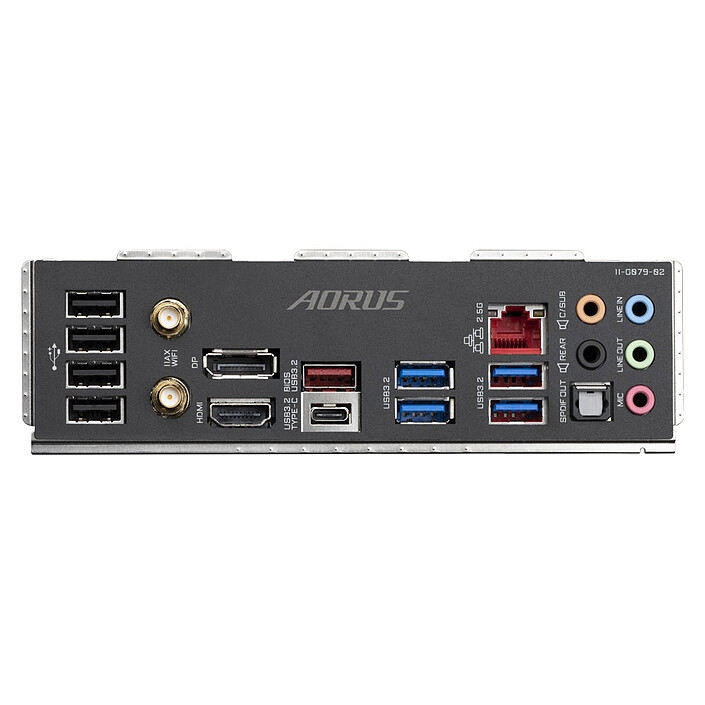

Rear panel connectors

 1 X HDMI Female
1 X DisplayPort Female
1 X USB 3.2 Type C
1 X USB 3.1
4 X USB 3.0
4 X USB 2.0
1 X RJ45 Female
1 X MiniDin 6 Female (PS/2)
1 X Digital audio S/PDIF Optical
5 X 3.5mm Jack Female Stereo
2 X SMA

Additional connectors

 2 X LED RGB connector(s)
2 X Addressable LED RGB connector(s)
Front panel audio
BIOS Flash Update
1 X +12V (Power supply P4)
1 X +12V (Power supply P8)
1 X ATX 24 Pin
2 X Internal USB 2.0
1 X Internal USB 3.0
1 X Internal USB 3.1 Type C
2 X Thunderbolt

Physical characteristics

Motherboard format

 ATX

Length

 305 mm

Width

 244 mm

Equipment

Advanced overclocking features

 No

Use

 Gamer

LED

 Yes

Warranties

Commercial warranty

 Seller 3 years

Legal warranty

 See terms & conditions

See all Gigabyte products

See Gigabyte Motherboard section

Product referenced on 13 Jan 2022

Customer review
Global rating
10/10
based on 1 review Editorial and moderation guide
  • 100%
    1 review
  • 0%
  • 0%
  • 0%
  • 0%
  • by YannisN
    Posted on 5 Mar 2023
    Bought on 16 Feb 2023 from LDLC
    Number of reviews: 12 Average rating: 8

    Very good motherboard

    Very good motherboard complete with integrated wifi and magnetic antenna.
    Great design and easy to assemble.
