Intel NUC NUC10I7FNK2

Good little machine

Installed under Linux (Debian Bullseye to be able to use the ? 5.5 kernel which is essential for the network configuration), it's a good little machine which doesn't make any noise except when you mistreat it, but which turns out to be rather powerful: on Geekbench by comparison with one of my servers in the cloud, it reaches the scores of 1127/6180 (single-core/multi-core) against 1237/4852 for a Xeon E3 1240v6 (in both cases 32Gb RAM and 512Gb of SSD). This makes it an ideal server for a whole bunch of applications (web, mail, git etc.): it only takes 15mn to open it and put its RAM and NVME SSD, a USB key with the right version of Debian, then you can put it in a small corner connected to the network...

General information	Product name	Intel NUC NUC10I7FNK2
	Brand	Intel
	Model	BXNUC10I7FNK2
Processor and chipset	Integrated processor	Yes
	Processor	Intel Core i7
	CPU frequency	1.6 GHz
	Processor support	N/A
	Number of CPUs supported	1
Memory	Memory format	2 X SO-DIMM 260-pin (DDR4)
	Memory Frequency(ies)	DDR4 2666 MHz
	Memory type	DDR4
	Memory technology	Dual Channel
	Dual Channel	Yes
	Maximum RAM capacity per slot	32 GB
	Maximum RAM capacity	64 GB
Graphic	Integrated graphics controller	Yes
	Graphics chipset	Intel UHD Graphics
	Video memory size	4 GB
Expansion slots	Graphic connector(s)	None
	Graphic card max. length	0 mm
	Number and Type of slots	None
Storage	Hard drives connectors	1 X M.2 - PCI-E 3.0 x4
Storage	Optical drive type	None
Audio	Audio Chipset	Integrated
Audio	Number of audio channels	8
Network	Number of ports/Ethernet controler	1 X Intel I219-V
	Network standard(s)	10/100/1000 Mbps
	Wireless network standard(s)	Wi-Fi 6 AX
	Wireless network standard(s)	Bluetooth

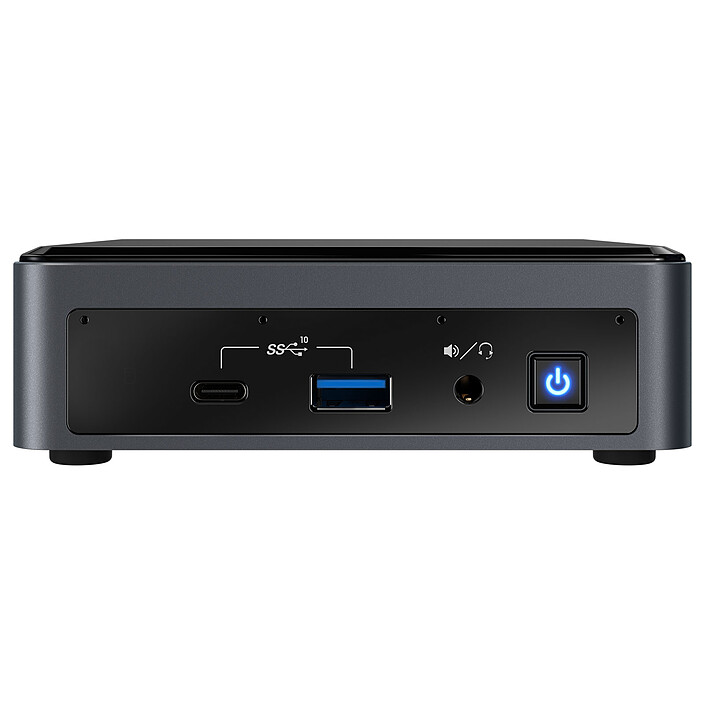

Connectivity	Front panel connectors	1 X 3.5mm Jack Female Stereo
		1 X USB 3.1
		1 X USB 3.1 Type C
		SD (Secure Digital)
		SDHC
		SDXC

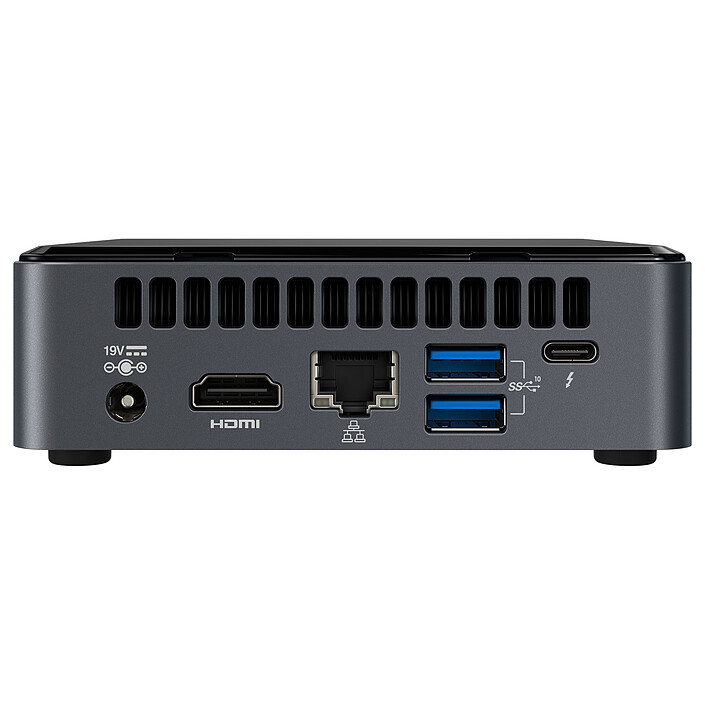

	Rear panel connectors	1 X Gigabit Ethernet - RJ45 Female
		2 X USB 3.1
		1 X Thunderbolt 3/USB-C
		1 X HDMI 2.0 Female
Case	Number of 2.5" slots	0
	Number of invisible 3.5" slots	0
	Number of visible 3.5" slots	0
	Number of visible 5.25" slots	0
	Number of invisible 5.25" slots	0
	Number of Slot-in slim 5.25'' slots	0
	Number of Slim 5.25'' slots	0
	Power	230 W
Compatibility	Supported OS	Windows 10 Pro 64-bit
	Supported OS	Windows 10 Home 64-bit
	Max CPU TDP	25 W
Physical characteristics	Barebone format	ITX
	Width	117 mm
	Height	38 mm
	Depth	112 mm
Warranties	Commercial warranty	Seller 2 years
Warranties	Legal warranty	See terms & conditions

Intel Core i7-10710U Intel UHD Graphics Wi-Fi 6 AX/Bluetooth M.2 PCIe slot (no notch/memory/hard drive)

Overview

Specifications

Customer reviews

Intel NUC10: More power in your mini-PC

Hexa-Core Performance

Uncompromisingly compact

Main features :

General information

Product name

Brand

Model

Processor and chipset

Integrated processor

Processor

CPU frequency

Processor support

Number of CPUs supported

Memory

Memory format

Memory Frequency(ies)

Memory type

Memory technology

Dual Channel

Maximum RAM capacity per slot

Maximum RAM capacity

Graphic

Integrated graphics controller

Graphics chipset

Video memory size

Expansion slots

Graphic connector(s)

Graphic card max. length

Number and Type of slots

Storage

Hard drives connectors

Optical drive type

Audio

Audio Chipset

Number of audio channels

Network

Number of ports/Ethernet controler

Network standard(s)

Wireless network standard(s)

Connectivity

Front panel connectors

Rear panel connectors

Case

Number of 2.5" slots

Number of invisible 3.5" slots

Number of visible 3.5" slots

Number of visible 5.25" slots

Number of invisible 5.25" slots

Number of Slot-in slim 5.25'' slots

Number of Slim 5.25'' slots

Power

Compatibility

Supported OS

Max CPU TDP

Physical characteristics

Barebone format

Width

Height

Depth

Warranties

Commercial warranty

Legal warranty

Good little machine

top and very easy to set up and configure

Super
