Blackmagic Design 2110 IP Converter 4x12G PWR.
IP 2110 12G-SDI 4-channel bidirectional switcher with LCD screen.
Pictures may differ from actual products
This ATEM Constellation mixer designed by Blackmagic Design features a compact rack-mount enclosure incorporating a control panel. This panel allows the mixer to be operated, which is essential during installation and emergency situations.
IP 2110 12G-SDI 4-channel bidirectional switcher with LCD screen.
Install your 2110 IP video system for broadcast, live production and audiovisual applications!

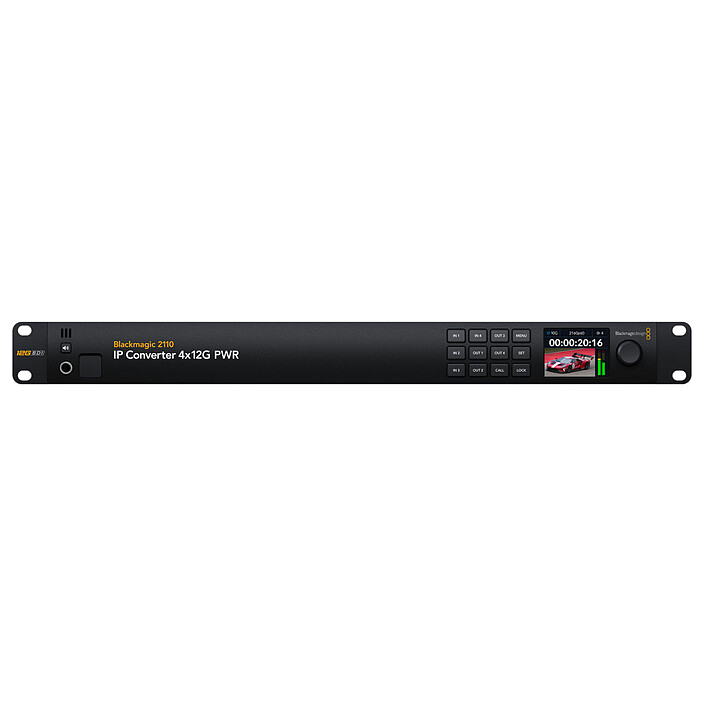

The Blackmagic 2110 IP Converter 4x12G PWR adds SMPTE-2110 IP video to 12G-SDI broadcast equipment. It offers 4 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using 10G RJ-45 Ethernet connections, which can be used for power. Its rack unit design includes a control panel with LCD screen and supports HD and Ultra HD standards up to 2160p60.
Build your broadcast system
This Blackmagic 2110 IP Converter has been designed to integrate SDI equipment into 2110 IP systems. This rackmount model can be installed next to the equipment you are converting. This Blackmagic SMPTE-2110 IP equipment can be powered remotely. With this converter, you can transform all your video equipment into a SMPTE-2110 at low cost. Simply add this Blackmagic 2110 IP Converter to live production mixers, disk recorders, streaming processors, cameras, TVs and more.
This Blackmagic 2110 IP equipment complies with the SMPTE ST-2110 standard for IP video, which specifies the transport, synchronisation and description of 10-bit video, audio and ancillary data over IP networks managed for broadcast. It can also synchronise SDI inputs to a common PTP clock.
The Blackmagic 2110 IP Converter's connections support SD, HD and Ultra HD video standards, so your existing SDI broadcast equipment can be connected to a new IP-based infrastructure.
Flexible connectivity and power supply
This Blackmagic 2110 IP Converter is available with RJ-45 connectors for simple Cat6 copper cables or with SFP ports for fibre optic modules and cables. Cat6 copper cables make it possible to build SMPTE-2110 systems at lower cost. They are simple and 10G Ethernet switches are very common. Modern buildings are often already equipped with such a cable. So you can use whatever cables you have. What's more, copper cables can remotely power devices such as converters and cameras. There are also models for Ethernet connection via fibre optics. 10G optical fibre is much cheaper than 25G or 40G Ethernet. You can even use 3G, 6G or 12G-SDI modules!
This Blackmagic 2110 IP Converter rack-mount model includes an AC power supply. Simply plug it into a wall socket. The universal power supply automatically switches between 100-240V AC voltages. So you can use it anywhere in the world. It supports both AC and PoE+ power connections, so you can power the converters from the Ethernet connection. This is very handy when power is scarce near the converters.
Main features :
- Blackmagic 2110 IP Converter 4x12G PWR
- HD video standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30
- Total SDI inputs: 5
- SDI video inputs: 4
- Main SDI programme inputs: 1
- Total SDI outputs: 5
- SDI video outputs: 4
- SDI audio outputs: 16 channels of embedded audio on SDI loop-through output.
- SM audio inputsPTE ST-2110: 16 channels of embedded audio on the ST-2110 IP video via Ethernet 10G.
- SM audio outputsPTE ST-2110: 16 channels of embedded audio on ST-2110 IP video via Ethernet 10G.
- Support for multiple data rates: Automatic detection of SD, HD, Ultra HD and 4K.
- Analogue audio outputs: 1 x 6.35 mm headphone socket

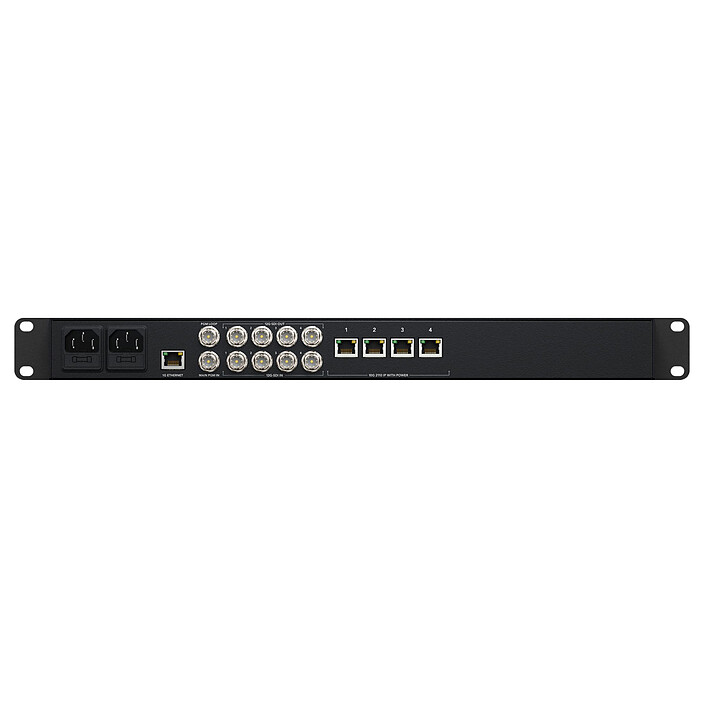

- Ethernet: 4 x RJ-45 10Gb/s PoE++ connectors supporting 10/100/1000/10G BASE-T
- Dimensions (W x D x H): 482 x 234 x 44 mm
- Weight : 3.73 Kg
Select your criteria
General information |
Product name |
Blackmagic Design 2110 IP Converter 4x12G PWR. |
Brand |
Blackmagic Design | |
Model |
CONVNVIPB4/12GPWR | |
Technical specifications |
Interface with the computer |
Gigabit Ethernet - RJ45 Female |
Accessory type |
Deck / Controller | |
Compatibility |
Microsoft Windows 10 | |
| Apple macOS Sonoma | ||
| Apple macOS Ventura | ||
| Microsoft Windows 11 | ||
Length |
482 mm | |
Width |
234 mm | |
Height |
44 mm | |
Weight |
3.73 kg | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
Product referenced on 12 Dec 2024
