The MSI PRO A620M-E is a versatile motherboard for AMD Ryzen processors on socket AM5. It will enable you to design an office and multimedia PC based on the latest components such as AMD Ryzen 7000 processors, PCI-Express 4.0 16x graphics cards, M.2 NVMe PCIe 4.0 disks, etc.
Micro ATX Socket AM5 AMD A620 motherboard - 2x DDR5 - M.2 PCIe 4.0 - USB 3.0 - PCI-Express 4.0 16x
Available from 89€95 on the outlet deals
The MSIPRO A620M-E is a versatile motherboard for AMD Ryzen processors on socket AM5. It will enable you to design an office and multimedia PC based on recent components such as AMD Ryzen 7000 processors, PCI-Express 4.0 16x graphics cards, M.2 NVMe PCIe 4.0 disks and DDR5 RAM. The PRO A620M-E motherboard from MSI's PRO range meets the demands of professionals by combining durability with essential functionality.
The high frequencies of AMD Ryzen Zen 4 processors are a real advantage when it comes to gaming. Choose the right components and design a high-performance gaming PC that's latency-free and ready when you are. Get the edge over your opponents and reach new heights with AMD Ryzen 7000 processors and AMD AM5 motherboards.
AMD Ryzen 7000 processors deliver performance across the board. They'll help you create faster, achieve your goals faster and save time all the time. From 3D rendering to exporting large video files, design, deliver and get the job done with PCIe 5.0 speed and storage, multiple processing threads and dedicated video accelerators.
Select your criteria
General information |
Product name |
MSI PRO A620M-E |
Brand |
MSI | |
Model |
PRO A620M-E | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD A620 |
Memory |
Memory format |
2 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 6800 MHz | |
| DDR5 6600 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5000 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
96 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Realtek RTL8111H |
Network standard(s) |
100/1000 Mbps | |
Wi-Fi |
No | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
1 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

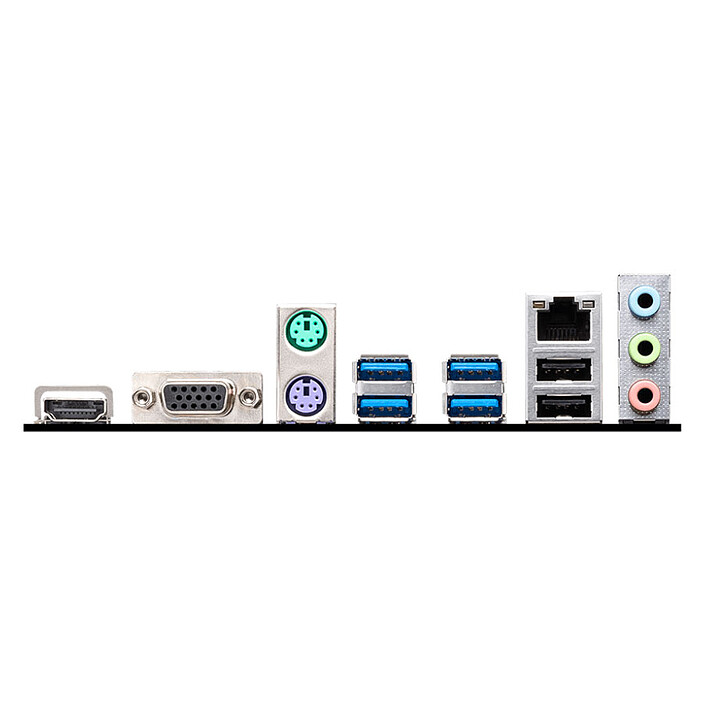

Rear panel connectors |
1 X HDMI Female | |
| 4 X USB 3.0 | ||
| 1 X RJ45 Female | ||
| 3 X 3.5mm Jack Female Stereo | ||
| 2 X USB 2.0 | ||
| 1 X VGA (D-sub 15 Female) | ||
Additional connectors |
1 X LED RGB connector(s) | |
| Front panel audio | ||
| Chassis intrusion | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 1 X Serial (RS-232) | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
211 mm | |
Width |
243.84 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Office | |
| Multimedia | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all MSI products
Product referenced on 21 Jun 2023
Good motherboard, very practical for my mini-tower. It meets all the latest criteria, from the AM5 socket to high-frequency DDR5. Be careful if you're planning to install an AIO, there's no cpu_pump pin, so make sure you have enough space left on your PSU! You'll also need dual fan power supplies, as there are only 2 ports if you don't consider the cpu_fan.
I highly recommend this motherboard.
