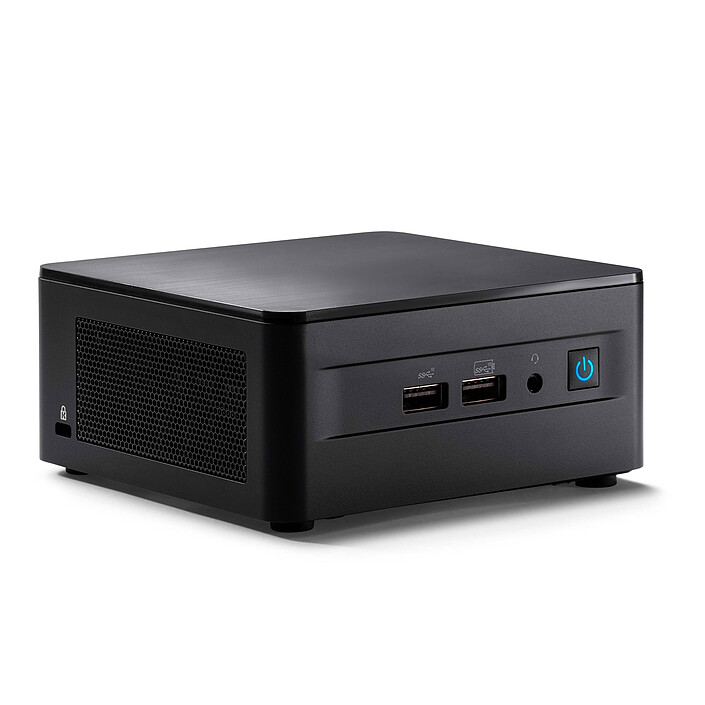

Intel NUC 12 Pro NUC12WSHi7

Perfect with Gnu/Linux

Hello.
Installing a Debian 11 (bullseye).
Tip: Update the bios BEFORE the installation.
F2 / F7 / F10 or long press on the boot button to choose to boot on usb key (with the bios).
Take the last version of the Debian installer (more recent Kernel) otherwise, the network card is not detected during the installation.
Quite a few options in the bios for a small machine. Powerful, a Kernel compiles in a few minutes...
No major problem with the graphics chip (i915 driver for the moment) but still complicated to make the video acceleration work (decode/encode) Intel makes an effort...
I'm not sure if it's a good idea to use the same software as the one I'm using now, but I'm not sure if it's a good idea to use the same software as the one I'm using now...
LDLC: Well, what can I say...we all know why we come here...and bravo for the technical service remark about the power cable!

General information	Product name	Intel NUC 12 Pro NUC12WSHi7
	Brand	Intel
	Model	RNUC12WSHI70000
Processor and chipset	Integrated processor	Yes
	Processor	Intel Core i7
	CPU frequency	3.4 GHz
	Processor support	N/A
	Number of CPUs supported	1
Memory	Memory format	2 X SO-DIMM 260-pin (DDR4)
	Memory Frequency(ies)	DDR4 3200 MHz
	Memory type	DDR4
	Memory technology	Dual Channel
	Dual Channel	Yes
	Maximum RAM capacity per slot	32 GB
	Maximum RAM capacity	64 GB
Graphic	Integrated graphics controller	Yes
Graphic	Graphics chipset	Intel Iris Xe Graphics
Expansion slots	Graphic connector(s)	None
Storage	Hard drives connectors	1 X Serial ATA 6Gb/s (SATA Revision 3)
		1 X M.2 - PCI-E 4.0 x4
		1 X M.2 PCI-E x1 + SATA 6Gb/s
	M.2 support	M.2 2280
	M.2 support	M.2 2242
	Optical drive type	None
Audio	Audio Chipset	Integrated
Network	Number of ports/Ethernet controler	1 X Intel i225-V
	Network standard(s)	2.5 Gbps Gigabit Ethernet (2.5 GbE)
	Wireless network standard(s)	Wi-Fi 6E
	Wireless network standard(s)	Bluetooth 5.3
Connectivity	Front panel connectors	1 X 3.5mm Jack Female Stereo
	Front panel connectors	2 X USB 3.1

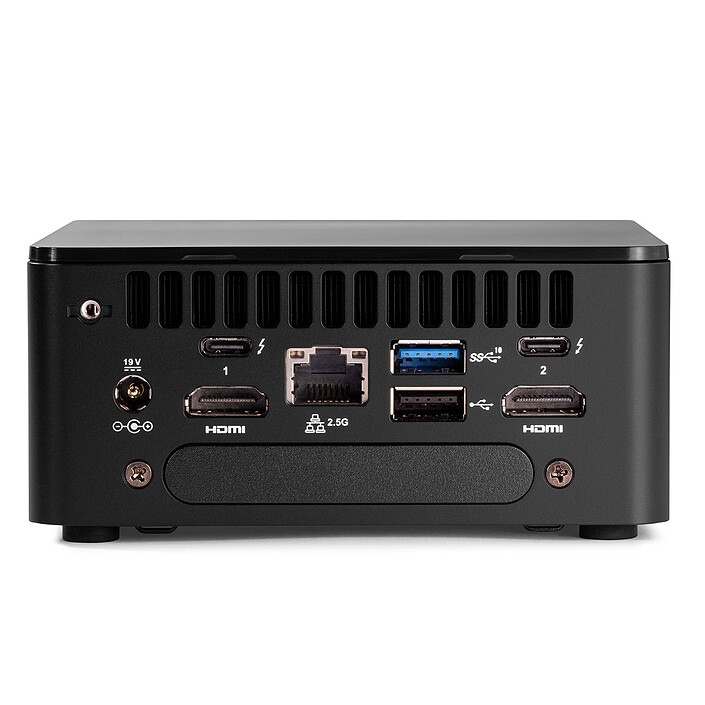

	Rear panel connectors	1 X USB 3.1
		2 X Thunderbolt 4/USB-C
		2 X HDMI Female
		1 X USB 2.0
		1 X RJ45 Female
Case	Number of 2.5" slots	1
Compatibility	Supported OS	Windows 11
		Windows 10
		Ubuntu 20.04 LTS
		Red Hat Linux
Physical characteristics	Barebone format	ITX
	Width	117 mm
	Height	54 mm
	Depth	112 mm
Warranties	Commercial warranty	Seller 3 years
Warranties	Legal warranty	See terms & conditions

Intel Core i7-1260P Intel Iris Xe Graphics Wi-Fi 6E / Bluetooth 5.3 + 2.5 GbE LAN + M.2 and 2.5" slots (without display/memory/hard drive/system)

Overview

Specifications

Customer reviews

All the power of a standard PC in the palm of your hand

Intel Core performance

Uncompromisingly compact

General information

Product name

Brand

Model

Processor and chipset

Integrated processor

Processor

CPU frequency

Processor support

Number of CPUs supported

Memory

Memory format

Memory Frequency(ies)

Memory type

Memory technology

Dual Channel

Maximum RAM capacity per slot

Maximum RAM capacity

Graphic

Integrated graphics controller

Graphics chipset

Expansion slots

Graphic connector(s)

Storage

Hard drives connectors

M.2 support

Optical drive type

Audio

Audio Chipset

Network

Number of ports/Ethernet controler

Network standard(s)

Wireless network standard(s)

Connectivity

Front panel connectors

Rear panel connectors

Case

Number of 2.5" slots

Compatibility

Supported OS

Physical characteristics

Barebone format

Width

Height

Depth

Warranties

Commercial warranty

Legal warranty

Perfect with Gnu/Linux

Incredible little PC
