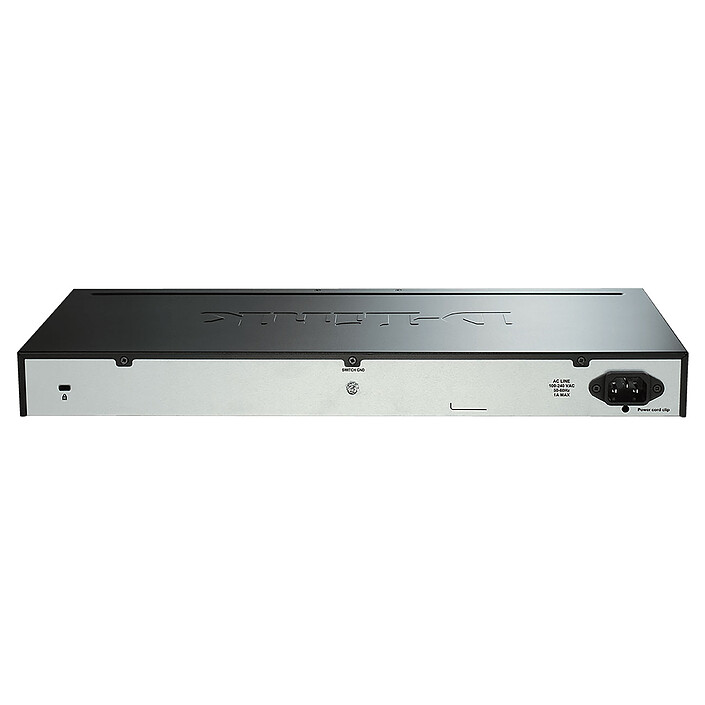

D-Link DGS-1510-52X/E
Smart Manageable Switch 48 ports 10/100/1000 Mbps + 4 SFP+ 10 Gbps slots
The D-Link DGS-1510 series is the latest generation of smart managed switches with 10 Gigabit uplinks. They are available with 16, 24 or 48 10/100/1000 Mbps ports plus additional fibre ports for physical stacking or uplinks.
Smart Manageable Switch 48 ports 10/100/1000 Mbps + 4 SFP+ 10 Gbps slots
D-Link DGS-1510: Gigabit and Stackable Smart Managed Switch
The D-Link DGS-1510 series is the latest generation of smart managed switches with 10 Gigabit uplinks. They are available with 16, 24 or 48 10/100/1000 Mbps ports plus additional fibre ports for physical stacking or uplinks.
CLI interface and 10G SFP+ stacking
The D-Link DGS-1510 Series is the next generation of Smart Managed Switches with 10G SFP+ fibre ports for physical stacking or uplink. The combination of high bandwidth connections, an industry standard CLI and PoE options makes the DGS-1510 Series ideally suited for small and medium business environments.
Layer 3 Traffic Management
The DGS-1510 Series has advanced network management options, accessible via a command line interface (CLI), serial console port, or the web UI. It equips your enterprise with networking capabilities such as VLANs, Multiple Spanning Tree Protocol (MSTP), Link Aggregation (LACP), static routing, multiple firmware images and multiple configuration files.
With powerful security features such as IGMP traffic monitoring, access control lists, port security and D-Link's unique Safeguard Engine that protects your network from denial of service attacks, the D-Link Safeguard Engine is the ideal solution for your network.With powerful security features such as IGMP traffic monitoring, access control lists, port security and D-Link's unique Safeguard Engine that protects your network from broadcast, multicast and unicast flooding denial of service attacks, the DGS-1510 Series is a versatile solution for enterprise network environments.
10G SFP+ Stacking
Create a physical stack of up to 6 units in a fault tolerant ring or linear topology using direct connect cables or compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, providing 10G connectivity to core networks and servers.
Free network design and management software
D-Link's free Network Assistant (DNA) displays all connected devices and speeds up the first configuration. The free D-View 7 network management system comes with a 25-node, 2-probe license and full access to management tools. Optional upgrade licenses allow you to expand your network and analysis.
D-Link's green technology allows the DGS-1510 Series to save energy without compromising performance. The series is equipped with an intelligent fan that adjusts its speed and turns on only when a certain temperature is reached. Thanks to the advanced silicon technology, the DGS-1510 saves up to 73% energy compared to a normal switch.
Key features:
- 48 ports 10/100/1000 Mbps + 4 SFP+ 10 Gbps slots
- Switching capacity: 176 Gbps
- Management level: Layer 2+ (some Layer 3 features including static routing)
- IPv6 compatible
- D-Link green 3.0 power saving features
- Compatible SFP modules: DEM-310GT, DEM-311GT, DEM-312GT2
- Compatible SFP+ modules: DEM-410T, DEM-431XT, DEM-432XT
- SFP+ direct attach cables: DEM-CB100S, DEM-CB300S
General information |
Product name |
D-Link DGS-1510-52X/E |
Brand |
D-Link | |
Model |
DGS-1510-52X/E | |
Technical specifications |
Number of ports |
48 |
Network standard(s) |
10 Gbps Gigabit Ethernet (10 GbE) | |
10/100/1000 Mbps | ||
Number of 10/100/1000 Mbps ports |
48 | |
Number of GBIC ports |
4 | |
Rackable |
Yes | |
Manageable |
Yes | |
Administration level |
Level 2 | |
SNMP |
Yes | |
PoE (Power over Ethernet) |
No | |
IPv6 compatible |
Yes | |
Width |
440 mm | |
Depth |
210 mm | |
Height |
44 mm | |
Weight |
3.1 kg | |
Consumption |
48 W | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
