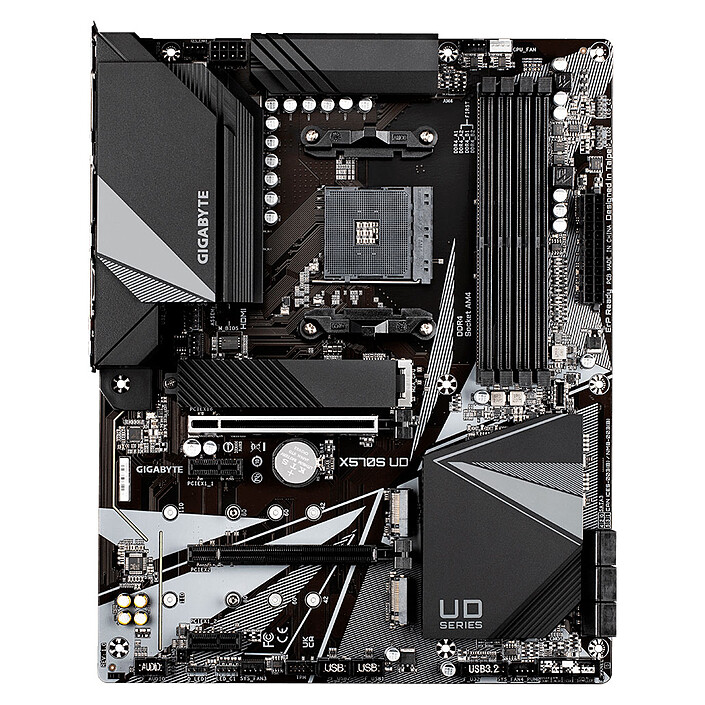

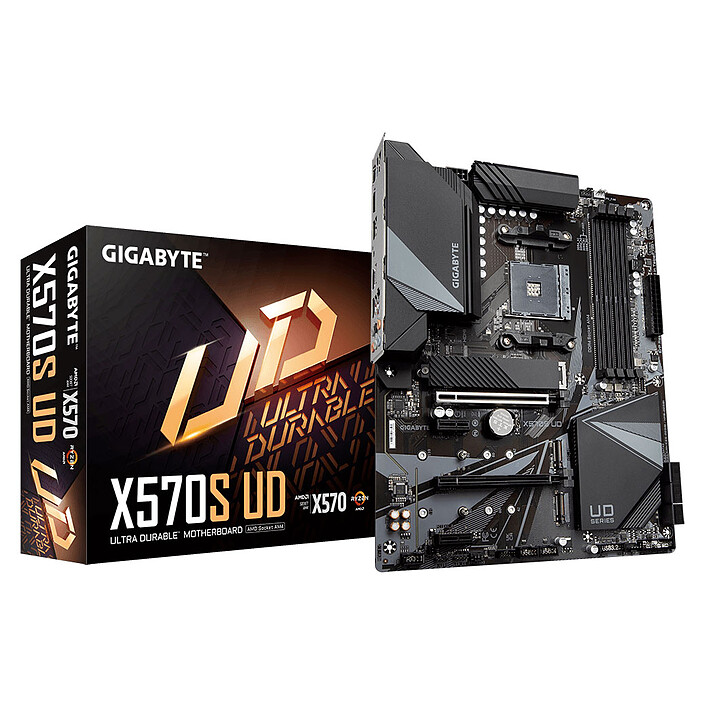

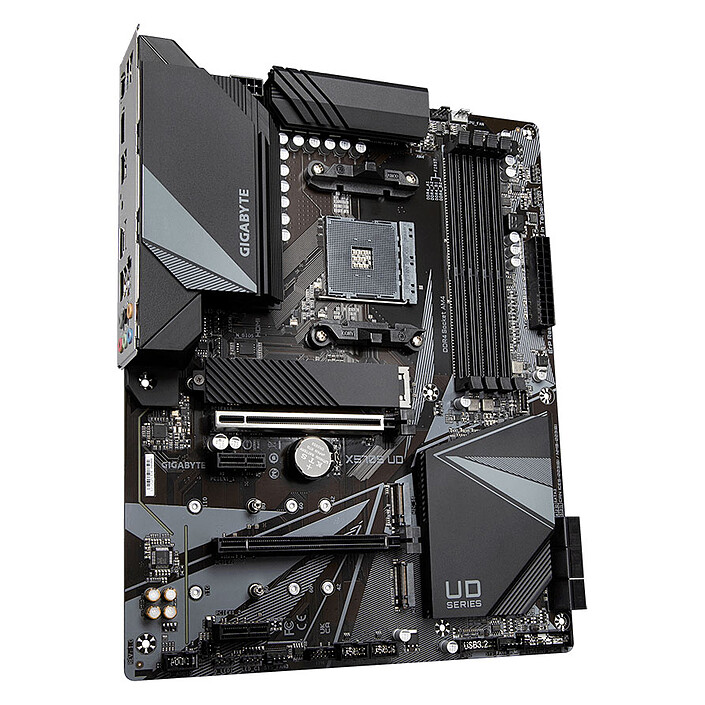

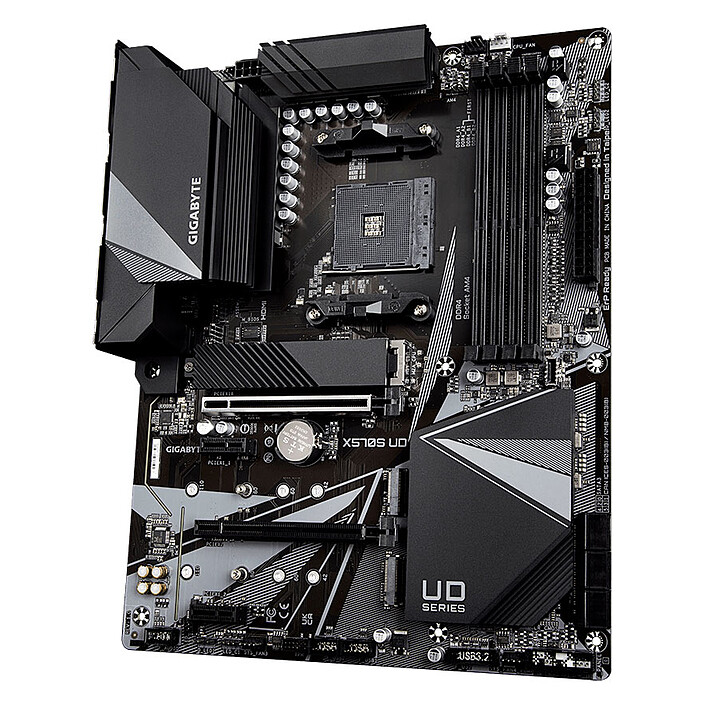

Gigabyte X570S UD
Motherboard ATX Socket AM4 AMD X570 - 4x DDR4 - M.2 PCIe 4.0 - USB 3.1 - PCI-Express 4.0 16x - LAN 2.5 GbE
Last price 173€95
Holy Moly!
Equivalent products suggestions:
Overview
Gaming socket AM4 PCI-Express 4.0 motherboard
The Gigabyte X57S0 UD motherboard is perfect for a high-end gaming setup. Designed for AMD Ryzen 2000(G) / 3000(G) / 4000G / 5000(G) processors on socket AMD AM4, it supports up to 128GB DDR4, PCI-Express 4.0 graphics cards and also M.2 (SATA and PCIe 4.0 x4). The Gigabyte X570S UD motherboard also features the latest Gigabyte software developments, including the Smart Fan 6 cooling control.
Gigabyte X570S UD highlights
- AMD AM4 socket for AMD Ryzen 2000(G)/3000(G)/4000G/5000(G) processor
- 4 DDR4 5100 MHz (OC) Dual-Channel memory slots
- Twin 12+2 Phase Digital VRM with 50A DrMOS
- 2.5 GbE LAN
- Smart Fan 6 with Multiple Temperature Sensors, Hybrid Connectors with Fan Stop
- High Quality Audio Capacitors and Anti-Noise Device for Optimal Audio Quality
- RGB FUSION 2.0 with Multi-Zone Addressable LEDs, Compatible LED Addressable & RGB LED Strips
- Q-Flash Plus: Upgrade BIOS without Installing Processor, Memory or Graphics Card
Zen 3 Microarchitecture
When you have the most advanced processor architecture for gamers and content creators, the possibilities are endless. Whether you're playing the latest games, designing the next skyscraper, or using data, you need a powerful processor that can handle it all and more. There's no doubt about it, the AMD Ryzen 5000 series desktop processors are setting a new standard for gamers and artists alike.
Information provided by our tech department
PCI-Express 4.0 is only available with AMD Ryzen 3000 series processors excluding 3200G & 3400G. PCI-Express 3.0 operation with Ryzen 2000(G)/3000G.
Specifications
Select your criteria
General information |
Product name |
Gigabyte X570S UD |
Brand |
Gigabyte | |
Model |
X570S UD | |
Processor |
Processor support |
AMD AM4 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X570 |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 5100 MHz | |
| DDR4 4800 MHz | ||
| DDR4 4600 MHz | ||
| DDR4 4400 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 3200 MHz | ||
| DDR4 3400 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 4266 MHz | ||
| DDR4 4133 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 3866 MHz | ||
| DDR4 3733 MHz | ||
| DDR4 3600 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Graphics chipset |
None | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
Number and Type of slots |
1 X PCI Express 4.0 x16 (x2) | |
| 2 X PCI Express 4.0 x1 | ||
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Integrated Realtek 2.5 GbE |
Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) | |
Wi-Fi |
No | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
6 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
| 2 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
3 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |

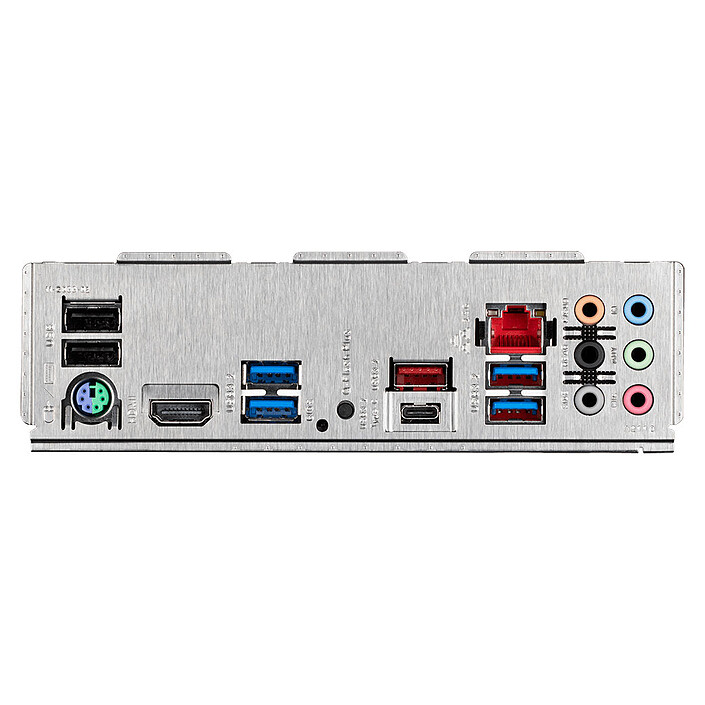

Rear panel connectors |
6 X 3.5mm Jack Female Stereo |
| BIOS Flash Update | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| 2 X USB 2.0 | ||
| 4 X USB 3.0 | ||
| 1 X USB 3.1 | ||
| 1 X USB 3.1 Type C | ||
| 1 X HDMI Female | ||
| 1 X RJ45 Female | ||
Additional connectors |
2 X LED RGB connector(s) | |
| 2 X Addressable LED RGB connector(s) | ||
| Front panel audio | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 2 X Internal USB 2.0 | ||
| 1 X Internal USB 3.0 | ||
| 1 X Internal USB 3.1 Type C | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
No | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Gigabyte products
Product referenced on 28 Feb 2022
