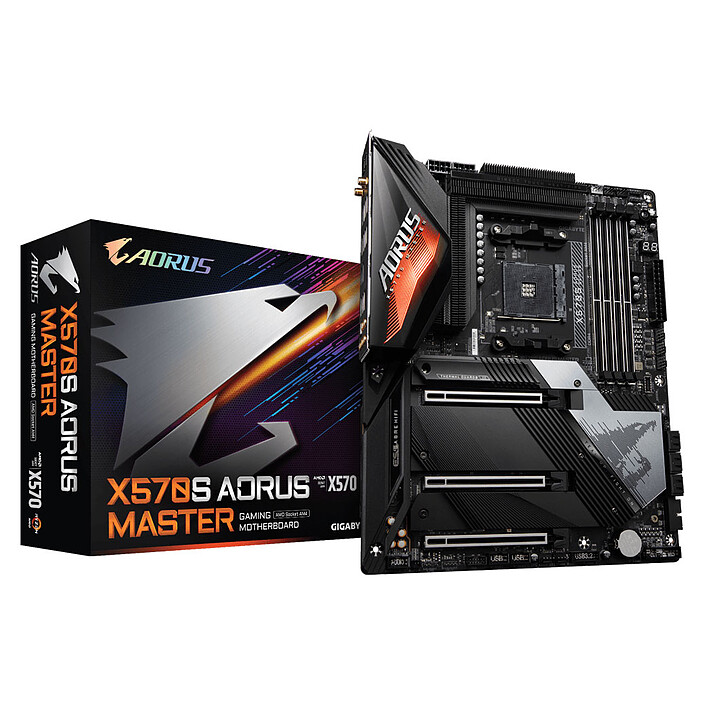

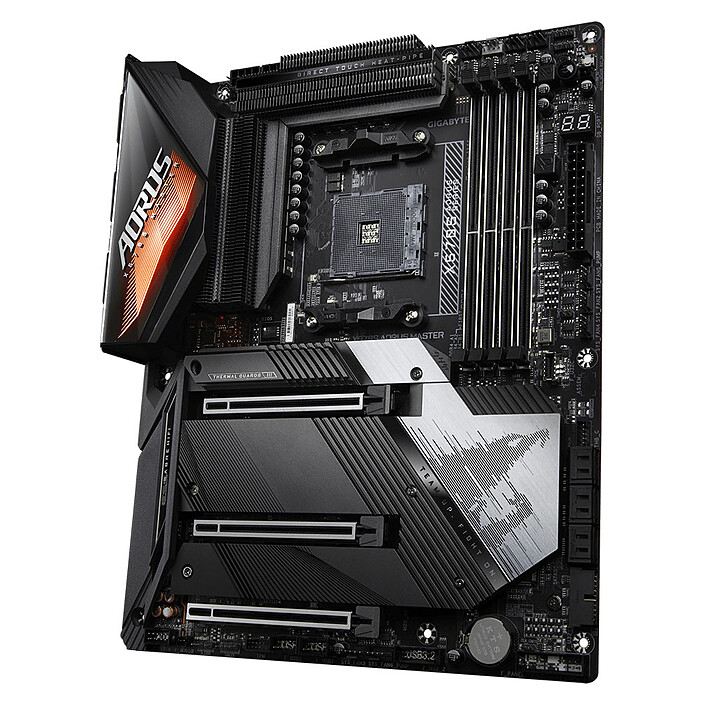

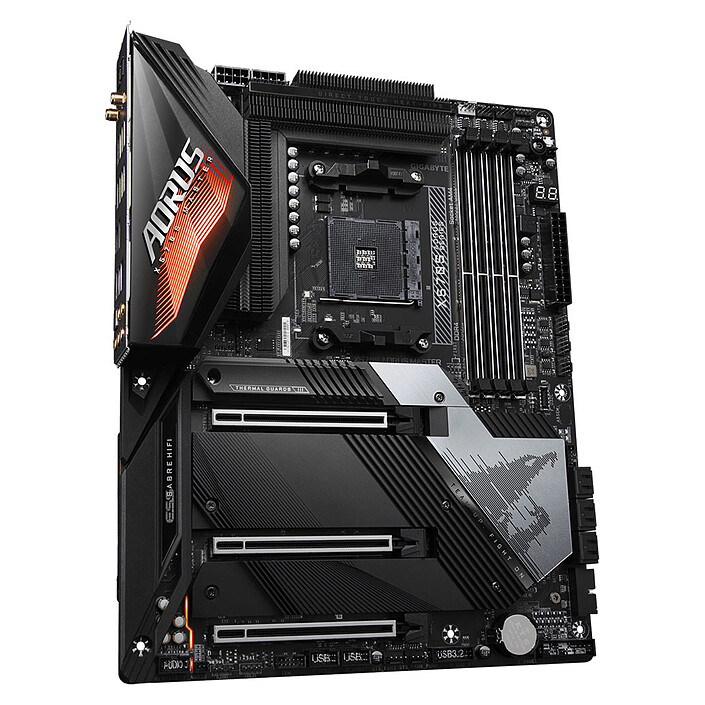

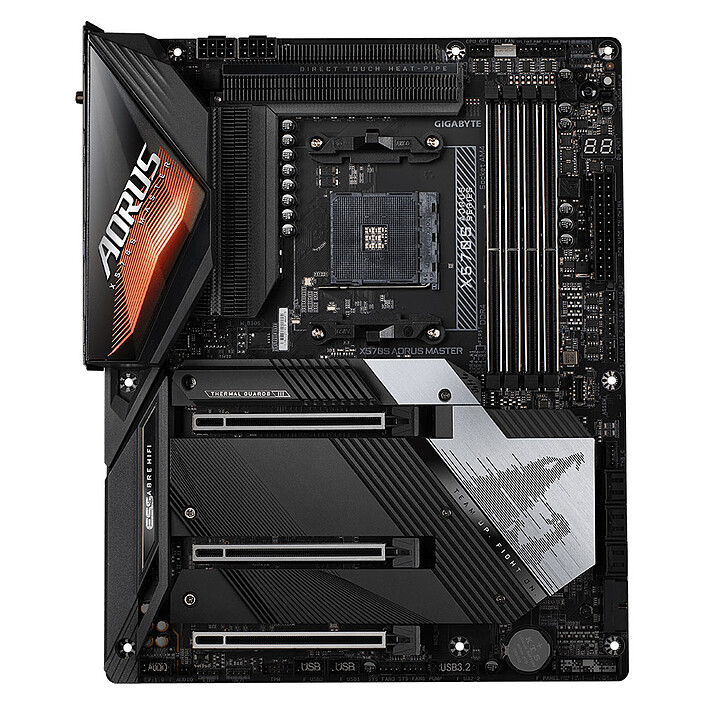

Gigabyte X570S AORUS MASTER
ATX Socket AM4 AMD X570 motherboard - 4xDDR4 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 4.0 16x - Wi-Fi 6E - LAN 2.5 GbE
Last price 499€94
Gaming motherboard socket AM4 PCI-Express 4.0
The Gigabyte X57S0 AORUS MAS TER motherboard will be perfect for a high-end gaming setup.Designed for 2nd and 3rd generation AMD Ryzen processors on socket AMD AM4, it supports up to 128 GB DDR4, graphics cards with PCI-Express 4.0 and also hard drives and SSDs in SATA (6 Gbit/s) and M.2 (SATA and PCIe 4.0 x4). The Gigabyte X570S AORUS MASTER motherboard also features the latest Gigabyte software and RGB Fusion 2.0 technology.
The advantages of the Gigabyte X570S AORUS MASTER
- AMD AM4 socket for AMD Ryzen 3rd and 2nd generation processors
- 4 Dual-Channel DDR4 5400 MHz (OC) memory slots
- 14+2 Direct Phase - Infineon Digital VRM
- Smart Fan 5cooling control
- 8 Channel HD Audio ALC1220-VB with ESS Sabre 9118 DAC
- Intel 2.5 GbE Network with cFosSpeed
- Wi-Fi 6E and Bluetooth 5.2
- RGB Fusion 2.0 (4 RGB connectors, 2 addressable)
Zen 3 Microarchitecture
When you have the most advanced processor architecture for gamers and content creators, the possibilities are endless. Whether you're playing the latest games, designing the next skyscraper, or using data, you need a powerful processor that can handle it all and more. There's no doubt about it, the AMD Ryzen 5000 series desktop processors are setting a new standard for gamers and artists alike.
Select your criteria
General information |
Product name |
Gigabyte X570S AORUS MASTER |
Brand |
Gigabyte | |
Model |
X570S AORUS MASTER | |
Processor |
Processor support |
AMD AM4 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD X570 |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 5400 MHz | |
| DDR4 5300 MHz | ||
| DDR4 5200 MHz | ||
| DDR4 5100 MHz | ||
| DDR4 4800 MHz | ||
| DDR4 4600 MHz | ||
| DDR4 4400 MHz | ||
| DDR4 4266 MHz | ||
| DDR4 4133 MHz | ||
| DDR4 4000 MHz | ||
| DDR4 3866 MHz | ||
| DDR4 3733 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 2933 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 3400 MHz | ||
| DDR4 3200 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
No | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 (x8) |
| 1 X PCI Express 4.0 x16 (x4) | ||
| 1 X PCI Express 4.0 x16 | ||
Number and Type of slots |
1 X PCI Express 4.0 x1 | |
Multi-GPU type |
CrossFireX | |
Audio |
Audio Chipset |
Realtek ALC1220-VB |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Integrated Intel - 2.5 GbE |
Network standard(s) |
Wi-Fi 6E | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| Bluetooth 5.2 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
6 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s | ||
| 3 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
4 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |

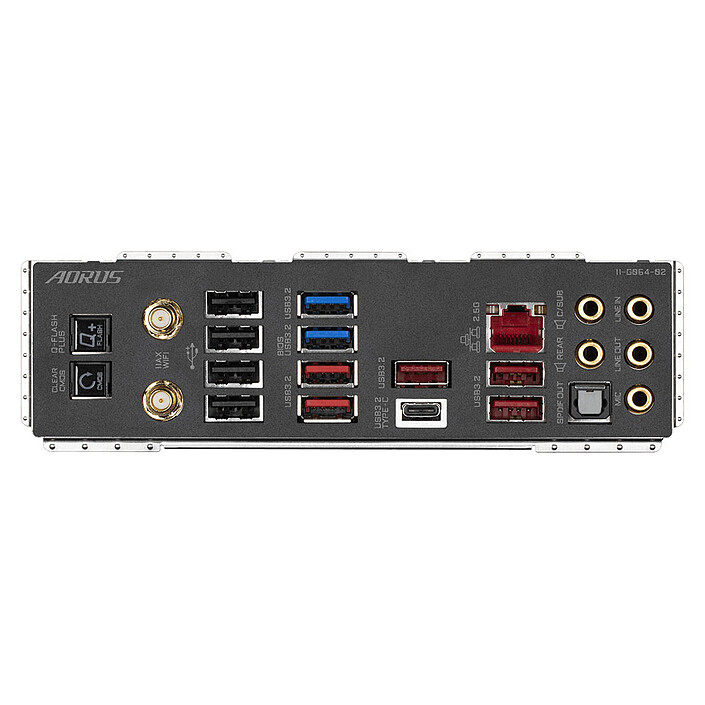

Rear panel connectors |
1 X USB 3.2 Type C Female |
| 5 X USB 3.1 | ||
| 2 X USB 3.0 | ||
| 4 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| BIOS Flash Update | ||
| Digital audio S/PDIF Optical | ||
| 5 X 3.5mm Jack Female Stereo | ||
| 2 X SMA Female | ||
Additional connectors |
2 X LED RGB connector(s) | |
| 2 X Addressable LED RGB connector(s) | ||
| Front panel audio | ||
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 2 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 1 X Internal USB 3.1 Type C | ||
| 1 X Thunderbolt | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
