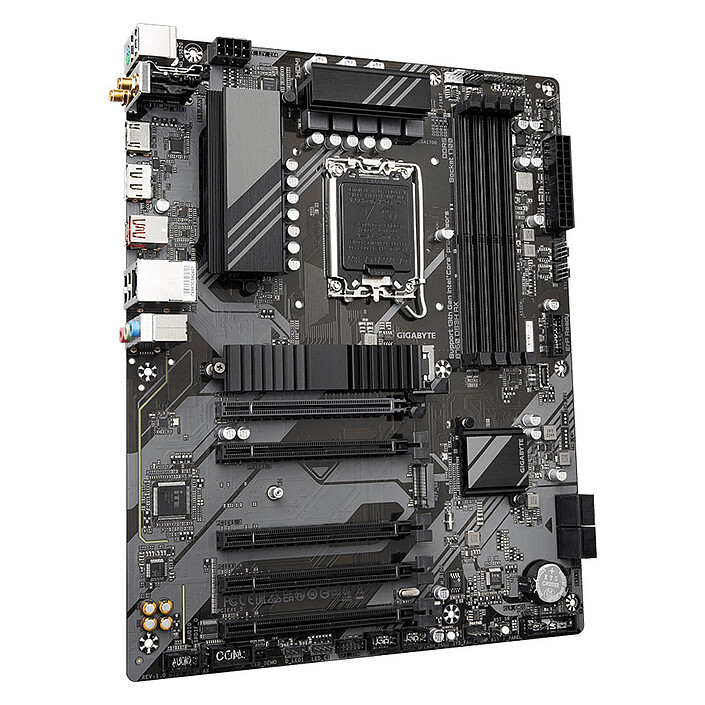

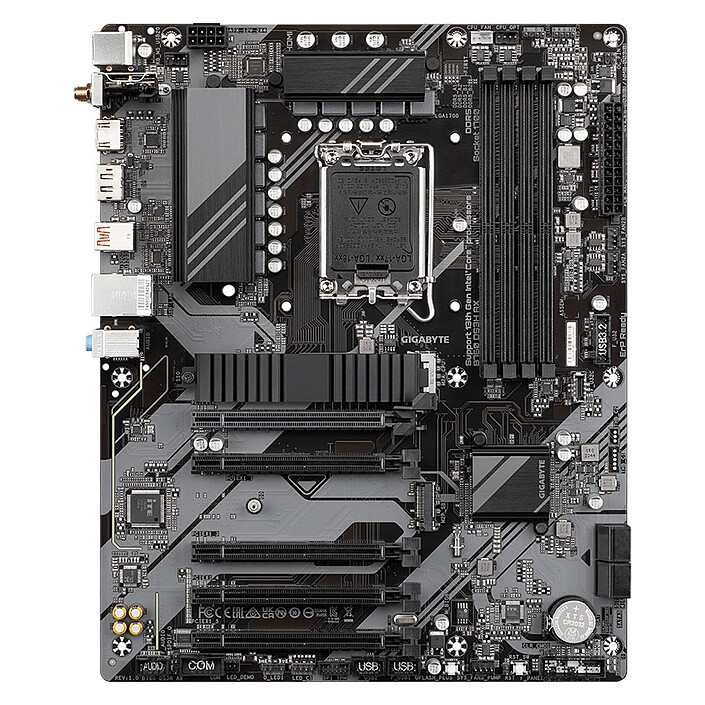

Gigabyte B760 DS3H AX.
ATX Socket 1700 Intel B760 Express motherboard - 4x DDR5 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 4.0 16x - Wi-Fi 6E/Bluetooth 5.3.
Pictures may differ from actual products
The Gigabyte B760 DS3H AX motherboard designed for 12th, 13th and 14th generation Intel Core hybrid processors is ideal for assembling a powerful, cost-effective configuration.
ATX Socket 1700 Intel B760 Express motherboard - 4x DDR5 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 4.0 16x - Wi-Fi 6E/Bluetooth 5.3.
Available from 149€95 on the outlet deals
Unleash the full power of your Intel Core processor
The Gigabyte B760 DS3H AX motherboard designed for 12th, 13th and 14th generation Intel Core hybrid processors is ideal for assembling a powerful, cost-effective system.It supports 12th, 13th and 14th generation Intel Core processors, PCI-Express 4.0 16x graphics cards, M.2 PCIe 4.0 graphics cards, DDR5 RAM and USB 3.1 and USB 3.2 peripherals.
Gigabyte B760 DS3H AX
- Support for 12th, 13th and 14th generation Intel Core processors on socket LGA 1700
- Support for DDR5 7600 MHz memory
- 8+2+1 digital VRM phases
- 2 x 4x M.2 PCIe 4.0 slots + 4 x SATA 6 Gbps ports
- PCI-Express 4.0 16x port
- ATX format
- USB-C 3.2 20 Gbps
- Wi-Fi 6E/Bluetooth 5.3
All the power of Intel processors
Thanks to high frequencies, achieve high performance in games. Take on your opponents with confidence or explore new worlds thanks to a revolutionary processor architecture that focuses on the essentials. 12th/13th/14th generation Intel processors are simply designed for the new generation of video games.
Select your criteria
General information |
Product name |
Gigabyte B760 DS3H AX. |
Brand |
Gigabyte | |
Model |
B760 DS3H AX | |
Processor |
Processor support |
Intel 1700 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel B760 Express |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 7600 MHz | |
| DDR5 7400 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6400 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 4000 MHz | ||
| DDR5 4800 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5800 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
192 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
Number and Type of slots |
4 X PCI Express 3.0 x1 | |
Multi-GPU type |
None | |
Audio |
Audio Chipset |
Integrated |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Realtek GbE LAN |
Network standard(s) |
Wi-Fi 6E | |
| 10/100/1000 Mbps | ||
| Bluetooth 5.3 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
4 X Serial ATA 6Gb/s (SATA Revision 3) | |
| 2 X M.2 - PCI-E 4.0 x4 | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
5 | |
| 10 | ||
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

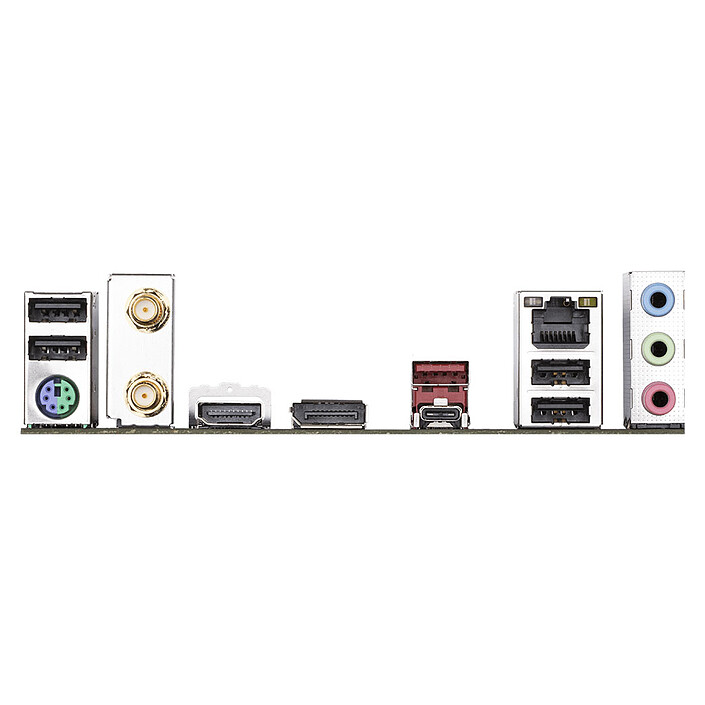

Rear panel connectors |
1 X HDMI Female | |
| 1 X DisplayPort Female | ||
| 1 X USB 3.2 Type C | ||
| 1 X USB 3.1 | ||
| 4 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| 3 X 3.5mm Jack Female Stereo | ||
| 2 X SMA | ||
Additional connectors |
2 X LED RGB connector(s) | |
| 2 X Addressable LED RGB connector(s) | ||
| 1 X Internal S/PDIF | ||
| Front panel audio | ||
| BIOS Flash Update | ||
| 1 X Serial (RS-232) | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 1 X Internal USB 3.0 Type C | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
Physical characteristics |
Motherboard format |
ATX |
Length |
305 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Office | |
| Gamer | ||
| Server | ||
LED |
No | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Gigabyte products
Product referenced on 14 May 2024
