Those were the good old days! This product is no longer on sale
ASRock B460M Steel Legend Micro ATX Socket 1200 Intel B460 Express motherboard - 4x DDR4 - SATA 6Gb/s M.2 PCI-E NVMe - USB 3.0 - 2x PCI-Express 3.0 16x - LAN 2.5 GbE
Motherboard
Review ASRock B460M Steel Legend
Buy ASRock B460M Steel Legend
cheap ASRock B460M Steel Legend

Pictures may differ from actual products

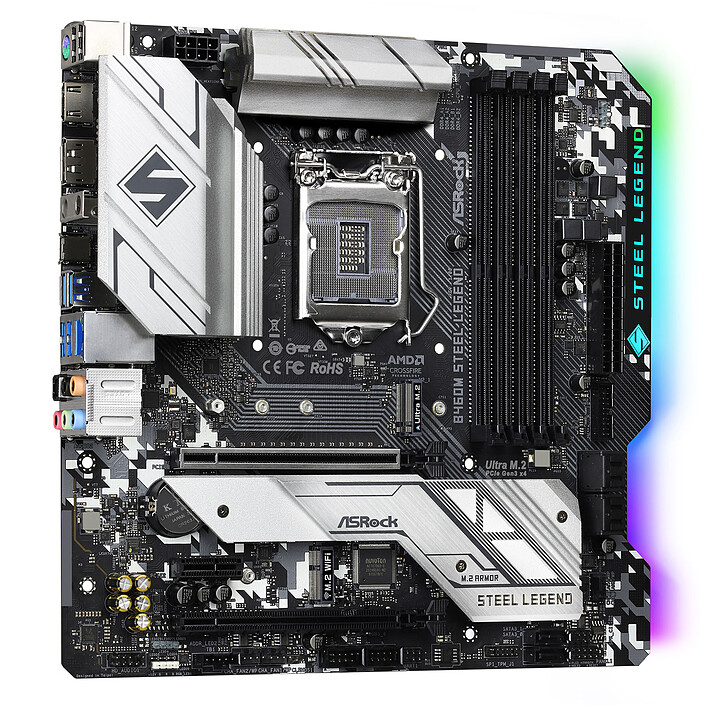

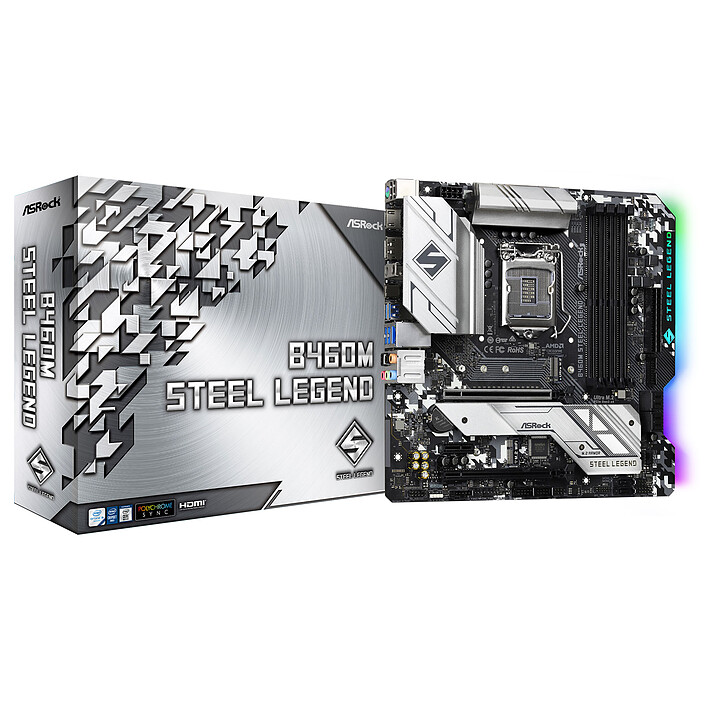

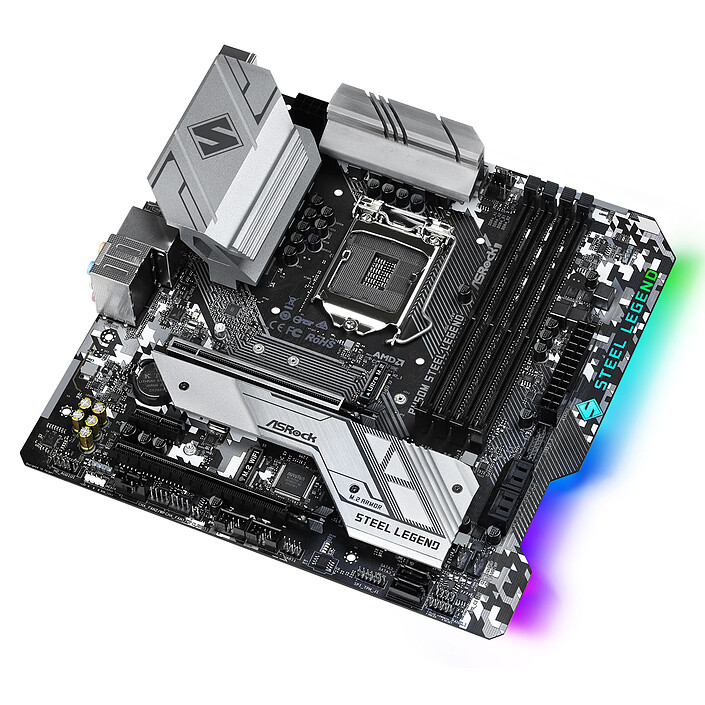

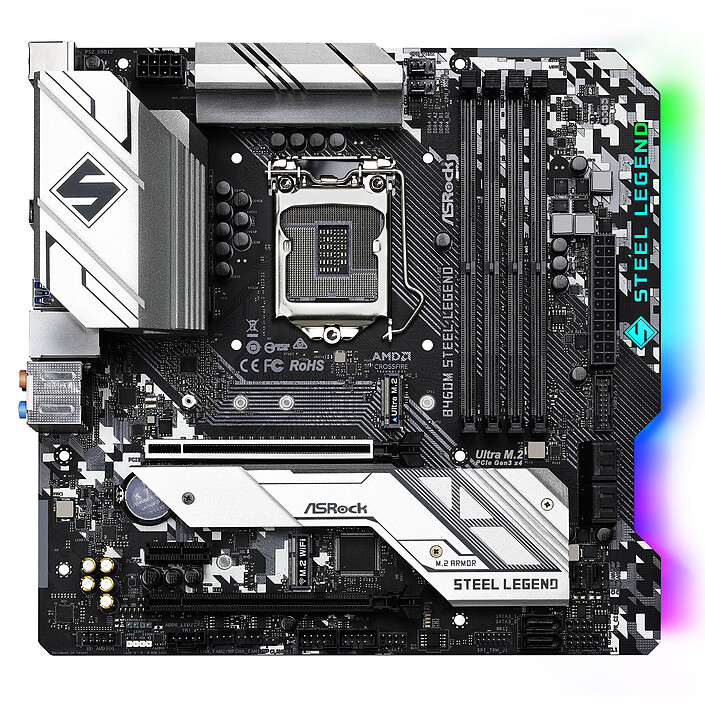

ASRock B460M Steel Legend

Micro ATX Socket 1200 Intel B460 Express motherboard - 4x DDR4 - SATA 6Gb/s M.2 PCI-E NVMe - USB 3.0 - 2x PCI-Express 3.0 16x - LAN 2.5 GbE

Last price 134€95
Holy Moly!
Equivalent products suggestions:
ASRock A620M Pro RS
ASRock A620M Pro RS
139€95
ASRock A620M Pro RS WiFi
ASRock A620M Pro RS WiFi
139€95
ASRock B650M-HDV/M.2
ASRock B650M-HDV/M.2
134€95
ASRock B550M PG Riptide
ASRock B550M PG Riptide
129€95
ASRock B650M PG Lightning
ASRock B650M PG Lightning
144€95
ASRock B650M-H/M.2+
ASRock B650M-H/M.2+
119€95
ASRock B760M PG Lightning
ASRock B760M PG Lightning
126€95
ASRock A620M-HDV/M.2+
ASRock A620M-HDV/M.2+
114€95
ASRock B760M PRO RS
ASRock B760M PRO RS
154€95
ASRock B550M Pro4
ASRock B550M Pro4
119€95
Overview

Gaming performance and unique design

ASRock Steel Legend motherboards combine design and efficiency. With reliable components and improved thermal management, they deliver consistent performance over time and are extremely efficient. The ASRock B460 Steel Legend motherboard is designed to support Intel's 10th generation Comet Lake-S processors on socket LGA 1200. It will allow the assembly of a powerful and versatile configuration capable of performing all tasks. Gaming, streaming, intensive multitasking, multimedia creation, it is the ideal solution to design a high performance and affordable PC. It also supports DDR4 RAM, PCI-Express 3.0 16x graphics cards, SATA 6 Gb/s and M.2 PCI-E NVMe drives, and USB 3.0 peripherals. More affordable than the Intel Z490 Express chipset, the Intel B460 Express chipset offers an ideal price/performance ratio. It providesaccess to the latest chip and componenttechnologies at a very affordable price.

ASRock B460M Steel Legend

  • Support for 10th generation Intel Core processors on socket LGA 1200
  • DDR4 memory support, up to 2933 MHz
  • 9 Phase Dr.MOS Power Design: Enhanced power phases for better performance
  • 2 PCIe 3.0 x16, 2 PCIe 3.0 x1
  • AMD CrossFireX Multi-GPU
  • Audio 7.1 (Realtek ALC1200 Audio Codec) + Nahimic Audio
  • 6 SATA 6 Gb/s + 2 Ultra M.2 ports
  • Dragon 2.5 Gigabit LAN
  • ASRock Polychrome SYNC

10th Generation Intel Core Processor


With top-notch gaming performance, smooth virtual reality, and intensive multitasking, 10th-generation Intel Core processors are ultra versatile and at home in any situation. Intel Comet Lake-S processors deliver dazzling performance with high base frequencies, even more cores and threads, and a high-level cache. Their moderate TDPs allow them to offer high operating frequencies while keeping power consumption under control.

Specifications
Select your criteria

General information

Product name

 ASRock B460M Steel Legend

Brand

 ASRock

Model

 B460M STEEL LEGEND

Processor

Processor support

 Intel 1200

Number of CPUs supported

 1

Chipset

Chipset

 Intel B460 Express

Memory

Memory format

 4 X DIMM 288-pin (DDR4)

Memory Frequency(ies)

 DDR4 2933 MHz
DDR4 2133 MHz
DDR4 2400 MHz
DDR4 2666 MHz
DDR4 2800 MHz

Memory type

 DDR4

Memory technology

 Dual Channel

Maximum RAM capacity per slot

 32 GB

Maximum RAM capacity

 128 GB

Graphic

Integrated graphics controller

 No

Compatible graphics core integrated in the CPU

 Yes

Expansion slots

Graphic connector(s)

 1 X PCI Express 3.0 x16
1 X PCI Express 3.0 16x (x4)

Number and Type of slots

 1 X PCI Express 3.0 x1

Multi-GPU type

 CrossFireX

Audio

Audio Chipset

 Realtek ALC1200

Number of audio channels

 8

Network

Number of ports/Ethernet controler

 Realtek RTL8125BG

Network standard(s)

 2.5 Gbps Gigabit Ethernet (2.5 GbE)

Storage

RAID supported

 Yes

Hard drives connectors

 1 X M.2 - PCI-E 3.0 x4
1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s
6 X Serial ATA 6Gb/s (SATA Revision 3)

Supported RAID Modes

 5
10
1
0

Connectivity

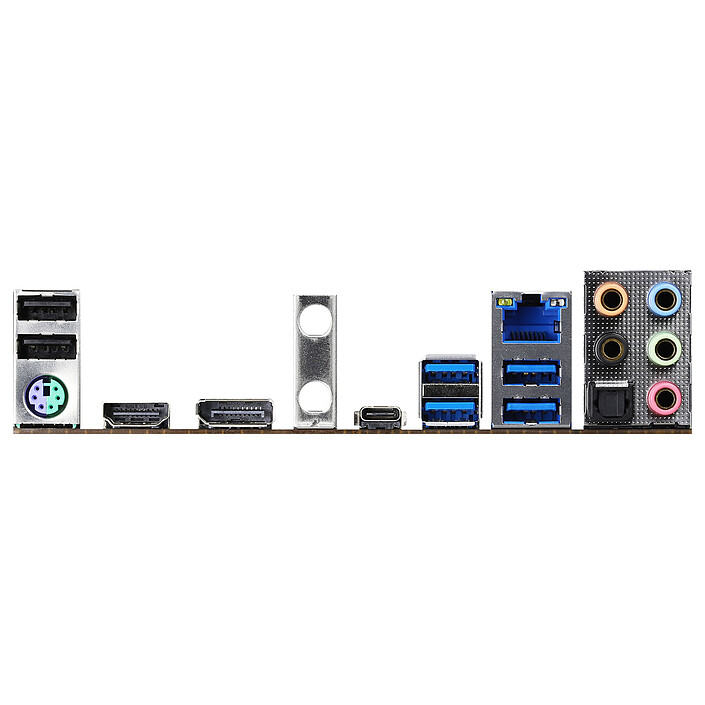

Rear panel connectors

 1 X HDMI Female
1 X DisplayPort Female
1 X USB 3.0 Type C
4 X USB 3.0
2 X USB 2.0
1 X RJ45 Female
1 X MiniDin 6 Female (PS/2)
1 X Digital audio S/PDIF Optical
5 X 3.5mm Jack Female Stereo

Additional connectors

 Front panel audio
Chassis intrusion
1 X +12V (Power supply P8)
1 X ATX 24 Pin
4 X Internal USB 2.0
2 X Internal USB 3.0
TPM
2 X Addressable LED RGB connector(s)
1 X LED RGB connector(s)

Physical characteristics

Motherboard format

 Micro ATX

Length

 244 mm

Width

 244 mm

Equipment

Advanced overclocking features

 Yes

Use

 Multimedia
Gamer

LED

 Yes

Warranties

Commercial warranty

 Seller 2 years

Legal warranty

 See terms & conditions

See all ASRock products

See ASRock Motherboard section

Product referenced on 11 Jun 2020

Customer review
Global rating
10/10
based on 1 review Editorial and moderation guide
  • 100%
    1 review
  • 0%
  • 0%
  • 0%
  • 0%
  • by charlytm
    Posted on 5 Jan 2021
    Bought on 1 Dec 2020 from LDLC
    Number of reviews: 9 Average rating: 9

    stable and evolving

    This is a motherboard that "does the job". It's the only one with a "Toslink" output in this configuration: micro ATX, socket 1200, 4 memory ports. The bios are not in French but good....
    Another important point, the number of protections integrated in case of power failure, a "common" phenomenon in Martinique!
    Thank you again to LDLC for this "extra - ordinary" patience with its customers, (especially during payment incidents)... but isn't this what makes the first quality of your team?
