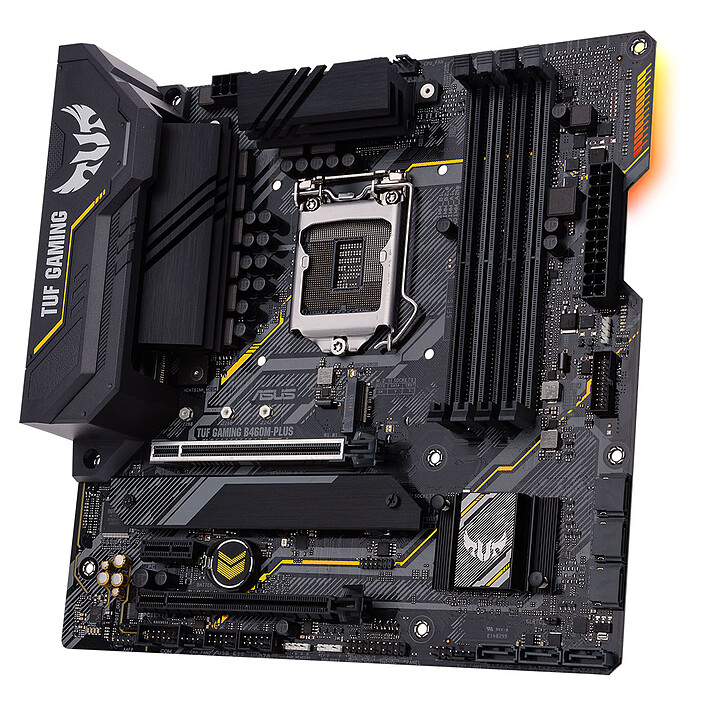

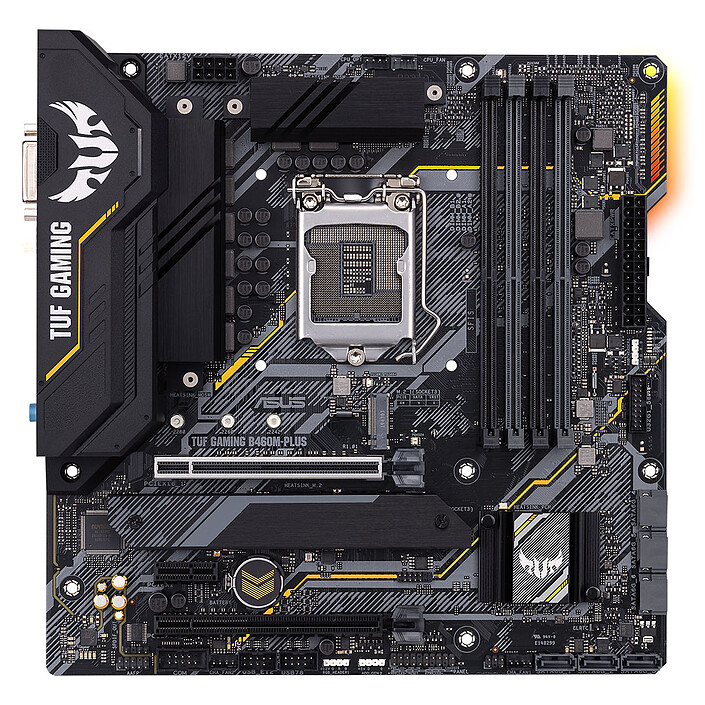

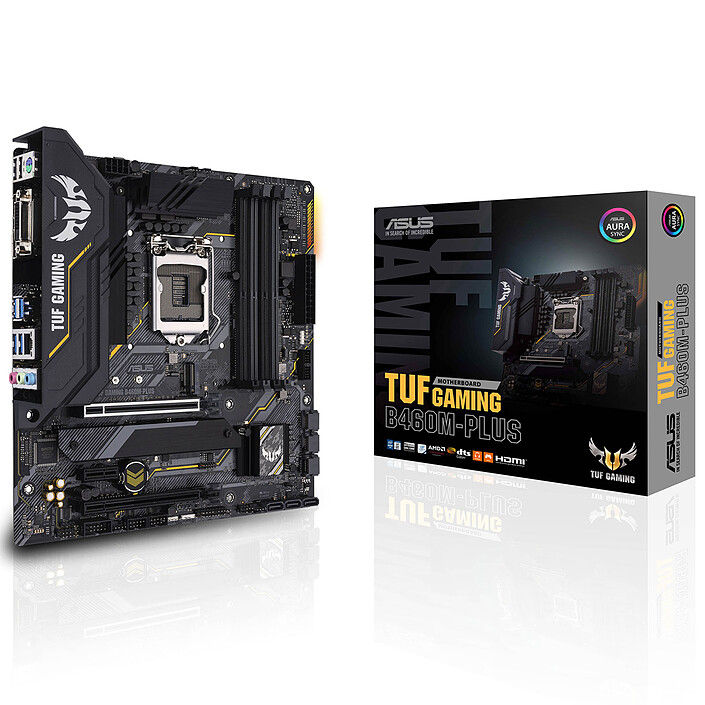

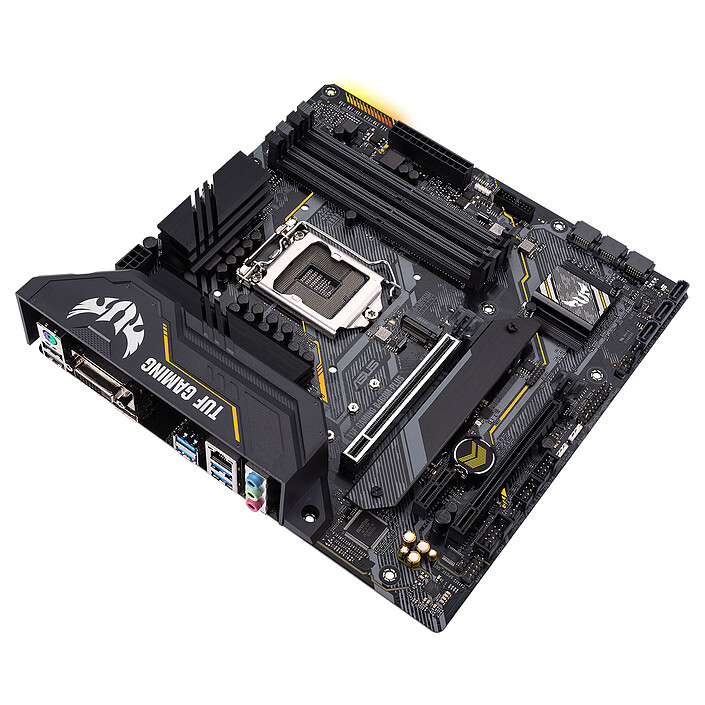

ASUS TUF GAMING B460M-PLUS
Micro ATX Socket 1200 Intel B460 Express motherboard - 4x DDR4 - SATA 6Gb/s M.2 PCI-E NVMe - USB 3.0 - 2x PCI-Express 3.0 16x
Last price 129€95
Gaming Motherboard for 10th Generation Intel Core Processor
ASUS TUF Gaming Motherboards are designed for demanding gamers looking for long term performance and reliability. They allow you to get the most out of your components thanks to a unique design made of robust materials and exclusive utilities. They incorporate gaming features and combine the advantages of new Intel processors with ASUS' iconic design and features.
The ASUS TUF GAMING B460M-PLUS motherboard is designed to support Intel's 10th generation Comet Lake-S processors on socket LGA 1200. It will allow the assembly of a gaming configuration with a controlled cost and a unique look. Gaming, streaming, intensive multitasking, multimedia creation, it is the ideal solution to design a high-end PC with high performance. It also supports DDR4 RAM, PCI-Express 3.0 16x graphics cards, SATA 6 Gb/s and M.2 PCI-E NVMe drives and USB 3.0 peripherals.
ASUS TUF GAMING B460M-PLUS
- Support for 10th generation Intel Core processors on socket LGA 1200
- DDR4 memory support, up to 2933 MHz
- Gaming connectivity: HDMI 1.4, DisplayPort 1.4, dual M.2 PCIe 3.0 x4 (1 SATA 6 Gbps compatible)
- TUF Protection: SafeSlot, ESD Guards, DDR4 surge protection, Digi+ VRM and stainless steel rear I/O for long-term reliability and stability.
- Advanced customisation: Aura Sync RGB lighting, RGB connectors and addressable RGB connector
- Xpert 4 Core Fan: Ensure each fan achieves the best balance of cooling performance and low noise.
- Gaming network: Intel Gigabit Ethernet I219-V, TUF LANGuard and TurboLAN technologies
10th Generation Intel Core Processor
With top-notch gaming performance, smooth virtual reality, and intensive multitasking, 10th-generation Intel Core processors are ultra versatile and at home in any situation. Intel Comet Lake-S processors deliver dazzling performance with high base frequencies, even more cores and threads, and a high-level cache. Their moderate TDPs allow them to offer high operating frequencies while keeping power consumption under control.
Select your criteria
General information |
Product name |
ASUS TUF GAMING B460M-PLUS |
Brand |
ASUS | |
Model |
90MB1450-M0EAY0 | |
Processor |
Processor support |
Intel 1200 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
Intel B460 Express |
Memory |
Memory format |
4 X DIMM 288-pin (DDR4) |
Memory Frequency(ies) |
DDR4 2933 MHz | |
| DDR4 2800 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2133 MHz | ||
Memory type |
DDR4 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
32 GB | |
Maximum RAM capacity |
128 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 3.0 16x (x4) |
| 1 X PCI Express 3.0 x16 | ||
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
Multi-GPU type |
CrossFireX | |
Audio |
Audio Chipset |
Realtek S1200A |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
Intel I219-V |
Network standard(s) |
10/100/1000 Mbps | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
1 X M.2 - PCI-E 3.0 x4 | |
| 1 X M.2 - PCI-E 3.0 x4 + SATA 6 Gb/s | ||
| 6 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Supported RAID Modes |
5 | |
| 10 | ||
| 1 | ||
| 0 | ||
Connectivity |

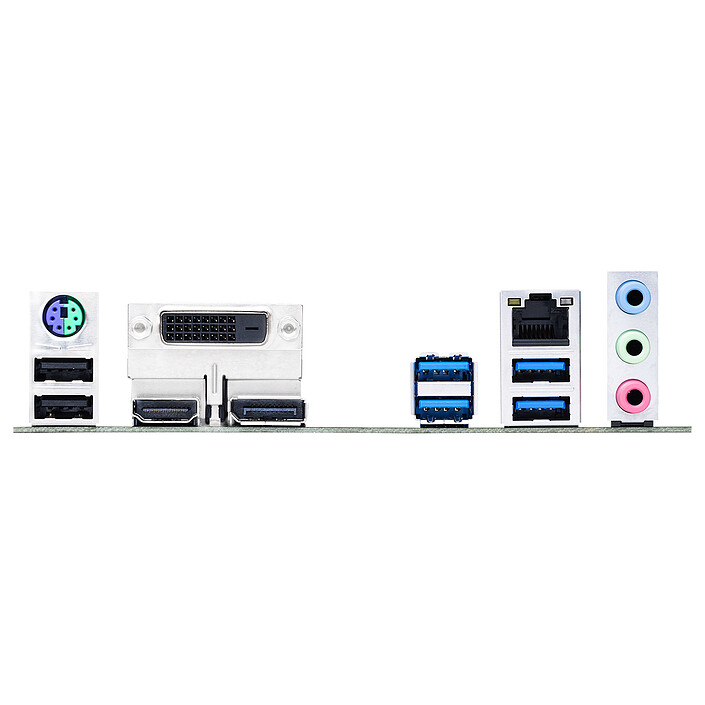

Rear panel connectors |
1 X HDMI Female |
| 1 X DVI Female | ||
| 1 X DisplayPort Female | ||
| 4 X USB 3.0 | ||
| 2 X USB 2.0 | ||
| 1 X RJ45 Female | ||
| 1 X MiniDin 6 Female (PS/2) | ||
| 3 X 3.5mm Jack Female Stereo | ||
Additional connectors |
1 X ATX 24 Pin | |
| Serial (RS-232) | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 1 X +12V (Power supply P8) | ||
| Front panel audio | ||
| 1 X Addressable LED RGB connector(s) | ||
| 2 X LED RGB connector(s) | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
244 mm | |
Width |
244 mm | |
Equipment |
Advanced overclocking features |
No |
Use |
Office | |
| Gamer | ||
| Multimedia | ||
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
