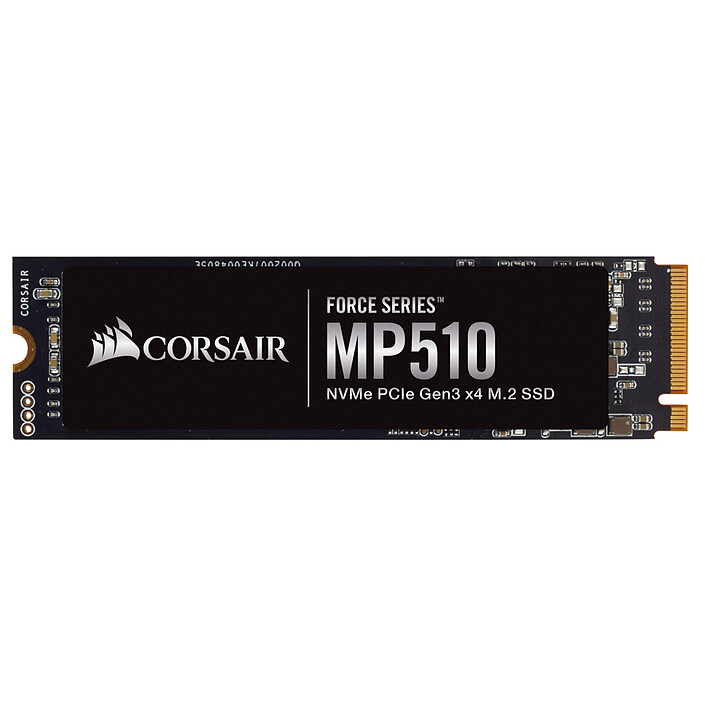

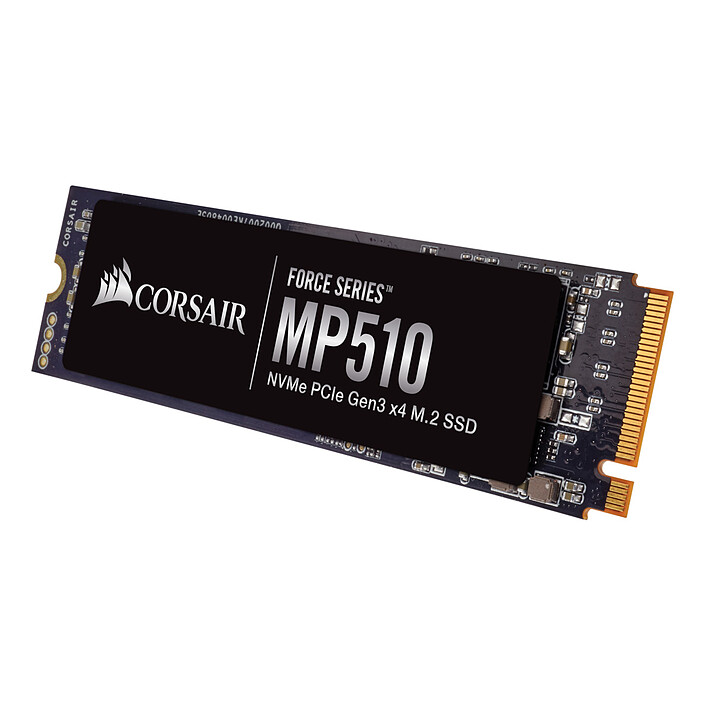

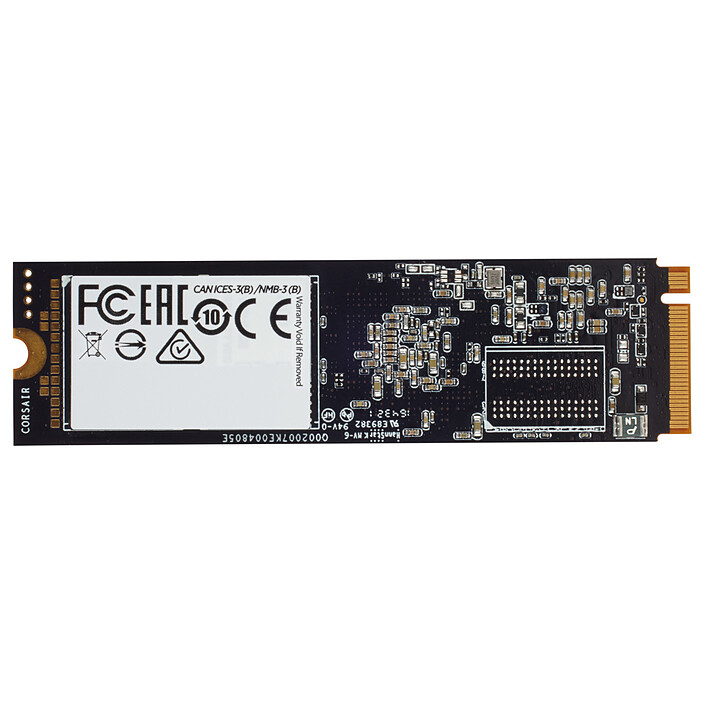

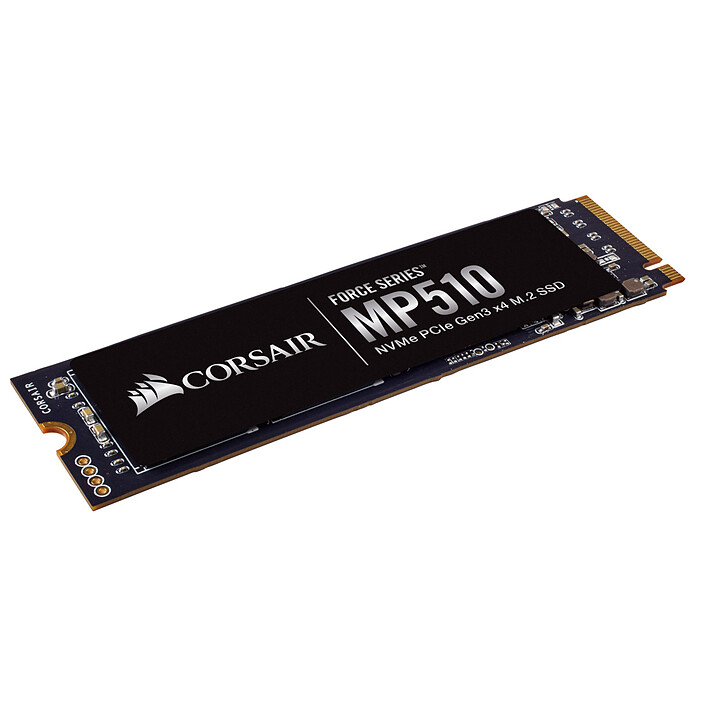

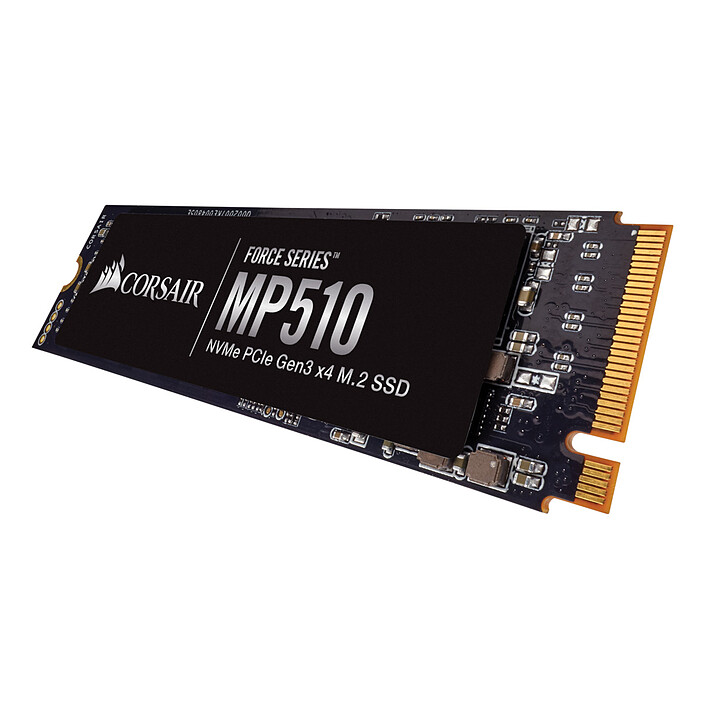

Corsair Force MP510 240GB

NVMe PCI-E 3.0 4x 240GB NAND 3D TLC M.2 2280 SSD

Pictures may differ from actual products

If you want to go faster, the Force MP510 NVMe M.2 SSD is the drive for you. Ultra-fast and reliable, it will significantly boost the performance of NVMe-enabled computers and laptops.

NVMe PCI-E 3.0 4x 240GB NAND 3D TLC M.2 2280 SSD

Overview

Ultra-fast M.2 NVMe SSDs for exceptional performance


If you want to go faster, the Corsair Force MP510 M.2 NVMe SSD is the drive for you. Ultra-fast and reliable, it will significantly boost the performance of NVMe-enabled computers and laptops. The Corsair Force MP510 240GB delivers speeds of up to 3100MB/s read and 1050MB/s sequential write.

Its speed is an asset


The MP510 's all-new high-performance data controller delivers up to 3,480 MB/s sequential read and 3,000 MB/s sequential write for ultra-fast read, write and response times (performance varies by model and capacity). The M.2 NVMe PCI-Express 3.0 4x interface provides simple connection and maximum bandwidth.



3D TLC NAND Flash Memory


Corsair has chosen an ideal combination of performance, endurance, and value to keep your SSD running at peak performance for years to come. Speed, reliability, and capacity all come together to give you the best performance over time and under the best conditions. The ultra-compact M.2 2280 form factor fits directly into your laptop or motherboard with no extra cables or plugs.


SSD Toolbox and thermal performance


The Corsair MP510 is designed to efficiently dissipate heat, limit overheating, and deliver the best possible long-term performance. In addition, it comes with Corsair SSD Toolbox software to help you manage your storage device, including firmware upgrades, over-provisioning, secure erase, monitoring and diagnostic tools, and more.


Specifications
Select your criteria

General information

Product name

Corsair Force MP510 240GB

Brand

Corsair

Model

CSSD-F240GBMP510

Main characteristics

Interface with the computer

M.2 - PCI-E 3.0 x4

Hard drive format

M.2

Capacity

240 GB

Flash memory type

TLC (Triple-Level Cell)

NVMe

Yes

Performance

Read speed

3100 MB/s

Write speed

1050 MB/s

IOPS Read

180000

IOPS in writing

240000

Endurance

400

TRIM compatible

Yes

Physical characteristics

Width

22 mm

Height

3 mm

Depth

80 mm

Weight

8.2 g

Warranties

Commercial warranty

Seller 3 years

Legal warranty

See terms & conditions

Product referenced on 4 Dec 2018

Customer reviews
  • 94%
    16 reviews
  • 6%
    1 review
  • 0%
  • 0%
  • 0%
  • by Lo13
    Posted on 14 Feb 2022
    Bought on 28 Jul 2021 from LDLC
    Number of reviews: 13 Average rating: 9

    Boosting the boot

    Allows almost instantaneous startup of a Mandriva config with the right settings.
    It changes life!
    Good product + good advice, Thanks LDLC team.

    Review automatically translated
  • by frmlam77
    Posted on 21 Oct 2021
    Bought on 22 Sep 2021 from LDLC
    Number of reviews: 10 Average rating: 9

    RAM

    Very nice RAM strip, easy to mount, simple design, good thickness, could have used heatsinks.

    Review automatically translated
  • by Mjjp
    Posted on 18 Jul 2020
    Bought on 17 Jul 2020 from LDLC
    Number of reviews: 41 Average rating: 9

    Good M.2 but not Top 1

    Good M.2, it works, fast ignition and stable temperature.

    I bought it for my wife's new PC who wanted to play in full HD reso max 1080 and take advantage of the 144Hz of her new screen, so I chose Corsaire which is a bit cheaper than Samsung and does the job very well for her needs.
    This M.2 is only intended to host its operating system and RGB management logis; nothing to complain about from its point of view.

    From my point of view (more demanding) there are better things to buy:

    Corsair: Read speed: 3100 MB/s --- Write speed: 1050 MB/s
    Samsung: Read speed: 3500 MB/s --- Write speed: 2300 MB/s

    I therefore advise the more fussy to turn to Samsung or to those who like me will turn to 1TB to host their games.

    For those like my wife who only want an M.2 for the operating system and will host their games on a Sata SSD, the Corsaire product will be perfect.

    Review automatically translated
  • by LoicH
    Posted on 3 Jul 2020
    Bought on 20 Jun 2020 from LDLC
    Number of reviews: 7 Average rating: 10

    Simple and effective

    It's a breeze to set up and the product holds up well.
    I used it for the assembly of my first PC to be the disk dedicated to windows.
    The PC starts up really fast (less than 5 seconds), it's a real pleasure!

    Review automatically translated
  • by Juju
    Posted on 22 Feb 2020
    Bought on 1 Dec 2019 from LDLC
    Number of reviews: 2 Average rating: 9

    finally free of the sata bottleneck!

    The M2 PCIe NVMe port is formidable, it goes up to 2gb/s in read, 1 in write, we are closer to the speed of a DDR4 ramdisk than a SATA SSD!
    I didn't compare latency/IOPS but the reactivity is much better on parallel disk operations, we finally exploit the potential of the i7 in this domain...
    don't forget the specific screw/nuts provided with the CM to fix the M2 !
    only one drawback: the corsair toolbox software whose interface seems to come out of the 2000s...

    Review automatically translated
