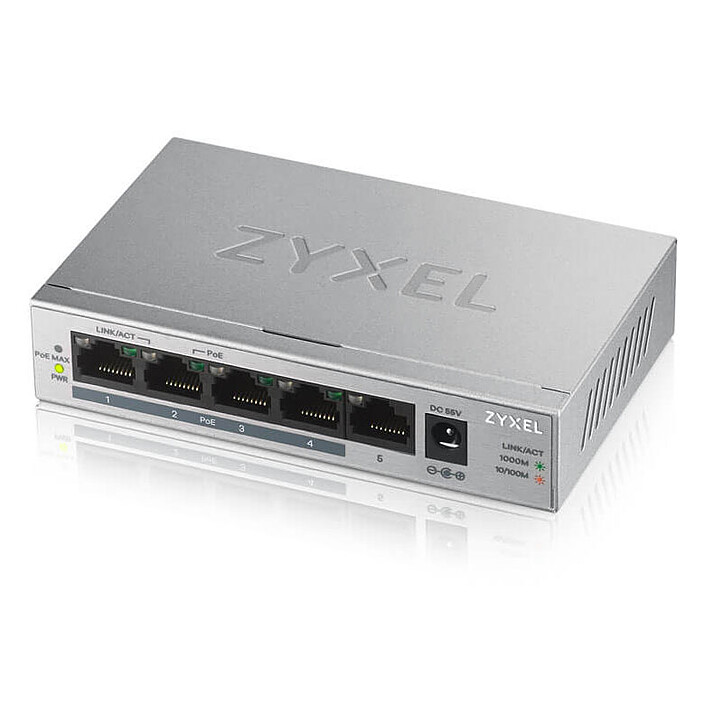

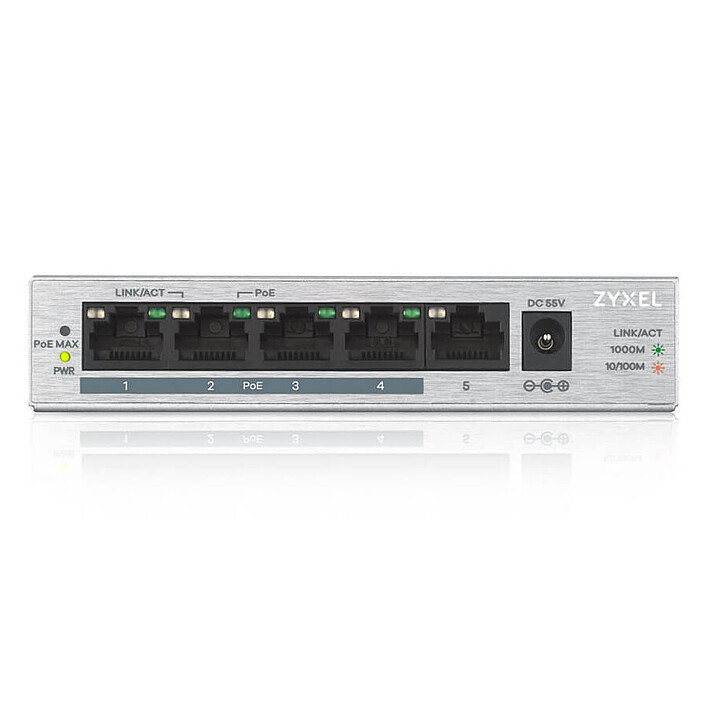

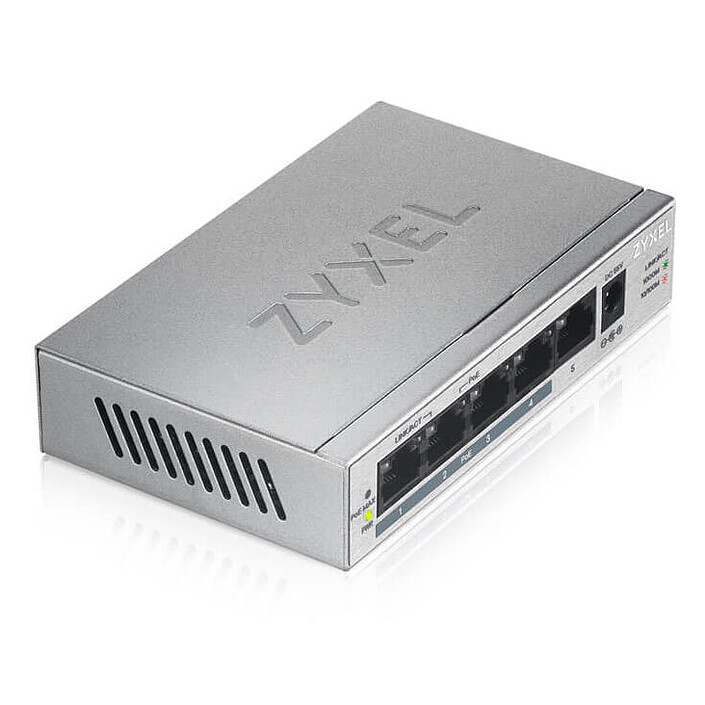

ZyXEL GS1005HP-EU0101F.

5-port 10/100/1000 Mbps unmanaged switch, 4 of which are PoE+.

Pictures may differ from actual products

The ZyXEL GS1005HP Unmanaged Gigabit Switch has 5 10/100/1000 Mbit/s ports, 4 of which are PoE+, for a total power consumption of 60 Watts. The GS1005HP is fanless, silent and compact, making it ideal for use in a professional environment.

5-port 10/100/1000 Mbps unmanaged switch, 4 of which are PoE+.

Overview

Plug and Play PoE+ switch for SMEs

The ZyXEL GS1005HP non-administrable Gigabit Switch has 5 PoE+ 10/100/1000 Mbit/s ports for a total power consumption of 60 Watts. The GS1005HP is fanless and quiet, and its compact design makes it ideal for use in a professional environment on a desk or wall.

Its compatibility with the IEEE-802.3at standard means it can power devices on the network up to a maximum of 30 Watts per port. This feature makes it possible to extend existing networks and power high-consumption devices such as Wi-Fi access points, IP cameras and IP telephones. With a PoE budget of up to 60 Watts, the GS1005HP 5-port switch is ideal for SMEs and home users.

Simplified implementation

With the GS100XHP range, Zyxel offers two unmanaged switches, the GS1005HP and GS1008HP. The switch is operational as soon as it is switched on, so there's no need to go through long and tedious configuration steps. The fanless design of this switch makes it perfectly silent, so it can be placed on a desk or mounted on a wall, and its compact metal design opens up a whole host of possibilities. It's ideal for small businesses and home users alike.

Optimised PoE management

The GS1005HP offers 4 Gigabit PoE+ ports, while the GS1008HP has 8. With up to 30 W available per port and a total budget of 60 W, the Zyxel GS100XHP switches also feature an LED indicator that turns amber as soon as the 50 W threshold is reached. Compatibility with the IEEE 802.3az standard enables the switch to adjust power consumption in relation to traffic to generate energy savings. For example, if power consumption exceeds the total PoE budget, the last device connected will be automatically disconnected, with no impact on the other equipment powered by the switch.

Key features :

  • 5-port switch including 4 PoE+ Gigabit Ethernet 10/100/1000 Mbit/s
  • PoE budget: 60 Watts
  • LED indicator changes colour from 50 Watts upwards
  • Auto-MDI/MDIX
  • IEEE 802.1p QoS
  • EEE802.3x flow control
  • Maximum jumbo frame size: 9 KB
  • Fanless design
  • Slots for wall mounting
  • Optimised power consumption thanks to support for IEEE 802.3az protocol
Specifications
Select your criteria

General information

Product name

ZyXEL GS1005HP-EU0101F.

Brand

Zyxel

Model

GS1005HP-EU0101F

Technical specifications

Number of ports

5

Network standard(s)

10/100/1000 Mbps

Number of 10/100/1000 Mbps ports

5

Rackable

No

Manageable

No

SNMP

No

PoE (Power over Ethernet)

Yes

PoE standard

PoE+ (30W)

Number of PoE ports

4

Max. PoE budget

60 W

IPv6 compatible

No

Width

121 mm

Depth

75 mm

Height

26 mm

Weight

235 g

Consumption

71.99 W

Warranties

Commercial warranty

Seller 3 years

Legal warranty

See terms & conditions

Product referenced on 6 Jun 2024
