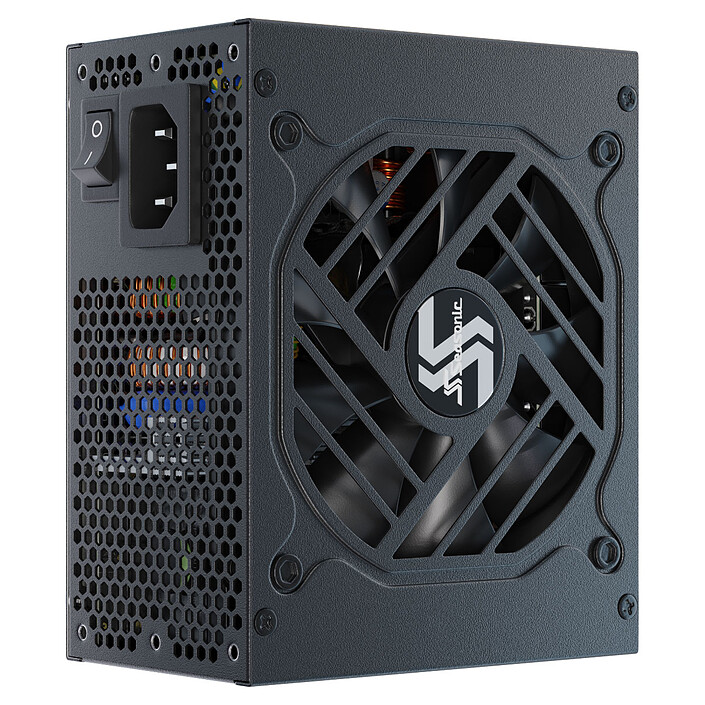

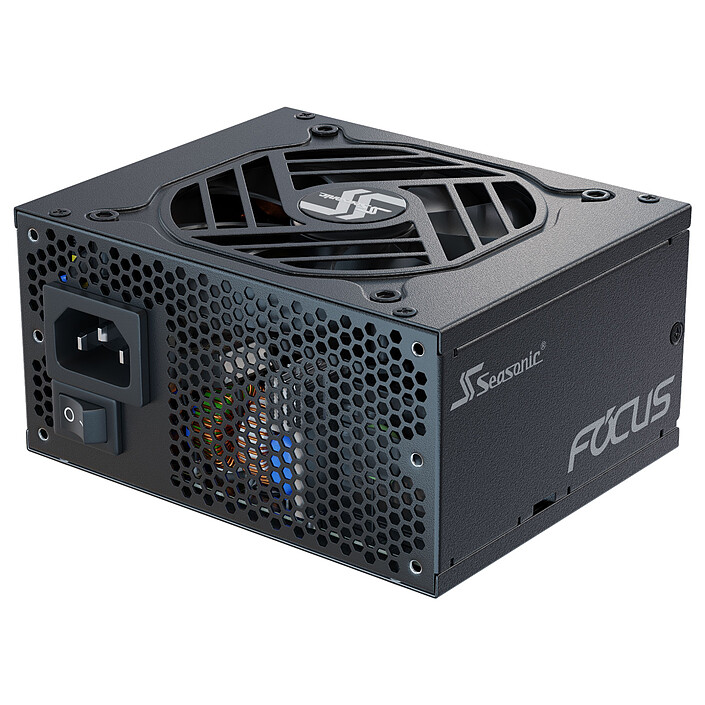

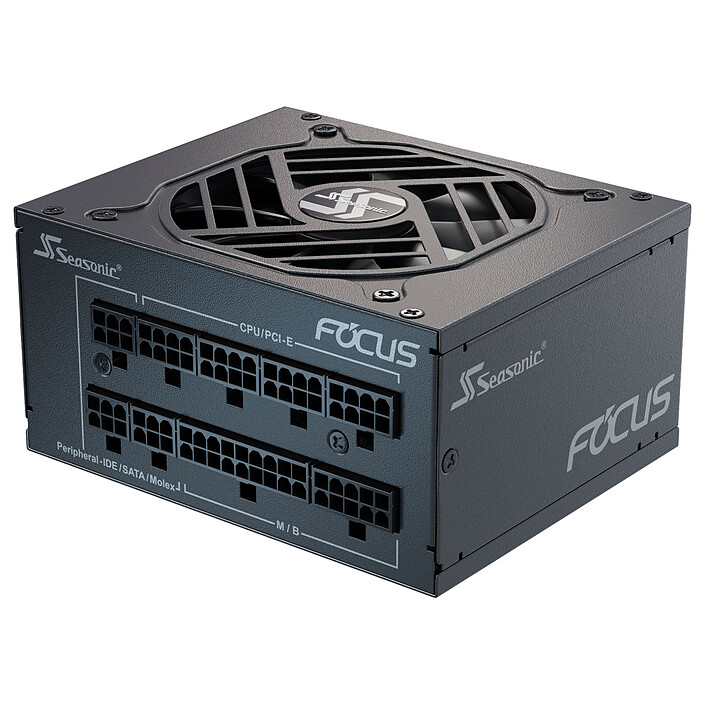

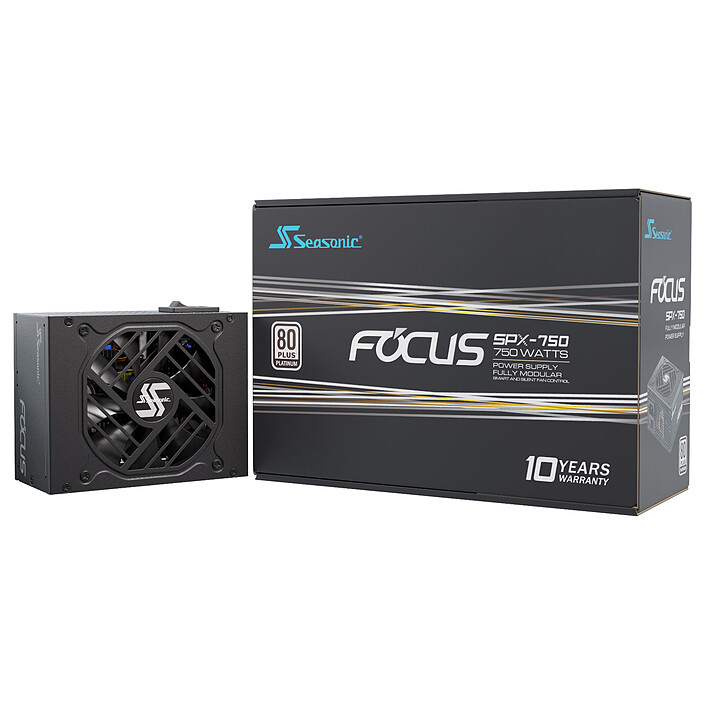

Seasonic FOCUS SPX-750

Modular power supply 750W SFX12V/ATX12V - 80PLUS Platinum

Pictures may differ from actual products

Built with quality components, this Seasonic FOCUS SPX Platinum power supply will always provide impeccable voltage and day-to-day reliability for long-term use. This highly efficient unit incorporates an innovative fan regulation system.

Modular power supply 750W SFX12V/ATX12V - 80PLUS Platinum

Overview

A hybrid-cooled power supply in SFX format

Built with quality components, this Seasonic FOCUS SPX Platinum power supply will always provide impeccable voltage and day-to-day reliability for long-term use. This highly efficient unit incorporates an innovative fan regulation system which means that the fan does not start at low load and only starts when the temperature requires cooling. Fully modular, it allows clean, customisable installation, while helping to improve internal airflow.

Hydrodynamic Bearing Fan (FDB)

High-performance hydrodynamic bearing fans (FDB) are designed to take advantage of the impact of oil absorption effects. They are extremely reliable and generate much less noise and heat during operation than ball-bearing fans. Lubrication of the bearing surface reduces friction and vibration, which also reduces the fan's overall power consumption. Thanks to smoother, quieter rotation and the quality of its manufacture, this highly reliable technology increases the life of the fan.

As the fan shaft rotates, high-pressure oil spreads along the grooves of the bearing sleeve to create a thin layer of lubrication on the ball bearing. As the speed increases, so does the dynamic pressure of the oil. The fan shaft then lifts out of the bearing to rotate effortlessly. The chevron shape of the grooves ensures that the lubricant is channelled efficiently, preventing any leaks...

Hybrid fan control for greater silence

Seasonic 's vast experience in developing the most efficient and quietest PSUs on the market has been translated into the development of Hybrid Mode; a state-of-the-art fan control that allows users to keep noise levels as low as possible.

The latest Seasonic platform maintains output voltages within a very tight margin, with less than 0.5% variation under load. This impressive performance and electrical stability make this PSU the ideal choice for all high-performance machines. In addition, the Seasonic Prime range is designed with a reduced acoustic signature to reduce operating noise.

Key features :

  • 100% modular 750W SFX power supply
  • 80PLUS Platinum certified
  • Hydrodynamic bearing fan
  • Internal cable-free design
  • Plate for installation in ATX slot
Specifications
Select your criteria

General information

Product name

Seasonic FOCUS SPX-750

Brand

Seasonic

Model

FOCUS-SPX-750

Power and Efficiency

Power

750 W

80 PLUS certification

Yes

80 PLUS certification

80 PLUS Platinum

Connectivity

Modular

Yes

Modularity

100% modular

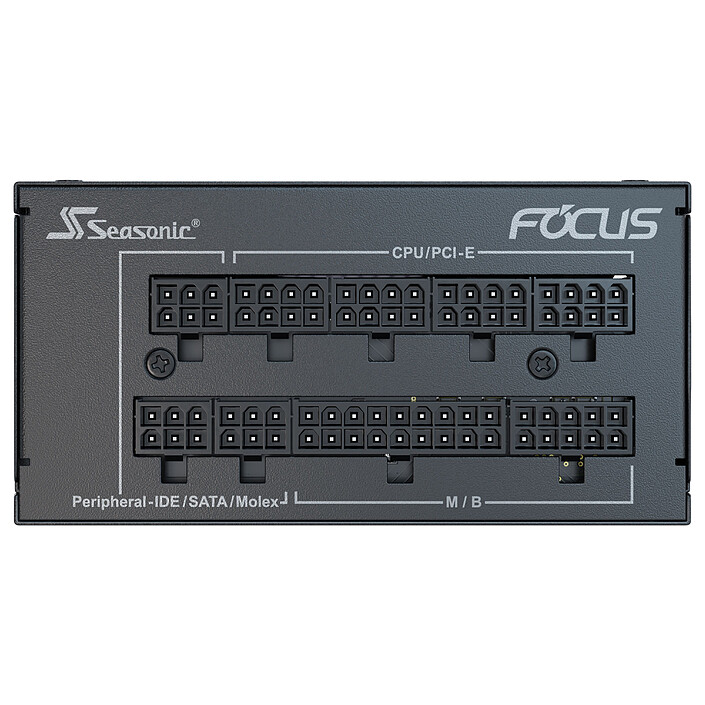

Power connector(s)

1 X +12V (Power supply P8 - 2 x P4)
6 X Serial ATA power supply
3 X Molex (4 Pin) Female
4 X PCI Express 6 + 2 Pin
1 X ATX 20 + 4 Pin

Configurator

PSU-CM compatibility

+12V P4
+12V P8

Cooling

Fan size

92mm

Silent

Yes

Power supply type (PC)

Active

Design

Power format

ATX/EPS
SFX

Power supply standard

ATX12V
SFX

ATX 3.0

No

ATX 3.1

No

Multi-GPU

None

Typical use

Desktop computer

Physical characteristics

Color

Black

LED RGB

No

Height

63.5 mm

Width

125 mm

Length

100 mm

Warranties

Commercial warranty

Seller 3 years

Legal warranty

See terms & conditions

Product referenced on 25 Jan 2024
