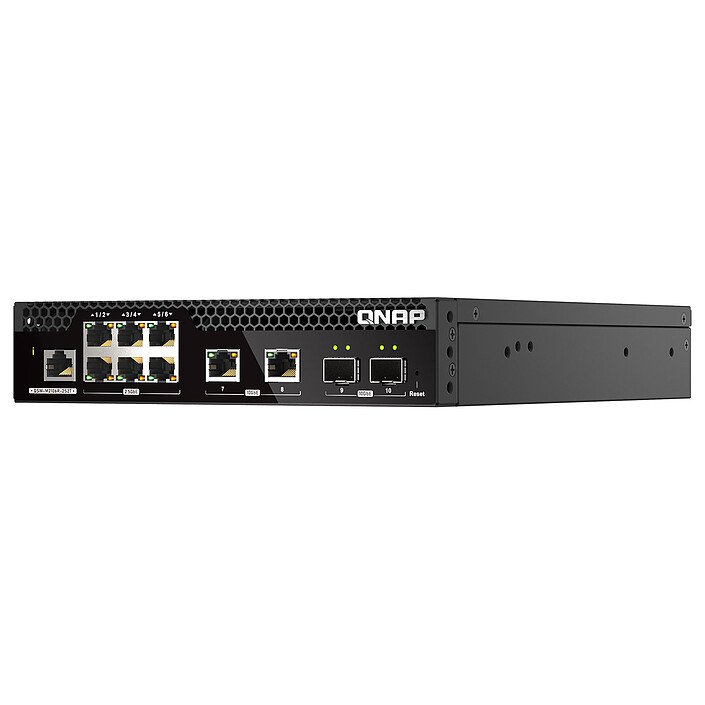

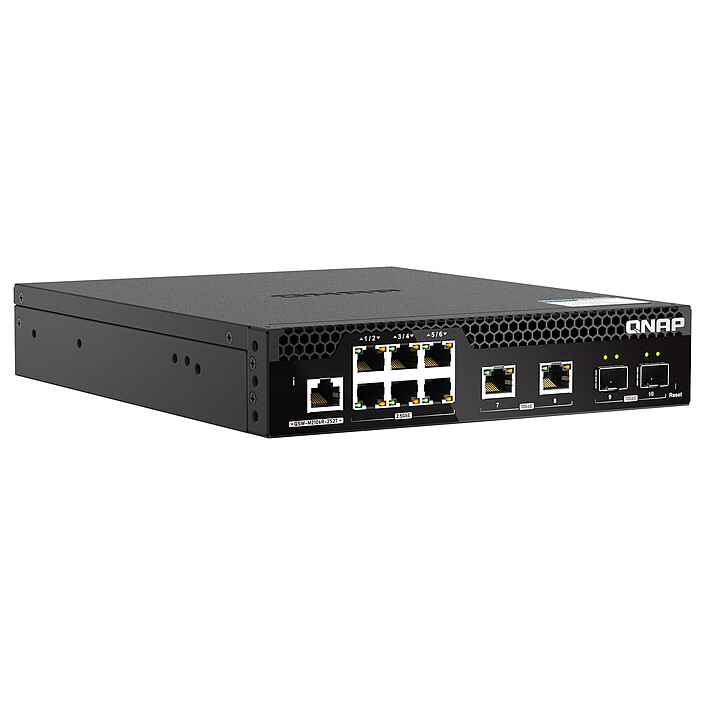

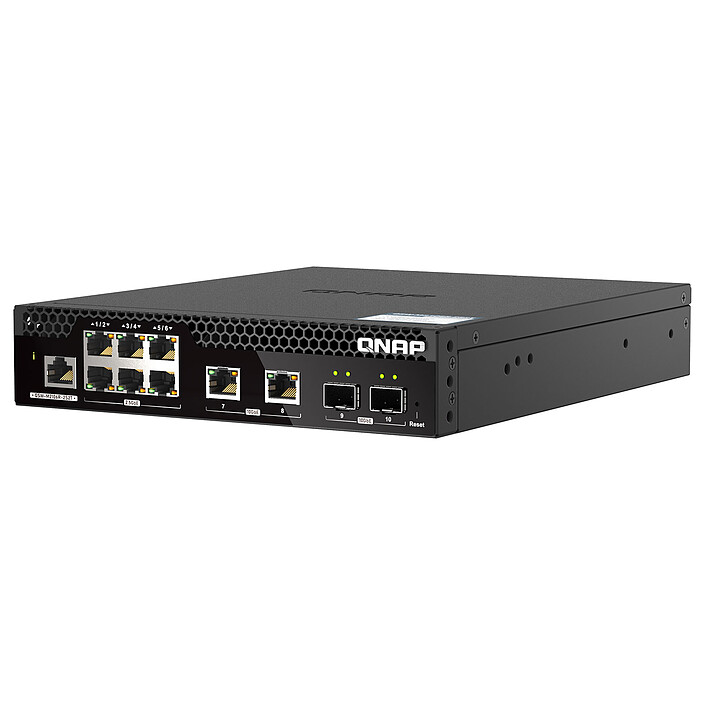

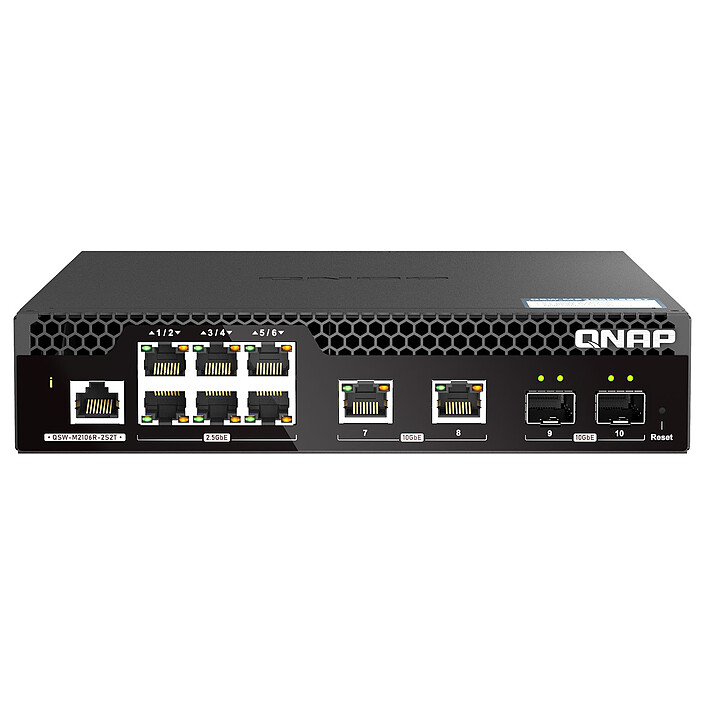

QNAP QSW-M2106R-2S2T
6 port 2.5 GbE + 2 x 10 GbE + 2 x 10 Gbps SFP+ slots manageable web switch
Pictures may differ from actual products
The QNAP QSW-M2106R-2S2T is a manageable Layer 2 web switch that offers 6 x 2.5 Gigabit LAN ports, 2 x 10 GbE ports and 2 x 10 Gbps SFP+ slots. The QSW-M2106R-2S2T is configured via the easy-to-use QNAP Web Swith System (QSS) interface.
6 port 2.5 GbE + 2 x 10 GbE + 2 x 10 Gbps SFP+ slots manageable web switch
Manageable Layer 2 Web Switch with 2.5 GbE and 10 GbE Connectivity
The QNAP Switch QSW-M2106R-2S2T is a manageable Layer 2 web switch that offers 6 x 2.5 Gigabit LAN ports, 2 x 10 GbE ports and 2 x 10 Gbps SFP+ slots. The QSW-M2106R-2S2T is configured via the easy-to-use QNAP Swith System (QSS) web interface.
With its compact and modern design, the QSW-M2106R-2S2T fits perfectly with other devices in the modern digital office. With a half-width design, two QSW-M2106R-2S2Ts can be installed in a 1U rack space to save space. The QSW-M2106R-2S2T is compatible with 10GbE and NBASE-T technologies supporting up to 5 speeds (10G / 5G / 2.5 G / 1G / 100M) to provide faster transmission speeds using existing Cat 5e and 6a cables.
Flexible Deployment
The QSW-M2106R-2S2T provides two 10GbE SFP+ ports, two 10GbE ports and eight 2.5 Gigabit ports to connect different devices and establish high-speed hybrid networks. Thanks to the SFP+ interfaces, it is possible to use DAC (direct attach copper) cables to connect directly to SFP+ devices. Alternatively, you can use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T devices via Category 6, 5 or 5e RJ45 cabling. The switching capacity of the QSW-M2106R-2S2T is 80 Gbps, which guarantees the full potential of each port.QSS Dashboard
The QSW-M2106R-2S2T uses the QNAP Switch System (QSS) with an easy-to-use web-based graphical user interface (GUI) full of value-added features to simplify network configuration and management.
The QSW-M2106R-2S2T provides bandwidth and packet control functions (including LACP, VLAN, QoS and IGMP Snooping) to boost network performance through IP bundling and bandwidth management. It also has powerful system and security features (including ACL, LLDP, RSTP, and Flow Control) to help administrators improve network reliability at the network level.It also has powerful system and security features (including ACL, LLDP, RSTP and Flow Control) to help administrators improve network reliability through access controls, troubleshooting, loop prevention and packet loss avoidance.
Select your criteria
General information |
Product name |
QNAP QSW-M2106R-2S2T |
Brand |
QNAP | |
Model |
QSW-M2106R-2S2T | |
Technical specifications |
Number of ports |
10 |
Network standard(s) |
10 Gbps Gigabit Ethernet (10 GbE) | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
Number of GBIC ports |
2 | |
Rackable |
Yes | |
Manageable |
Yes | |
Administration level |
Level 2 | |
SNMP |
No | |
PoE (Power over Ethernet) |
No | |
Width |
207 mm | |
Depth |
248.8 mm | |
Height |
43.3 mm | |
Weight |
1.53 kg | |
Consumption |
40 W | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all QNAP products
Product referenced on 17 Mar 2023
For the moment, there are no customer reviews.Write a review
