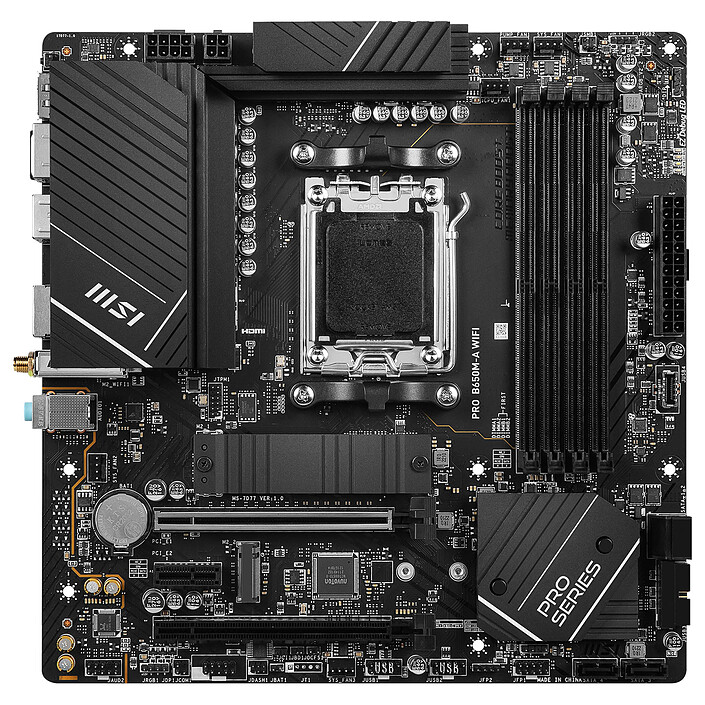

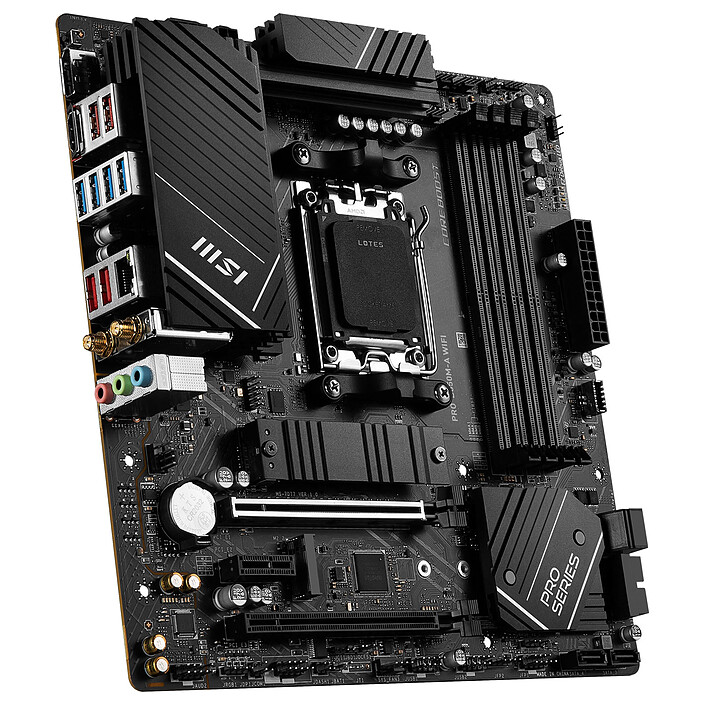

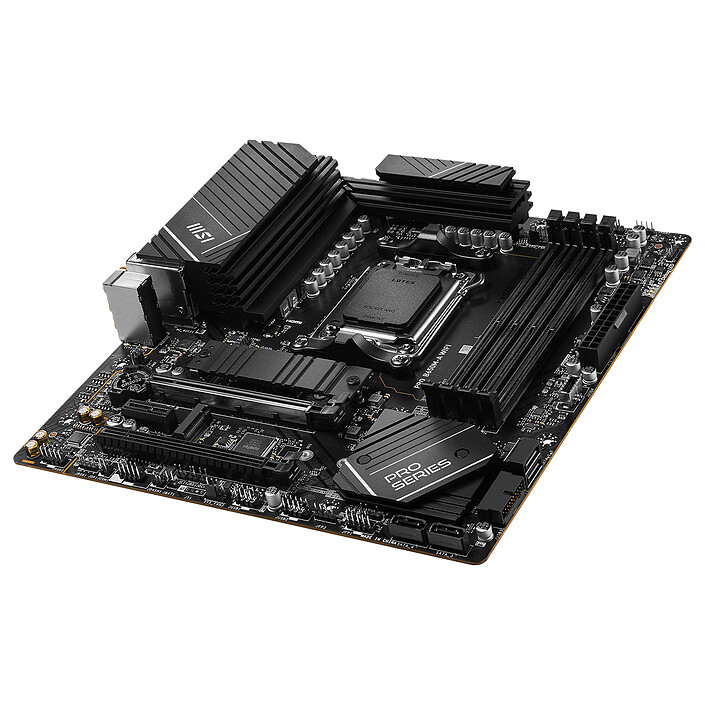

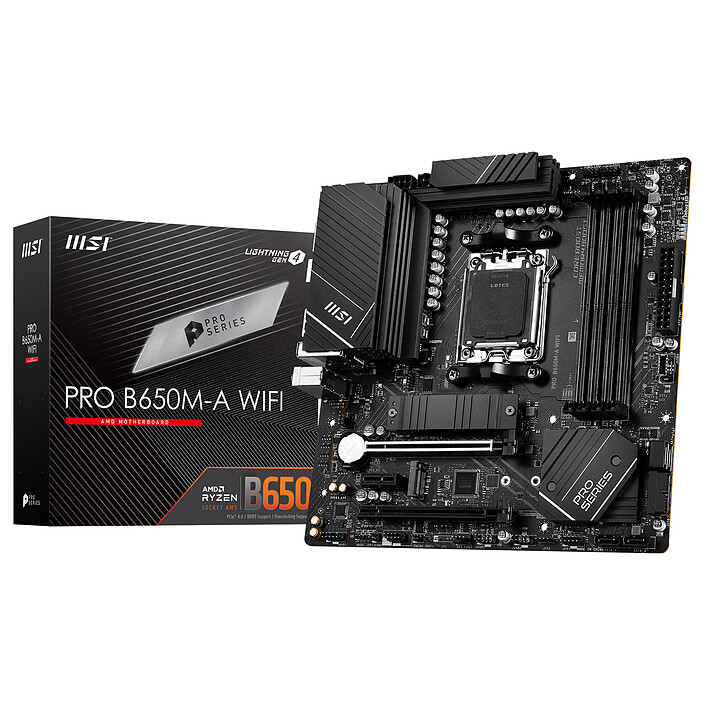

MSI PRO B650M-A WIFI
Micro ATX Socket AM5 motherboard AMD B650 - 4x DDR5 - M.2 PCIe 4.0 - USB 3.1 - PCI-Express 4.0 16x - LAN 2.5 GbE - Wi-Fi 6E
Pictures may differ from actual products
The PRO B650M-A WIFI is a versatile motherboard for AMD Ryzen processors on socket AM5. It will enable you to design a high-performance gamer PC based on the most powerful components on the market, such as AMD Ryzen 7000 processors and PCI-Express 4.0 16x graphics cards.
Micro ATX Socket AM5 motherboard AMD B650 - 4x DDR5 - M.2 PCIe 4.0 - USB 3.1 - PCI-Express 4.0 16x - LAN 2.5 GbE - Wi-Fi 6E
Available from 203€95 on the outlet deals
Unleash the potential of your processor
The MSIPRO B650M-A WIFI is a versatile motherboard for AMD Ryzen processors on socket AM5. It will enable you to design a high-performance gamer PC based on the most powerful components on the market, such as AMD Ryzen 7000 processors, PCI-Express 4.0 16x graphics cards, M.2 NVMe PCIe 4.0 disks and DDR5 RAM. The PRO B650M-A WIFI motherboard from MSI's PRO range meets the demands of professionals by combining durability with essential functionality.
PRO B650M-A WIFI
- Support for AMD Ryzen 7000 series desktop processors
- DDR5 7200 MHz memory support
- Core Boost: Premium layout and digital power supply design to support more cores and deliver better performance
- Memory Boost: Advanced technology to deliver pure data signals for optimum performance, stability and compatibility
- High-end thermal solution: 7 W/mK pads, additional thermal pads and M.2 Shield Frozr are designed for a high-performance system.
- Ultra-fast data transfer with PCIe 4.0 and M.2 Lightning PCIe 4.0 x4 connectors
- 2.5 GbE LAN connector and Wi-Fi 6E standard for a fast, stable connection
- Mystic Light technology for RGB LED backlighting with 16.7 million colours
- Audio Boost for perfect audio quality and a more immersive experience
Play in the best conditions
The high frequencies of AMD Ryzen Zen 4 processors are a real advantage when it comes to gaming. Choose the right components and design a super-powerful Gaming PC that's latency-free and ready when you are. Get the edge over your opponents and reach new heights with AMD Ryzen 7000 processors and AMD AM5 motherboards.
AMD Ryzen 7000 processors deliver performance in every area. They will enable you to create faster, achieve your objectives more quickly and save time all the time. Whether it's 3D rendering or exporting large video files, design, deliver and get the job done with PCIe 5.0 speed and storage, multiple processing threads and dedicated video accelerators.
Select your criteria
General information |
Product name |
MSI PRO B650M-A WIFI |
Brand |
MSI | |
Model |
PRO B650M-A WIFI | |
Processor |
Processor support |
AMD AM5 |
Number of CPUs supported |
1 | |
Chipset |
Chipset |
AMD B650 |
Memory |
Memory format |
4 X DIMM 288 pins (DDR5) |
Memory Frequency(ies) |
DDR5 6200 MHz | |
| DDR5 6400 MHz | ||
| DDR5 6600 MHz | ||
| DDR5 6800 MHz | ||
| DDR5 7000 MHz | ||
| DDR5 7200 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 5800 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 5400 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5000 MHz | ||
| DDR5 4800 MHz | ||
Memory type |
DDR5 | |
Memory technology |
Dual Channel | |
Maximum RAM capacity per slot |
48 GB | |
Maximum RAM capacity |
192 GB | |
Graphic |
Integrated graphics controller |
No |
Compatible graphics core integrated in the CPU |
Yes | |
Expansion slots |
Graphic connector(s) |
1 X PCI Express 4.0 x16 (x4) |
| 1 X PCI Express 4.0 x16 | ||
Number and Type of slots |
1 X PCI Express 3.0 x1 | |
Audio |
Audio Chipset |
Realtek ALC897 |
Number of audio channels |
8 | |
Network |
Number of ports/Ethernet controler |
1 X Realtek RTL8125BG |
Network standard(s) |
Wi-Fi 6E | |
| 2.5 Gbps Gigabit Ethernet (2.5 GbE) | ||
| Bluetooth 5.2 | ||
Wi-Fi |
Yes | |
Storage |
RAID supported |
Yes |
Hard drives connectors |
2 X M.2 - PCI-E 4.0 x4 | |
| 4 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Number of M.2 slot(s) |
2 | |
Supported RAID Modes |
10 | |
| 1 | ||
| 0 | ||
Connectivity |
Motherboard connector location |
Standard connectors (on the motherboard) |

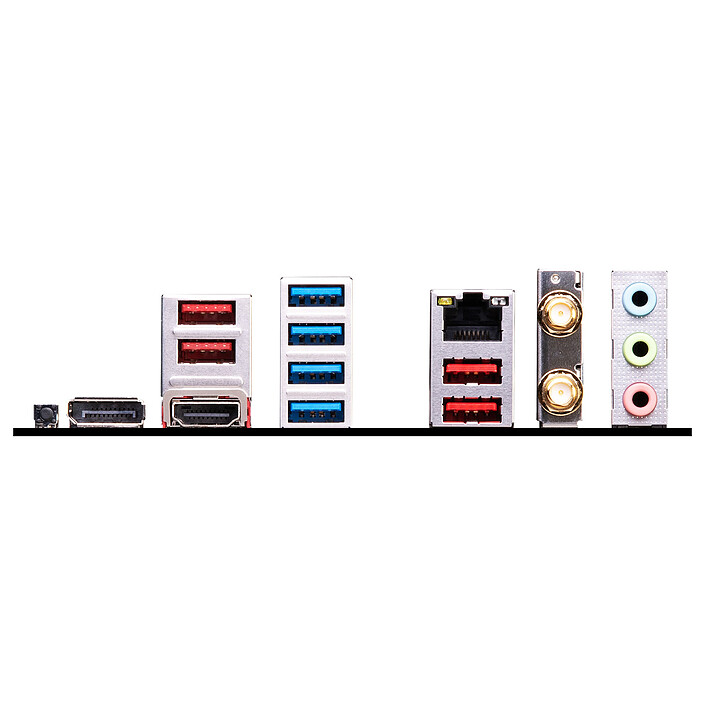

Rear panel connectors |
1 X HDMI Female | |
| 1 X DisplayPort Female | ||
| 4 X USB 3.1 | ||
| 4 X USB 3.0 | ||
| 1 X RJ45 Female | ||
| BIOS Flash Update | ||
| 3 X 3.5mm Jack Female Stereo | ||
| 2 X SMA | ||
Additional connectors |
2 X Addressable LED RGB connector(s) | |
| Front panel audio | ||
| Chassis intrusion | ||
| 1 X +12V (Power supply P4) | ||
| 1 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 1 X Serial (RS-232) | ||
| 4 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 2 X LED RGB connector(s) | ||
| 1 X Internal USB 3.1 Type C | ||
Physical characteristics |
Motherboard format |
Micro ATX |
Length |
243.84 mm | |
Width |
243.84 mm | |
Equipment |
Advanced overclocking features |
Yes |
Use |
Gamer | |
| Multimedia | ||
| Office | ||
LED |
Yes | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all MSI products
Product referenced on 10 Oct 2022
