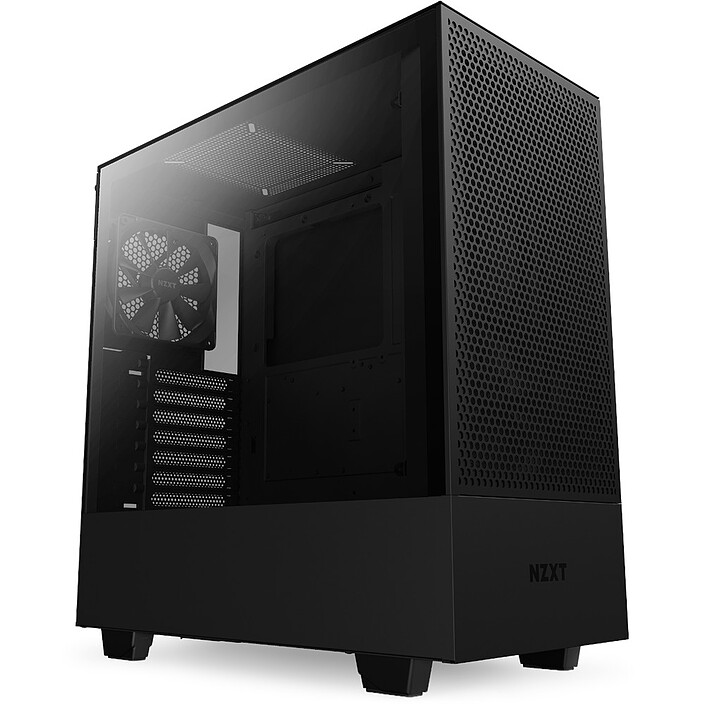

NZXT H510 Flow Black
Mid-tower case with tempered glass side window and RGB backlight
Last price 119€95
Elegance, better airflow, silence: a case worthy of the NZXT H series
Just like the other NZXT H-Series enclosures, the H510 Flowis designed to give you incredible performance with maximum silence. It's compact, elegant and like other H-Series enclosures, with aperforated front panel, optimized for airflow, a beautiful side panel and an elegant design.It is ready for the configuration of your dreams, with a perforated front panel, optimized for better air circulation, a superb tempered glass side panel and RGB lighting. It can accommodate a Mini-ITX, Micro ATX, ATX motherboard with a 381mm graphics card. Fully compliant with the H-Series standards, it includes a removable heatsink bracket, easy-to-use SSD trays and a patented cable management system for a smarter, easier building experience than ever before. It also features the new version of the Smart Device V2 digital controller. This controller now incorporates a faster microprocessor for NZXT CAM control and supports two channels of HUE 2 RGB lighting as well as three fan channels supporting voltage regulated or PWM fans.
Always be in control
Not only is theNZXT H510 Flowbeautiful in design, it's also ideal for creating your own PC. It's compact, yet designed to accommodate Mini-ITX, Micro ATX and ATX motherboards. It gives you the freedom to install a graphics card up to 381mm in length. This high-end mid-tower case features the now famous NZXT CAM which controls RGB lighting and fan cooling performance. The NZXT CAM's intelligent noise reduction function optimises the acoustic environment of your PC. It is able to detect the noise level and select the most appropriate settings.
A sleek, modern design that's still functional
The compact, sleek and modern design of theH510 Flow makes it a high-end case you'll want to show off. Its perforated front panel and tempered glass side panel make the most of your setup. For an even more exciting and impressive effect NZXT has included two RGB LED strips. The RGB lighting adds a unique aesthetic to your entire setup and the patented cable management system developed by NZXT makes it easy to install and expand the system. Finally, you can count on the USB 3.1 Gen 2 Type-C and USB 3.1 Gen 1 Type-A ports, as well as 7 PCI slots to take full advantage of your PC.
Main features:
- Medium tower case

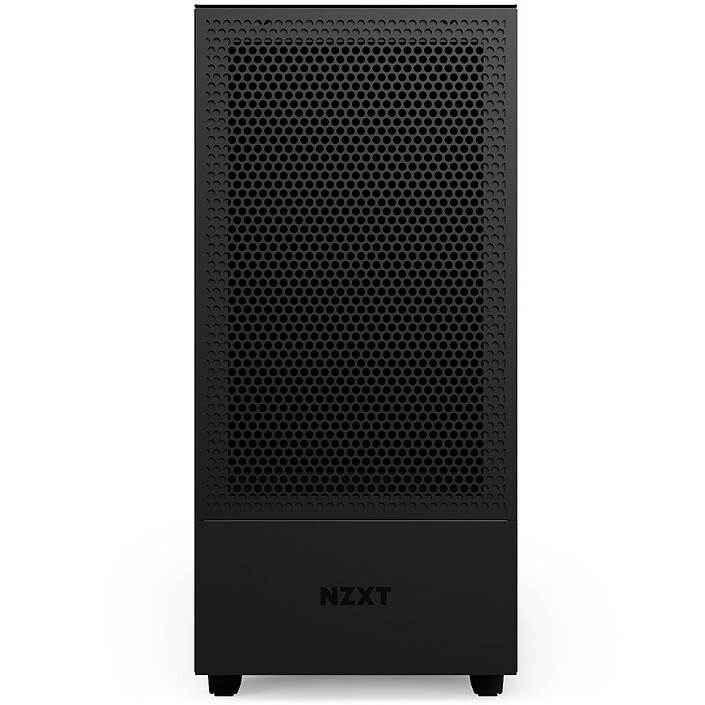

- With 1 perforated front panel
- With 1 tempered glass side panel
- With 2 RGB LED strips
- ATX / Micro-ATX / Mini-ATX motherboard compatible
- 2 + 1 3.5" and 2 + 1 2.5" bays
- 7 expansion slots
- Front cooling: 2 x 120 / 2 x 140 mm
- Top cooling: 1 x 120 / 1 x 140 mm (including 1 Aer F120 120 mm fan)
- Rear cooling: 1 x 120 mm (1 Aer F120 120 mm fan included)
- Watercooling compatible
- Control panel: 1 x USB 3.1 Gen 2 Type-C, 1 x USB 3.1 Gen 1 Type-A ports and 1 x microphone/headset
- Possibility to install a graphics card up to 381 mm in length
- Colour: Black
Select your criteria
General information |
Product name |
NZXT H510 Flow Black |
Brand |
NZXT | |
Model |
CA-H52FB-01 | |
Main characteristics |
Graphic card max. length |
381 mm |
Max height CPU fan |
165 mm | |
Power format |
ATX/EPS | |
Case format |
Mid tower | |
Use |
Office | |
| Gamer | ||
Material |
Plastic | |
| Tempered glass | ||
| Steel | ||
Motherboard format |
ATX | |
| Micro ATX | ||
| Mini ITX | ||
Power supply supplied |
No | |
Design |
Case color |
Black |
Front color |
Black | |
Dust filters |
2 | |
Glass |
Yes | |
Tempered glass |
Yes | |
LED RGB |
Yes | |
Water cooling compatible |
Yes | |
Expansion slots |
Number of PCI slots |
7 |
Low profile |
No | |
Number of visible 3.5" slots |
0 | |
Number of invisible 3.5" slots |
2 | |
Number of 2.5" slots |
2 | |
Number of 2.5"/3.5" slots |
1 | |
Number of visible 5.25" slots |
0 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Front connectivity |
Location of expansion ports |
Top |
Connector(s) available |
1 X Headphone (3.5mm Jack Female) | |
| 1 X Microphone (3.5mm Jack Female) | ||
| 1 X USB 3.0 | ||
| 1 X USB 3.1 Type C | ||
Cooling |
Number of rear fan(s) slots |
1 X 120mm |
Quantity of rear fan(s) supplied |
1 | |
Number of front fan(s) slots |
2 X 120 or 140mm | |
Quantity of front fan(s) supplied |
1 | |
Number of above fan(s) slots |
1 X 120 or 140mm | |
Quantity of above fan(s) supplied |
0 | |
Water cooling |
AIO radiator compatibility |
280mm radiator |
| 240mm radiator | ||
| 120mm radiator | ||
Front AIO slot(s) |
240mm radiator | |
| 280mm radiator | ||
Rear AIO slot(s) |
120mm radiator | |
Physical characteristics |
Width |
210 mm |
Height |
460 mm | |
Depth |
428 mm | |
Weight |
6.6 kg | |
Volume |
41.3 l | |
Warranties |
Commercial warranty |
Seller 2 years |
Legal warranty |
See terms & conditions |
See all NZXT products
Product referenced on 28 Dec 2021
