correct case
The case is of very good quality, the materials are good, the airflow seems good, and the cable management is well done.
The only thing I can say is that the fans are not rgb...
Review automatically translated
Those were the good old days! This product is no longer on sale
Pictures may differ from actual products

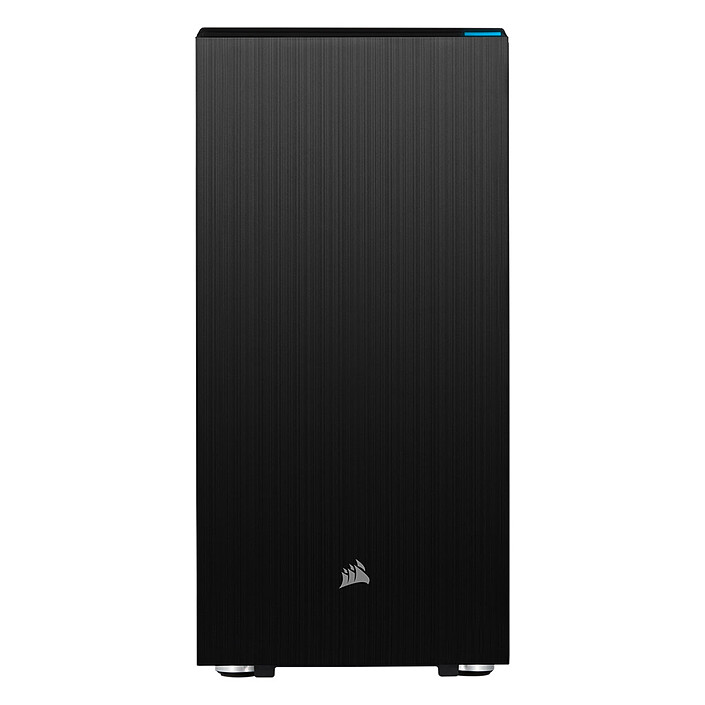

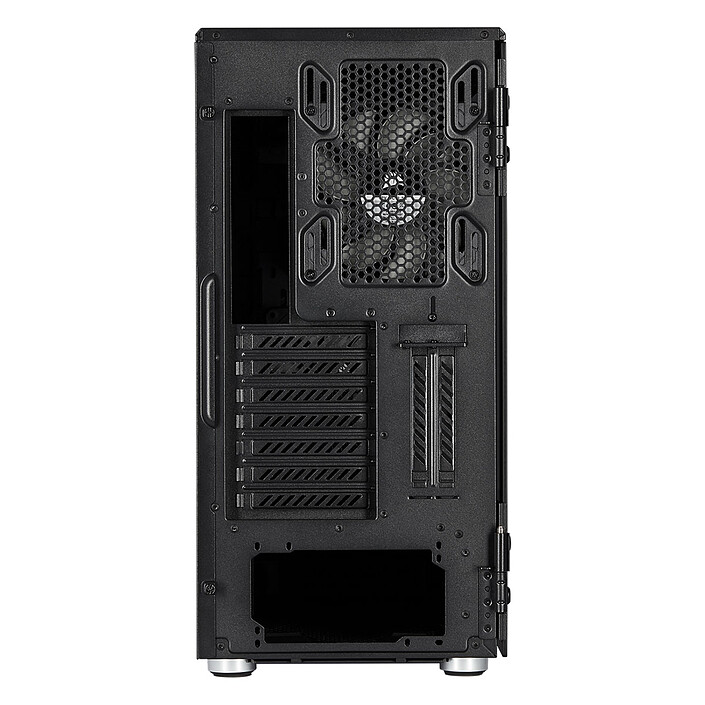

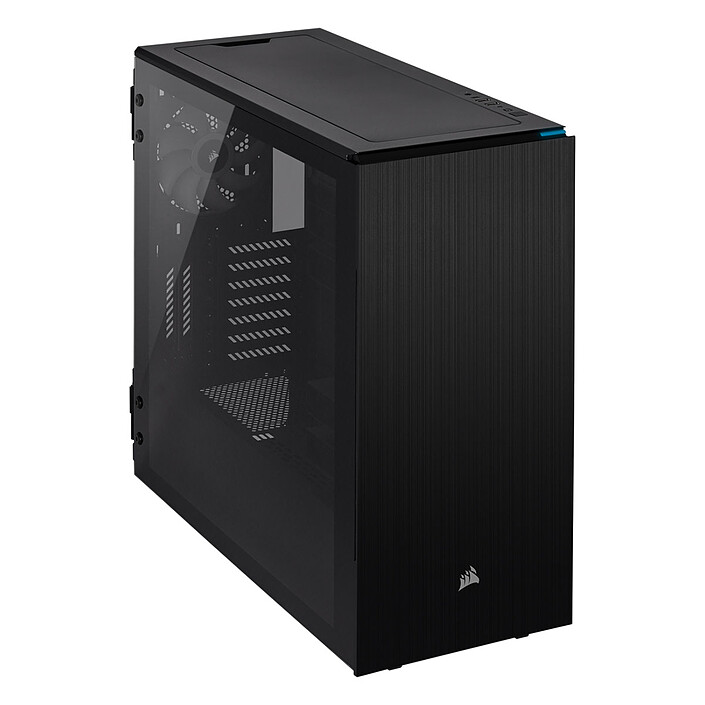

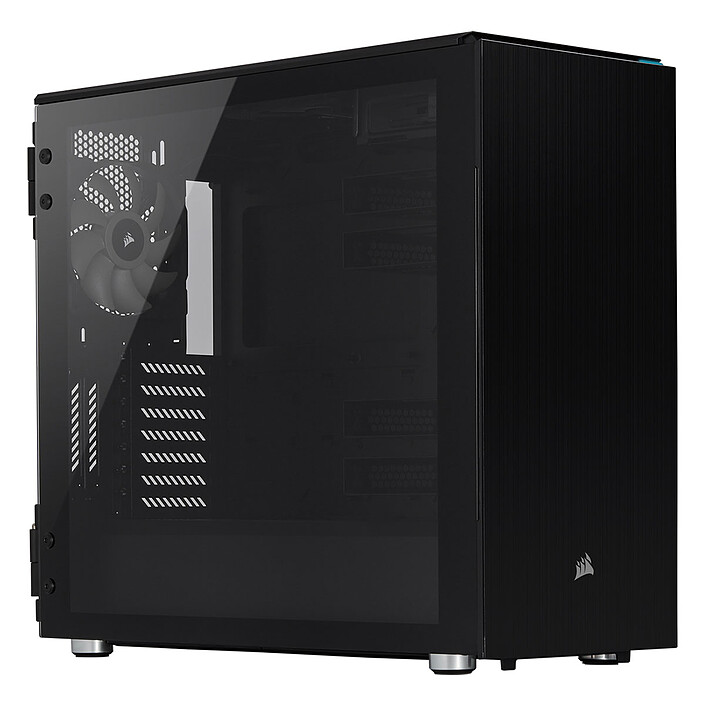

Corsair Carbide Series 678C Black
Medium tower case with tempered glass front and side panels
Last price 199€94
Holy Moly!
Equivalent products suggestions:
Overview
Sophisticated styling and maximum efficiency
The Corsair Carbide Series 678C is an ultra-functional enclosure designed to create efficient and powerful systems with a clean look. It is a quietly operating mid-tower ATX case that combines sophisticated styling with a variety of cooling and storage options. Offering superb viewing of your components as well as thoughtful cooling, you'll be able to upgrade its performance with a variety of available slots. The interior of the Corsair Carbide Series 678C is intuitive and simple to assemble your system.
Efficient cooling
The Corsair Carbide Series 678C has plenty of cooling capacity. It can accommodate up to nine 120mm or eight 140mm fans, as well as multiple radiators up to 420mm in size. Take advantage of the benefits associated with Direct Airflow cooling technology and the generous space available for radiators on the front, top and rear of the case.
A PWM fan repeater allows control of three included SP140 PWM fans, with room to power three more. Reduce fan speed when you want to be quiet, or increase it for maximum performance. All from a single 4-pin PWM socket on your motherboard.
Quiet and scalable
This medium tower case is also exceptionally quiet. The EVA foam in the front, top and side panels muffles the noise from all your components. If you prefer to favor high airflow, switch to the included dust filter on the top panel.
The 678C enclosure lets you manage your storage as you see fit. Its ingenious design allows you to install up to 1 x 5.25" drive, 6 x 3.5" hard drives and 3 x 2.5" hard drives. The flexible HDD/ODD design includes six modular trays that can be placed in eight mounting locations to give you exactly the configuration you want.
A controlled environment

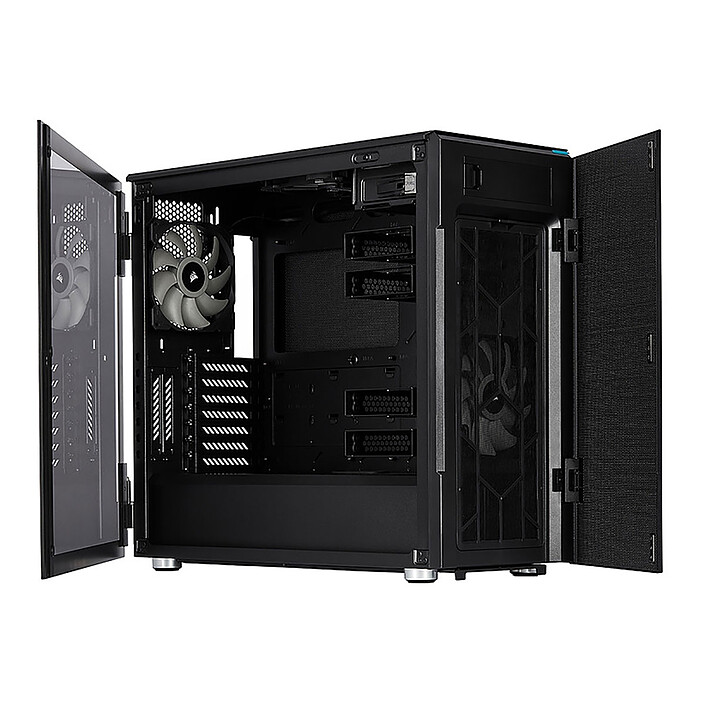

With hinged tempered glass front and side panels (for easy, tool-free access), both of which have a clean, minimalist style, your PC will be unobtrusive while remaining exceptionally easy on the eye. Internal visibility will provide a superb view of your components. The unobtrusive cable routing compartment makes it easy for builders to create sleek machines. Heavy-duty steel drive trays provide ample room for additional drives.
Like most Carbide Series enclosures, the Corsair Carbide Series 678C is designed to provide intuitive cable routing. These cable routing compartments are synonymous with streamlined assemblies. Flux Direct Airflow Path technology moderates the hottest components in the system, without the disk bays getting in the way of airflow.
Key Features :
- Medium tower enclosure
- Maximum graphics card length: 370 mm
- Maximum CPU cooler height: 170mm
- Maximum power supply length: 225 mm
- Expansion slots: 7 + 2
- Bays: 6 x 3.5" / 3 x 2.5" / 1 x 5.25
- Fans: 3 x 120 mm or 2 x 140 mm on the front(1 x 140 mm fan included), 3 x 120 or 3 x 140 mm on the top and 1 x 120 mm or 1 x 140 mm (1 x 140 mm fan included) on the back
- Watercooling compatibility (Corsair): H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i
- Dust filters on front and power supply intakes
- Front I/O panel that contains: 1 USB 3.1 Type C port, 2 USB 3.0 ports, headphone/mic jacks, start and reset buttons
- Model with tempered glass front and side panels
Specifications
Select your criteria
General information |
Product name |
Corsair Carbide Series 678C Black |
Brand |
Corsair | |
Model |
CC-9011167-WW | |
Main characteristics |
Graphic card max. length |
370 mm |
Max height CPU fan |
170 mm | |
Power supply max. length |
225 mm | |
Power format |
ATX/EPS | |
Case format |
Mid tower | |
Use |
Gamer | |
Material |
Plastic | |
| Tempered glass | ||
| Steel | ||
Motherboard format |
ATX | |
| E-ATX | ||
| Micro ATX | ||
| Mini ITX | ||
Power supply supplied |
No | |
Design |
Case color |
Black |
Front color |
Black | |
Dust filters |
3 | |
Glass |
Yes | |
Tempered glass |
Yes | |
LED RGB |
No | |
ARGB LED |
No | |
Water cooling compatible |
Yes | |
Expansion slots |
Number of PCI slots |
9 |
Low profile |
No | |
Number of visible 3.5" slots |
0 | |
Number of invisible 3.5" slots |
6 | |
Number of 2.5" slots |
3 | |
Number of 2.5"/3.5" slots |
0 | |
Number of visible 5.25" slots |
1 | |
Number of invisible 5.25" slots |
0 | |
Number of Slot-in slim 5.25'' slots |
0 | |
Number of Slim 5.25'' slots |
0 | |
Front connectivity |
Location of expansion ports |
Top |
Connector(s) available |
Headphone (3.5mm Jack Female) | |
| Microphone (3.5mm Jack Female) | ||
| 2 X USB 3.0 | ||
| 1 X USB 3.1 Type C | ||
Cooling |
Number of rear fan(s) slots |
1 X 120 or 140mm |
Quantity of rear fan(s) supplied |
1 | |
Number of front fan(s) slots |
2 X 140mm | |
| 3 X 120mm | ||
Quantity of front fan(s) supplied |
1 | |
Number of above fan(s) slots |
3 X 120 or 140mm | |
Quantity of above fan(s) supplied |
1 | |
Number of underneath fan(s) slots |
2 X 120 or 140mm | |
Water cooling |
AIO radiator compatibility |
120mm radiator |
| 140mm radiator | ||
| 240mm radiator | ||
| 280mm radiator | ||
| 360mm radiator | ||
| 420mm radiator | ||
Front AIO slot(s) |
240mm radiator | |
| 280mm radiator | ||
| 360mm radiator | ||
Above AIO slot(s) |
240mm radiator | |
| 280mm radiator | ||
| 360mm radiator | ||
| 420mm radiator | ||
Rear AIO slot(s) |
120mm radiator | |
| 140mm radiator | ||
Physical characteristics |
Width |
239 mm |
Height |
497 mm | |
Depth |
549 mm | |
Weight |
13.05 kg | |
Warranties |
Commercial warranty |
Seller 3 years |
Legal warranty |
See terms & conditions |
See all Corsair products
Product referenced on 25 Apr 2019
Customer reviews
Global rating
9/10
based on 3 reviews
Editorial and moderation guide
-
67%2 reviews
-
33%1 review
-
0%
-
0%
-
0%
-
Number of reviews: 4 Average rating: 7
-
Number of reviews: 9 Average rating: 9
New case
This case weighs a lot with the glass window and all the components once installed but nice design, nice cable management.
The fan configuration is a real plus.
Good idea for the 2.5' HDD enclosures at the back.
The only problem with the 3.5" HDDs is that the rack screws can get in the way when using a bent sata cable.Review automatically translated -
Number of reviews: 13 Average rating: 10
Perfect
Very practical case with glass door for easy access to the heart of the PC for easy installation of other cards/wires/extensions
It is easy to clean and the dust filters are easy to remove/replace.
a big thumbs up for the magnetic filters
It is not too noisy.
The only small drawback is that it is black and therefore gets dusty very quicklyReview automatically translated
