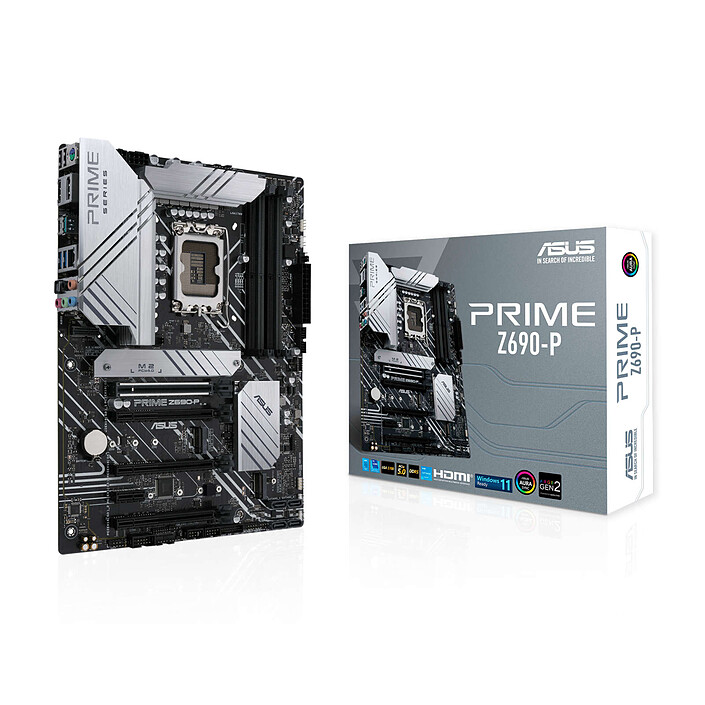

ASUS PRIME Z690-P

Top motherboard but does not accept older video cards

Acquired to replace my old Gigabyte GA-Z77-DS3H to upgrade to Windows 11, this card is perfect. Coupled with an Intel Core i9-12900KF and 32GB DDR5, the ASUS system is very powerful.

The only downside is that it refused to accept my old Gigabyte GeForce GTX 660 video card and the system wouldn't boot, even though the card worked perfectly on my old setup. I spent quite a bit of time trying to figure out the problem because there was no system alarm buzzer built in and no LED either. I had to add a buzzer to realise that the problem was with my video card.

Back to LDLC for verification where they confirmed that everything was working perfectly...with a slightly newer video card (GTX 1050). So I had to buy a new video card (GTX 1160) and, since then, no more problems.

I'm very happy with the service and I'm very pleased with the quality of the product.

General information	Product name	ASUS PRIME Z690-P
	Brand	ASUS ASUS
	Model	90MB19Q0-M0EAY0
Processor	Processor support	Intel 1700
Processor	Number of CPUs supported	1
Chipset	Chipset	Intel Z690 Express
Memory	Memory format	4 X DIMM 288 pins (DDR5)
	Memory Frequency(ies)	DDR5 6000 MHz
		DDR5 5800 MHz
		DDR5 5600 MHz
		DDR5 5400 MHz
		DDR5 5200 MHz
		DDR5 5000 MHz
		DDR5 4800 MHz
	Memory type	DDR5
	Memory technology	Dual Channel
	Maximum RAM capacity per slot	48 GB
	Maximum RAM capacity	192 GB
Graphic	Integrated graphics controller	No
Graphic	Compatible graphics core integrated in the CPU	Yes
Expansion slots	Graphic connector(s)	2 X PCI Express 3.0 16x (x4)
		1 X PCI Express 4.0 x16 (x4)
		1 X PCI Express 5.0 x16
	Number and Type of slots	1 X PCI Express 3.0 x1
Audio	Audio Chipset	Realtek S1220A
Audio	Number of audio channels	8
Network	Number of ports/Ethernet controler	Integrated - 2.5 GbE
	Network standard(s)	2.5 Gbps Gigabit Ethernet (2.5 GbE)
	Wi-Fi	No
Storage	RAID supported	Yes
	Hard drives connectors	4 X Serial ATA 6Gb/s (SATA Revision 3)
		1 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s
		2 X M.2 - PCI-E 4.0 x4
	Supported RAID Modes	10
		5
		1
		0
Connectivity	Rear panel connectors	5 X 3.5mm Jack Female Stereo
		1 X Digital audio S/PDIF Optical
		1 X MiniDin 6 Female (PS/2)
		1 X RJ45 Female
		2 X USB 2.0
		2 X USB 3.0
		1 X USB 3.1
		1 X USB 3.2 Type C
		1 X DisplayPort Female
		1 X HDMI Female
	Additional connectors	2 X LED RGB connector(s)
		3 X Addressable LED RGB connector(s)
		1 X TPM
		Front panel audio
		Chassis intrusion
		1 X +12V (Power supply P4)
		1 X +12V (Power supply P8)
		1 X ATX 24 Pin
		1 X Serial (RS-232)
		4 X Internal USB 2.0
		4 X Internal USB 3.0
		1 X Thunderbolt 4
Physical characteristics	Motherboard format	ATX
	Length	305 mm
	Width	234 mm
Equipment	Advanced overclocking features	Yes
	Use	Gamer
	LED	No
Warranties	Commercial warranty	Seller 3 years
Warranties	Legal warranty	See terms & conditions

ATX Socket 1700 Intel Z690 Express Motherboard - 4x DDR5 - SATA 6Gb/s + M.2 PCI-E NVMe - USB 3.2 - PCI-Express 5.0 16x
